NSN 5307-01-083-9640 C6689, CKFH6326, CKFH-632-6

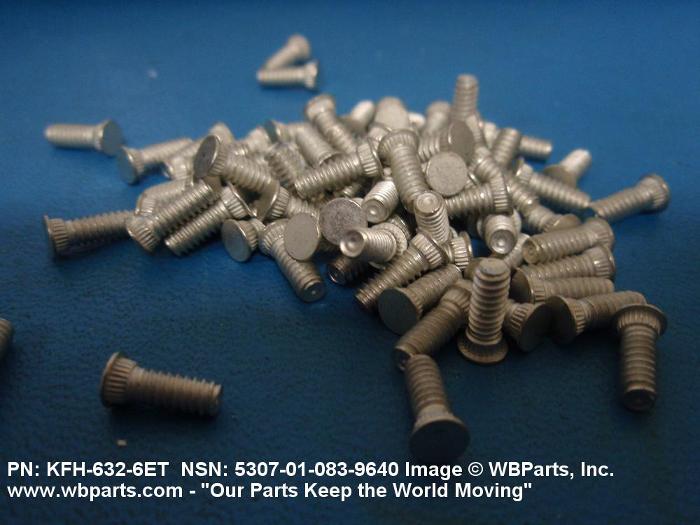

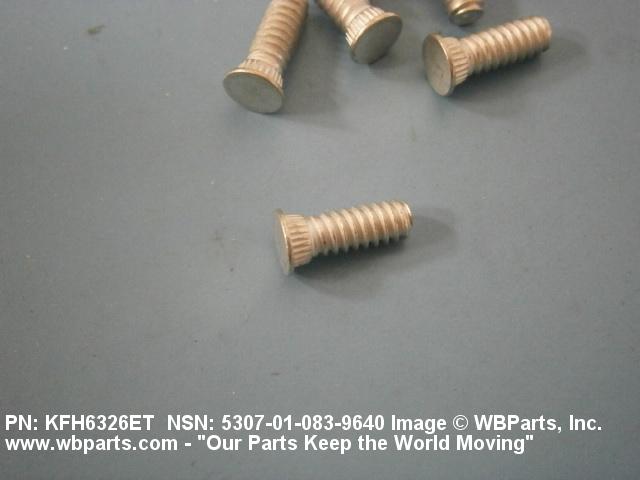

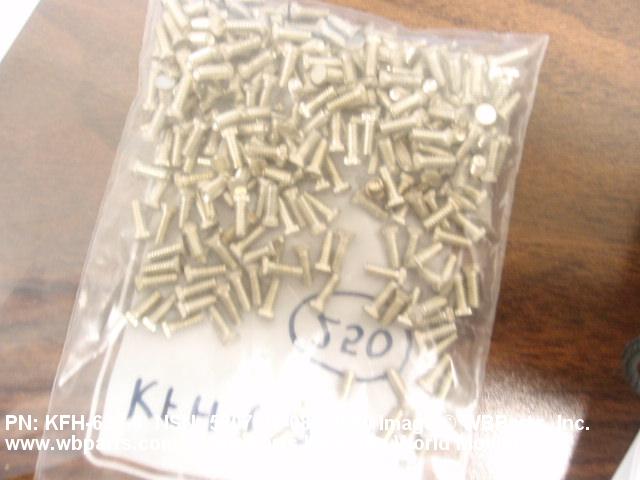

Product Details | SELF-LOCKING STUD
5307-01-083-9640 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: C6689, CKFH6326, CKFH-632-6, KFH6326, KFH-632-6, KFH6326ET, KFH-632-6ET, 82481, 824816, 82481-6, 10116392 , 104709 2-6, 10470926, 4039570-62, 5307-01-083-9640, 01-083-9640, 5307010839640, 010839640, 403957062
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 OCT 1979 | 01-083-9640 | 27783 ( STUD, SELF-LOCKING ) |

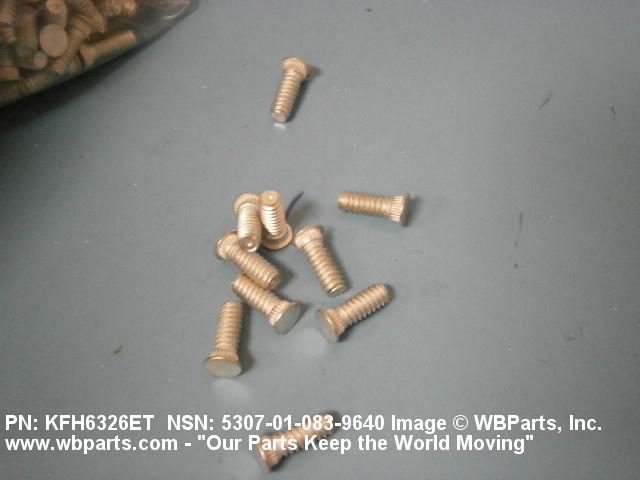

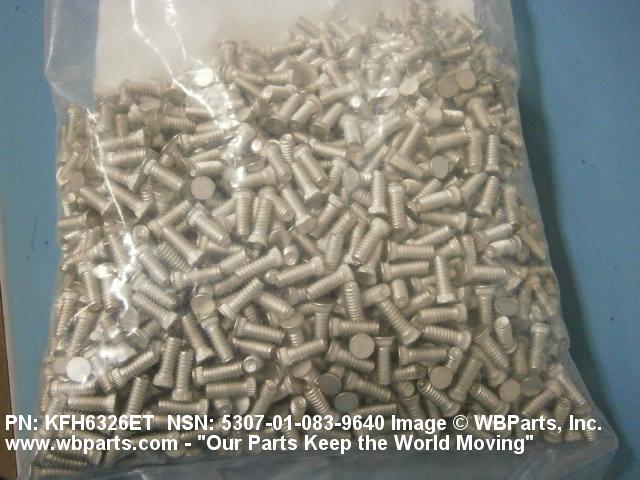

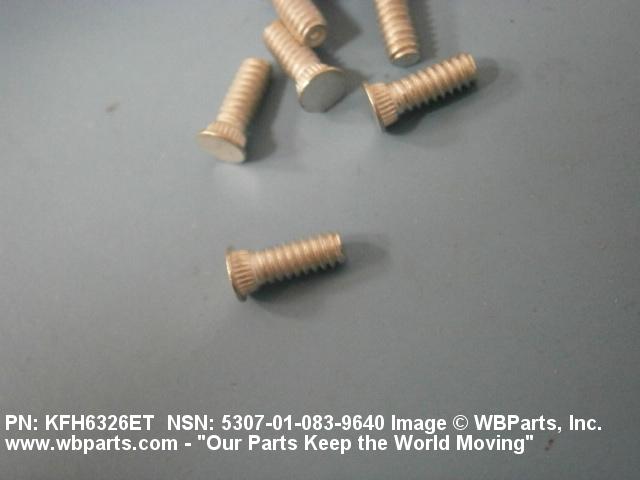

Drawings & Photos | NSN 5307-01-083-9640
Demand History | NSN 5307-01-083-9640
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-01-083-9640 | 2016-04-103 | 618 | DIBBS |
| KFH6326ET | 2012-03-81 | 1500 | United States |
| KFH6326ET | 2011-04-105 | 1000 | United States |
| KFH6326ET | 2011-04-105 | 5000 | United States |
| KFH6326ET | 2011-02-59 | 1000 | United States |
| KFH6326 | 2010-08-235 | 24 | Canada |
| KFH6326 | 2010-01-25 | 3000 | US |
| 5307-01-083-9640 | 2009-06-175 | 10 | US |
Cross Reference | NSN 5307-01-083-9640
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 104709 2-6 | 07031 | TEMPO INSTRUMENT INC DEFENSE ELECTRONICS DIV |
| 104709 2-6 | 48313 | B.C. SYSTEMS INC. |
| 4039570-62 | 07187 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 82481 | 07148 | UNITED TECHNOLOGIES CORP HAMILTON SUNDSTRAND CORP |
| 82481 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| 82481-6 | 07148 | UNITED TECHNOLOGIES CORP HAMILTON SUNDSTRAND CORP |
| 82481-6 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| C6689 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| CKFH-632-6 | 56987 | CAPTIVE FASTENERS CORP |
| KFH-632-6 | 46384 | PENN ENGINEERING & MANUFACTURING CORP. |
| KFH-632-6ET | 46384 | PENN ENGINEERING & MANUFACTURING CORP. |
