NSN 5307-01-032-0643 MS5198910714, MS51989-107-14, 01-032-0643
Product Details | LOCKED IN STUD

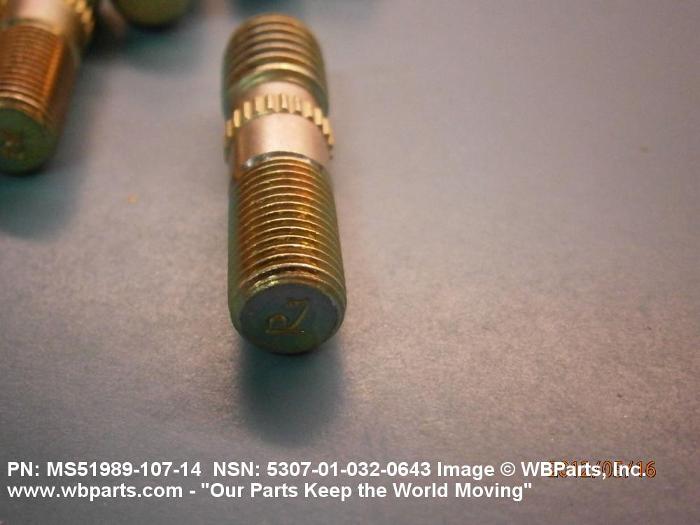

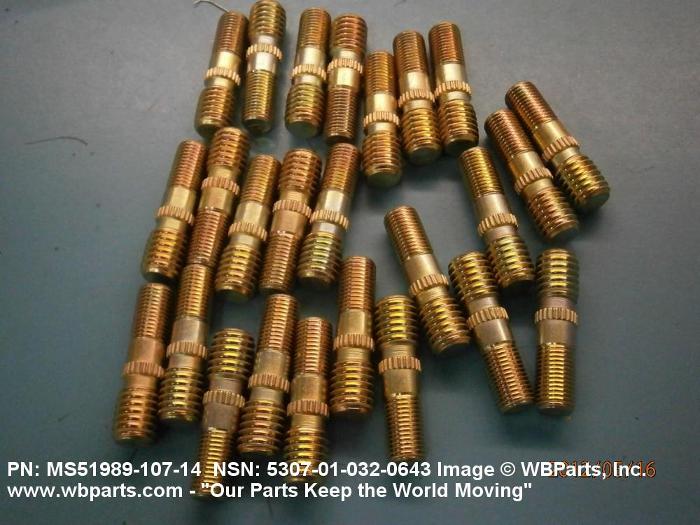

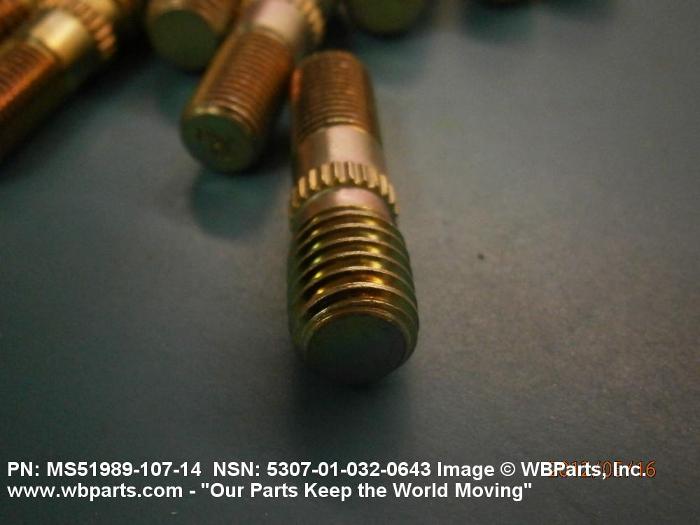

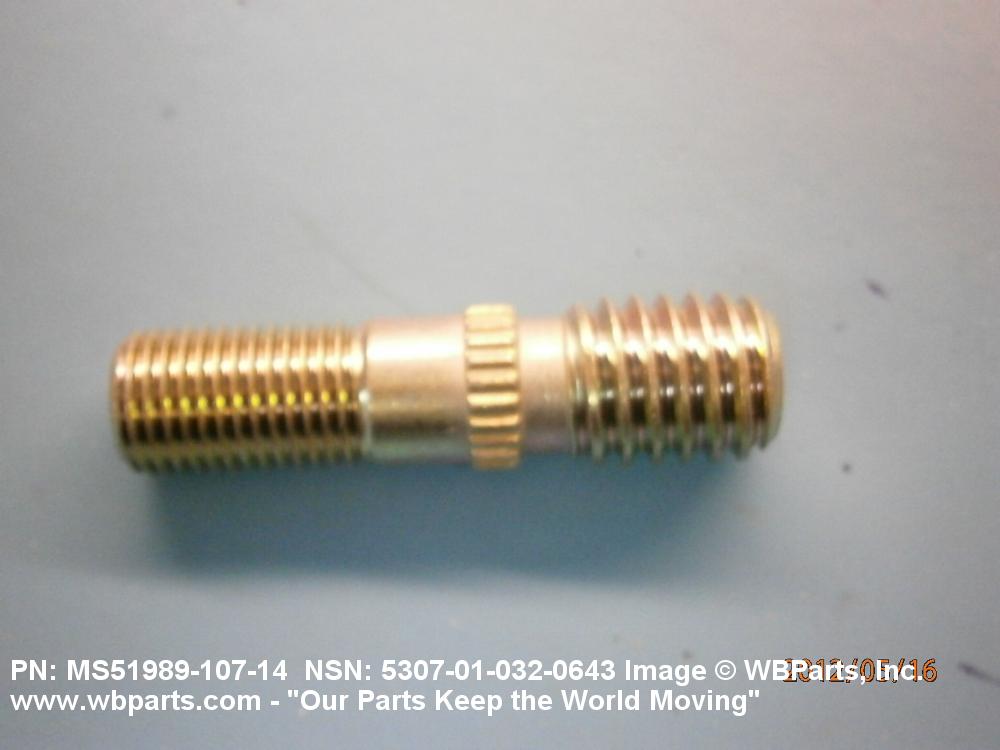

5307-01-032-0643 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
