NSN 5307-00-996-4436 CHS6325, CHS-632-5, FHS6325
Product Details | SELF-LOCKING STUD
5307-00-996-4436 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: CHS6325, CHS-632-5, FHS6325, FHS-632-5, KTS6325, KTS-632-5, 6820079102, 682-007-9102, 7210934P005, 7350021405, 735-00214-05, 10116389 , 1026765, 10267-6-5, 10653205, 16600755014, 16600755-014, 18047749, 1804774-9, 26C806010, 26C806-010, 3301717080, 330-1717-080, 3302796000, 330-2796-000, 4192795, 419279-5, 528662, 5307-00-996-4436, 00-996-4436, 5307009964436, 009964436
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 08 OCT 1965 | 00-996-4436 | 27783 ( STUD, SELF-LOCKING ) |

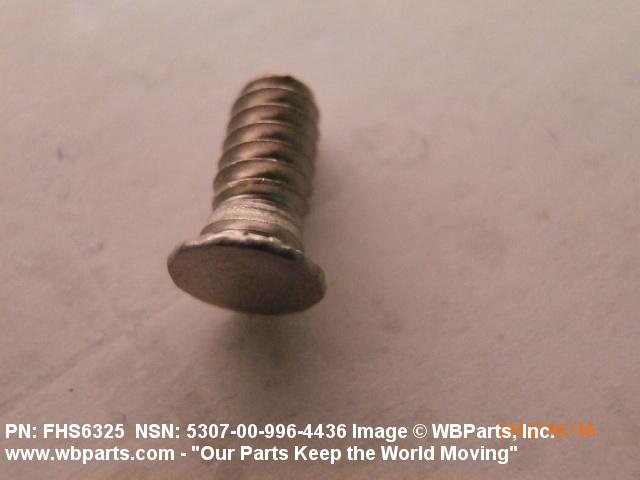

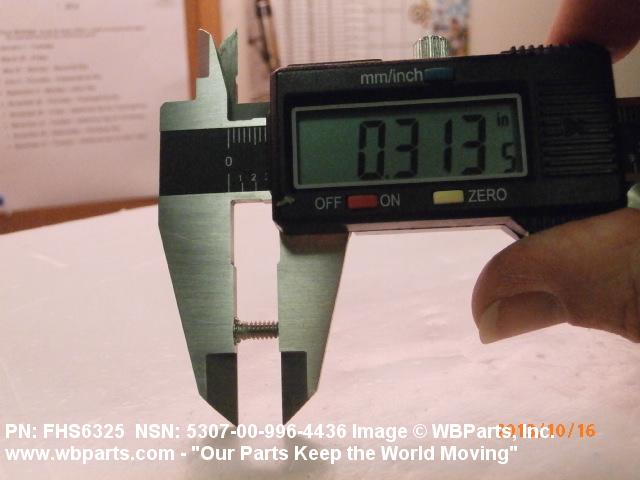

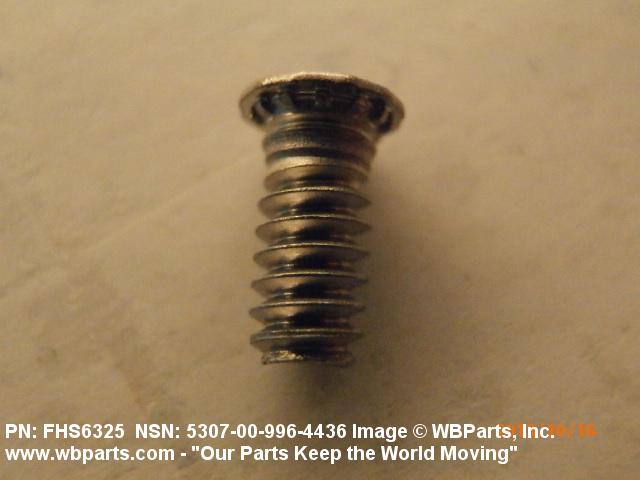

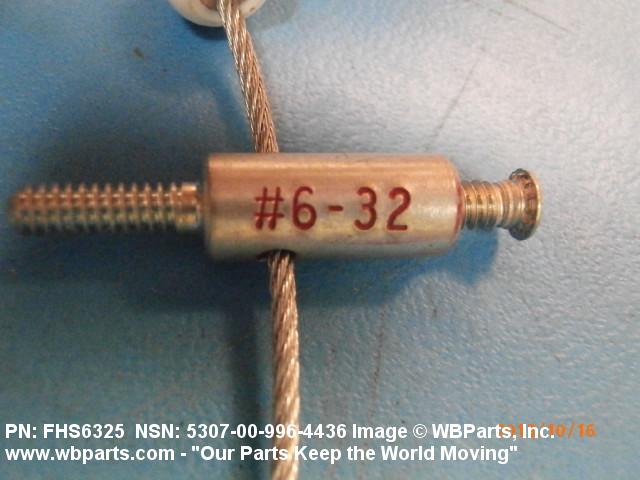

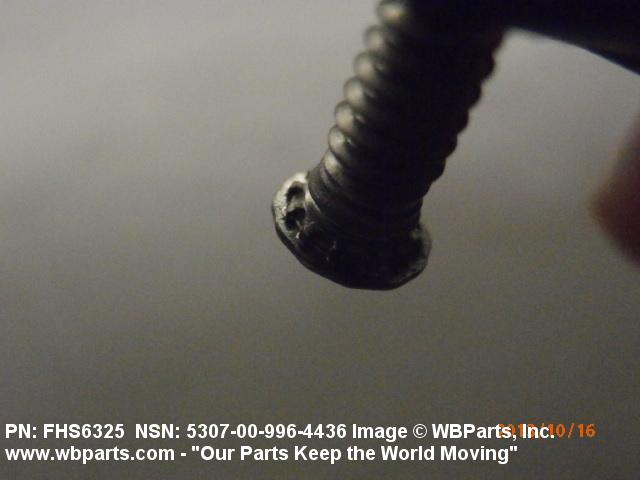

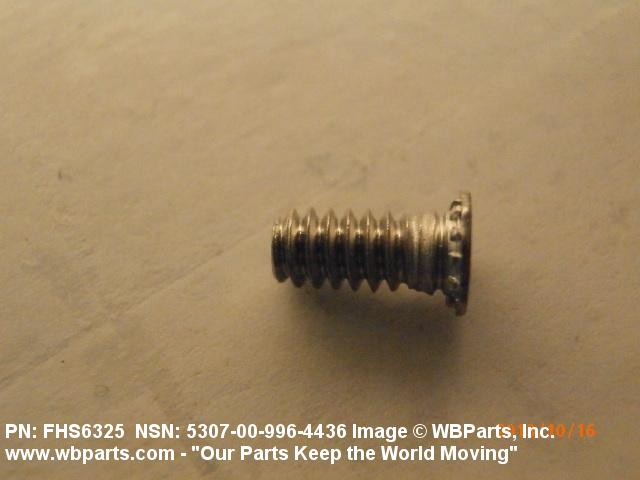

Drawings & Photos | NSN 5307-00-996-4436
Demand History | NSN 5307-00-996-4436
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FHS6325 | 2013-10-281 | 200 | Hong Kong |
| FHS6325 | 2013-07-190 | 50 | Hong Kong |
| FHS6325 | 2011-02-39 | 1000 | US |
| FHS6325 | 2009-01-05 | 10 | US |
Cross Reference | NSN 5307-00-996-4436
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10267-6-5 | 12909 | CARDION INC |
| 10267-6-5 | 20284 | TARGET CORPORATION DBA TARGET |
| 10653205 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 16600755-014 | 28009 | SYPRIS ELECTRONICS, LLC DIV SYPRIS ELECTRONICS, LLC - |
| 1804774-9 | 55973 | HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS |
| 26C806-010 | 04660 | AIL SYSTEMS INC SUB OF EATON CORP |
| 330-1717-080 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 330-2796-000 | 95104 | ALCATEL USA INC. DIV WTPG |
| 330-2796-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 419279-5 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 528662 | 79318 | MEGGITT (NORTH HOLLYWOOD), INC. |
| 682-007-9102 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 7210934P005 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7210934P005 | 24446 | GENERAL ELECTRIC CO |
| 735-00214-05 | 04773 | GTE COMMUNICATION SYSTEMS CORP |
| CHS-632-5 | 56987 | CAPTIVE FASTENERS CORP |
| FHS-632-5 | 46384 | PENN ENGINEERING & MANUFACTURING CORP. |
| KTS-632-5 | 71724 | JOHN CRANE INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-996-4436
Related Products | NSN 5307-00-996-4436
Technical Data | NSN 5307-00-996-4436
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | 80 SELF-LOCKING |
| HEAD DIAMETER | 0.219 INCHES NOMINAL |
| HEAD LENGTH | 0.140 INCHES NOMINAL |
| OVERALL LENGTH | 0.312 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |
| NOMINAL THREAD SIZE | 0.138 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.172 INCHES NOMINAL NUT THREAD |
| LOCKING FEATURE | SELF-CLINCHING HEAD |
| MANUFACTURERS CODE | 46384 |
| DESIGN CONTROL REFERENCE | FHS-632-5 |
Restrictions/Controls & Freight Information | NSN 5307-00-996-4436
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-996-4436
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | JCD | |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
