NSN 5307-00-970-9609 128WM103891, 128WM10389-1, 00-970-9609
Product Details | SELF-LOCKING STUD
5307-00-970-9609 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: 128WM103891, 128WM10389-1, 5307-00-970-9609, 00-970-9609, 5307009709609, 009709609
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-970-9609 | 27783 ( STUD, SELF-LOCKING ) |

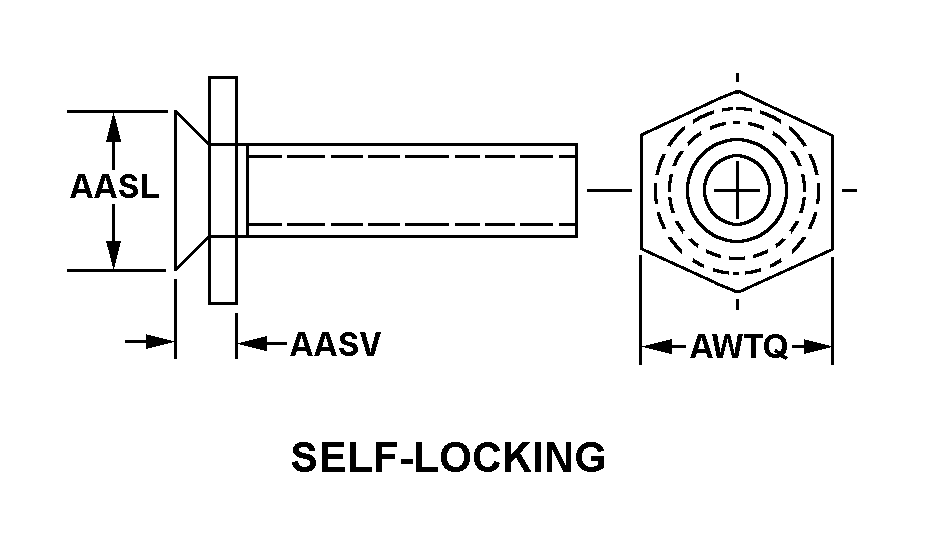

Drawings & Photos | NSN 5307-00-970-9609
Cross Reference | NSN 5307-00-970-9609
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128WM10389-1 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5307-00-970-9609
Technical Data | NSN 5307-00-970-9609
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000 MIL SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | 81 SELF-LOCKING |
| HEAD DIAMETER | 0.625 INCHES NOMINAL |
| HEAD LENGTH | 0.500 INCHES NOMINAL |
| DISTANCE ACROSS FLATS | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 3.218 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD |
| NOMINAL THREAD SIZE | 0.375 INCHES NUT THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.562 INCHES NOMINAL NUT THREAD |
| LOCKING FEATURE | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 26512 |
| DESIGN CONTROL REFERENCE | 128WM10389-1 |
Restrictions/Controls & Freight Information | NSN 5307-00-970-9609
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
