NSN 5307-00-905-8415 R1283P011, 00-905-8415, 009058415
Product Details | LOCKED IN STUD

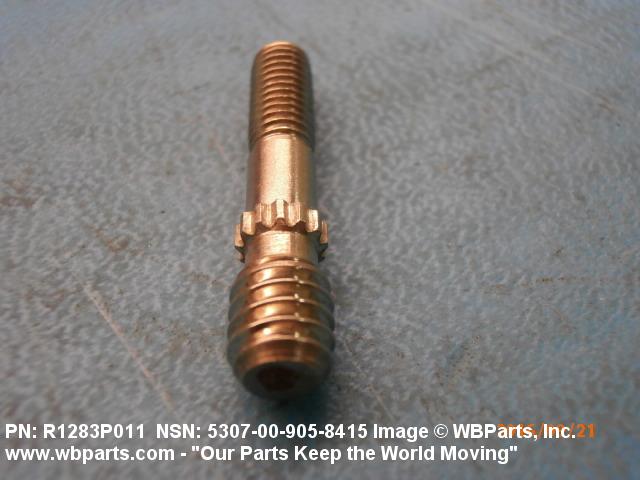

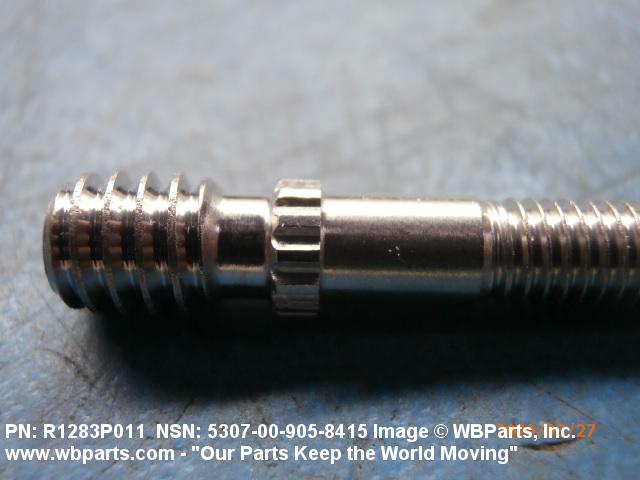

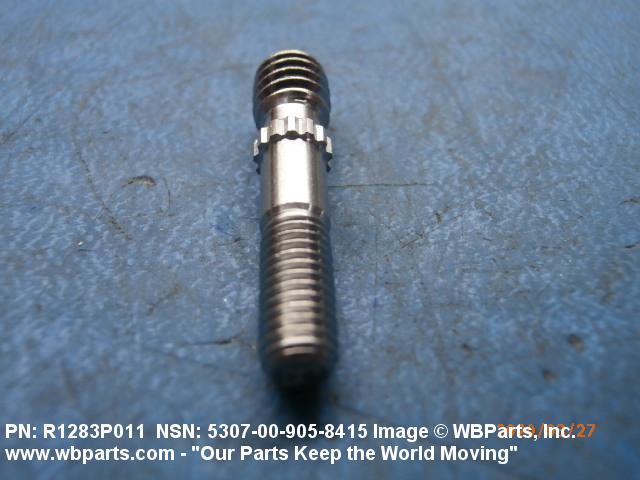

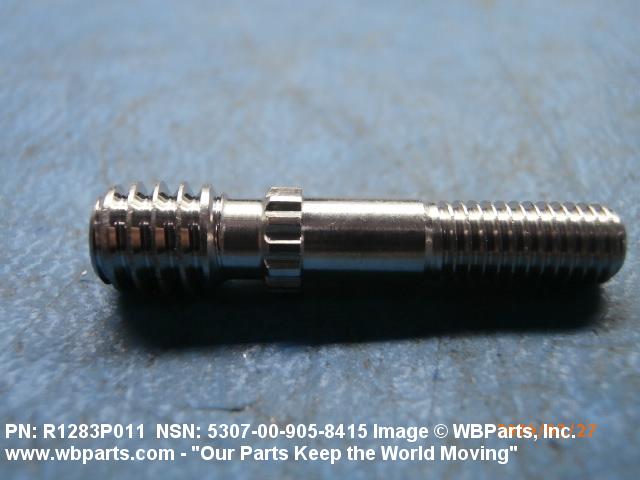

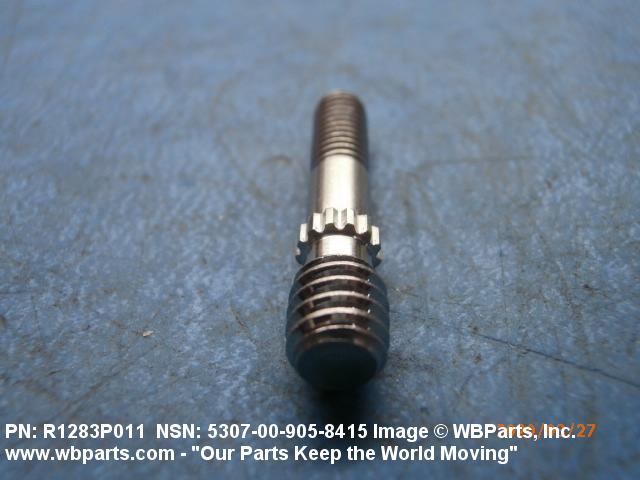

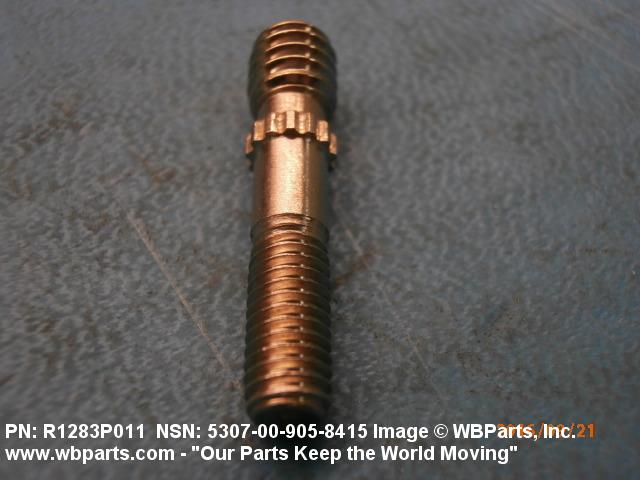

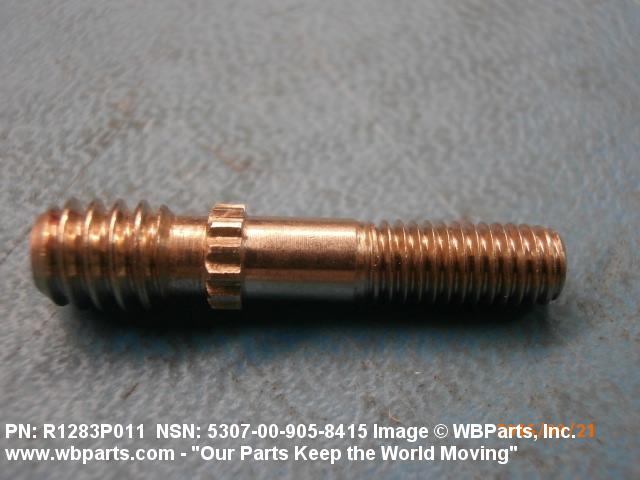

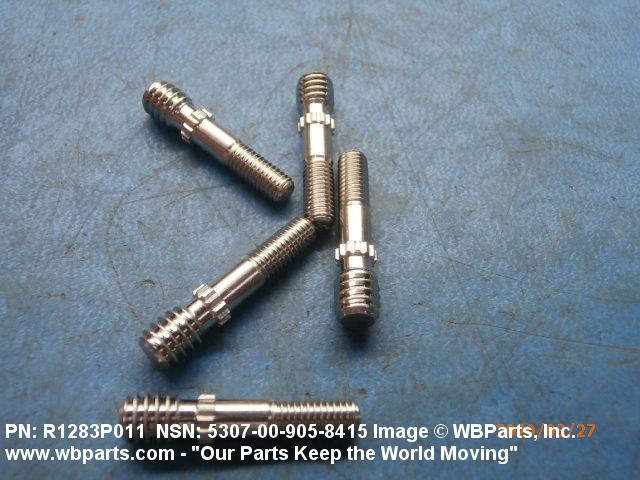

5307-00-905-8415 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: R1283P011, 5307-00-905-8415, 00-905-8415, 5307009058415, 009058415
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-905-8415 | 16012 ( STUD, LOCKED IN ) |
Drawings & Photos | NSN 5307-00-905-8415
Demand History | NSN 5307-00-905-8415
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| R1283P011 | 2020-03-78 | 1 | Canada |
| R1283P011 | 2020-02-44 | 2 | Canada |
| R1283P011 | 2016-08-244 | 1 | Canada |
| 5307-00-905-8415 | 2011-08-230 | 750 | South Korea |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-905-8415
Related Products | NSN 5307-00-905-8415
Technical Data | NSN 5307-00-905-8415
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 303 PLUS X |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5640 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | 35 LOCKED IN |

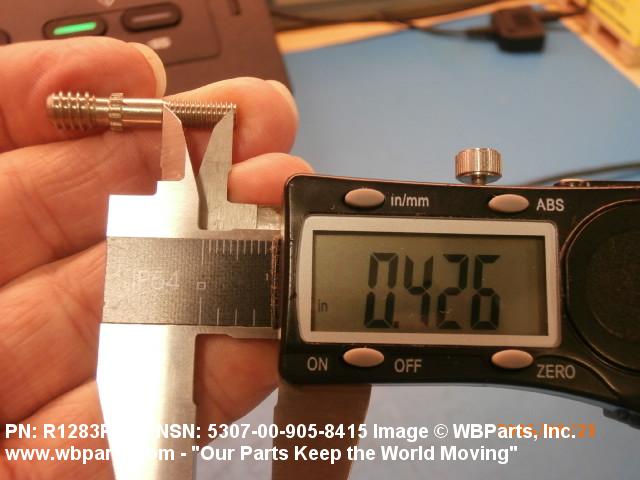

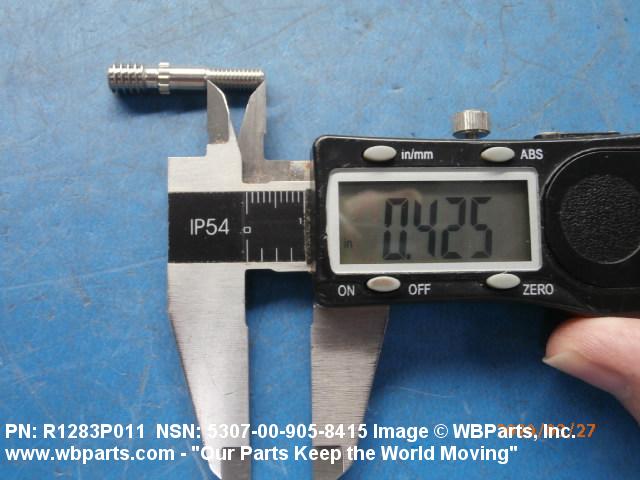

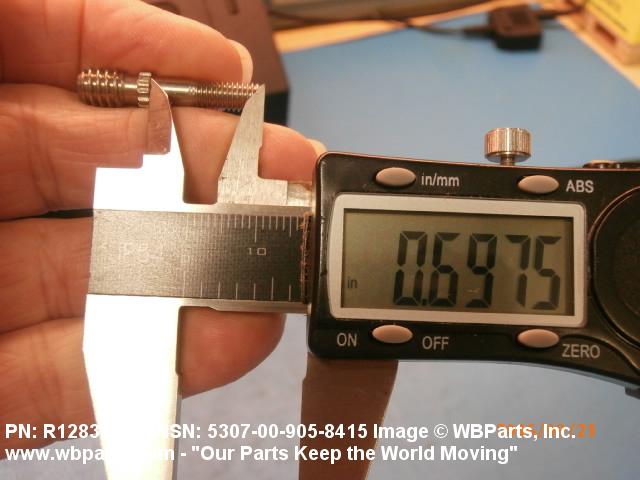

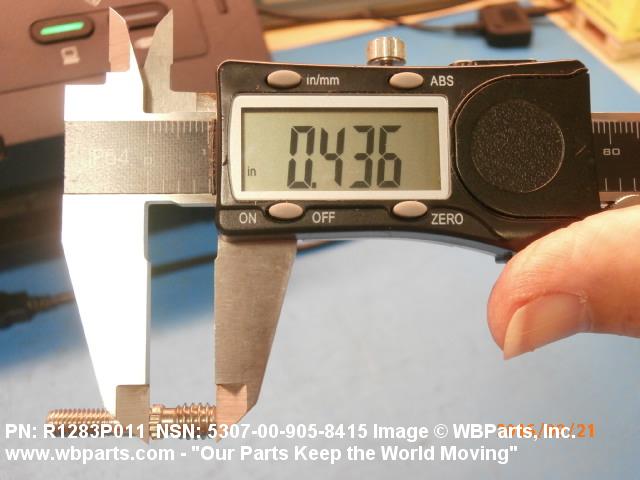

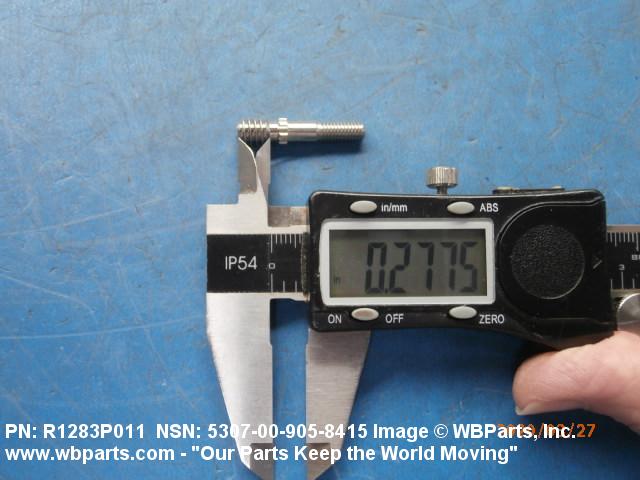

| DISTANCE FROM SERRATED PORTION TO NUT END | 0.673 INCHES MINIMUM AND 0.703 INCHES MAXIMUM |
| DISTANCE FROM SERRATED PORTION TO STUD END | 0.425 INCHES MINIMUM AND 0.455 INCHES MAXIMUM |
| DISTANCE FROM SERRATED PORTION TO END OF STUD THREAD | 0.145 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |

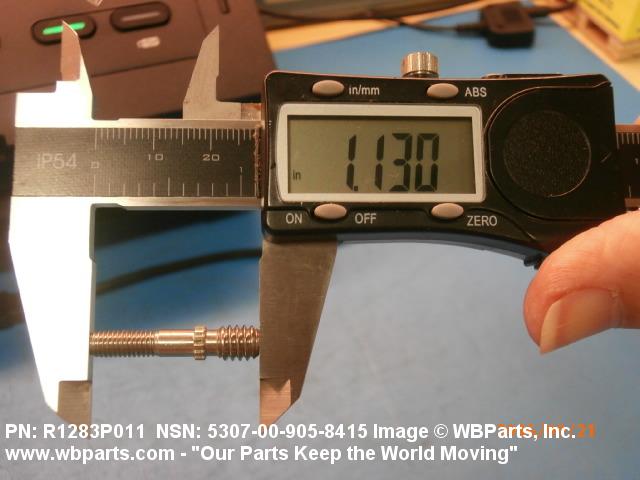

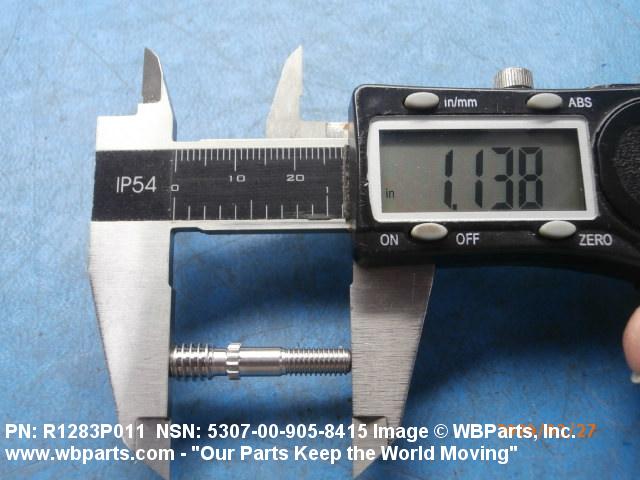

| OVERALL LENGTH | 1.098 INCHES MINIMUM AND 1.158 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF NUT THREAD |

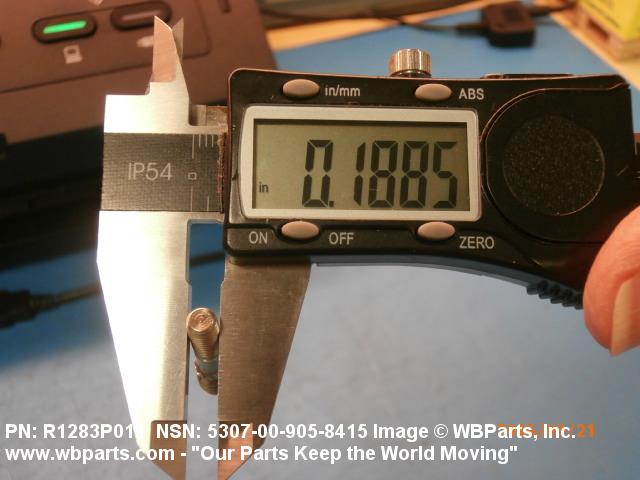

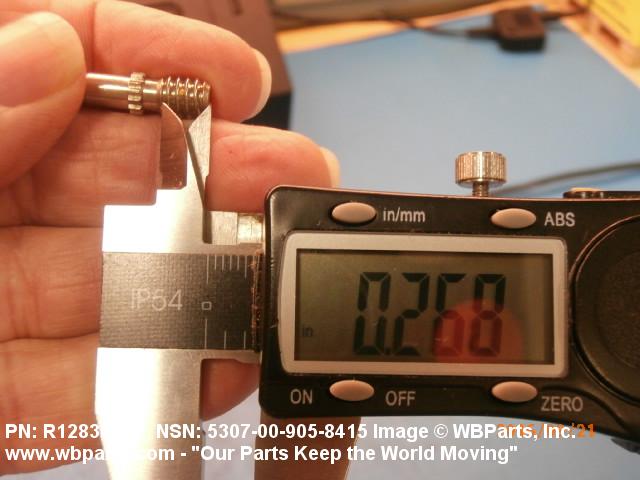

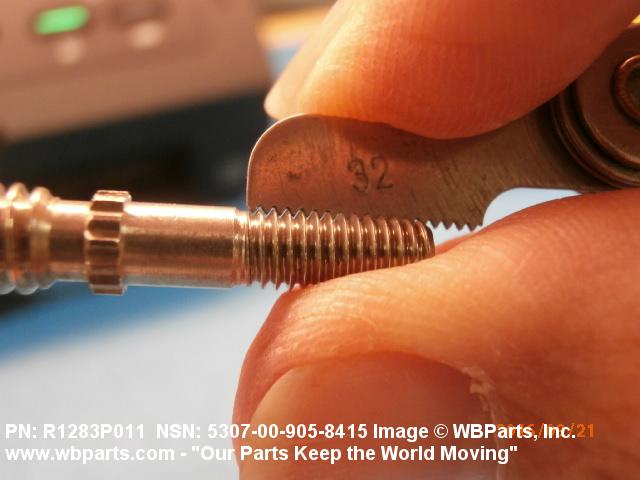

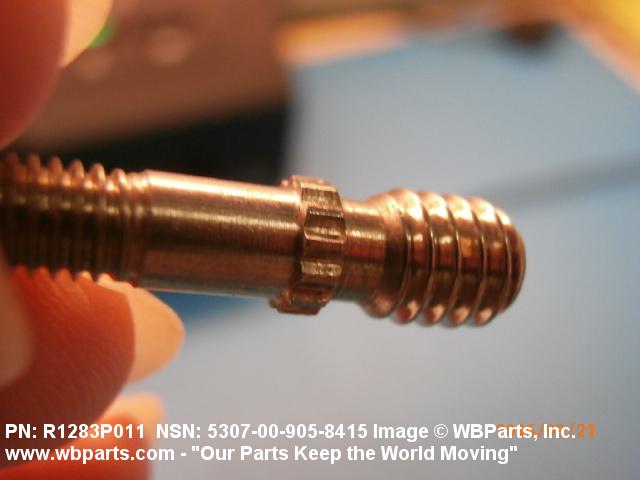

| NOMINAL THREAD SIZE | 0.190 INCHES NUT THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD |
| THREAD PITCH DIAMETERS | 0.2187 TO 0.2204 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.425 INCHES MINIMUM AND 0.455 INCHES MAXIMUM NUT THREAD 0.280 INCHES NOMINAL STUD THREAD |
| LOCKING FEATURE | RING, LOCK SERRATED |
Restrictions/Controls & Freight Information | NSN 5307-00-905-8415
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
