NSN 5307-00-883-0571 M63540/3-16-8, M635403168, M63540-3-16-8
Product Details | SELF-LOCKING STUD
5307-00-883-0571 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: M63540/3-16-8, M635403168, M63540-3-16-8, NASM63540/3, NASM635403, NCS6416, NCS-6-4-16, NCS6-4-16, RCS6412516, MIL-S-63540/3, MILS635403, 132544A091, 2341015P36, 234-1015P36 , 46S125ST16, 575R275H32, 66556-.125-16, 6655612516, 70-1345065-5416, 702005506416, 70-200550-6416, 7313539-00, 88900215, 889002-15, 90637504, 906375-04, 5307-00-883-0571, 00-883-0571, 7013450655416, 5307008830571, 731353900, 008830571
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-883-0571 | 27783 ( STUD, SELF-LOCKING ) |

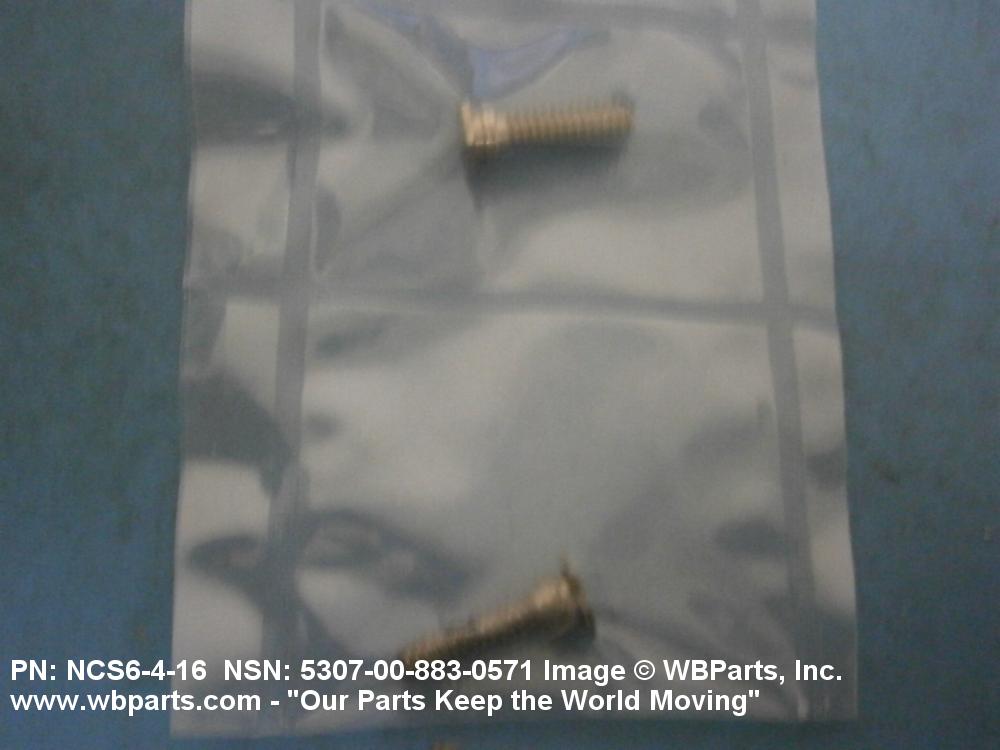

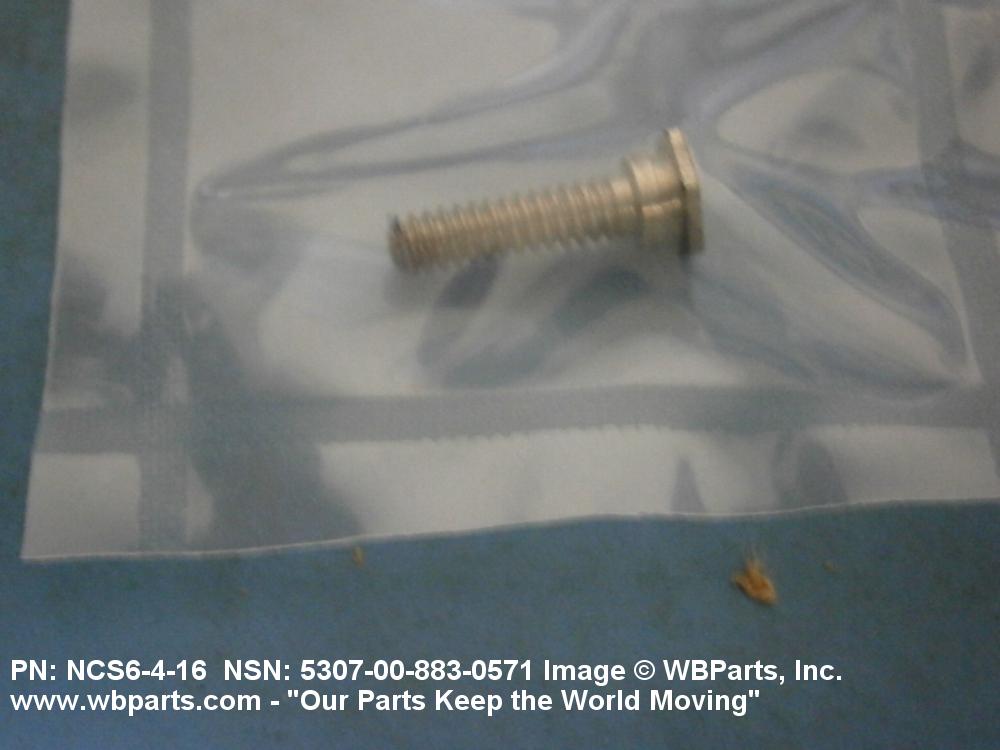

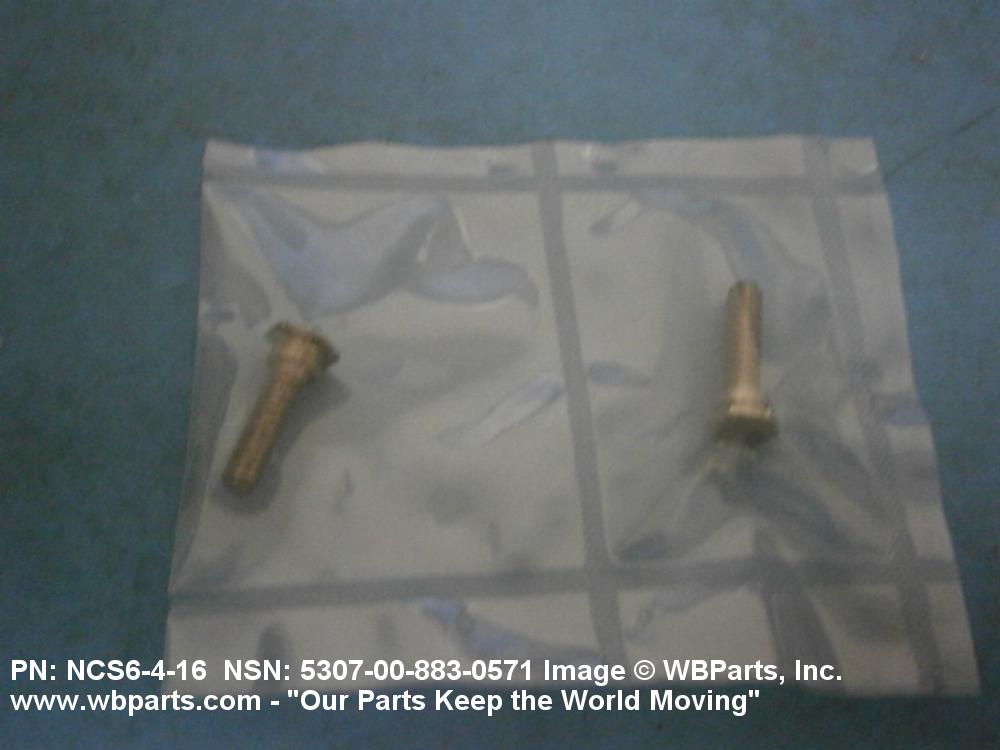

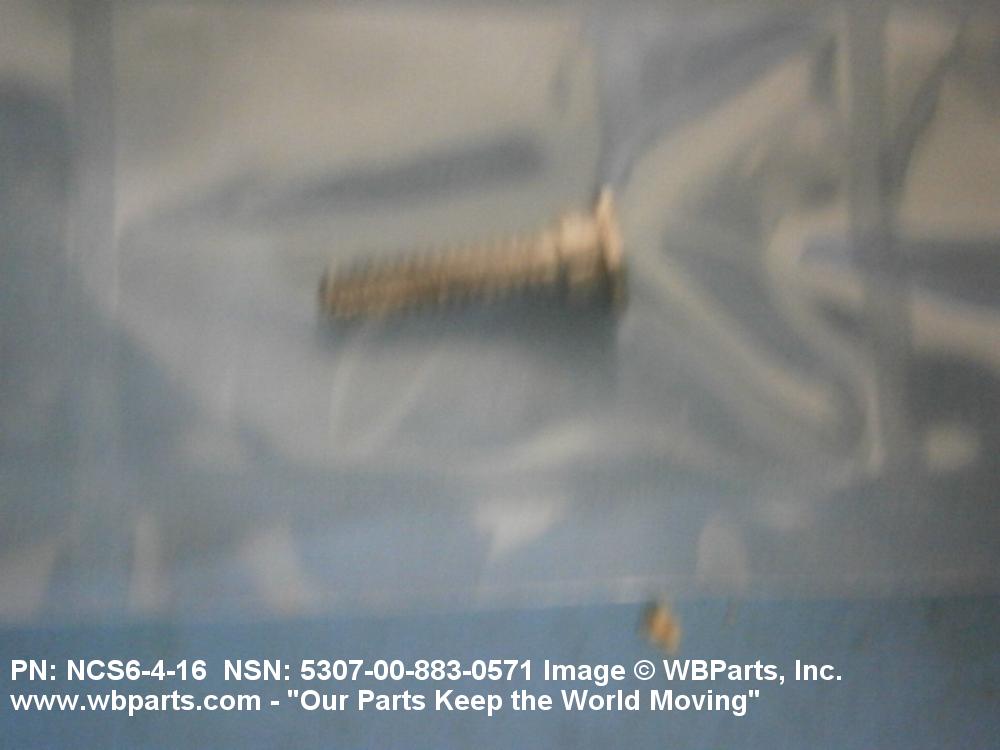

Drawings & Photos | NSN 5307-00-883-0571
Demand History | NSN 5307-00-883-0571
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M635403168 | 2011-09-272 | 2 | us |
| M635403168 | 2011-06-160 | 65 | United Kingdom |
| 5307-00-883-0571 | 2010-08-225 | 210 | US |
| M635403168 | 2010-08-225 | 1 | us |
| M635403168 | 2010-04-105 | 1 | US |
Cross Reference | NSN 5307-00-883-0571
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 132544A091 | 28527 | EXELIS INC. DBA ELECTRONIC SYSTEMS, INTEGRATED |
| 132544A091 | 28528 | ITT INDUSTRIES INC ITT AEROSPACE COMMUNICATIONS |
| 132544A091 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
| 234-1015P36 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 234-1015P36 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 46S(.125)-ST-16 | 5F892 | BUCKEYE FASTENERS INC. |
| 46S(.125)-ST-16 | 86577 | PRECISION METAL PRODUCTS CO |
| 575R275H32 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 66556-.125-16 | 51506 | ACCURATE SCREWMACHINE CORPORATION DBA A S M |
| 70-1345065-5416 | 04655 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 70-1345065-5416 | 11293 | GTE GOVERNMENT SYSTEMS CORP STRATEGIC SYSTEMS DIV |
| 70-200550-6416 | 04655 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 70-200550-6416 | 11293 | GTE GOVERNMENT SYSTEMS CORP STRATEGIC SYSTEMS DIV |
| 7313539-00 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 889002-15 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 906375-04 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M63540-3-16-8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M63540/3-16-8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MIL-S-63540/3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NASM63540/3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NCS-6-4-16 | 07886 | DAR ELECTRONICS INC COMMERCIAL PRODUCTS DIV |
| NCS-6-4-16 | 42498 | DAR ELECTRONICS INC DBA NATIONAL RADIO CO |
| NCS6-4-16 | 57227 | PIC'S SCREW MACHINE, INC. |
| NCS6-4-16 | 71313 | VIKING TECHNOLOGIES, LTD. |
| NCS6-4-16 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| RCS 64-(125)-16 | 30343 | RADIO COMPONENT CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-883-0571
Related Products | NSN 5307-00-883-0571
Restrictions/Controls & Freight Information | NSN 5307-00-883-0571
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5307-00-883-0571
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
