NSN 5307-00-637-8902 SFA1019SA12A, SFA101-9SA12A, 1-300-267-01
Product Details | LOCKED IN STUD

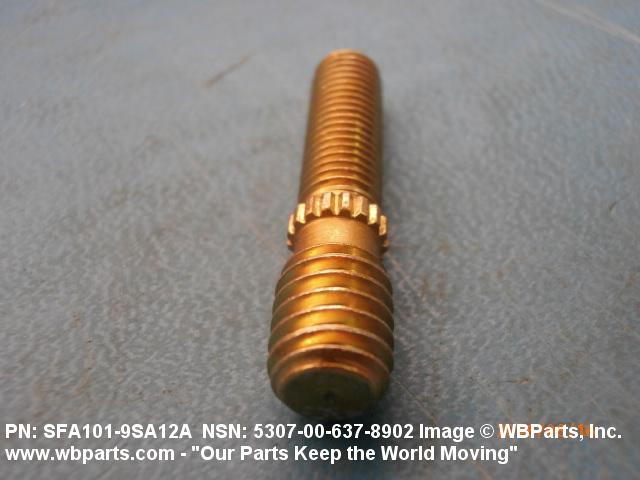

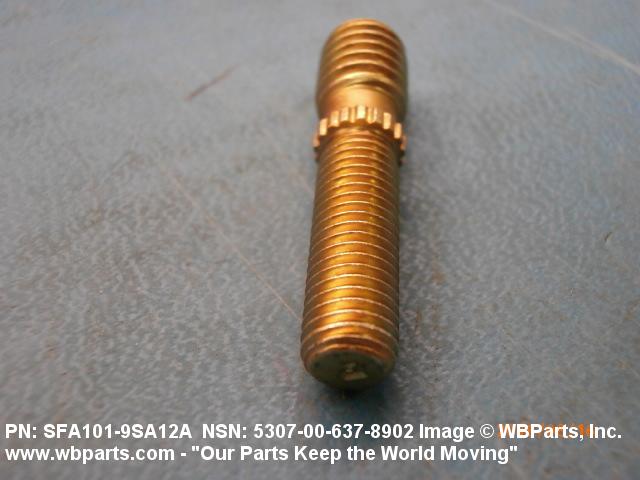

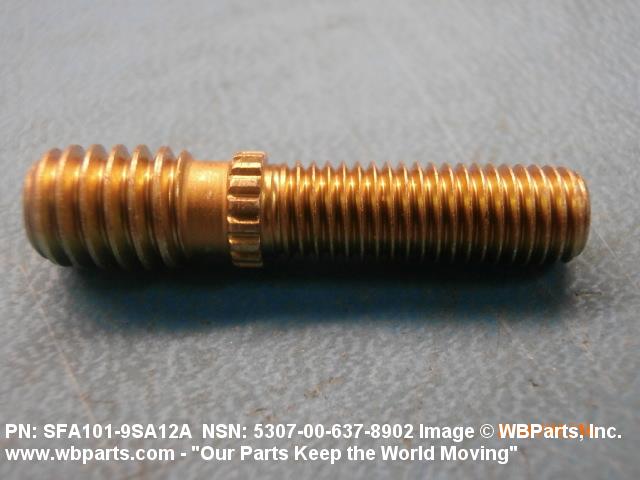

5307-00-637-8902 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: SFA1019SA12A, SFA101-9SA12A, 1-300-267-01, 5307-00-637-8902, 00-637-8902, 5307006378902, 130026701, 006378902
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-637-8902 | 16012 ( STUD, LOCKED IN ) |

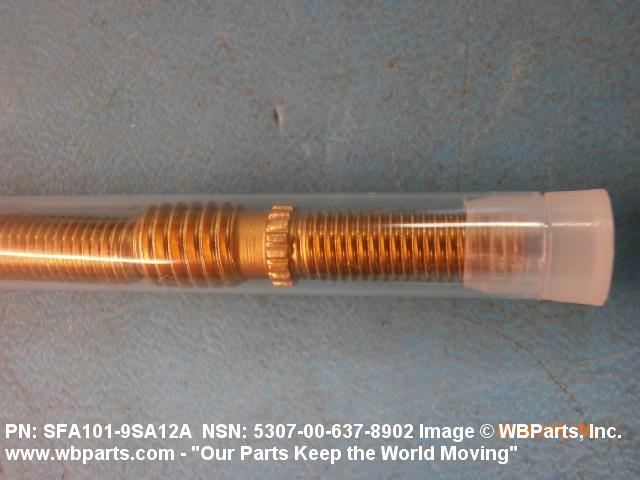

Drawings & Photos | NSN 5307-00-637-8902
Demand History | NSN 5307-00-637-8902
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5307-00-637-8902 | 2018-05-01 | 10 | US |
| SFA1019SA12A | 2018-03-08 | 6 | US |
| 5307-00-637-8902 | 2016-08-04 | 100 | United States |
| 5307-00-637-8902 | 2015-10-18 | 93 | DIBBS |
| 5307-00-637-8902 | 2014-02-18 | 108 | DIBBS |
| 5307-00-637-8902 | 2014-02-02 | 108 | DIBBS |
| 5307-00-637-8902 | 2010-04-26 | 200 | United States |
| 5307-00-637-8902 | 2010-04-26 | 400 | United States |
| 5307-00-637-8902 | 2009-01-29 | 400 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-637-8902
Related Products | NSN 5307-00-637-8902
Technical Data | NSN 5307-00-637-8902

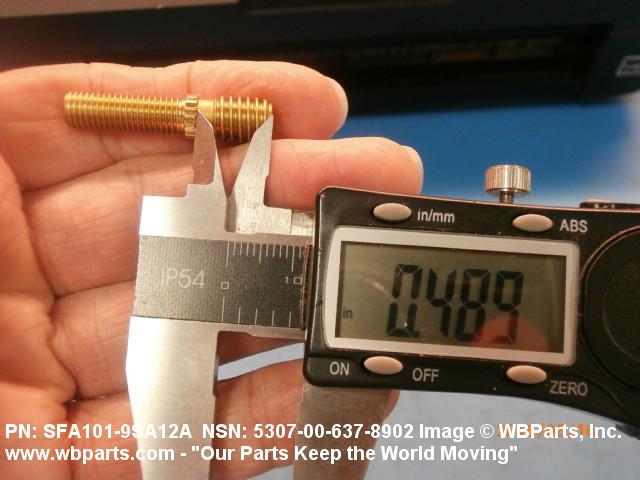

| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 35 LOCKED IN |
| DISTANCE FROM SERRATED PORTION TO NUT END | 0.765 INCHES NOMINAL |
| DISTANCE FROM SERRATED PORTION TO STUD END | 0.562 INCHES NOMINAL |
| DISTANCE FROM SERRATED PORTION TO END OF STUD THREAD | 0.150 INCHES NOMINAL |

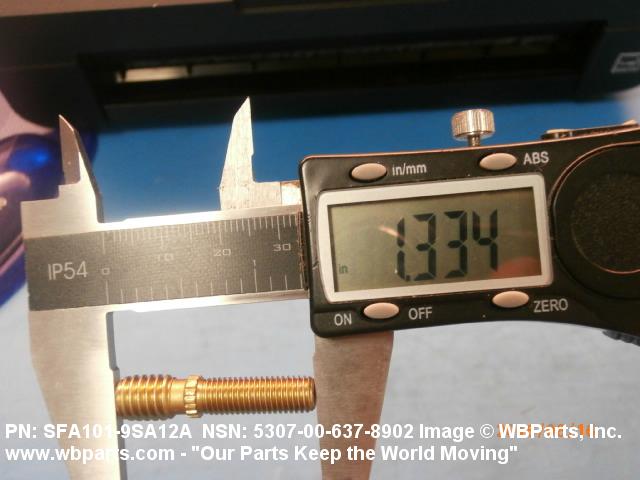

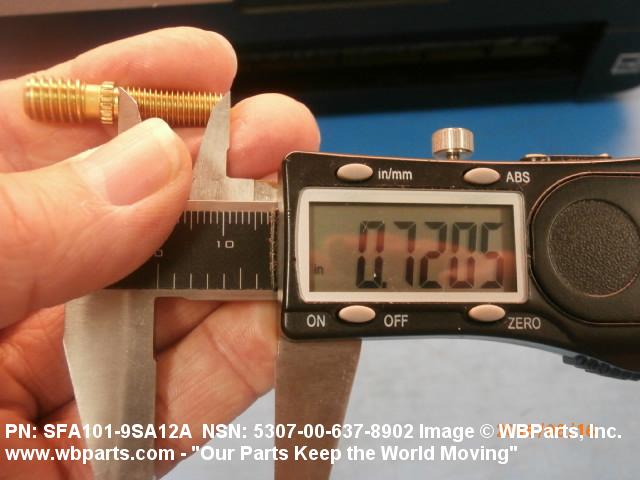

| OVERALL LENGTH | 1.327 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNC STUD THREAD |

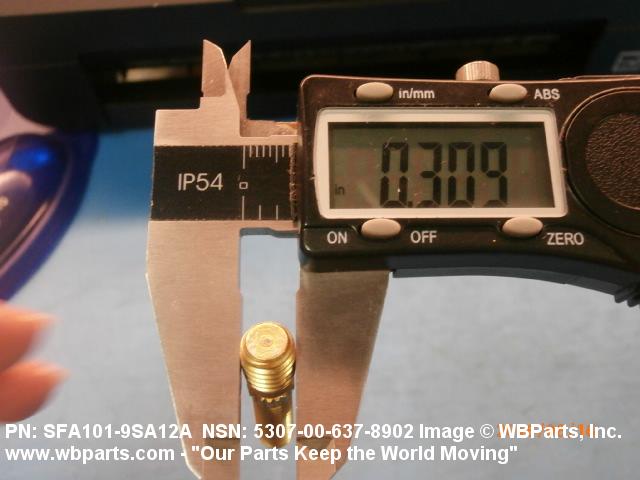

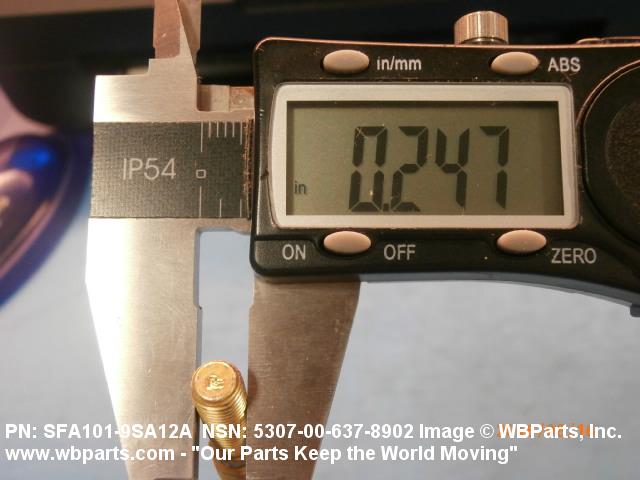

| NOMINAL THREAD SIZE | 0.250 INCHES NUT THREAD 0.312 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD 3A STUD THREAD |

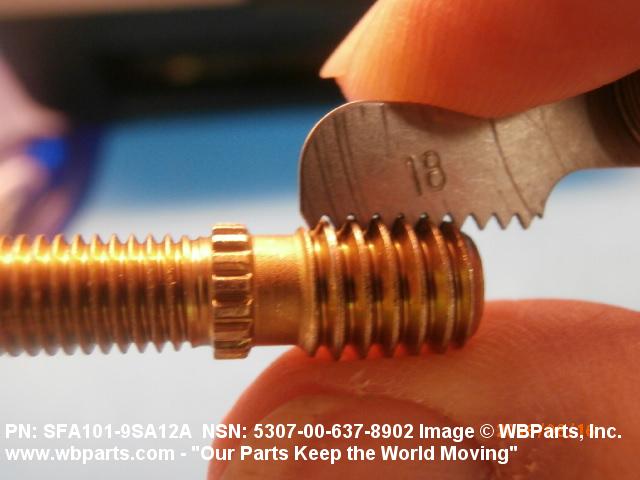

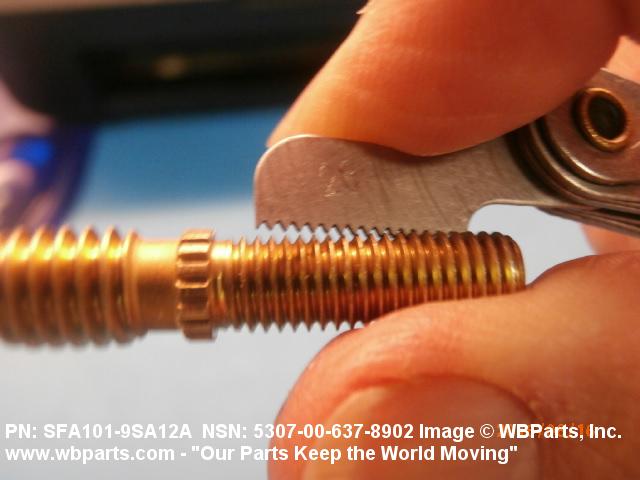

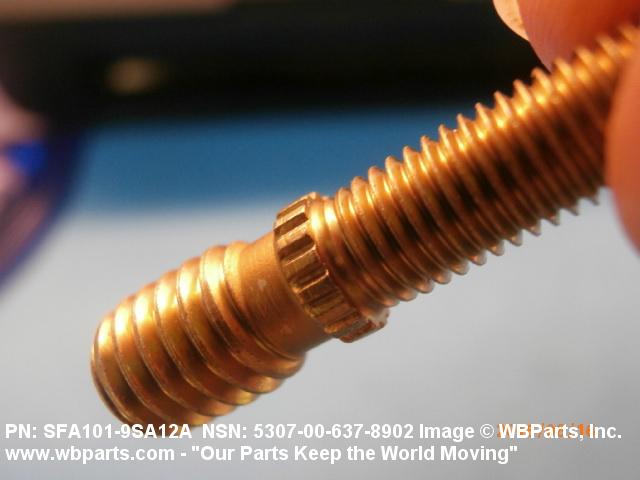

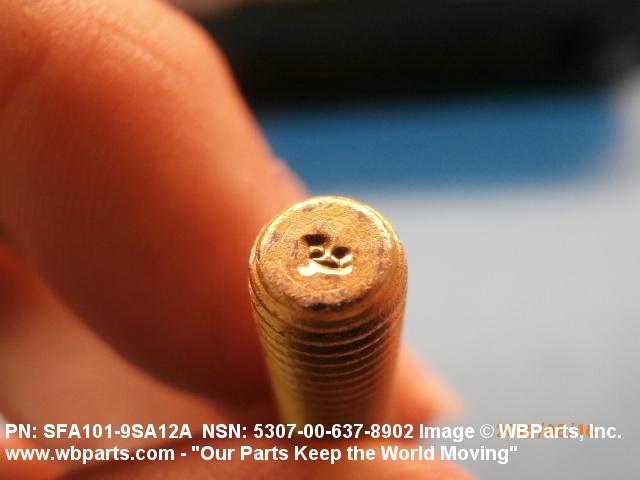

| THREAD QUANTITY PER INCH | 28 NUT THREAD 18 STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.656 INCHES NOMINAL NUT THREAD 0.562 INCHES NOMINAL STUD THREAD |
| LOCKING FEATURE | RING, LOCK SERRATED |
| MANUFACTURERS CODE | 99193 |
| MFR SOURCE CONTROLLING REFERENCE | 1-300-267-01 |
