NSN 5307-00-446-5361 CHS6326, CHS-632-6, H260002011
Product Details | SELF-LOCKING STUD
5307-00-446-5361 A headed fastener threaded externally on a portion or on the full length of the shank. The head has projections on the underside or periphery, or is otherwise designed to be mechanically pressed and embedded in a metallic panel, or the like. It is securely locked in position by the displaced metal. For items that require locking rings, see BOLT, SELF-LOCKING and STUD, LOCKED IN. Excludes INSERT, SCREW THREAD.
Part Alternates: CHS6326, CHS-632-6, H260002011, H26-0002-011, SCD53978013, SC-D-539780-13, TU156326, TU15-632-6, KTS6326, KTS-632-6, KTS63263, KTS632-6-3, R10246P8, FHS6326, FHS-632-6, FHS632-6, FMS6326, FMS632-6, G35468140, G354681-40, 12705206-1, 134413-006, 134413-026, 1813141224, 1813141-224, 2341018P29, 234-1018P29, 26C806011, 26C806-011, 2730020606, 273-002-0606, 3302797000, 330-2797-000, 4192796, 419279-6, 4634089A08, 46-34089A08, 0191812, 019181-2, 10116383 , 0000091431, 0000-091-431, 10270533-2, 59439891, 5943989-1, 6820079103, 682-007-9103, 7350021406, 735-00214-06, 86681993, 8668199-3, 99021411, 990214-11, 5307-00-446-5361, 00-446-5361, 5307004465361, 127052061, 004465361, 102705332, 134413026, 134413006
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-446-5361 | 27783 ( STUD, SELF-LOCKING ) |

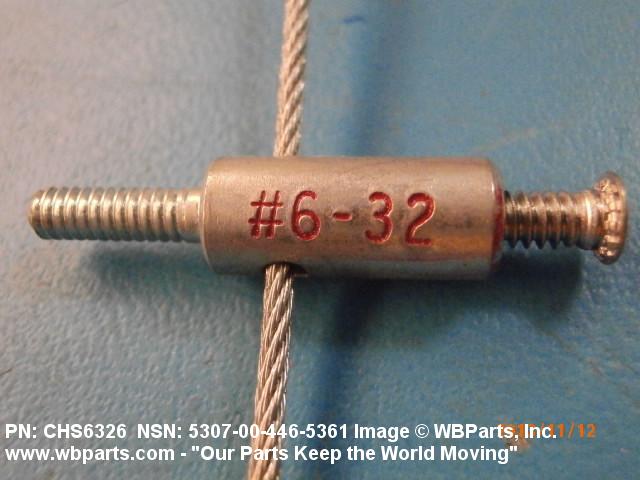

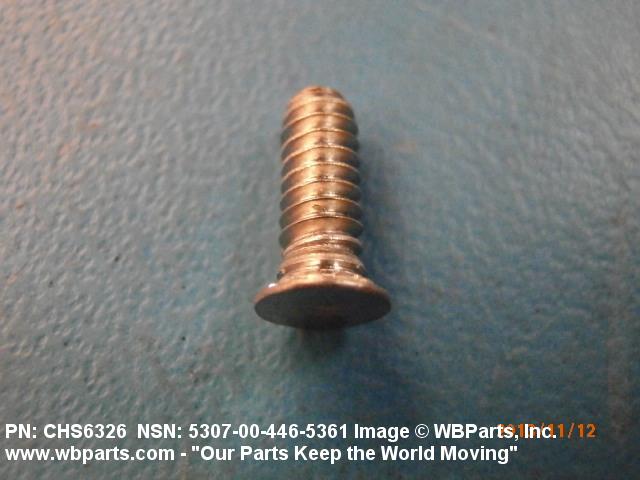

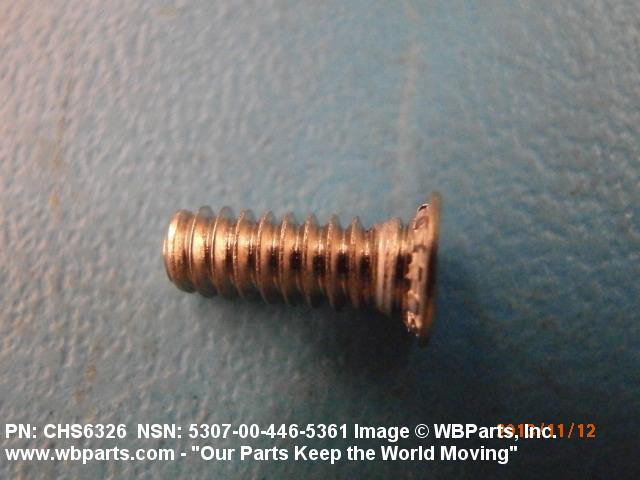

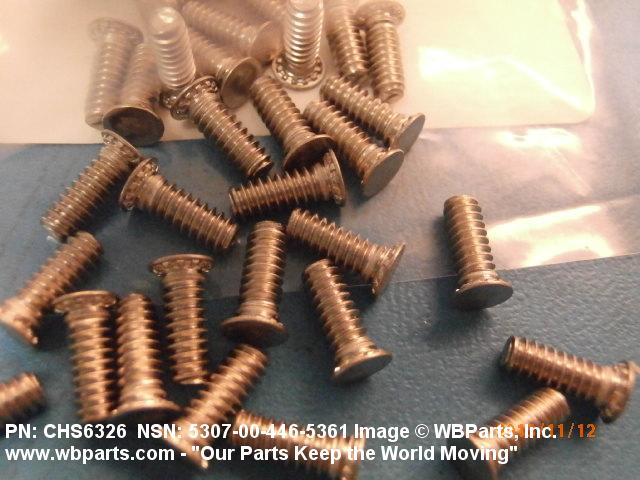

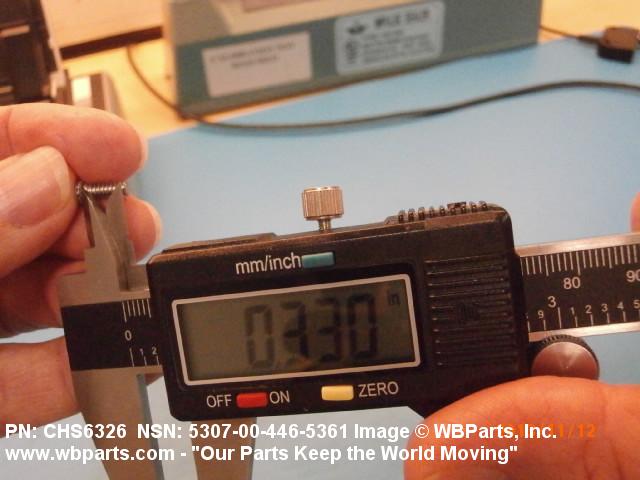

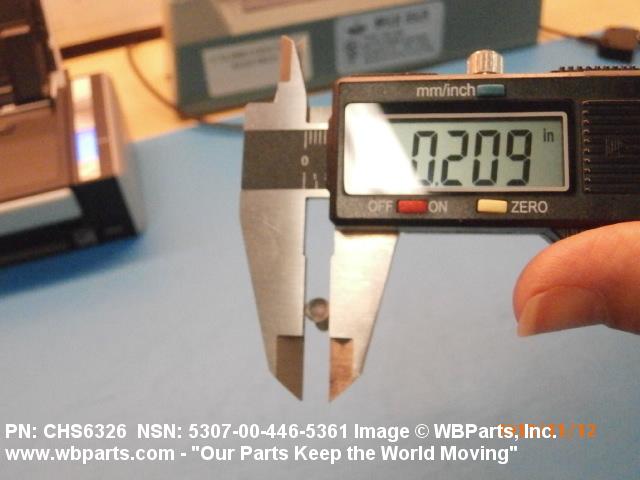

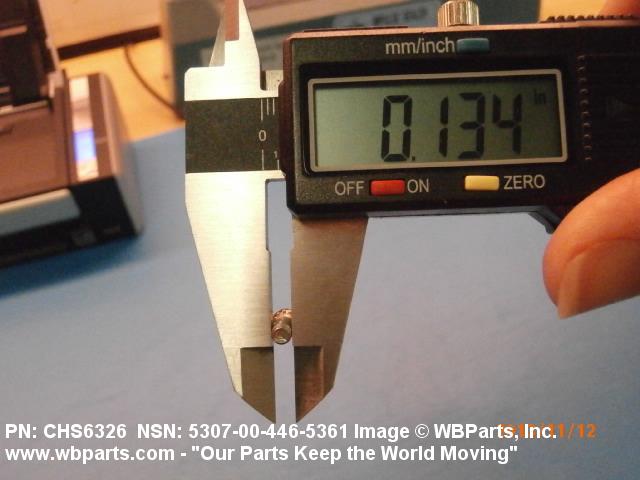

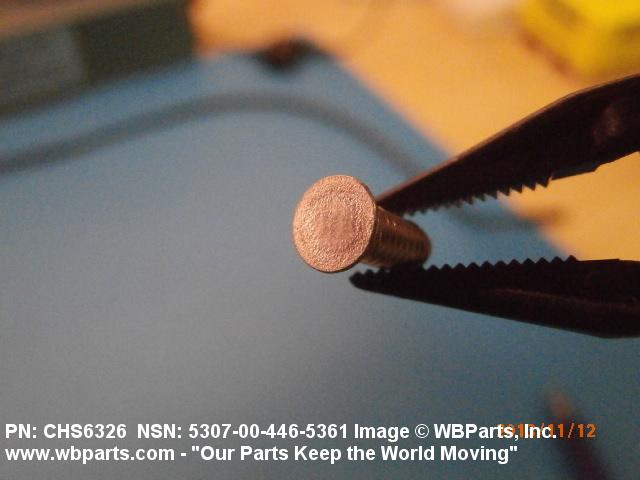

Drawings & Photos | NSN 5307-00-446-5361
Demand History | NSN 5307-00-446-5361
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FHS6326 | 2024-10-283 | 650 | IT |
| FHS6326 | 2024-04-115 | 100 | us |
| 5307-00-446-5361 | 2019-06-177 | 2500 | US |
| FHS6326 | 2017-05-125 | 22500 | US |
| 5307-00-446-5361 | 2015-04-111 | 1000 | DK |
| TU156326 | 2013-10-290 | 1000 | India |
| TU156326 | 2013-10-276 | 50 | India |
| TU156326 | 2013-09-247 | 20 | IN |
| 5307-00-446-5361 | 2013-08-228 | 25 | India |
| 5307-00-446-5361 | 2012-07-192 | 20 | Israel |
| TU156326 | 2012-01-23 | 86 | US |
| FHS6326 | 2011-03-90 | 1800 | United States |
| FHS6326 | 2011-03-73 | 1680 | United States |
| FHS6326 | 2011-01-27 | 50 | United States |
| 5307-00-446-5361 | 2011-01-26 | 50 | United States |
| FHS6326 | 2010-06-160 | 50 | India |
| 5307-00-446-5361 | 2009-10-287 | 8 | US |
| CHS6326 | 2009-10-281 | 10 | US |
| CHS6326 | 2008-07-192 | 10 | US |
Cross Reference | NSN 5307-00-446-5361
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0000-091-431 | 06531 | BECTON, DICKINSON AND COMPANY |
| 019181-2 | 17981 | SCI SYSTEMS INC |
| 10270533-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 12705206-1 | 19200 | US ARMY ARDEC RDECOM |
| 134413-006 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 134413-026 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 1813141-224 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 234-1018P29 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 234-1018P29 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 26C806-011 | 04660 | AIL SYSTEMS INC SUB OF EATON CORP |
| 273-002-0606 | 95542 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 330-2797-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 419279-6 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 46-34089A08 | 1VPW8 | GENERAL DYNAMICS C4 SYSTEMS, INC. |
| 46-34089A08 | 94990 | MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS |
| 5943989-1 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 682-007-9103 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 735-00214-06 | 04773 | GTE COMMUNICATION SYSTEMS CORP |
| 8668199-3 | 36452 | DRS TECHNOLOGIES CANADA LTD |
| 990214-11 | 00752 | EDO CORPORATION DIV EDO CORPORATION AP&T |
| CHS-632-6 | 56987 | CAPTIVE FASTENERS CORP |
| FHS-632-6 | 46384 | PENN ENGINEERING & MANUFACTURING CORP. |
| FHS632-6 | 96238 | DNE TECHNOLOGIES, INC. |
| FMS632-6 | 46384 | PENN ENGINEERING & MANUFACTURING CORP. |
| G354681-40 | 23667 | SMITHS DETECTION, INC. DIV EDGEWOOD |
| H26-0002-011 | 14304 | HARRIS CORPORATION DBA HARRIS RF COMMUNICATION |
| KTS-632-6 | 00613 | USM CORP SUB OF EMHART INDUSTRIES INC |
| KTS-632-6 | 71724 | JOHN CRANE INC |
| KTS632-6-3 | 00613 | USM CORP SUB OF EMHART INDUSTRIES INC |
| R10246P8 | 16331 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| SC-D-539780-13 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| TU15-632-6 | 08748 | ELDEC CORPORATION DBA CRANE AEROSPACE & ELECTRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-446-5361
Related Products | NSN 5307-00-446-5361
Technical Data | NSN 5307-00-446-5361
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 305 |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | 80 SELF-LOCKING |
| HEAD DIAMETER | 0.219 INCHES NOMINAL |

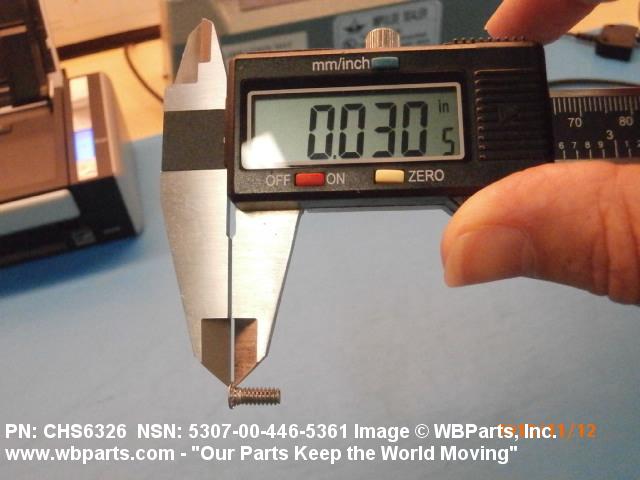

| HEAD LENGTH | 0.035 INCHES NOMINAL |

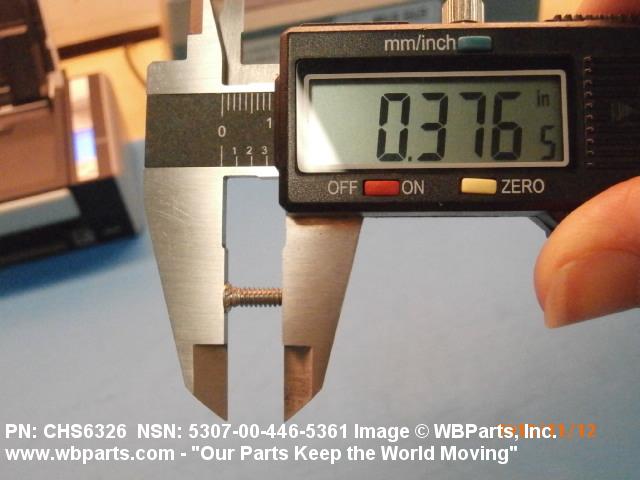

| OVERALL LENGTH | 0.375 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC NUT THREAD |
| NOMINAL THREAD SIZE | 0.138 INCHES NUT THREAD |
| THREAD CLASS | 2A NUT THREAD |
| THREAD QUANTITY PER INCH | 32 NUT THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD |
| THREAD LENGTH | 0.340 INCHES NOMINAL NUT THREAD |

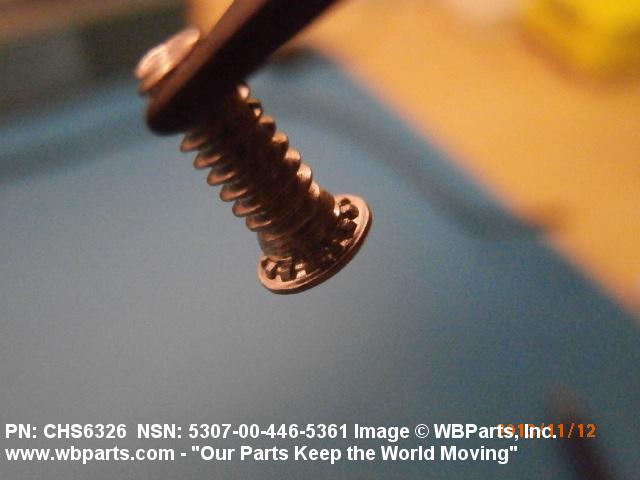

| LOCKING FEATURE | HEAD SERRATIONS |
Restrictions/Controls & Freight Information | NSN 5307-00-446-5361
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
