Product Details | LOCKED IN STUD

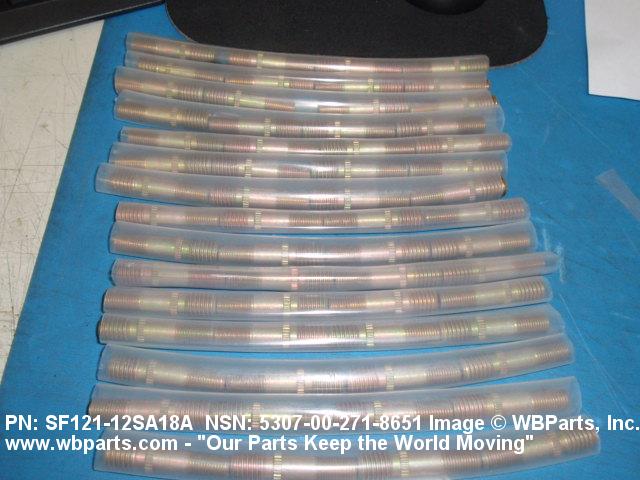

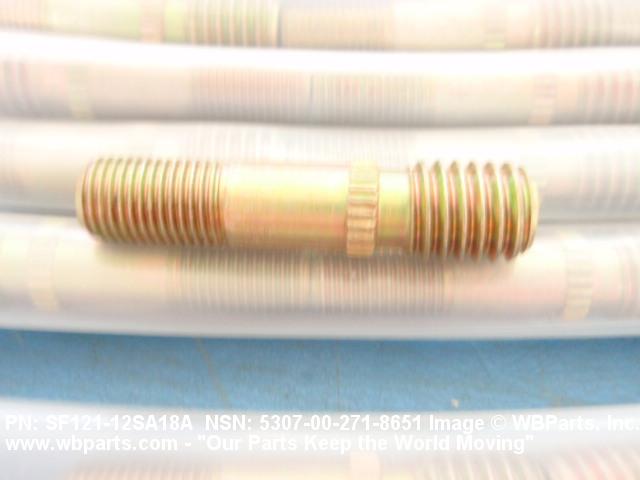

5307-00-271-8651 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: BACS21S1218A, BACS21S12-18A, SF12112SA18A, SF121-12SA18A, 6825109007, 682-510-9007, 5307-00-271-8651, 00-271-8651, 5307002718651, 002718651
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-271-8651 | 16012 ( STUD, LOCKED IN ) |
Drawings & Photos | NSN 5307-00-271-8651
Demand History | NSN 5307-00-271-8651
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SF12112SA18A | 2010-10-292 | 60 | us |
| 6825109007 | 2010-07-196 | 60 | us |
| 5307-00-271-8651 | 2010-02-32 | 35 | DIBBS |
| 5307-00-271-8651 | 2009-12-362 | 20 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-271-8651
Related Products | NSN 5307-00-271-8651
Technical Data | NSN 5307-00-271-8651
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758,COND C4 MIL SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | 35 LOCKED IN |
| DISTANCE FROM SERRATED PORTION TO NUT END | 1.125 INCHES NOMINAL |
| DISTANCE FROM SERRATED PORTION TO STUD END | 0.750 INCHES NOMINAL |
| DISTANCE FROM SERRATED PORTION TO END OF STUD THREAD | 0.230 INCHES NOMINAL |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.375 INCHES NUT THREAD 0.438 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD 14 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.3926 TO 0.3946 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.625 INCHES NOMINAL NUT THREAD 0.520 INCHES NOMINAL STUD THREAD |
| LOCKING FEATURE | RING, LOCK SERRATED |
| MANUFACTURERS CODE | 83324 |
| DESIGN CONTROL REFERENCE | SF121-12SA18A |
Restrictions/Controls & Freight Information | NSN 5307-00-271-8651
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
