NSN 5307-00-050-9940 SHF11111SM14A, SHF111-11SM14A, PWA22332
Product Details | LOCKED IN STUD
5307-00-050-9940 A headless fastener externally threaded on both ends with each threaded portion of one but not necessarily the same nominal diameter. It is designed to be locked in place by either a RING, LOCK, SERRATED or a RING, LOCK, KEYED.
Part Alternates: SHF11111SM14A, SHF111-11SM14A, PWA22332, 5307-00-050-9940, 00-050-9940, 5307000509940, 000509940
Hardware and Abrasives | Studs
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAY 1967 | 00-050-9940 | 16012 ( STUD, LOCKED IN ) |

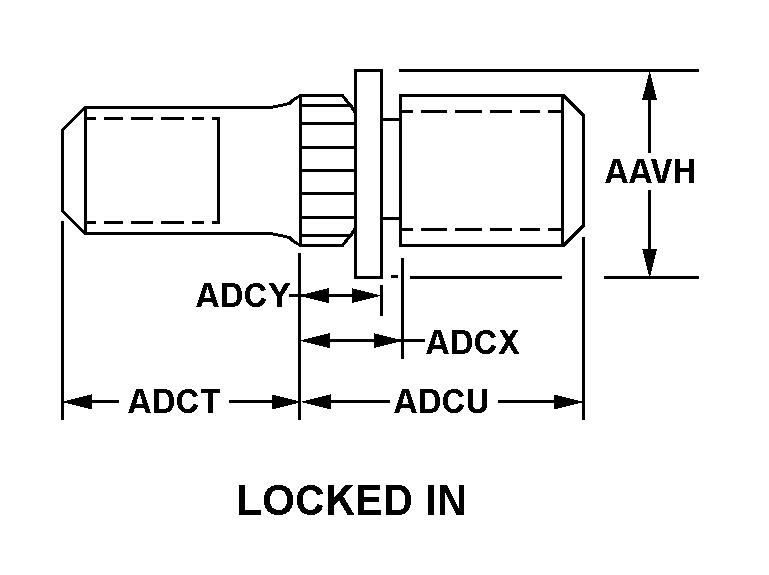

Drawings & Photos | NSN 5307-00-050-9940
Demand History | NSN 5307-00-050-9940
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SHF111-11SM14A | 2024-10-295 | 10 | DIBBS |
| SHF111-11SM14A | 2024-03-78 | 1 | DIBBS |
| SHF111-11SM14A | 2024-01-11 | 1 | DIBBS |
| SHF111-11SM14A | 2023-12-338 | 4 | DIBBS |
| SHF111-11SM14A | 2023-08-239 | 4 | DIBBS |
| SHF111-11SM14A | 2022-12-362 | 10 | DIBBS |
| SHF111-11SM14A | 2022-08-242 | 7 | DIBBS |
| SHF111-11SM14A | 2022-05-123 | 10 | DIBBS |
| 5307-00-050-9940 | 2014-07-197 | 6 | DIBBS |
| 5307-00-050-9940 | 2014-06-163 | 4 | DIBBS |
| 5307-00-050-9940 | 2014-03-89 | 2 | DIBBS |
| 5307-00-050-9940 | 2013-10-302 | 1 | DIBBS |
| 5307-00-050-9940 | 2013-10-287 | 1 | DIBBS |
| 5307-00-050-9940 | 2013-07-202 | 4 | DIBBS |
| 5307-00-050-9940 | 2013-05-122 | 1 | DIBBS |
| SHF11111SM14A | 2010-04-99 | 1 | US |
| 5307-00-050-9940 | 2008-02-59 | 10 | DIBBS |
| 5307-00-050-9940 | 2008-02-59 | 12 | DIBBS |
| 5307-00-050-9940 | 2008-02-34 | 10 | DIBBS |
| 5307-00-050-9940 | 2008-01-20 | 12 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5307-00-050-9940
Related Products | NSN 5307-00-050-9940
Technical Data | NSN 5307-00-050-9940
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | 36 LOCKED IN |
| SHOULDER DIAMETER | 0.429 INCHES MINIMUM AND 0.434 INCHES MAXIMUM |
| DISTANCE FROM SERRATED PORTION TO NUT END | 0.880 INCHES NOMINAL |
| DISTANCE FROM SERRATED PORTION TO STUD END | 0.690 INCHES NOMINAL |
| DISTANCE FROM SERRATED PORTION TO END OF STUD THREAD | 0.240 INCHES NOMINAL |
| LENGTH FROM SERRATED PORTION THROUGH SHOULDER | 0.147 INCHES NOMINAL |
| OVERALL LENGTH | 1.570 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF NUT THREAD UNC STUD THREAD |
| NOMINAL THREAD SIZE | 0.312 INCHES NUT THREAD 0.375 INCHES STUD THREAD |
| THREAD CLASS | 3A NUT THREAD |
| THREAD QUANTITY PER INCH | 24 NUT THREAD 16 STUD THREAD |
| THREAD PITCH DIAMETERS | 0.3358 TO 0.3378 INCHES STUD THREAD |
| THREAD DIRECTION | RIGHT-HAND NUT THREAD RIGHT-HAND STUD THREAD |
| THREAD LENGTH | 0.560 INCHES NOMINAL NUT THREAD 0.450 INCHES NOMINAL STUD THREAD |
| LOCKING FEATURE | RING, LOCK SERRATED |
| III SERRATION QUANTITY | 6 |
| MANUFACTURERS CODE | 83324 |
| DESIGN CONTROL REFERENCE | SHF111-11SM14A |
