NSN 5306-01-486-3587 AN42THRUAN49, AN4620A, AN46-20A
Product Details | EYE BOLT
5306-01-486-3587 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: AN42THRUAN49, AN4620A, AN46-20A, AN46C7A, AN46-C7A, 5306-01-486-3587, 01-486-3587, 5306014863587, 014863587
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JUN 2001 | 01-486-3587 | 01853 ( BOLT, EYE ) |

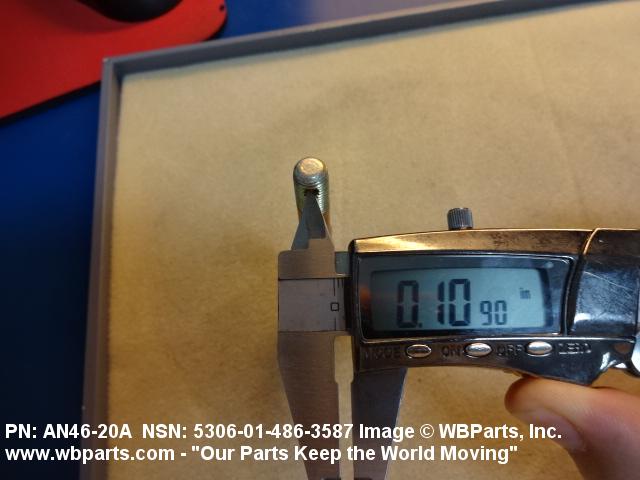

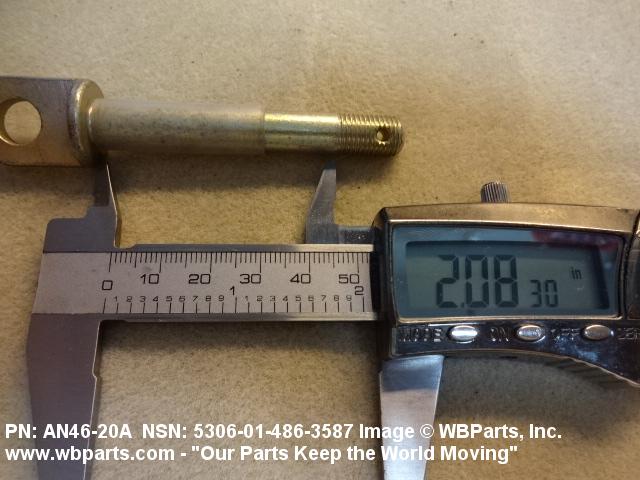

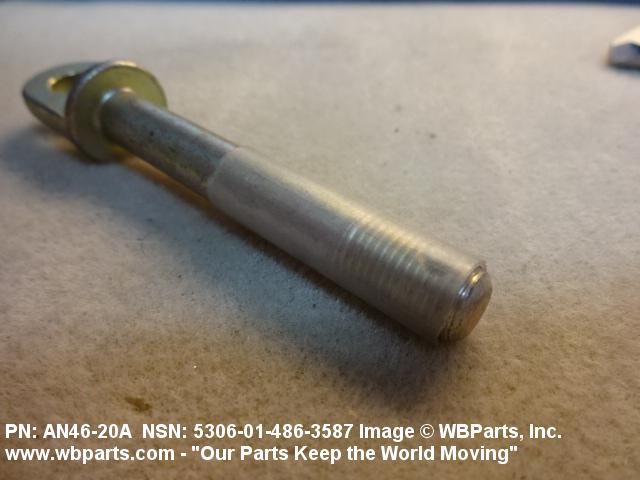

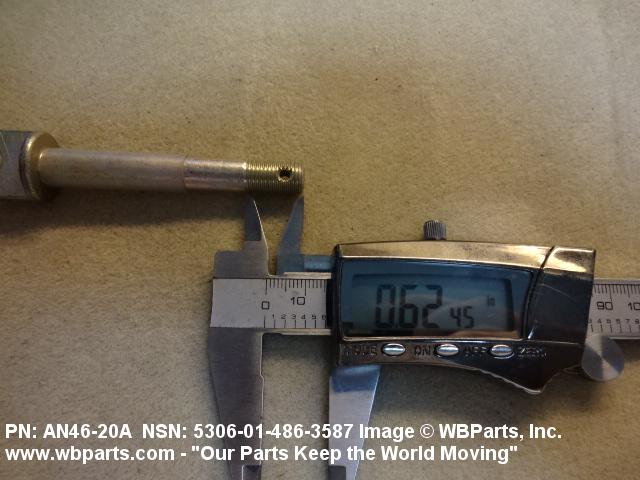

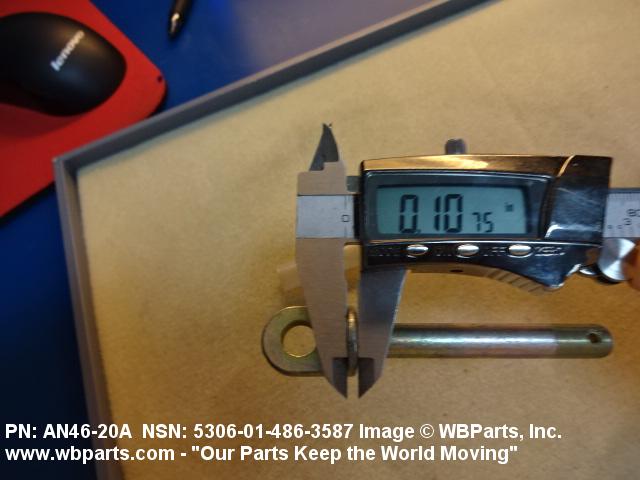

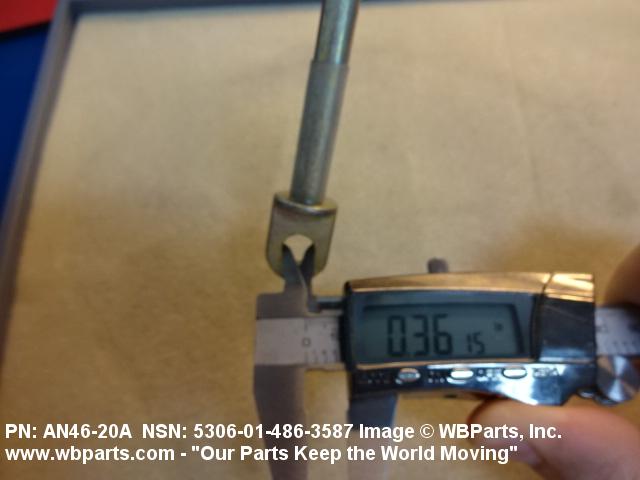

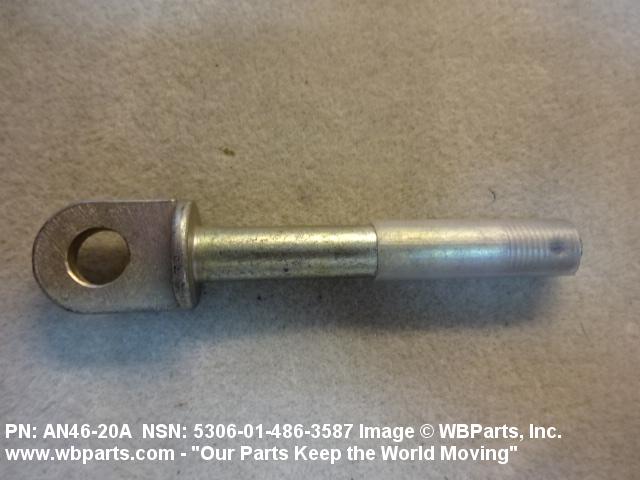

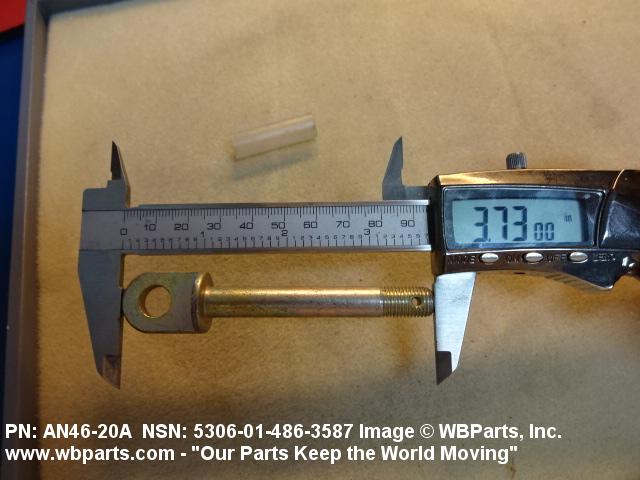

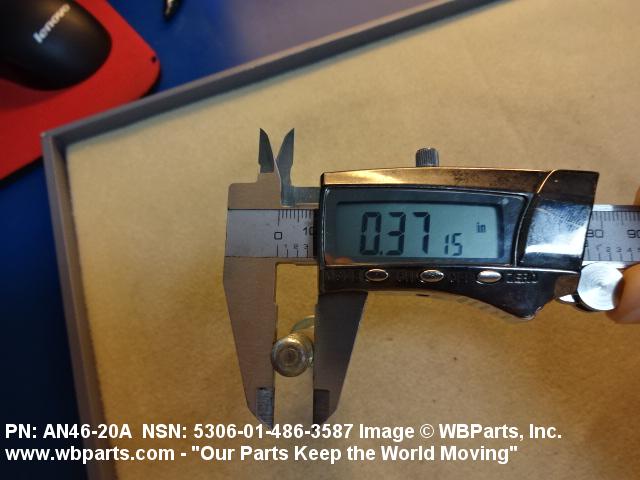

Drawings & Photos | NSN 5306-01-486-3587
Demand History | NSN 5306-01-486-3587
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN4620A | 2020-03-79 | 200 | US |
| 5306-01-486-3587 | 2018-03-81 | 1000 | US |
| 5306-01-486-3587 | 2017-10-292 | 100 | US |
| 5306-01-486-3587 | 2017-10-292 | 12 | United States |
| AN4620A | 2008-03-65 | 1 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-486-3587
Technical Data | NSN 5306-01-486-3587
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.374 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.624 INCHES MINIMUM AND 0.671 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | B5 ROUND, CLOSED W/SHOULDER |
| EYE INSIDE DIAMETER | 0.375 INCHES MINIMUM AND 0.378 INCHES MAXIMUM |
| SHOULDER THICKNESS | 0.094 INCHES NOMINAL |
| SHANK LENGTH | 2.062 INCHES MINIMUM AND 2.109 INCHES MAXIMUM |
| EYE STOCK THICKNESS | 0.183 INCHES MINIMUM AND 0.193 INCHES MAXIMUM |
| SHOULDER DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 3.094 INCHES NOMINAL |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 2.656 INCHES MINIMUM AND 2.703 INCHES MAXIMUM |
| EYE OUTSIDE WIDTH | 0.750 INCHES NOMINAL |
| SPECIAL FEATURES | BOLT WITHOUT DRILLED HOLE IN SHANK |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BOLT, EYE |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN42THRUAN49 |
Restrictions/Controls & Freight Information | NSN 5306-01-486-3587
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
