NSN 5306-01-486-3594 NAS6608D36, 01-486-3594, 014863594
Product Details | SHEAR BOLT
5306-01-486-3594 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: NAS6608D36, 5306-01-486-3594, 01-486-3594, 5306014863594, 014863594
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JUN 2001 | 01-486-3594 | 15903 ( BOLT, SHEAR ) |

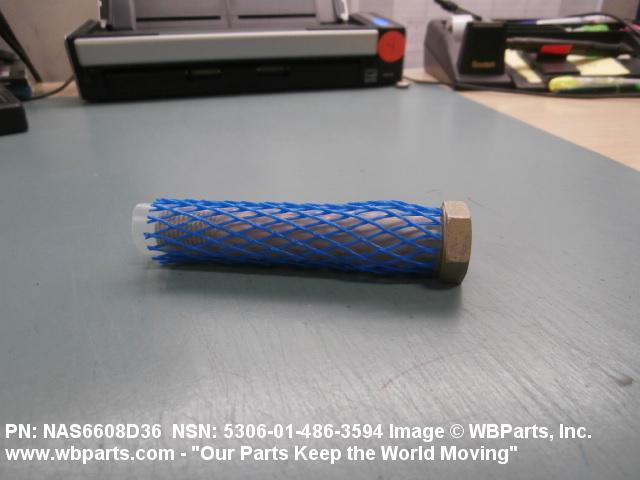

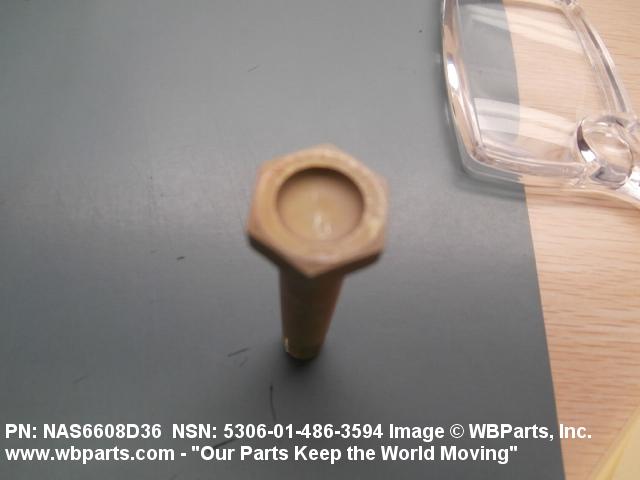

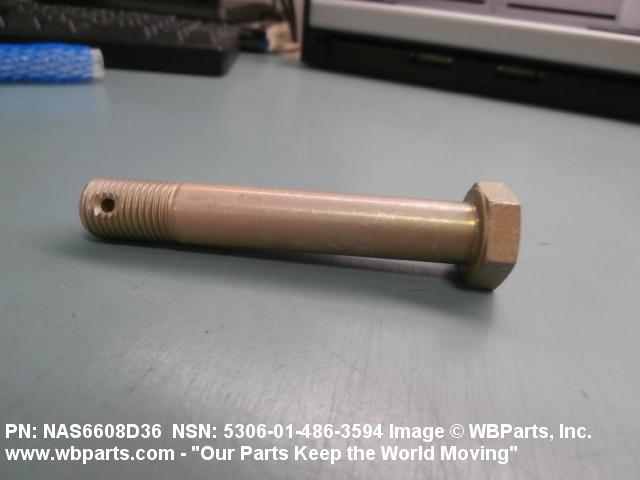

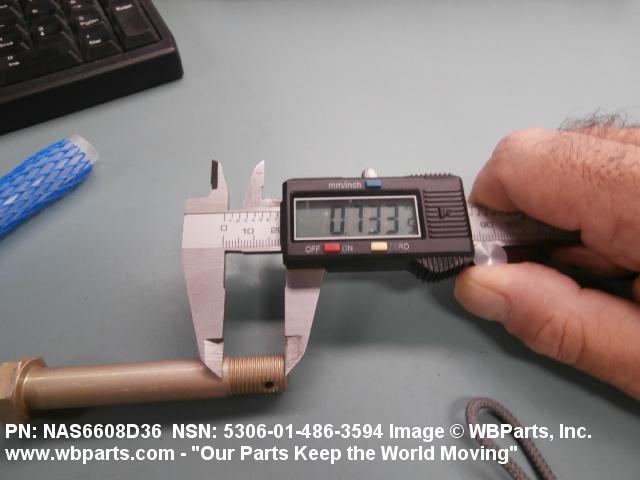

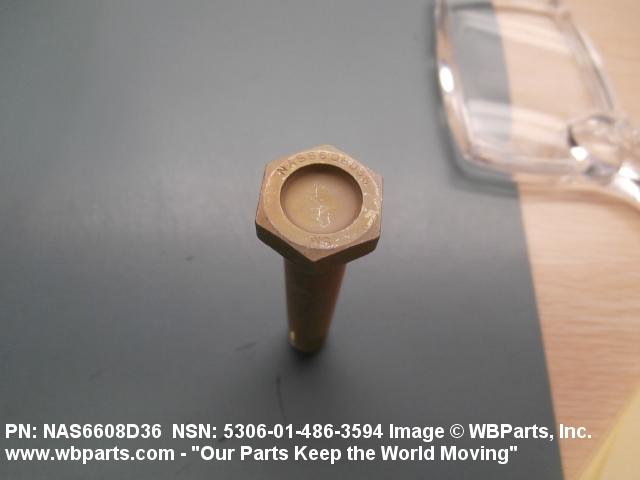

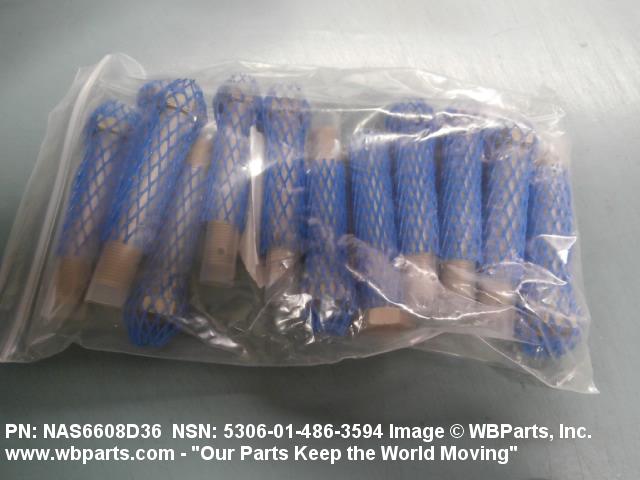

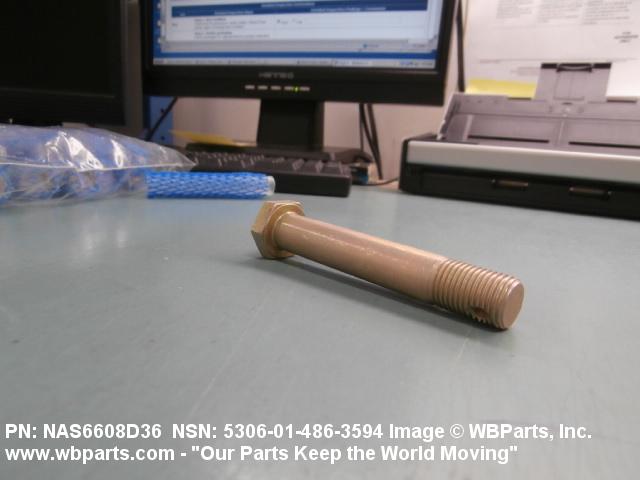

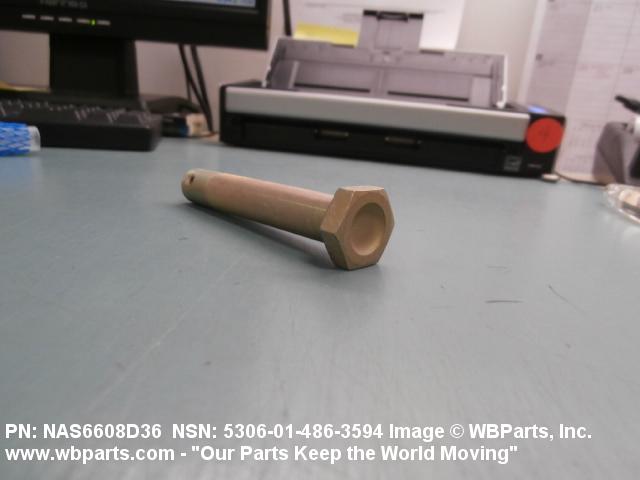

Drawings & Photos | NSN 5306-01-486-3594
Demand History | NSN 5306-01-486-3594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-486-3594 | 2018-02-45 | 5 | South Korea |
| 5306-01-486-3594 | 2018-02-45 | 5 | South Korea |
| 5306-01-486-3594 | 2014-05-135 | 12 | United States |
Cross Reference | NSN 5306-01-486-3594
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS6608D36 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-01-486-3594
Technical Data | NSN 5306-01-486-3594
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |

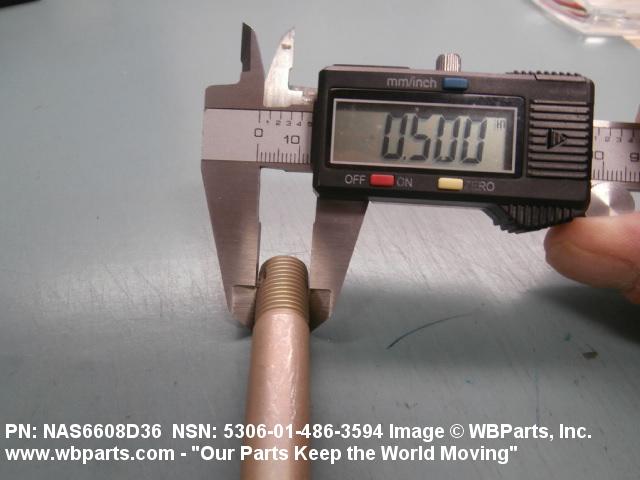

| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.735 INCHES NOMINAL |
| FASTENER LENGTH | 2.970 INCHES MINIMUM AND 3.000 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 4340 OR STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR AMS6415 ASSN STD 2ND MATERIAL RESPONSE OR MIL-S-5000 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 4TH MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY II, CL 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |

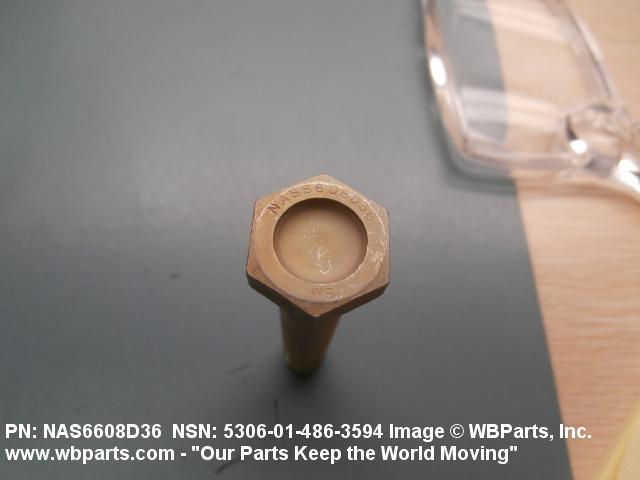

| HEAD STYLE | C3 DISHED HEXAGON |

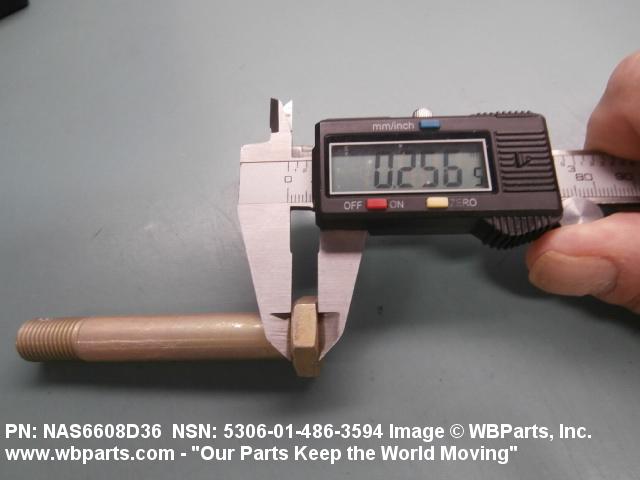

| HEAD HEIGHT | 0.250 INCHES MINIMUM AND 0.265 INCHES MAXIMUM |

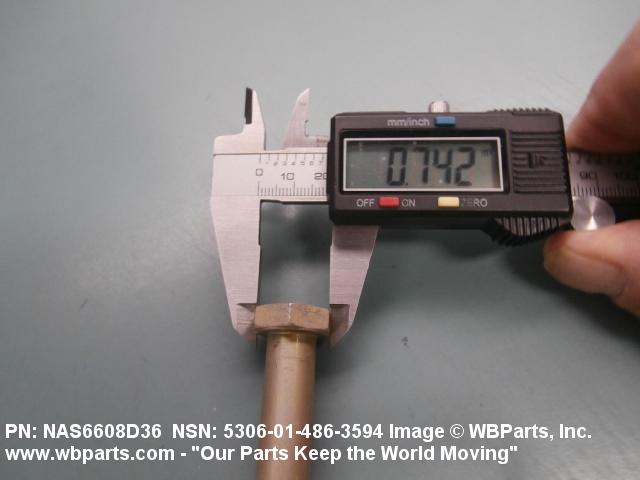

| WIDTH BETWEEN FLATS | 0.741 INCHES MINIMUM AND 0.752 INCHES MAXIMUM |

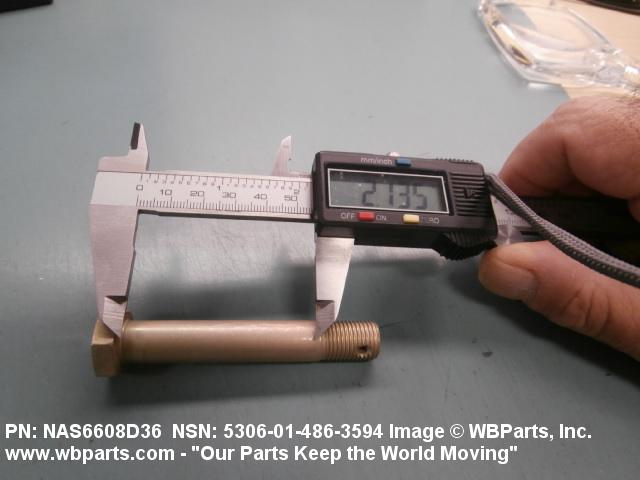

| GRIP LENGTH | 2.115 INCHES MINIMUM AND 2.135 INCHES MAXIMUM |

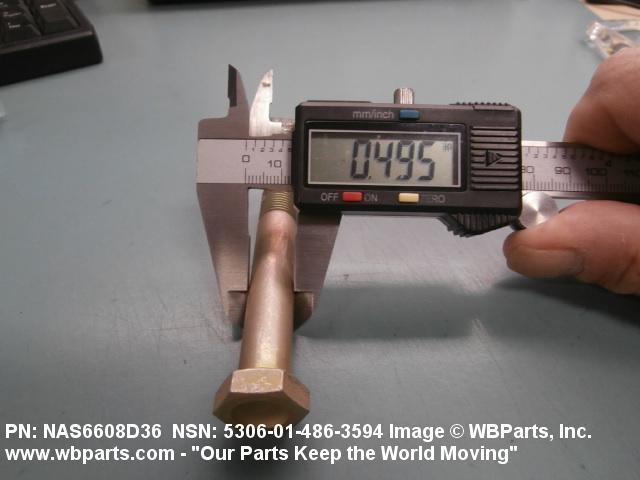

| GRIP DIAMETER | 0.4945 INCHES MINIMUM AND 0.4950 INCHES MAXIMUM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BOLT, HEX HEAD, CLOSE TOLERANCE, ALLOY STEEL, LONG THREAD, NONLOCKING |
Restrictions/Controls & Freight Information | NSN 5306-01-486-3594
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
