Product Details | SHEAR BOLT

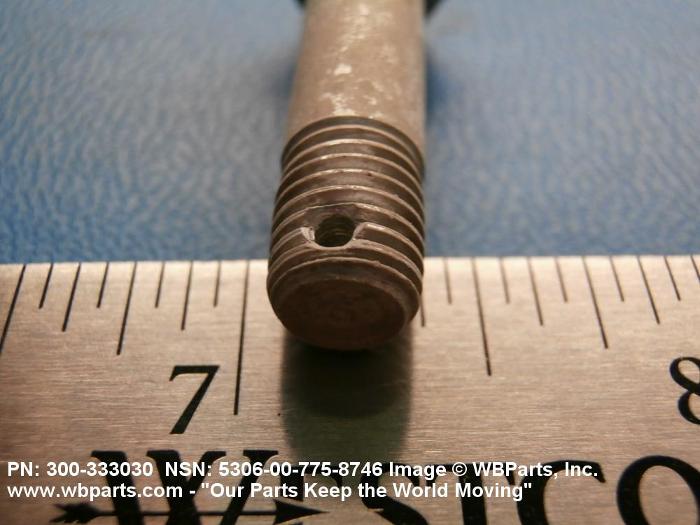

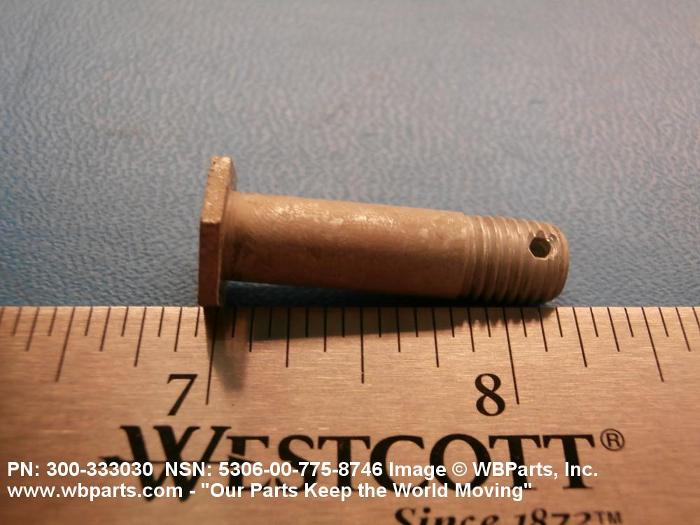

5306-00-775-8746 A high strength, 160,000 pounds per square inch (1100 megapascals) minimum tensile strength externally threaded fastener designed for use in applications involving great shear stress. The head is designed to accommodate an external wrench or driver. The head is not designed to be held or driven with an inserted driver, nor is it designed for rotation by the thumb and fingers. The unthreaded portion is of specific grip length, plated or unplated, and is machined to a tolerance of one thousandth (0.001) of an inch (0.025 mm) or less of a specific diameter for items one inch (25 mm) or less in diameter. Items over one inch (25 mm) in diameter shall have a tolerance of fifteen ten thousandths (0.0015) of an inch (0.038 mm) or less. The nominal major diameter of the threads shall be at least one thousandth (0.001) of an inch (0.025 mm) below the minimum shank diameter, but not below the minimum major diameter for applicable class of fit, as shown in the Screw Thread Standards, FED STD H28 and/or other nationally recognized standards. A locking feature may be incorporated in the design of the head or threads. See BOLT, MACHINE and BOLT, CLEVIS.
Part Alternates: 300-333030, 5306-00-775-8746, 00-775-8746, 5306007758746, 300333030, 007758746
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 MAR 1968 | 00-775-8746 | 15903 ( BOLT, SHEAR ) |
Drawings & Photos | NSN 5306-00-775-8746
Demand History | NSN 5306-00-775-8746
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 300333030 | 2012-09-257 | 4 | United States |
Cross Reference | NSN 5306-00-775-8746
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 300-333030 | 89372 | ROCKWELL INTERNATIONAL CORP NORTH AMERICAN AIRCRAFT OPNS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-775-8746
Technical Data | NSN 5306-00-775-8746
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.375 INCHES MAXIMUM |
| FASTENER LENGTH | 1.187 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626,COND C4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.062 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.492 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| GRIP LENGTH | 0.812 INCHES NOMINAL |
| GRIP DIAMETER | 0.3112 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM |
| DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER | 1.068 INCHES NOMINAL FIRST HOLE |
| SHANK UNTHREADED HOLE DIAMETER | 0.076 INCHES NOMINAL FIRST HOLE |
| MANUFACTURERS CODE | 89372 |
| DESIGN CONTROL REFERENCE | 300-333030 |
Restrictions/Controls & Freight Information | NSN 5306-00-775-8746
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-775-8746
