NSN 5306-00-776-1761 9091969, 00-776-1761, 007761761
Product Details | TEE HEAD BOLT
5306-00-776-1761 An externally threaded fastener whose threaded portion is of one nominal diameter and with a head specially designed to fit in a slot and hold against turning.
Part Alternates: 9091969, 5306-00-776-1761, 00-776-1761, 5306007761761, 007761761
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-776-1761 | 06668 ( BOLT, TEE HEAD ) |
Drawings & Photos | NSN 5306-00-776-1761
Demand History | NSN 5306-00-776-1761
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-776-1761 | 2015-06-168 | 40 | DIBBS |
| 5306-00-776-1761 | 2008-12-344 | 30 | DIBBS |
Cross Reference | NSN 5306-00-776-1761
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9091969 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-776-1761
Related Products | NSN 5306-00-776-1761
Technical Data | NSN 5306-00-776-1761
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.906 INCHES MINIMUM |
| FASTENER LENGTH | 1.290 INCHES NOMINAL |
| MATERIAL | STEEL COMP 8740H OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

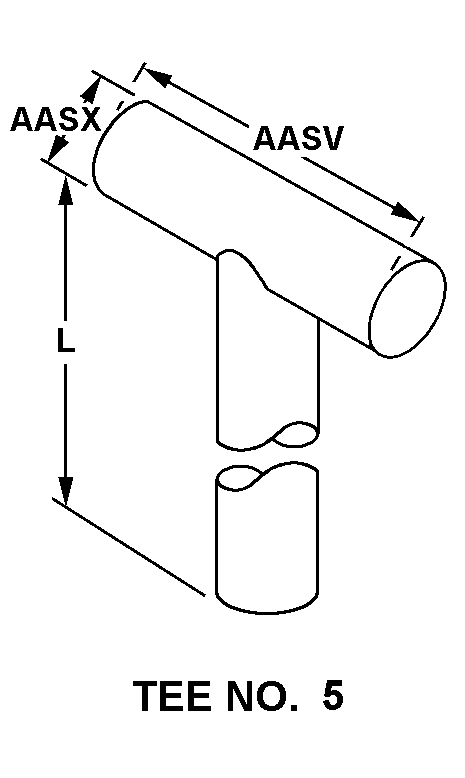

| HEAD STYLE | C21 TEE NO. 5 |
| HEAD LENGTH | 0.969 INCHES NOMINAL |
| TEE BOLT CYLINDRICAL HEAD DIAMETER | 0.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5306-00-776-1761
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
