Product Details | EYE BOLT
5306-00-131-8049 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: 1142744, 5306-00-131-8049, 00-131-8049, 5306001318049, 001318049
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-131-8049 | 01853 ( BOLT, EYE ) |

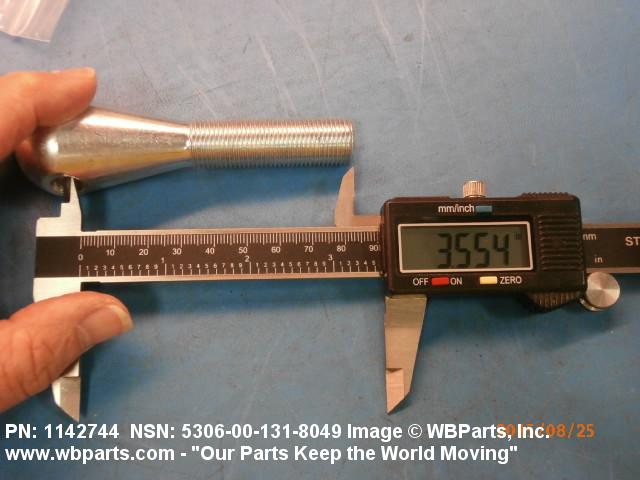

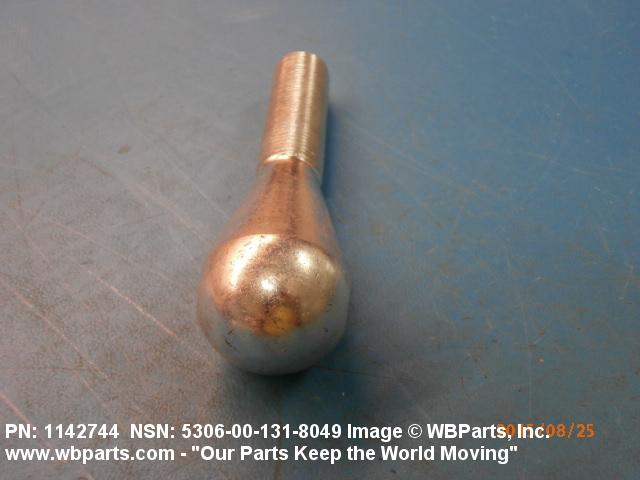

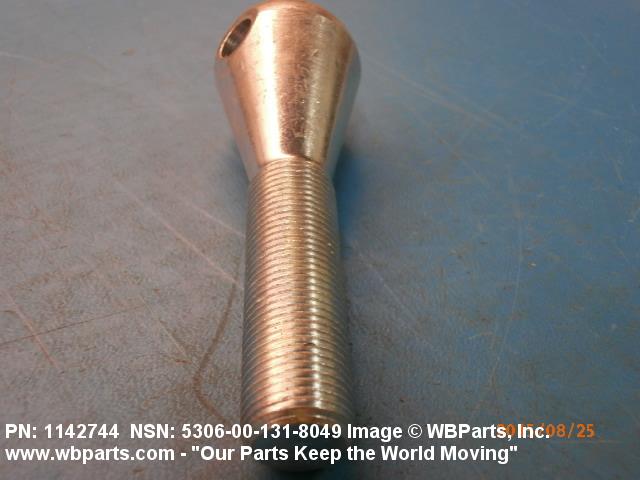

Drawings & Photos | NSN 5306-00-131-8049
Demand History | NSN 5306-00-131-8049
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-131-8049 | 2015-07-204 | 2 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5306-00-131-8049
Technical Data | NSN 5306-00-131-8049
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.000 INCHES MINIMUM |
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 CONDITION C4 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

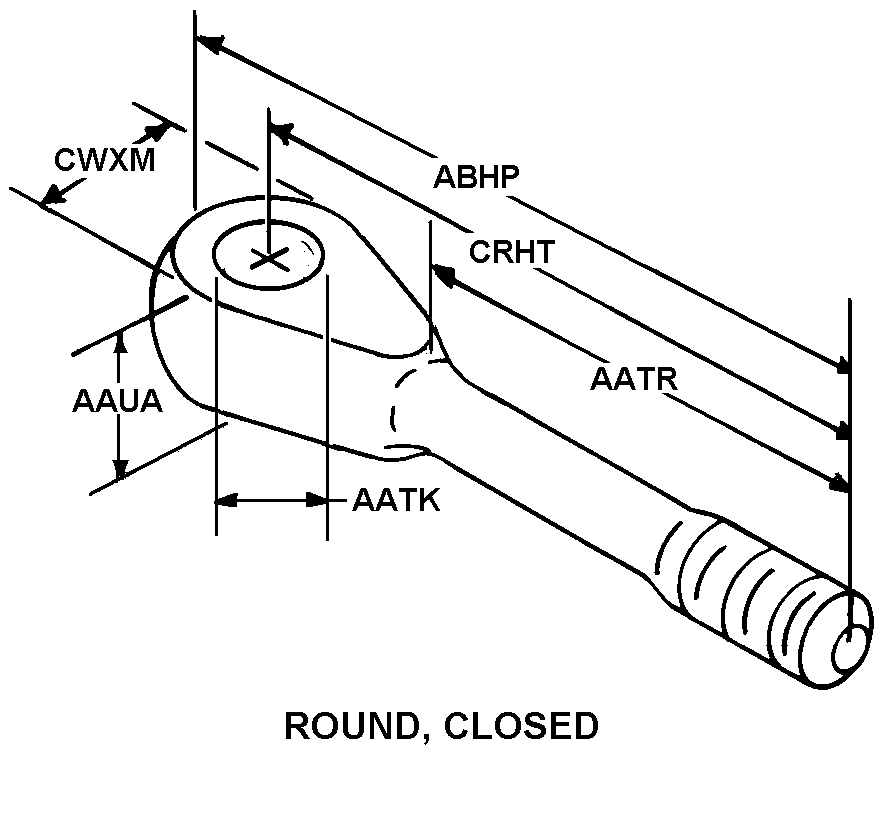

| STYLE DESIGNATOR | B12 ROUND, CLOSED |
| EYE INSIDE DIAMETER | 0.375 INCHES MINIMUM AND 0.379 INCHES MAXIMUM |
| SHANK LENGTH | 2.000 INCHES NOMINAL |
| EYE STOCK THICKNESS | 1.125 INCHES NOMINAL |
| OVERALL LENGTH | 4.125 INCHES NOMINAL |
| DISTANCE FROM CENTER OF EYE TO SHANK END | 3.500 INCHES MINIMUM |
| EYE OUTSIDE WIDTH | 1.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 88277 |
| DESIGN CONTROL REFERENCE | 1142744 |
