NSN 5306-01-125-6190 16VB0037, 16VB003-7, 91837

Product Details | EYE BOLT

5306-01-125-6190 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.

Part Alternates: 16VB0037, 16VB003-7, 91837, 9183-7, 5306-01-125-6190, 01-125-6190, 5306011256190, 011256190

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	30 JAN 1982	01-125-6190	01853 ( BOLT, EYE )

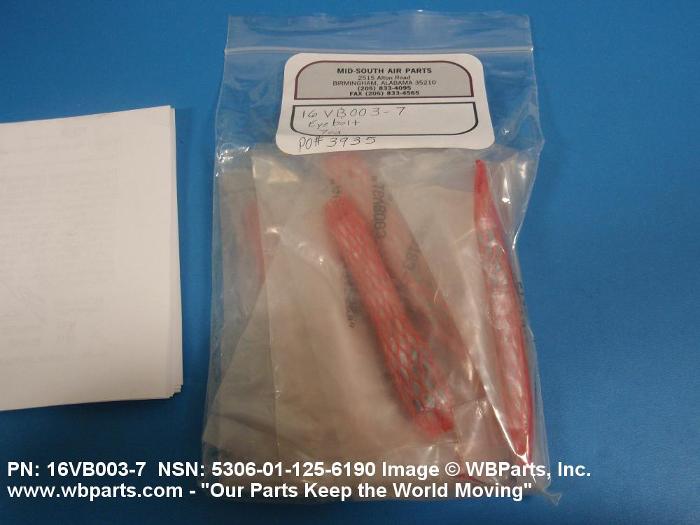

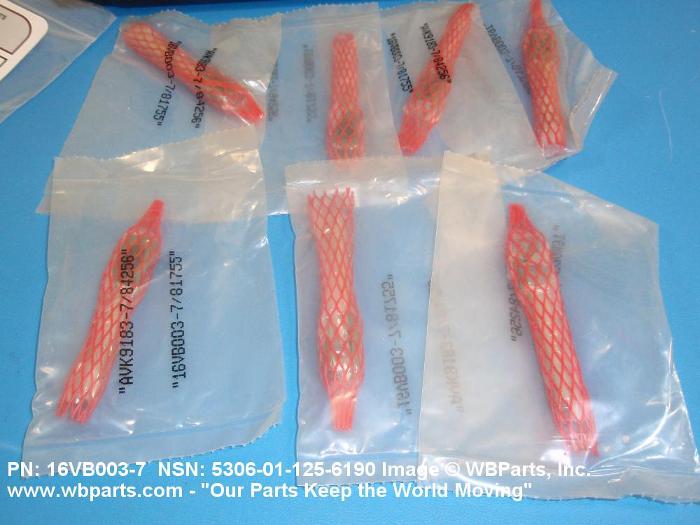

Drawings & Photos | NSN 5306-01-125-6190

Part Number	Request Date	QTY	Origin
16VB003-7	2023-09-267	1724	DIBBS
9183-7	2023-09-267	1724	DIBBS
16VB003-7	2023-02-57	2020	DIBBS
9183-7	2023-02-57	2020	DIBBS
5306-01-125-6190	2022-01-29	8	United States
16VB003-7	2021-04-96	183	DIBBS
9183-7	2021-04-96	183	DIBBS
16VB003-7	2021-01-26	600	DIBBS
9183-7	2021-01-26	600	DIBBS
16VB003-7	2020-12-337	600	DIBBS
9183-7	2020-12-337	600	DIBBS
16VB003-7	2020-04-120	183	DIBBS
9183-7	2020-04-120	183	DIBBS
16VB003-7	2020-03-75	85	DIBBS
9183-7	2020-03-75	85	DIBBS
16VB003-7	2020-02-57	252	DIBBS
16VB003-7	2020-02-57	203	DIBBS
9183-7	2020-02-57	252	DIBBS
9183-7	2020-02-57	203	DIBBS
16VB003-7	2019-12-336	203	DIBBS
9183-7	2019-12-336	203	DIBBS
16VB003-7	2019-07-209	252	DIBBS
9183-7	2019-07-209	252	DIBBS
16VB003-7	2019-05-121	174	DIBBS
9183-7	2019-05-121	174	DIBBS
5306-01-125-6190	2018-12-348	4	US
16VB0037	2013-11-325	4	United States
16VB0037	2013-11-325	10	United States
5306-01-125-6190	2013-09-255	73	DIBBS
5306-01-125-6190	2013-06-156	83	DIBBS
5306-01-125-6190	2013-03-72	62	DIBBS
5306-01-125-6190	2012-11-333	48	DIBBS
16VB0037	2009-09-264	10	US
5306-01-125-6190	2009-09-264	12	United States
5306-01-125-6190	2009-07-188	12	United States
5306-01-125-6190	2008-10-282	2	United States
5306-01-125-6190	2008-09-255	10	United States

Cross Reference | NSN 5306-01-125-6190

Part Number	Cage Code	Manufacturer
16VB003-7	81755	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
16VB003-7	83014	HARTWELL CORPORATION
9183-7	84256	AVIBANK MFG., INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-01-125-6190

Compare

Related Products | NSN 5306-01-125-6190

5306-01-125-6201, 5306-01-125-6205, 5306-01-125-6741, 5306-01-125-6755, 5306-01-125-6756

Technical Data | NSN 5306-01-125-6190

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNJEF
NOMINAL THREAD DIAMETER	0.375 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	1.100 INCHES NOMINAL
STYLE DESIGNATOR	B13 ROUND, CLOSED
SHANK LENGTH	2.100 INCHES NOMINAL
EYE STOCK THICKNESS	0.395 INCHES NOMINAL
OVERALL LENGTH	3.100 INCHES NOMINAL
DISTANCE FROM CENTER OF EYE TO SHANK END	2.600 INCHES NOMINAL
EYE OUTSIDE WIDTH	0.595 INCHES MINIMUM AND 0.600 INCHES MAXIMUM
SPECIAL FEATURES	ELONGATED HOLE 0.540 MIN. X 0.550 MAX. AND 0.280 MIN. X 0.290 MAX.
MANUFACTURERS CODE	84256
DESIGN CONTROL REFERENCE	9183-7

Restrictions/Controls & Freight Information | NSN 5306-01-125-6190

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	573	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5306-01-125-6190

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
