NSN 5306-01-177-3389 B9147718, B91477-18, 01-177-3389
Product Details | EYE BOLT
5306-01-177-3389 An externally threaded device whose threaded portion is of one nominal diameter, without a head, but with the unthreaded end either bent more than 225 degrees (3.925 radians) or cast, forged, or punched to resemble an eye. See also BOLT, HOOK. Excludes CONNECTOR, ROD END.
Part Alternates: B9147718, B91477-18, 5306-01-177-3389, 01-177-3389, 5306011773389, 011773389
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 APR 1984 | 01-177-3389 | 01853 ( BOLT, EYE ) |

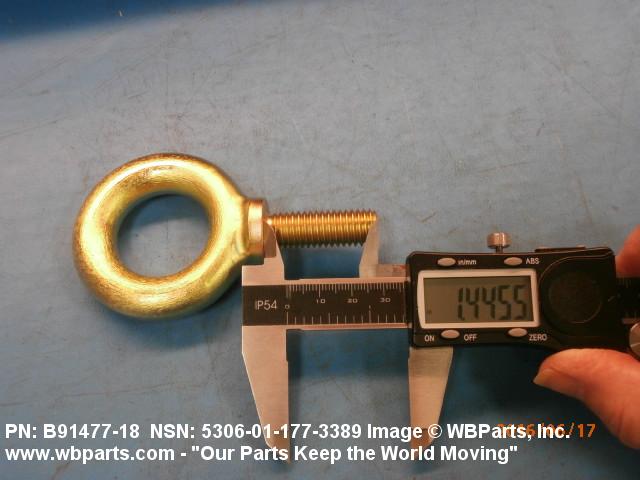

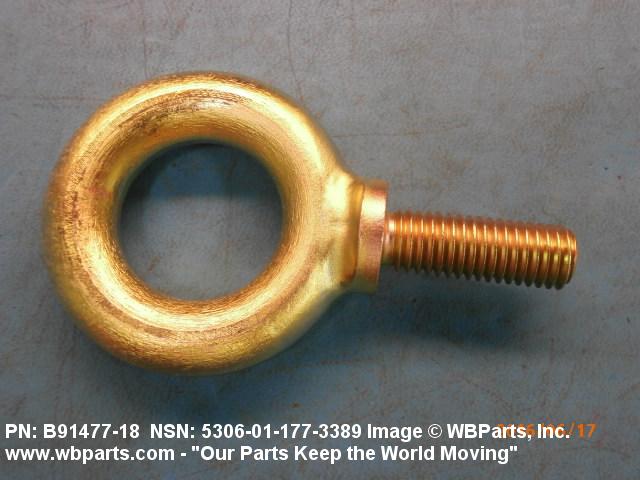

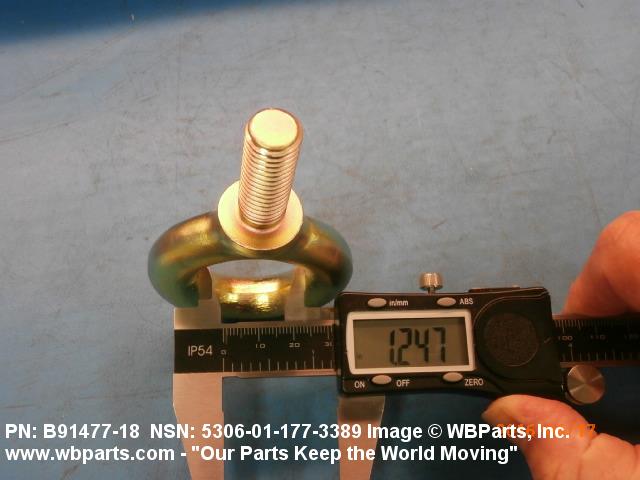

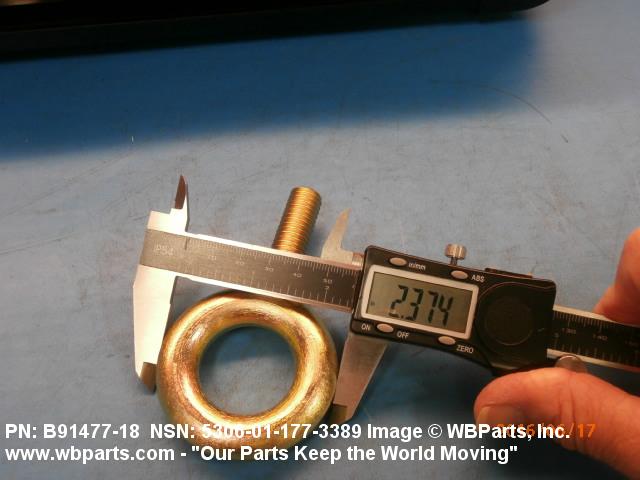

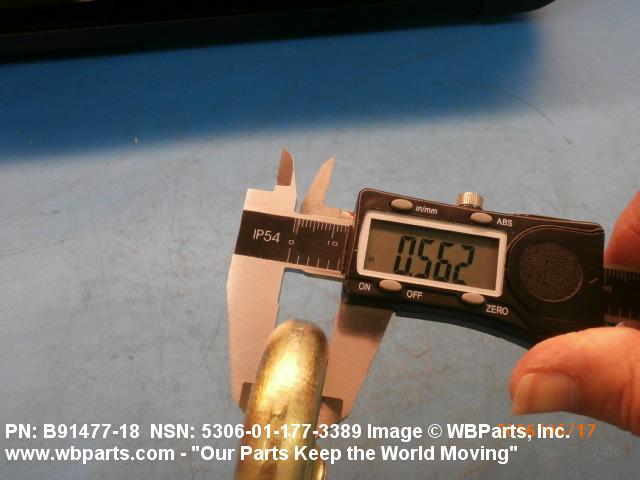

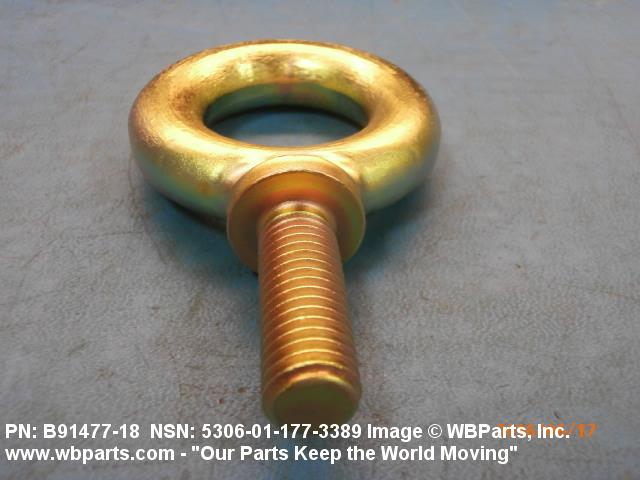

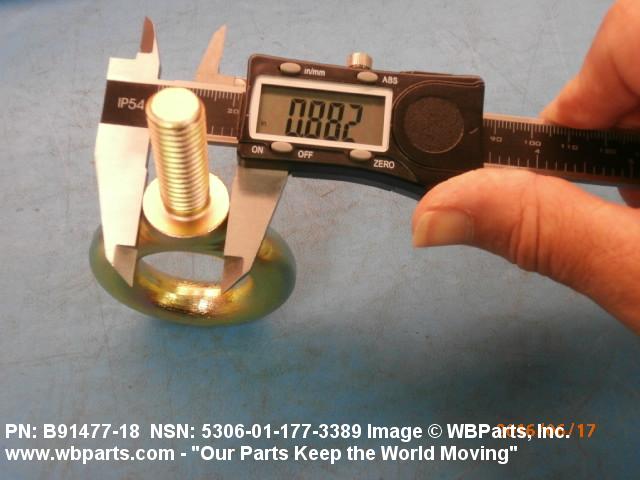

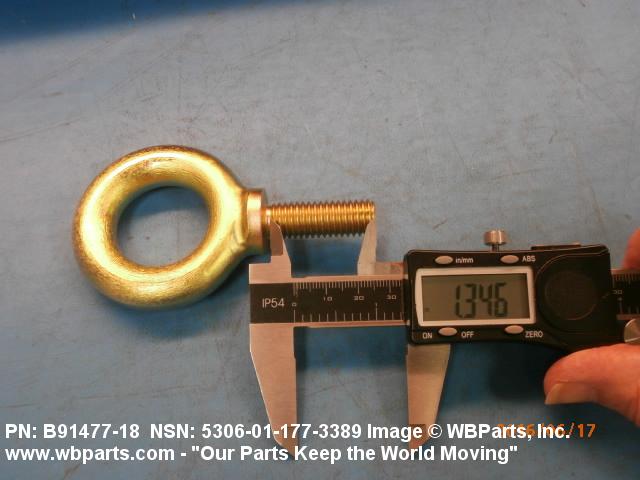

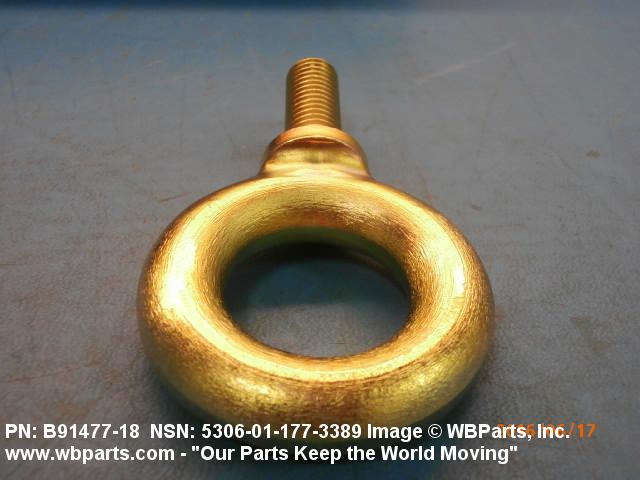

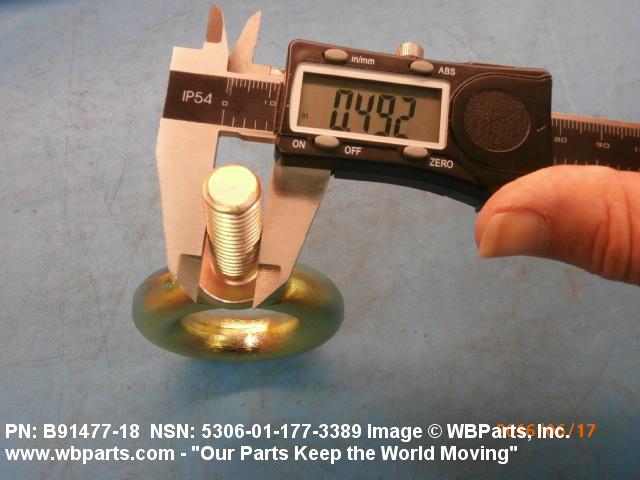

Drawings & Photos | NSN 5306-01-177-3389
Demand History | NSN 5306-01-177-3389
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-01-177-3389 | 2019-06-154 | 2 | DIBBS |
| 5306-01-177-3389 | 2018-12-338 | 2 | DIBBS |
| B9147718 | 2018-12-337 | 11 | US |
| 5306-01-177-3389 | 2018-11-329 | 3 | DIBBS |
| 5306-01-177-3389 | 2018-11-329 | 8 | DIBBS |
| 5306-01-177-3389 | 2018-08-228 | 30 | US |
| 5306-01-177-3389 | 2018-07-204 | 8 | DIBBS |
| B9147718 | 2018-06-171 | 22 | United States |
| 5306-01-177-3389 | 2018-04-116 | 8 | DIBBS |
| 5306-01-177-3389 | 2018-04-108 | 8 | DIBBS |
| 5306-01-177-3389 | 2018-03-78 | 29 | DIBBS |
| 5306-01-177-3389 | 2017-10-275 | 29 | DIBBS |
| 5306-01-177-3389 | 2017-09-267 | 29 | DIBBS |
| 5306-01-177-3389 | 2016-05-146 | 7 | United States |
| 5306-01-177-3389 | 2015-02-41 | 3 | DIBBS |
Cross Reference | NSN 5306-01-177-3389
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B91477-18 | 80020 | NAVAL AIR WARFARE CENTER AIRCRAFT DIVISION CODE 4.8.8.0.0.B BLDG 148-2 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-177-3389
Related Products | NSN 5306-01-177-3389
Technical Data | NSN 5306-01-177-3389

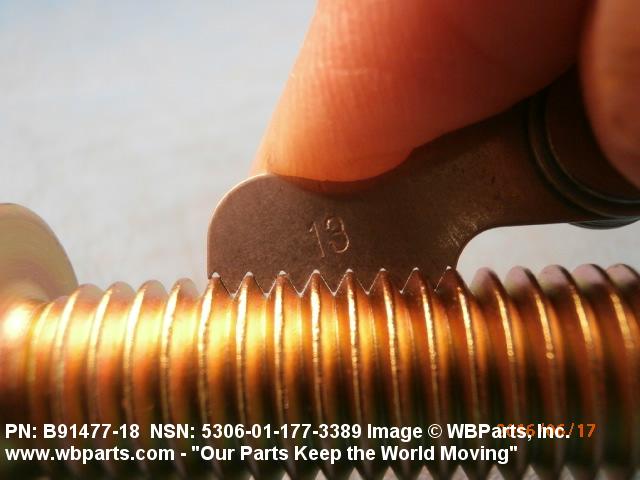

| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 13 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.323 INCHES MINIMUM AND 1.438 INCHES MAXIMUM |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY2,CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

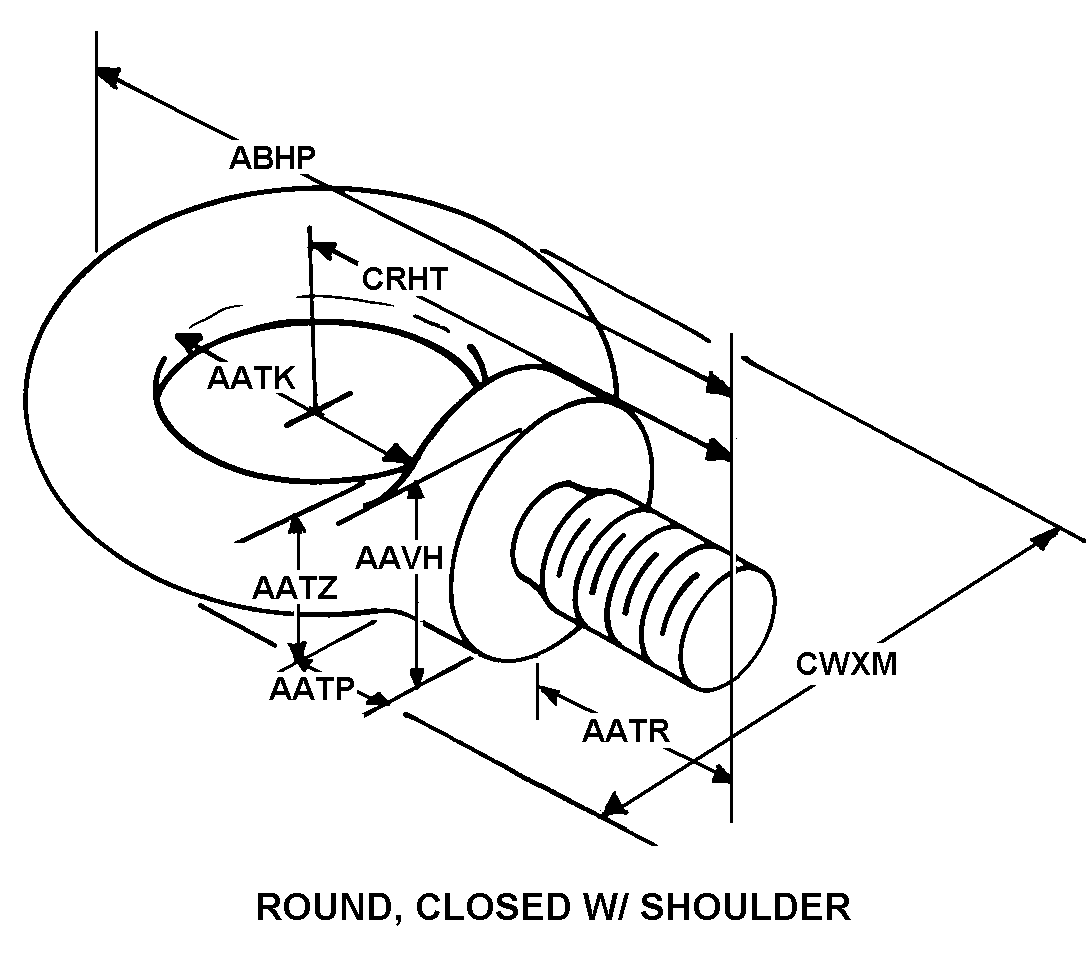

| STYLE DESIGNATOR | B17 ROUND, CLOSED W/SHOULDER |
