NSN 5306-01-177-3490 1655678, 01-177-3490, 011773490
Product Details | HOOK BOLT
5306-01-177-3490 An externally threaded device whose threaded portion is of nominal diameter, without a head but with the unthreaded end bent not over 225 degrees (3.925 radians). See also BOLT, EYE and BOLT, U.
Part Alternates: 1655678, 5306-01-177-3490, 01-177-3490, 5306011773490, 011773490
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 APR 1984 | 01-177-3490 | 06664 ( BOLT, HOOK ) |
Drawings & Photos | NSN 5306-01-177-3490
Cross Reference | NSN 5306-01-177-3490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1655678 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-01-177-3490
Related Products | NSN 5306-01-177-3490
Technical Data | NSN 5306-01-177-3490
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.625 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1020 OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY2 CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

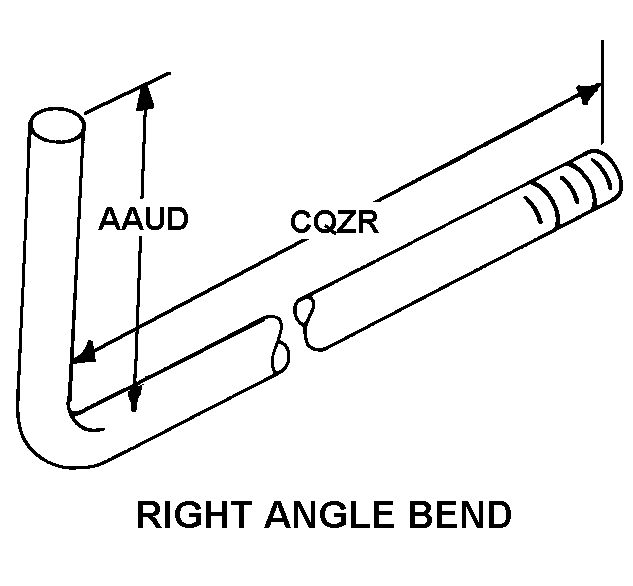

| STYLE DESIGNATOR | B21 RIGHT ANGLE BEND |
| HOOK INSIDE WIDTH | 1.500 INCHES NOMINAL |
| DISTANCE FROM INSIDE OF BEND TO SHANK END | 2.500 INCHES NOMINAL |
| SPECIAL FEATURES | 0.125 IN. LG THD UNDERCUT; 0.062X45 DEG THD END CORNERS CHAMFERED; UNDERCUT DIA 0.302 |
Restrictions/Controls & Freight Information | NSN 5306-01-177-3490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | ZN | Netherlands ZO ZP |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
