NSN 5306-00-151-1423 AN411A, AN4-11A, 2010283

Product Details | MACHINE BOLT

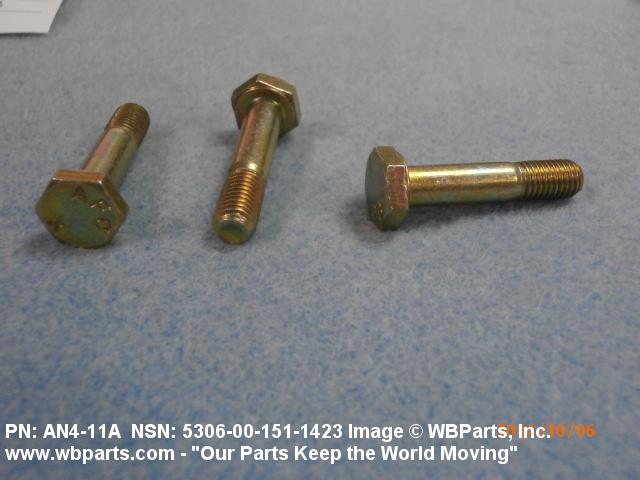

5306-00-151-1423 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN411A, AN4-11A, 2010283, 401 311, 401311, 7601603, 932.19.21.130, 9321921130, 5306-00-151-1423, 00-151-1423, 5306001511423, 001511423

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-151-1423	01847 ( BOLT, MACHINE )

Drawings & Photos | NSN 5306-00-151-1423

Part Number	Request Date	QTY	Origin
AN411A	2024-05-129	4	US
5306-00-151-1423	2024-05-123	353	DIBBS
5306-00-151-1423	2024-03-77	12	DIBBS
AN411A	2023-09-255	15	PH
AN411A	2023-08-233	6	United Arab Emirates
AN411A	2023-07-193	200000	IT
AN411A	2022-04-108	40	United States
AN411A	2021-10-278	22	United States
5306-00-151-1423	2021-09-271	1	US
5306-00-151-1423	2021-07-209	2	US
AN411A	2021-07-202	6	IN
5306-00-151-1423	2021-01-27	720	US
AN411A	2021-01-05	2	AT
5306-00-151-1423	2020-06-182	64	MANUAL
5306-00-151-1423	2020-02-37	1462	DIBBS
AN411A	2019-07-198	60	US
AN411A	2019-03-63	20	China
AN411A	2019-03-63	20	China
5306-00-151-1423	2018-08-225	8	US
AN411A	2018-02-59	160	IN
5306-00-151-1423	2018-01-25	374	DIBBS
AN411A	2017-09-269	3	United States
5306-00-151-1423	2017-05-138	16	United States
AN411A	2017-04-116	8	US
AN411A	2016-11-322	400	us
AN411A	2016-07-202	25	United States
AN411A	2015-05-140	16	US
AN4-11A	2015-05-138	8	United States
AN4-11A	2015-05-138	2	United States
AN4-11A	2015-05-138	8	United States
AN4-11A	2015-05-138	2	United States
AN4-11A	2015-05-138	8	United States
AN4-11A	2015-05-138	2	United States
AN4-11A	2015-05-138	8	United States
AN4-11A	2015-05-138	2	United States
AN411A	2015-02-50	1000	us
AN4-11A	2014-05-142	5000	United States
AN411A	2014-04-118	50	South Korea
AN4-11A	2013-10-280	32	NL
AN411A	2013-08-240	25	US
AN411A	2013-02-43	15	United States
AN4-11A	2012-11-310	50
AN411A	2012-10-298	1	ZA
AN4-11A	2011-11-325	50	United States
5306-00-151-1423	2011-06-175	4	US
5306-00-151-1423	2011-06-157	32	DIBBS
5306-00-151-1423	2011-05-132	20	DIBBS
5306-00-151-1423	2011-01-07	12	DIBBS
5306-00-151-1423	2010-11-307	10	US
5306-00-151-1423	2009-11-313	1163	DIBBS
5306-00-151-1423	2009-07-184	130	United States
5306-00-151-1423	2009-06-173	1977	DIBBS
AN411A	2009-05-138	480	China
5306-00-151-1423	2009-03-89	1519	DIBBS
5306-00-151-1423	2008-07-197	1610	DIBBS
AN411A	2007-11-308	5	United States

Cross Reference | NSN 5306-00-151-1423

Part Number	Cage Code	Manufacturer
2010283	001JK	EMBRAER S/A
2010283	FB459	EMBRAER AVIATION INTERNATIONAL
2010283	S4956	EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA
401 311	77294	PIPER AIRCRAFT INC.
7601603	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
932.19.21.130	S4080	PILATUS AIRCRAFT LTD
AN4-11A	1EHF9	INTERSTATE FITTINGS INC. DIV FASTENER DIVISION
AN4-11A	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
AN4-11A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN4-11A	9M264	GFC INDUSTRIES INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-151-1423

Compare

Related Products | NSN 5306-00-151-1423

5306-00-151-1424, 5306-00-151-1425, 5306-00-151-1426, 5306-00-151-1427, 5306-00-151-1428

Technical Data | NSN 5306-00-151-1423

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

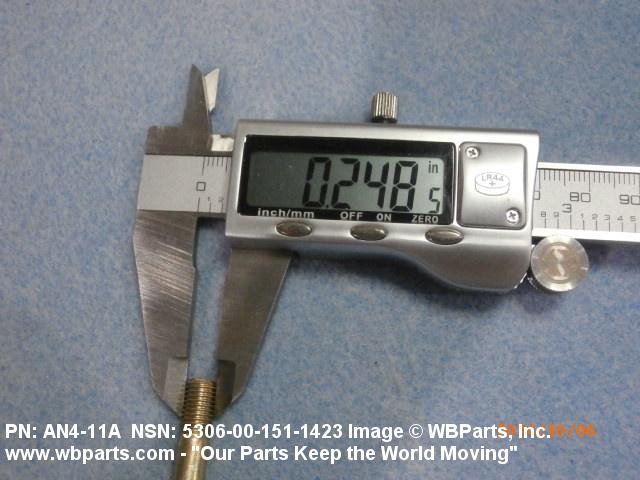

NOMINAL THREAD DIAMETER	0.250 INCHES
THREAD QUANTITY PER INCH	28
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

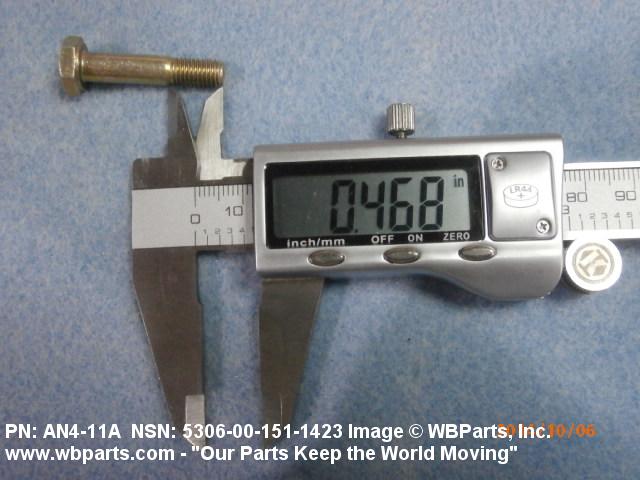

THREAD LENGTH	0.468 INCHES MINIMUM
FASTENER LENGTH	1.156 INCHES NOMINAL
MATERIAL	STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM

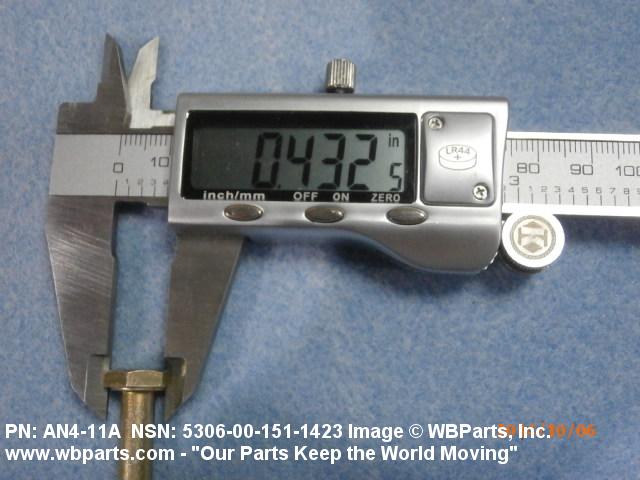

WIDTH BETWEEN FLATS	0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM

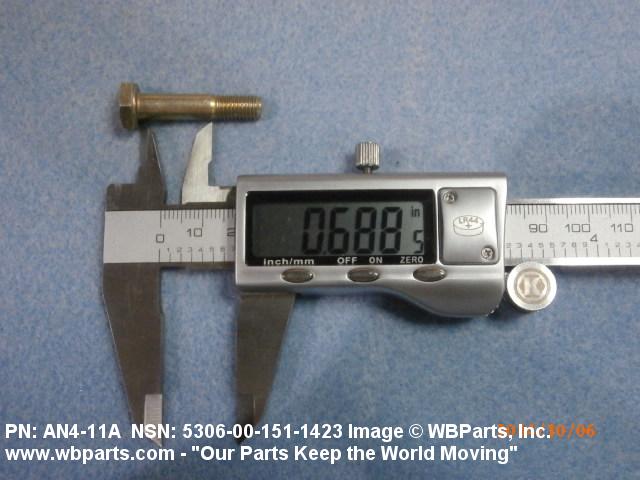

GRIP LENGTH	0.688 INCHES NOMINAL
