NSN 5306-00-151-1427 AN45A, AN4-5A, CIPRDAN45A
Product Details | MACHINE BOLT
5306-00-151-1427 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN45A, AN4-5A, CIPRDAN45A, CIPRD-AN4-5A , CIPRD-AN4-5A AS A , CIPRDAN45AASA, 14554090205, 145-540-90205, 2010249, 400 002, 400002, 6026101611, 6026-1016-11, 6026106313, 6026-1063-13, 6026106811, 6026-1068-11, 6026403512, 6026-4035-12, 802125, 80212500, 802125-00, 932.19.21.126, 9321921126, 5306-00-151-1427, 00-151-1427, 5306001511427, 001511427
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-151-1427 | 01847 ( BOLT, MACHINE ) |

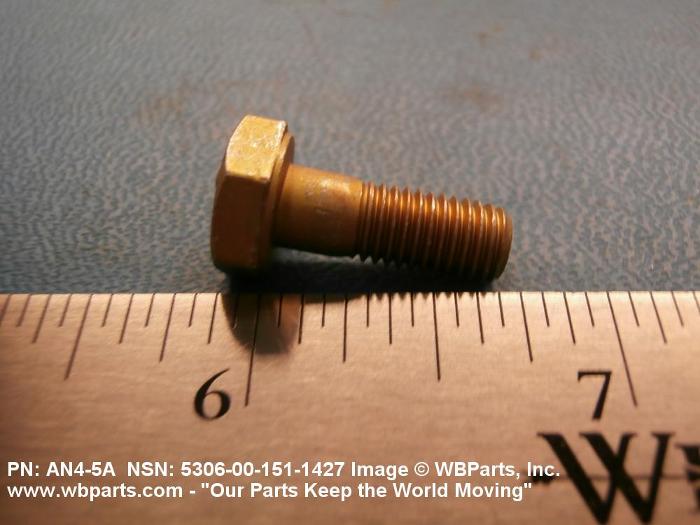

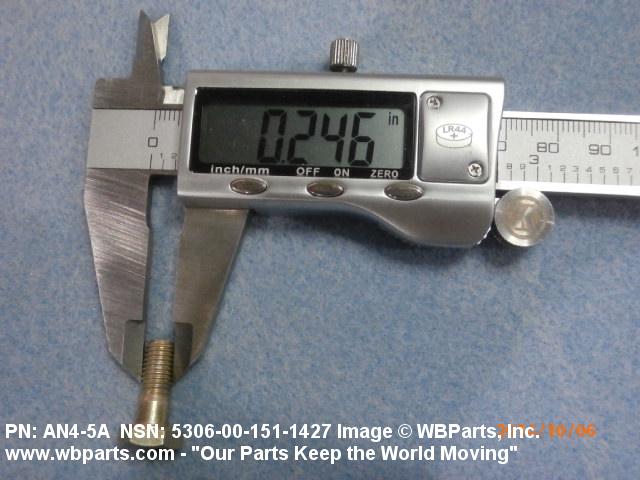

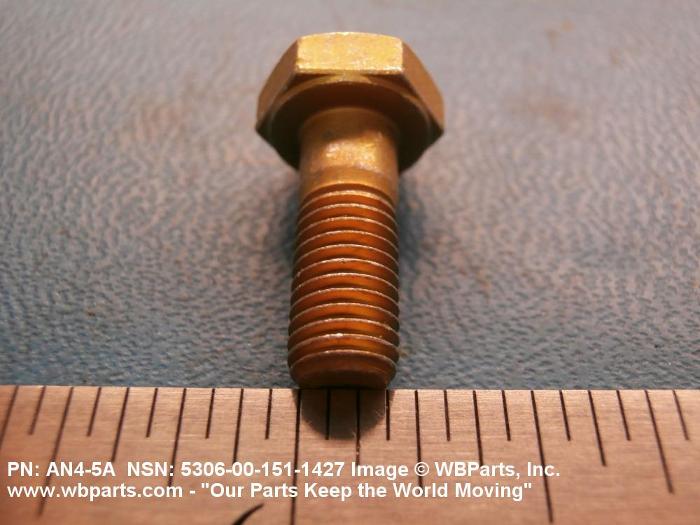

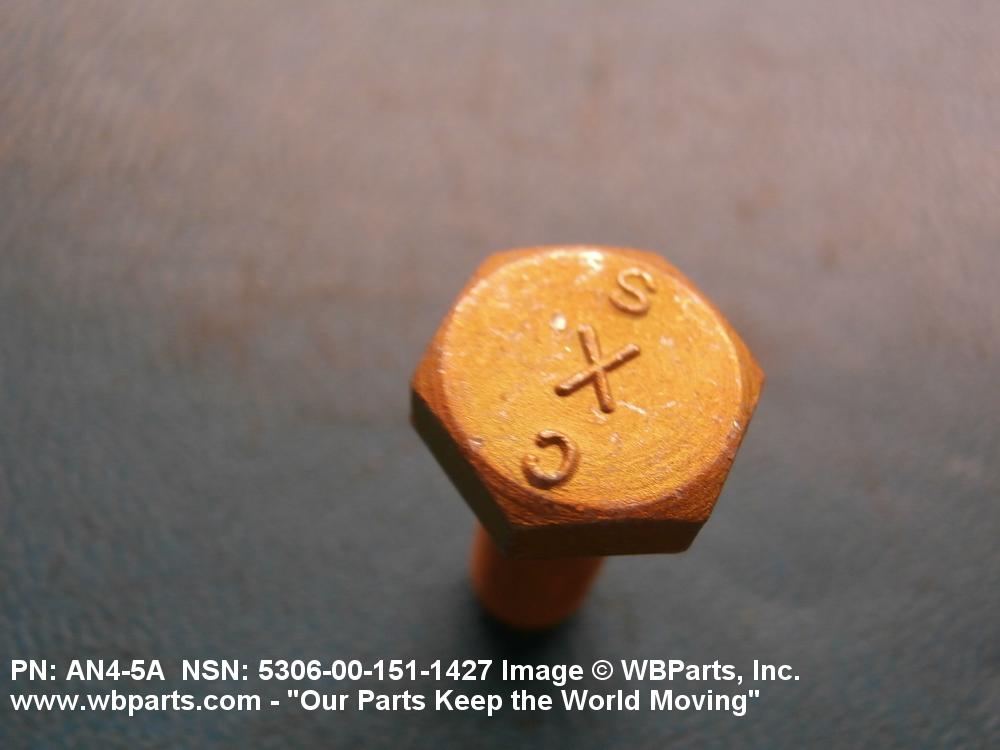

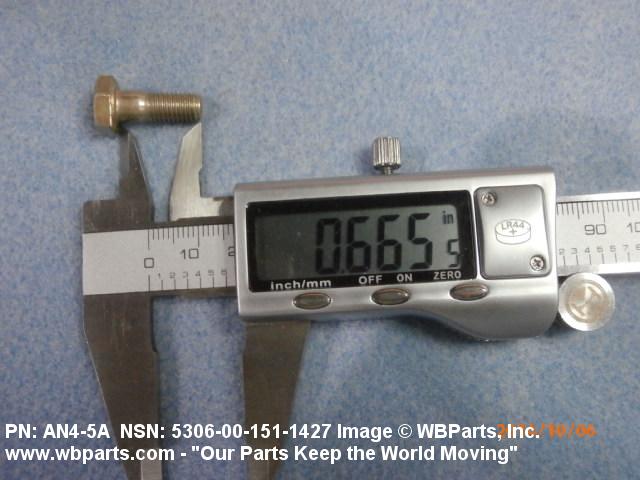

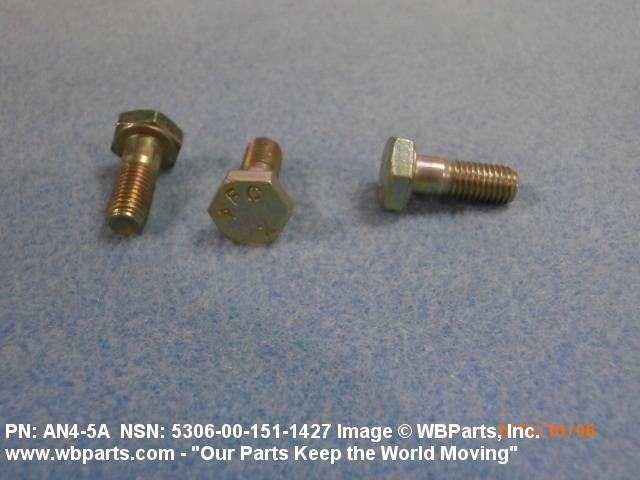

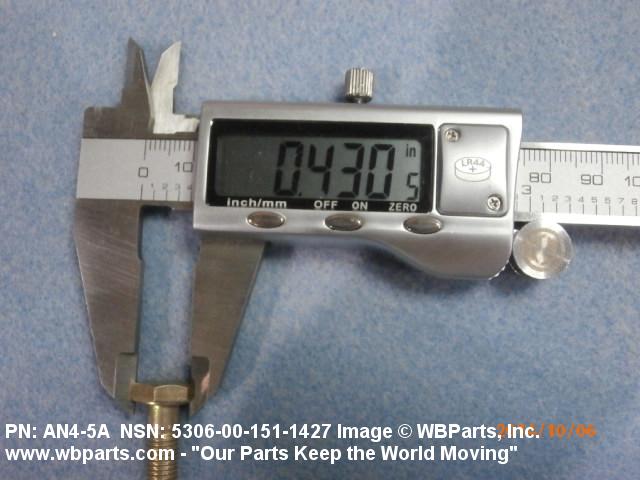

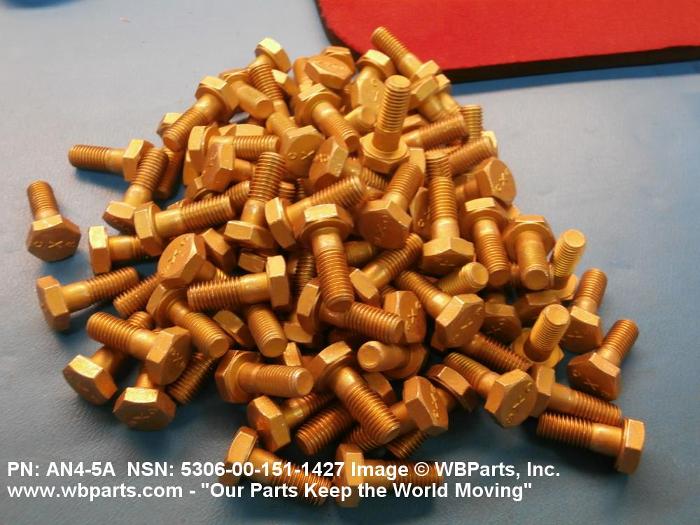

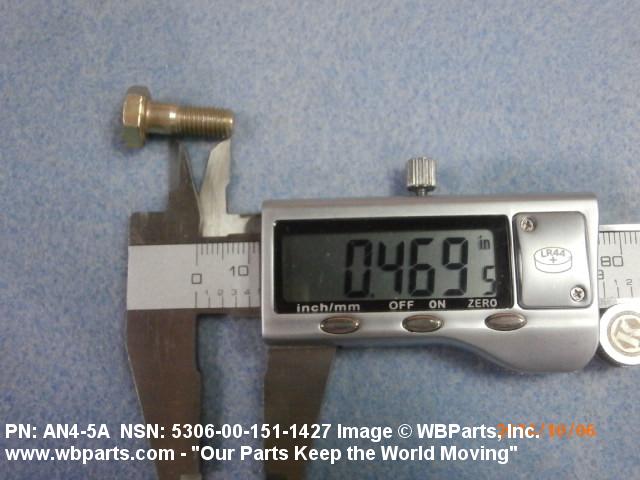

Drawings & Photos | NSN 5306-00-151-1427
Demand History | NSN 5306-00-151-1427
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN4-5A | 2024-10-284 | 143 | DIBBS |
| AN4-5A | 2024-10-282 | 2203 | DIBBS |
| AN4-5A | 2024-10-275 | 1600 | DIBBS |
| AN4-5A | 2024-06-172 | 143 | DIBBS |
| AN45A | 2024-03-68 | 10 | United Kingdom |
| AN4-5A | 2024-02-59 | 1627 | DIBBS |
| AN4-5A | 2023-11-327 | 1716 | DIBBS |
| AN45A | 2023-11-314 | 1786 | us |
| 5306-00-151-1427 | 2023-09-265 | 150 | US |
| AN45A | 2023-06-160 | 1 | United States |
| 5306-00-151-1427 | 2023-06-157 | 160 | Taiwan |
| 5306-00-151-1427 | 2022-04-112 | 560 | TW |
| AN45A | 2020-10-290 | 9800 | United States |
| 5306-00-151-1427 | 2020-06-182 | 560 | MANUAL |
| 5306-00-151-1427 | 2020-04-117 | 194 | DIBBS |
| 5306-00-151-1427 | 2020-03-86 | 194 | DIBBS |
| AN45A | 2020-03-70 | 100 | Hong Kong |
| AN45A | 2020-01-06 | 50 | United States |
| 5306-00-151-1427 | 2019-12-351 | 730 | DIBBS |
| 5306-00-151-1427 | 2019-10-297 | 483 | DIBBS |
| 5306-00-151-1427 | 2019-08-239 | 452 | DIBBS |
| AN45A | 2019-07-198 | 480 | US |
| AN45A | 2019-05-129 | 250 | United States |
| AN45A | 2019-05-126 | 1 | United States |
| 5306-00-151-1427 | 2019-03-87 | 401 | DIBBS |
| 5306-00-151-1427 | 2018-07-212 | 500 | Singapore |
| AN45A | 2018-06-171 | 44 | United States |
| 5306-00-151-1427 | 2018-04-92 | 12 | Malaysia |
| 5306-00-151-1427 | 2018-04-92 | 12 | Malaysia |
| AN45A | 2018-03-83 | 12 | MY |
| 5306-00-151-1427 | 2018-03-83 | 12 | MY |
| AN45A | 2018-02-37 | 50 | China |
| AN45A | 2018-01-29 | 149 | United States |
| 5306-00-151-1427 | 2018-01-21 | 517 | DIBBS |
| 5306-00-151-1427 | 2017-11-334 | 1217 | DIBBS |
| 5306-00-151-1427 | 2017-10-302 | 230 | DIBBS |
| 5306-00-151-1427 | 2017-10-295 | 544 | DIBBS |
| 5306-00-151-1427 | 2017-09-260 | 673 | DIBBS |
| AN4-5A | 2016-07-211 | 1 | MX |
| AN45A | 2016-07-203 | 25 | United States |
| AN4-5A | 2016-04-118 | 36 | UY |
| 5306-00-151-1427 | 2016-01-31 | 1300 | DIBBS |
| AN45A | 2016-01-22 | 220 | us |
| 5306-00-151-1427 | 2015-12-340 | 460 | DIBBS |
| AN45A | 2015-10-286 | 100 | US |
| AN45A | 2015-10-286 | 500 | US |
| AN4-5A | 2015-05-138 | 24 | United States |
| AN4-5A | 2015-05-138 | 4 | United States |
| AN4-5A | 2015-05-138 | 12 | United States |
| AN4-5A | 2015-05-138 | 40 | United States |
| AN4-5A | 2015-05-138 | 24 | United States |
| AN4-5A | 2015-05-138 | 4 | United States |
| AN4-5A | 2015-05-138 | 12 | United States |
| AN4-5A | 2015-05-138 | 40 | United States |
| AN45A | 2015-02-50 | 1000 | us |
| 5306-00-151-1427 | 2015-01-29 | 50 | US |
| 5306-00-151-1427 | 2015-01-11 | 202 | DIBBS |
| 5306-00-151-1427 | 2014-10-287 | 154 | DIBBS |
| 5306-00-151-1427 | 2014-07-194 | 316 | DIBBS |
| AN4-5A | 2014-05-142 | 5000 | United States |
| AN4-5A | 2014-05-135 | 8 | PH |
| 5306-00-151-1427 | 2014-03-82 | 595 | DIBBS |
| 5306-00-151-1427 | 2014-01-09 | 1048 | DIBBS |
| AN45A | 2013-10-284 | 455 | United States |
| AN45A | 2013-08-224 | 10000 | China |
| AN45A | 2013-08-213 | 30 | US |
| 5306-00-151-1427 | 2013-07-208 | 2 | MX |
| 5306-00-151-1427 | 2013-04-92 | 286 | United States |
| AN45A | 2013-02-43 | 15 | United States |
| AN45A | 2012-12-346 | 100 | Switzerland |
| AN45A | 2012-12-344 | 100 | Switzerland |
| AN4-5A | 2012-11-310 | 50 | |
| AN45A | 2012-07-191 | 168 | Italy |
| AN45A | 2012-05-138 | 4 | US |
| 5306-00-151-1427 | 2012-04-110 | 2396 | DIBBS |
| AN45A | 2012-02-38 | 300 | AR |
| 5306-00-151-1427 | 2012-02-38 | 300 | MANUAL |
| AN4-5A | 2012-02-38 | 300 | US |
| 5306-00-151-1427 | 2012-02-32 | 300 | AR |
| 5306-00-151-1427 | 2011-12-363 | 50 | US |
| AN45A | 2011-09-266 | 186 | Malaysia |
| AN45A | 2011-02-38 | 20 | US |
| AN45A | 2011-01-18 | 1 | US |
| 5306-00-151-1427 | 2010-11-323 | 2000 | DIBBS |
| 5306-00-151-1427 | 2010-07-208 | 629 | DIBBS |
| AN45A | 2010-05-126 | 189 | US |
| AN45A | 2010-04-98 | 200 | Malaysia |
| AN45A | 2010-03-68 | 30 | US |
| 5306-00-151-1427 | 2009-07-197 | 945 | DIBBS |
| 5306-00-151-1427 | 2009-07-189 | 400 | United States |
| 5306-00-151-1427 | 2009-07-184 | 400 | United States |
| AN45A | 2009-05-138 | 58 | China |
| 5306-00-151-1427 | 2009-04-112 | 757 | DIBBS |
| 5306-00-151-1427 | 2009-03-75 | 130 | DIBBS |
| 5306-00-151-1427 | 2009-01-13 | 706 | DIBBS |
| 5306-00-151-1427 | 2008-07-191 | 125300 | US |
| 5306-00-151-1427 | 2008-07-191 | 125300 | US |
| AN45A | 2008-03-63 | 170 | Sri Lanka |
| 5306-00-151-1427 | 2007-10-282 | 40 | RU |
| 5306-00-151-1427 | 2007-08-221 | 6 | US |
| 5306-00-151-1427 | 2006-07-193 | 112 | South Korea |
Cross Reference | NSN 5306-00-151-1427
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 145-540-90205 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 2010249 | 001JK | EMBRAER S/A |
| 2010249 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2010249 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 400 002 | 77294 | PIPER AIRCRAFT INC. |
| 5306001511427 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 6026-1016-11 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 6026-1063-13 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 6026-1068-11 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 6026-4035-12 | 36378 | RAYTHEON TECHNICAL SERVICES COMPANY |
| 802125 | 19203 | PICATINNY ARSENAL |
| 802125-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 932.19.21.126 | S4080 | PILATUS AIRCRAFT LTD |
| AN4-5A | 1W358 | L & J FASTENERS INC |
| AN4-5A | 5M696 | UFC AEROSPACE CORP. |
| AN4-5A | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| AN4-5A | 88040 | U S CHALLENGE CO |
| AN4-5A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| CIPRD-AN4-5A | 14153 | DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER |
| CIPRD-AN4-5A AS A | 14153 | DEFENSE LOGISTICS AGENCY DBA DEFENSE SUPPLY CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-151-1427
Related Products | NSN 5306-00-151-1427
Technical Data | NSN 5306-00-151-1427
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.468 INCHES MINIMUM |
| FASTENER LENGTH | 0.656 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| GRIP LENGTH | 0.188 INCHES NOMINAL |
| FEATURES PROVIDED | FINISHED HEAD |
| III END ITEM IDENTIFICATION | B-1 SUPPORT EQUIPMENT; AIRCRAFT;B-1B TRAINER;TEST CONSOLES;TF-33 ENGI |
Restrictions/Controls & Freight Information | NSN 5306-00-151-1427
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
