NSN 5306-00-151-1428 AN380A, AN3-80A, AN421A

Product Details | MACHINE BOLT

5306-00-151-1428 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.

Part Alternates: AN380A, AN3-80A, AN421A, AN4-21A , B6812 , 210033421A, 210033-4-21A , 7601610 , 932.19.21.138 , 9321921138, 5306-00-151-1428, 00-151-1428, 5306001511428, 001511428

Hardware and Abrasives | Bolts

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-151-1428	01847 ( BOLT, MACHINE )

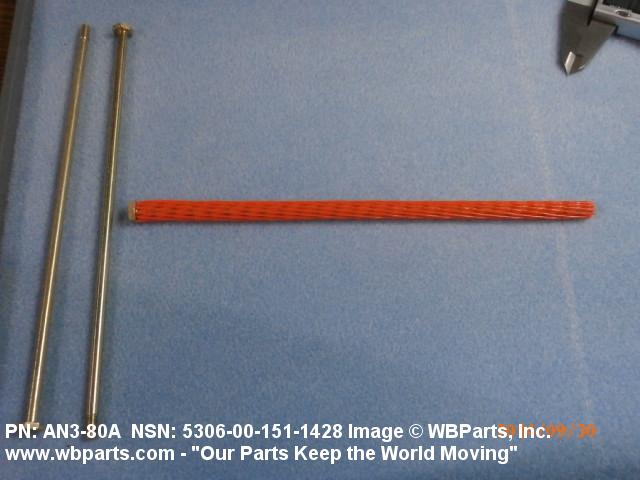

Drawings & Photos | NSN 5306-00-151-1428

Part Number	Request Date	QTY	Origin
AN421A	2024-09-256	50	AU
5306-00-151-1428	2023-03-71	3	DIBBS
AN380A	2022-11-318	500	United States
AN421A	2021-02-33	10	Taiwan
AN421A	2019-06-164	20	Greece
AN380A	2018-09-247	20	US
AN380A	2018-08-239	50	United States
AN421A	2017-03-80	25	United States
AN421A	2016-07-203	25	United States
B6812	2015-06-173	47	us
AN380A	2015-06-169	4	US
B6812	2015-05-147	15	us
AN3-80A	2014-05-142	25	United States
AN4-21A	2014-05-142	2500	United States
B6812	2013-09-260	50	us
B6812	2012-12-340	2	Serbia
B6812	2012-11-324	2	YU
AN421A	2012-06-159	52	US
AN380A	2011-08-230	10	US
AN380A	2011-08-230	10	US
AN380A	2010-08-236	10	Australia
AN380A	2010-08-228	60	US
B6812	2010-05-134	25	us
B6812	2008-11-315	50	Turkey
B6812	2008-08-214	50	United States
B6812	2008-08-214	100	United States
AN421A	2006-05-130	100	GL

Cross Reference | NSN 5306-00-151-1428

Part Number	Cage Code	Manufacturer
AN3-80A	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5306-00-151-1428

Compare

Related Products | NSN 5306-00-151-1428

5306-00-151-1429, 5306-00-151-1430, 5306-00-151-1431, 5306-00-151-1432, 5306-00-151-1433

Technical Data | NSN 5306-00-151-1428

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNF

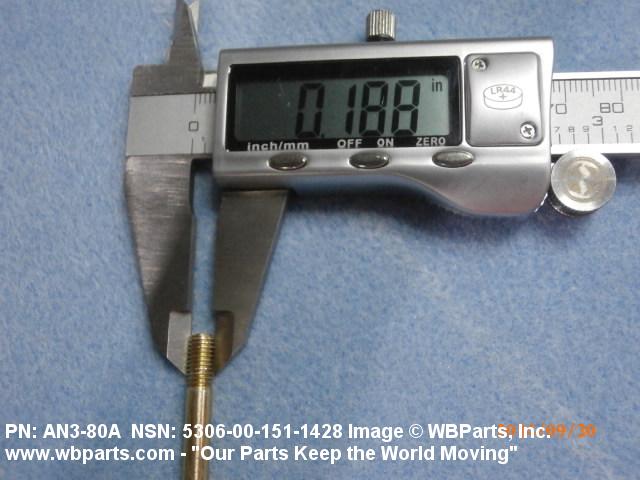

NOMINAL THREAD DIAMETER	0.190 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	3A
THREAD DIRECTION	RIGHT-HAND

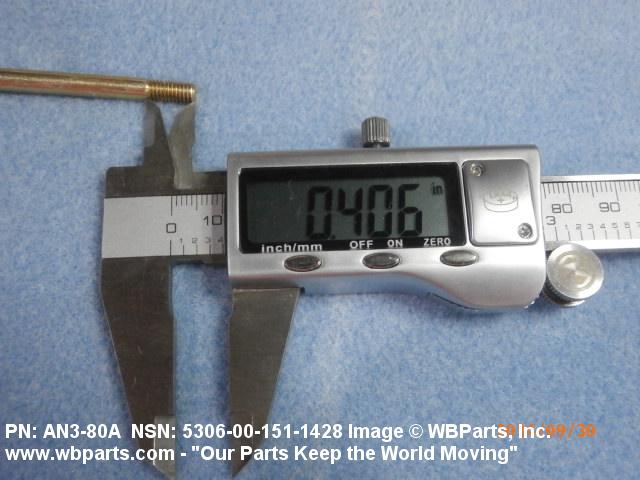

THREAD LENGTH	0.406 INCHES MINIMUM

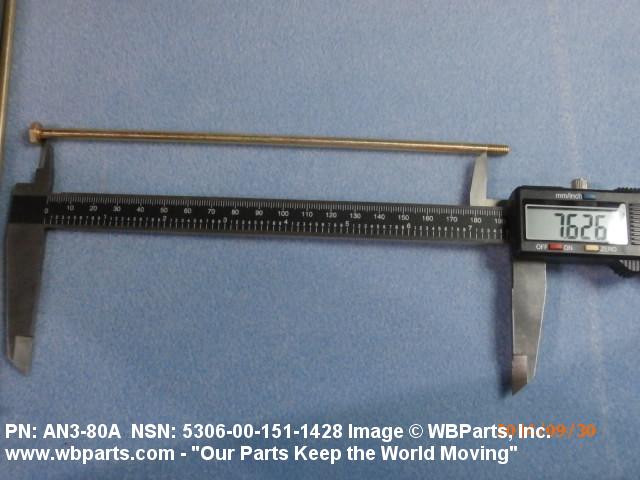

FASTENER LENGTH	8.031 INCHES NOMINAL
MATERIAL	STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL
SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
HARDNESS RATING	26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL
MINIMUM TENSILE STRENGTH	125000 POUNDS PER SQUARE INCH
HEAD STYLE	C1 HEXAGON
HEAD HEIGHT	0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM

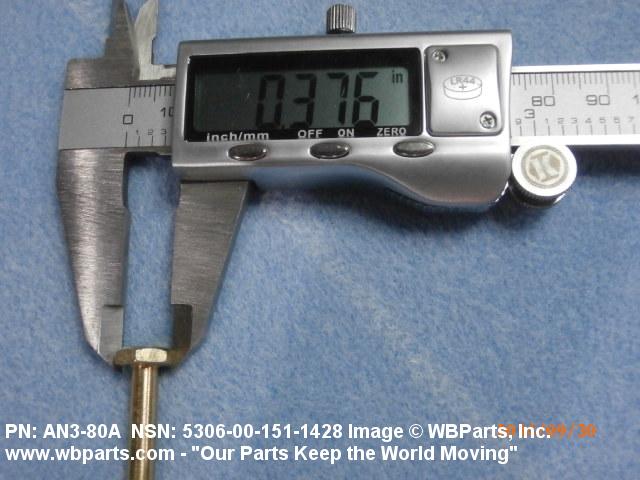

WIDTH BETWEEN FLATS	0.365 INCHES MINIMUM AND 0.377 INCHES MAXIMUM
GRIP LENGTH	7.625 INCHES NOMINAL
FEATURES PROVIDED	FINISHED HEAD
MANUFACTURERS CODE	88044
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	AN3-80A
