NSN 5306-00-151-1424 AN410A, AN4-10A, AN46A
Product Details | MACHINE BOLT
5306-00-151-1424 An externally threaded fastener designed for insertion through holes in assembled parts and normally intended to be tightened or released by torquing a nut. The threaded and unthreaded portions are both of one nominal diameter of 0.190 inch (5 mm) or larger. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. A locking feature may be incorporated in the design of the head or threads. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. For items having a grip length portion machined to a tolerance of 0.0015 inch (0.038 mm) or less, BOLT, SHEAR. See also SCREW, CAP, HEXAGON HEAD and SCREW, MACHINE.
Part Alternates: AN410A, AN4-10A, AN46A, AN4-6A , F300 0T 019 0320, F3000T0190320, K47A74, 14554090206, 145-540-90206 , 1511424, 2010255, 2010277, 3260716, 326-0716 , 326-0716-00 , 401 310, 401310, 60261028, 6026-102-8 , 6026403523, 6026-4035-23 , 6026711927, 6026-7119-27 , 6026830717, 6026-8307-17 , 6026-8340-1 , 85108700, 851087-00, 8812928 , 8821048, 8821146 , 932.19.21.129, 9321921129, 5306-00-151-1424, 00-151-1424, 5306001511426, 5306001511424, 001511424, 326071600, 602683401
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-151-1424 | 01847 ( BOLT, MACHINE ) |

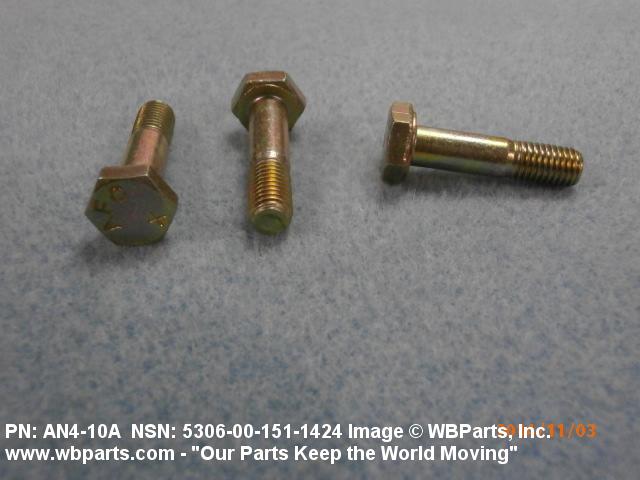

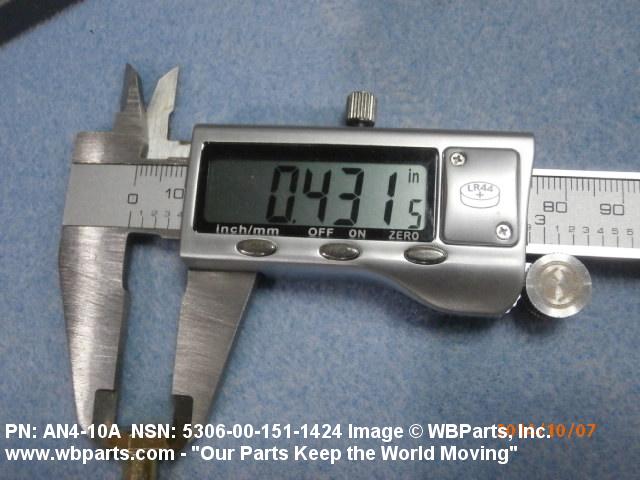

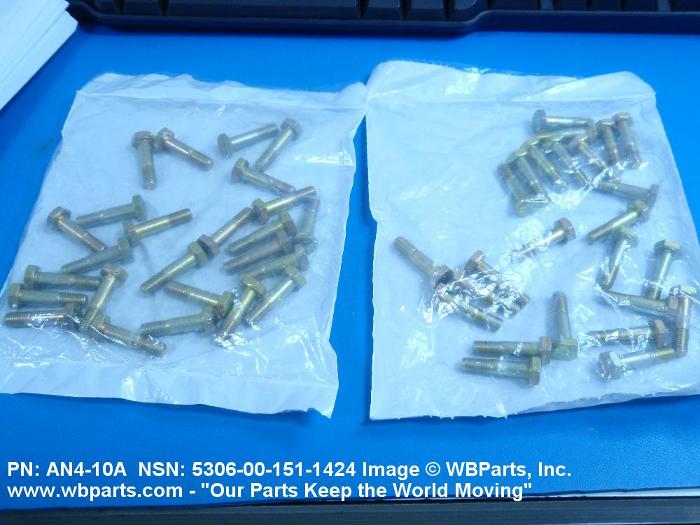

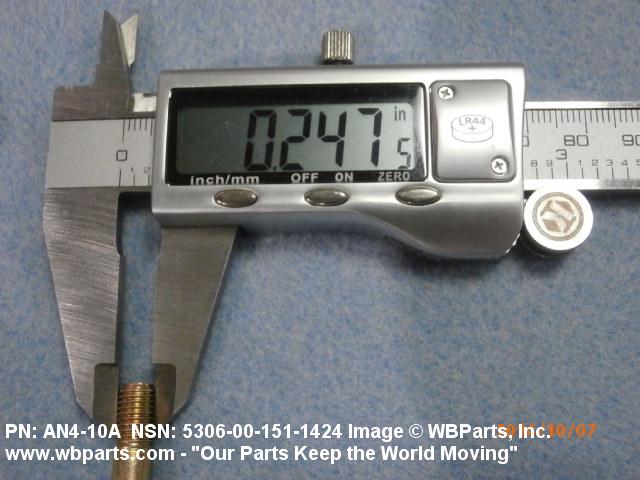

Drawings & Photos | NSN 5306-00-151-1424
Demand History | NSN 5306-00-151-1424
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5306-00-151-1426 | 2024-08-221 | 18 | SA |
| AN410A | 2024-06-163 | 15 | AE |
| AN410A | 2024-05-150 | 50 | United States |
| AN410A | 2024-05-136 | 10 | Malaysia |
| 5306-00-151-1424 | 2024-04-94 | 2 | US |
| AN410A | 2024-04-94 | 50 | United States |
| 5306-00-151-1424 | 2024-03-61 | 40 | US |
| AN46A | 2024-01-25 | 60 | United States |
| AN46A | 2023-12-354 | 100 | United States |
| AN46A | 2023-12-352 | 50 | United States |
| 5306-00-151-1424 | 2023-11-306 | 23 | US |
| AN410A | 2023-09-272 | 41 | United States |
| AN46A | 2023-07-202 | 3 | CA |
| 5306-00-151-1424 | 2023-07-193 | 8 | Germany |
| 5306-00-151-1426 | 2023-07-188 | 18 | US |
| 5306-00-151-1426 | 2023-07-188 | 96 | US |
| AN410A | 2023-06-160 | 1 | United States |
| 5306-00-151-1424 | 2023-03-90 | 23 | US |
| 5306-00-151-1424 | 2023-03-90 | 23 | US |
| AN46A | 2023-02-48 | 40 | US |
| AN46A | 2022-04-102 | 32000 | United States |
| 5306-00-151-1426 | 2022-02-41 | 1400 | UK |
| AN46A | 2022-01-12 | 170 | Malaysia |
| AN46A | 2021-11-322 | 50 | United States |
| AN410A | 2021-10-288 | 30 | US |
| 5306-00-151-1424 | 2021-09-250 | 16 | Germany |
| AN410A | 2021-06-167 | 30 | MY |
| AN410A | 2021-06-167 | 30 | TR |
| AN410A | 2021-06-165 | 30 | US |
| AN46A | 2021-04-107 | 75 | TH |
| AN410A | 2020-10-290 | 480 | United States |
| AN46A | 2020-10-290 | 650 | United States |
| AN410A | 2020-09-269 | 12 | United States |
| 5306-00-151-1424 | 2020-06-182 | 144 | MANUAL |
| AN46A | 2020-04-99 | 20 | United States |
| AN46A | 2020-03-70 | 100 | Hong Kong |
| AN4-10A | 2020-02-57 | 5 | US |
| AN46A | 2020-01-06 | 50 | United States |
| AN46A | 2020-01-06 | 50 | United States |
| AN410A | 2020-01-06 | 50 | United States |
| AN46A | 2019-06-178 | 44225 | United States |
| 5306-00-151-1424 | 2018-04-107 | 30 | Russian Federation |
| AN410A | 2018-02-57 | 60 | United States |
| AN410A | 2018-02-37 | 50 | China |
| AN46A | 2018-02-37 | 20 | China |
| AN410A | 2017-12-350 | 20 | United States |
| AN410A | 2017-07-186 | 20 | Brazil |
| AN410A | 2017-04-116 | 8 | US |
| AN410A | 2016-11-322 | 400 | us |
| AN46A | 2016-10-289 | 4 | AR |
| AN46A | 2016-10-287 | 1000 | us |
| AN410A | 2016-09-273 | 55 | United States |
| 5306-00-151-1424 | 2016-09-249 | 1340 | DIBBS |
| AN410A | 2016-07-203 | 25 | United States |
| AN46A | 2016-07-203 | 25 | United States |
| AN410A | 2016-05-125 | 8 | United States |
| 5306-00-151-1424 | 2016-02-34 | 106797 | DIBBS |
| AN410A | 2016-01-22 | 200 | us |
| AN46A | 2016-01-22 | 300 | us |
| AN46A | 2015-10-285 | 4 | US |
| AN410A | 2015-07-187 | 48 | US |
| 60261028 | 2015-06-154 | 1000 | us |
| AN46A | 2015-06-154 | 1000 | us |
| AN46A | 2015-05-140 | 100 | US |
| AN4-10A | 2015-05-138 | 8 | United States |
| AN4-10A | 2015-05-138 | 8 | United States |
| AN4-6A | 2015-05-138 | 2 | United States |
| AN4-6A | 2015-05-138 | 6 | United States |
| AN4-6A | 2015-05-138 | 21 | United States |
| AN4-6A | 2015-05-138 | 4 | United States |
| AN4-6A | 2015-05-138 | 14 | United States |
| AN4-6A | 2015-05-138 | 2 | United States |
| AN4-6A | 2015-05-138 | 6 | United States |
| AN4-6A | 2015-05-138 | 21 | United States |
| AN4-6A | 2015-05-138 | 4 | United States |
| AN4-6A | 2015-05-138 | 14 | United States |
| AN4-6A | 2015-03-76 | 500 | TH |
| AN410A | 2015-03-68 | 1 | US |
| AN46A | 2015-01-21 | 50 | Canada |
| 5306-00-151-1424 | 2014-12-354 | 1 | US |
| AN410A | 2014-07-212 | 32 | United States |
| AN4-10A | 2014-05-142 | 5000 | United States |
| AN4-6A | 2014-05-142 | 5000 | United States |
| AN4-6A | 2014-05-135 | 2 | PH |
| AN46A | 2014-04-118 | 110 | South Korea |
| AN46A | 2014-01-27 | 3 | US |
| AN4-10A | 2014-01-06 | 4 | US |
| AN46A | 2013-10-303 | 725 | United States |
| AN46A | 2013-10-284 | 400 | United States |
| AN46A | 2013-06-164 | 514 | US |
| 5306-00-151-1426 | 2013-06-164 | 514 | US |
| AN46A | 2013-06-164 | 500 | IT |
| AN410A | 2013-04-120 | 8 | United States |
| AN46A | 2013-02-38 | 680 | US |
| AN410A | 2013-01-07 | 10 | Indonesia |
| AN4-6A | 2013-01-07 | 30 | Indonesia |
| AN4-10A | 2012-11-310 | 50 | |
| AN4-6A | 2012-11-310 | 50 | |
| AN46A | 2012-07-191 | 14 | Italy |
| AN410A | 2012-04-102 | 500 | US |
| AN46A | 2012-04-102 | 500 | US |
| AN410A | 2012-02-38 | 20 | AR |
| 5306-00-151-1424 | 2012-02-38 | 20 | MANUAL |
| AN4-10A | 2012-02-38 | 20 | US |
| 5306-00-151-1424 | 2012-02-32 | 20 | AR |
| AN46A | 2011-06-180 | 16 | United States |
| 5306-00-151-1426 | 2011-06-180 | 10 | MX |
| AN410A | 2011-04-108 | 40 | Australia |
| AN46A | 2011-04-104 | 120 | United States |
| AN46A | 2011-03-90 | 120 | United States |
| AN46A | 2011-01-21 | 1500 | US |
| AN410A | 2010-12-350 | 4 | CN |
| AN46A | 2010-11-326 | 336 | United States |
| 5306-00-151-1426 | 2010-11-307 | 6 | US |
| AN46A | 2010-05-126 | 54 | US |
| AN410A | 2010-03-63 | 60 | Australia |
| AN46A | 2009-09-251 | 10 | Colombia |
| 5306-00-151-1426 | 2009-07-189 | 300 | United States |
| 5306-00-151-1426 | 2009-07-184 | 300 | United States |
| 5306-00-151-1426 | 2009-06-156 | 25 | IT |
| AN410A | 2009-05-138 | 203 | China |
| 5306-00-151-1424 | 2009-04-103 | 79326 | DIBBS |
| AN46A | 2009-04-92 | 100 | SI |
| 5306-00-151-1426 | 2009-01-21 | 2 | Australia |
| 5306-00-151-1424 | 2008-11-331 | 50 | Canada |
| 5306-00-151-1426 | 2008-07-191 | 115500 | US |
| AN410A | 2008-03-83 | 4 | us |
| AN410A | 2007-05-123 | 219 | India |
| AN410A | 2006-02-37 | 700 | United States |
Cross Reference | NSN 5306-00-151-1424
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1511424 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 2010277 | 001JK | EMBRAER S/A |
| 2010277 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2010277 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 401 310 | 77294 | PIPER AIRCRAFT INC. |
| 851087-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 932.19.21.129 | S4080 | PILATUS AIRCRAFT LTD |
| 9321921129 | S4080 | PILATUS AIRCRAFT LTD |
| AN4-10A | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5306-00-151-1424
Related Products | NSN 5306-00-151-1424
Technical Data | NSN 5306-00-151-1424
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.469 INCHES MINIMUM |
| FASTENER LENGTH | 1.031 INCHES NOMINAL |
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 OR STEEL COMP 8630 OR STEEL COMP 8735 OR STEEL COMP 8740 OR STEEL COMP 4140 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-B-6812 MIL SPEC ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 3 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| HARDNESS RATING | 26.0 ROCKWELL C MINIMUM AND 32.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 125000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |
| HEAD HEIGHT | 0.140 INCHES MINIMUM AND 0.172 INCHES MAXIMUM |
| WIDTH BETWEEN FLATS | 0.428 INCHES MINIMUM AND 0.440 INCHES MAXIMUM |
| GRIP LENGTH | 0.562 INCHES NOMINAL |
| FEATURES PROVIDED | FINISHED HEAD |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN4-10A |
Restrictions/Controls & Freight Information | NSN 5306-00-151-1424
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-00-151-1424
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
