NSN 5305-01-204-4184 8267874, 01-204-4184, 012044184
Product Details | EXTERNALLY RELIEVED BODY SCREW
5305-01-204-4184 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING.
Part Alternates: 8267874, 5305-01-204-4184, 01-204-4184, 5305012044184, 012044184
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAR 1985 | 01-204-4184 | 01852 ( SCREW, EXTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5305-01-204-4184
Demand History | NSN 5305-01-204-4184
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-204-4184 | 2018-08-06 | 49 | DIBBS |
Cross Reference | NSN 5305-01-204-4184
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8267874 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-204-4184
Technical Data | NSN 5305-01-204-4184
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.688 INCHES NOMINAL |
| FASTENER LENGTH | 2.500 INCHES NOMINAL |
| MATERIAL | STEEL COMP 303 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763,CLASS 303,COND A FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-STD-171 FINISH 5.4.1 MIL STD SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C33 PAN NO. 2 |
| HEAD DIAMETER | 1.249 INCHES NOMINAL |
| HEAD HEIGHT | 0.375 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D10 TORQUE |

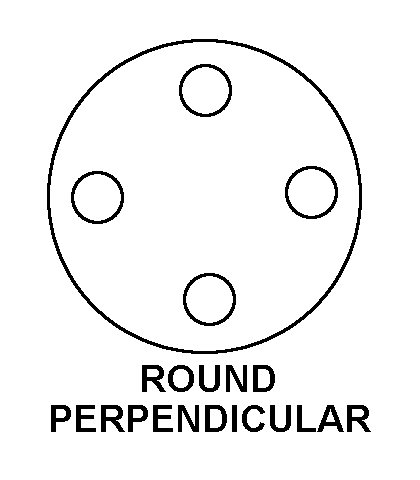

| HOLE CONFIGURATION STYLE | E13 ROUND PERPENDICULAR |
| HOLE TYPE | DRILLED AND THREADED |
| HOLE QUANTITY | 1 AND 1 |
| HOLE DIAMETER | 0.125 INCHES NOMINAL |
| HOLE NOMINAL THREAD DIAMETER | 0.164 INCHES |
| HOLE THREAD QUANTITY PER INCH | 36 |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |
| FIRST DIAMETER FROM HEAD | 0.437 INCHES NOMINAL |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 0.250 INCHES NOMINAL |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 8267874 |
Restrictions/Controls & Freight Information | NSN 5305-01-204-4184
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-204-4184
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | K | Combat Vehicles |
| Weapons Systems/End Item or Homogeneous Group | KF | Howitzer, Full Tracked, Self- propelled 155mm M109 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
