NSN 5305-00-579-1449 402004, 00-579-1449, 005791449
Product Details | EXTERNALLY RELIEVED BODY SCREW
5305-00-579-1449 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING.
Part Alternates: 402004, 5305-00-579-1449, 00-579-1449, 5305005791449, 005791449
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-579-1449 | 01852 ( SCREW, EXTERNALLY RELIEVED BODY ) |
Drawings & Photos | NSN 5305-00-579-1449
Demand History | NSN 5305-00-579-1449
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 402004 | 2015-01-20 | 12 | United States |
| 5305-00-579-1449 | 2014-10-274 | 12 | DIBBS |
| 5305-00-579-1449 | 2014-09-260 | 12 | DIBBS |
| 402004 | 2010-11-322 | 50 | United States |
Cross Reference | NSN 5305-00-579-1449
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 402004 | 66503 | WOODWARD, INC. DBA WOODWARD |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-579-1449
Technical Data | NSN 5305-00-579-1449
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

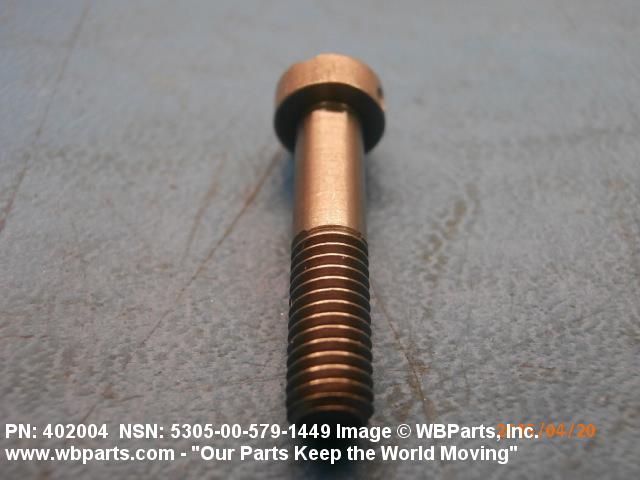

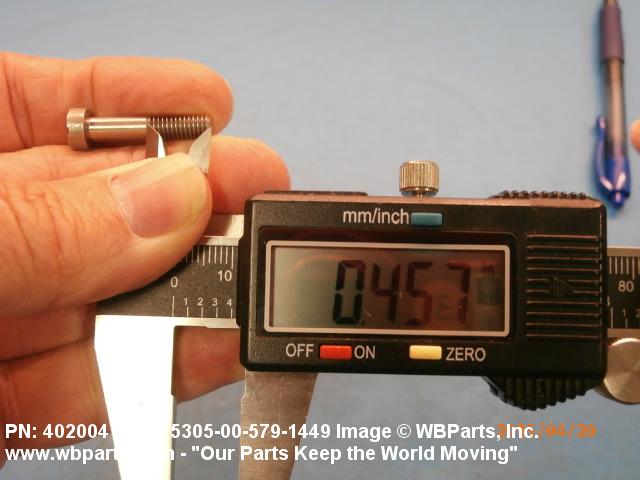

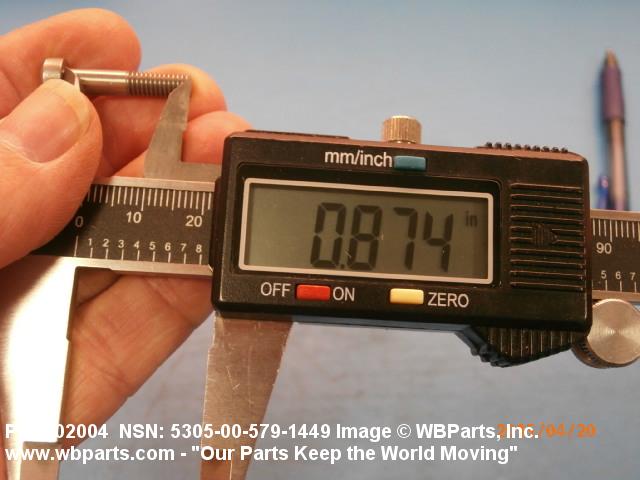

| THREAD LENGTH | 0.375 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| FASTENER LENGTH | 0.880 INCHES NOMINAL |
| MATERIAL | STEEL COMP 416 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL |

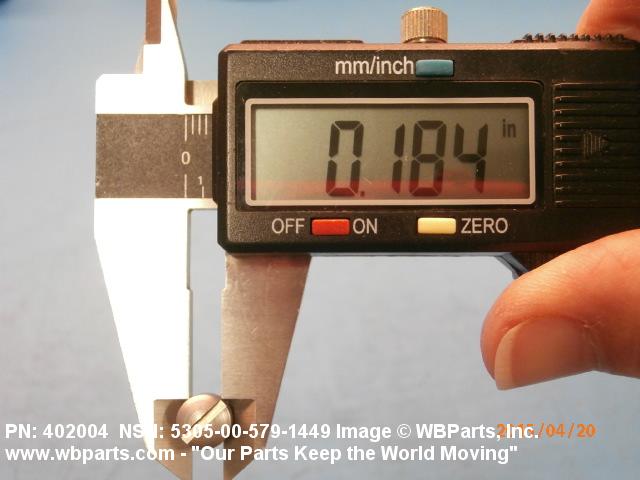

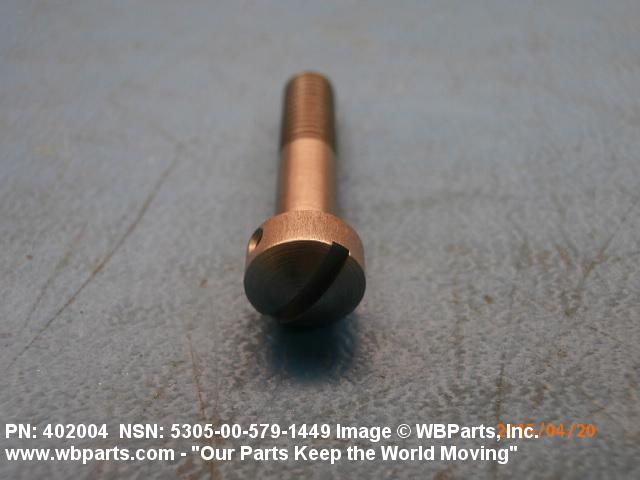

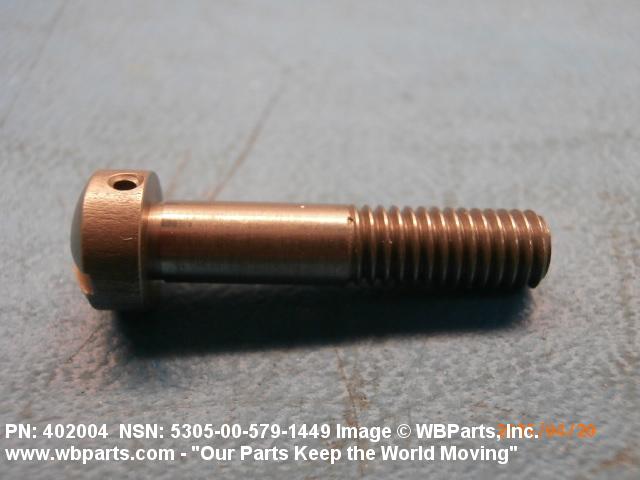

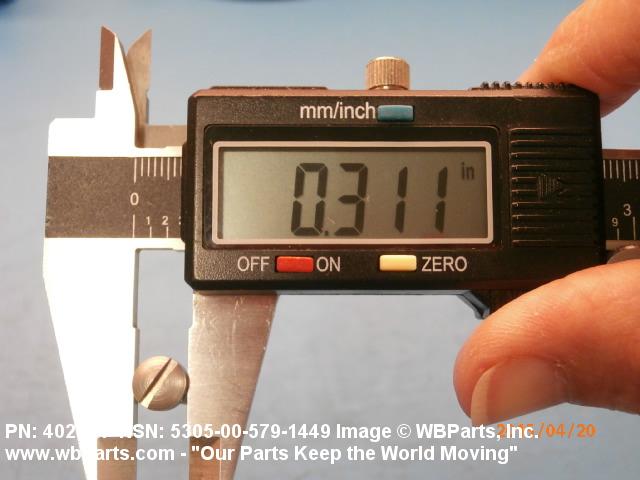

| HEAD STYLE | C44 FILLISTER |
| HEAD DIAMETER | 0.313 INCHES NOMINAL |
| HEAD HEIGHT | 0.170 INCHES NOMINAL |

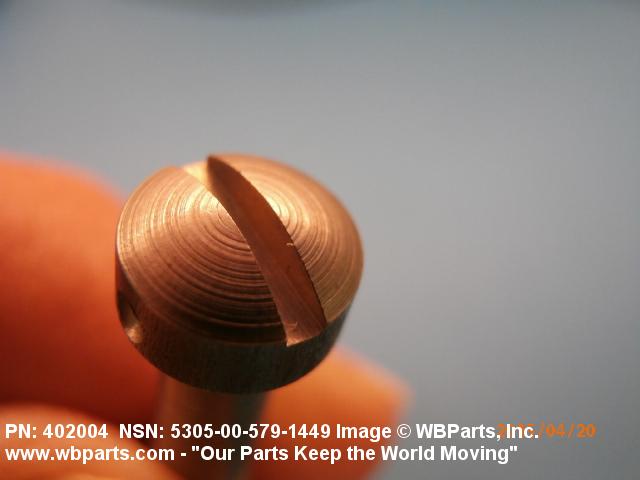

| INTERNAL DRIVE STYLE | D14 SLOT |
| HOLE CONFIGURATION STYLE | E9 ROUND |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 1 |

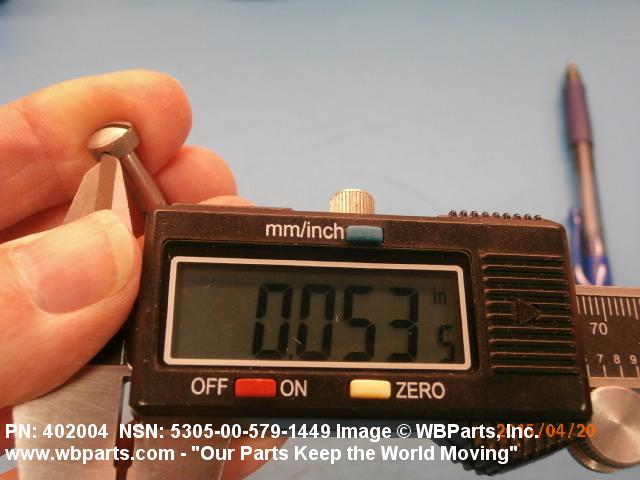

| HOLE DIAMETER | 0.047 INCHES NOMINAL |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 2 |

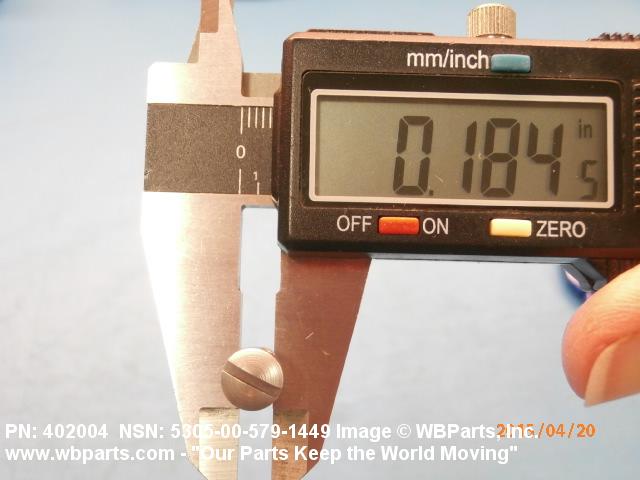

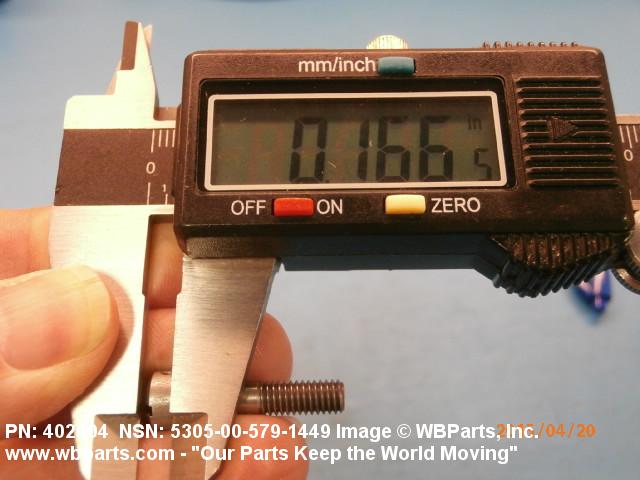

| FIRST DIAMETER FROM HEAD | 0.180 INCHES NOMINAL |
| SECOND DIAMETER FROM HEAD | 0.186 INCHES NOMINAL |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 0.030 INCHES NOMINAL |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF SECOND DIAMETER | 0.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 66503 |
| DESIGN CONTROL REFERENCE | 402004 |
