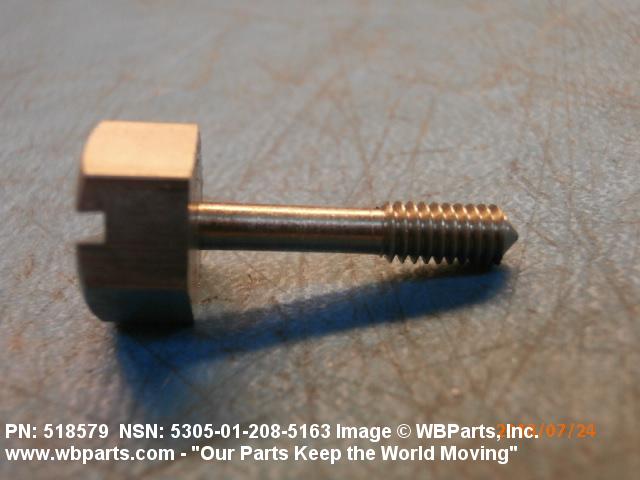

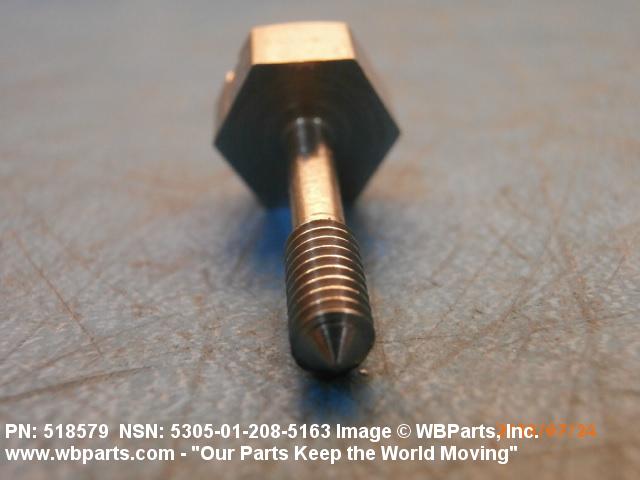

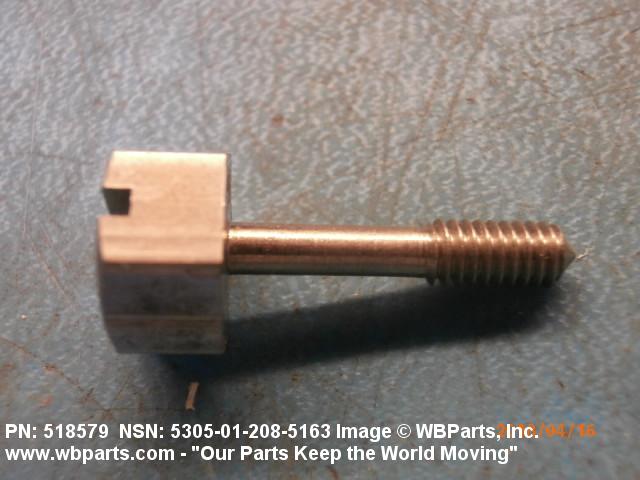

Product Details | EXTERNALLY RELIEVED BODY SCREW
5305-01-208-5163 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING.
Part Alternates: 5189579, 5305-01-208-5163, 01-208-5163, 5305012085163, 012085163
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 MAY 1985 | 01-208-5163 | 01852 ( SCREW, EXTERNALLY RELIEVED BODY ) |

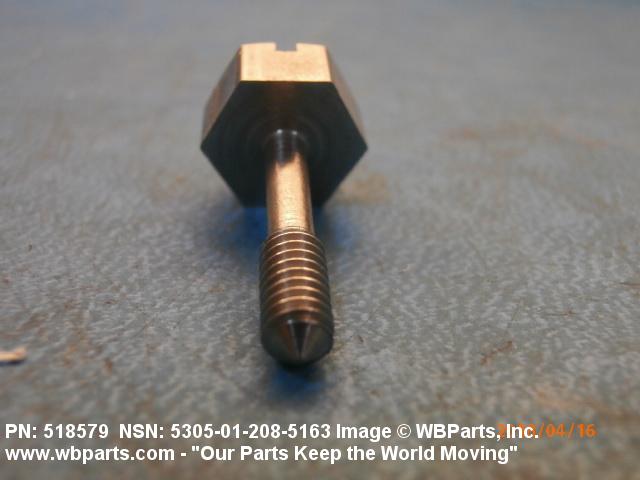

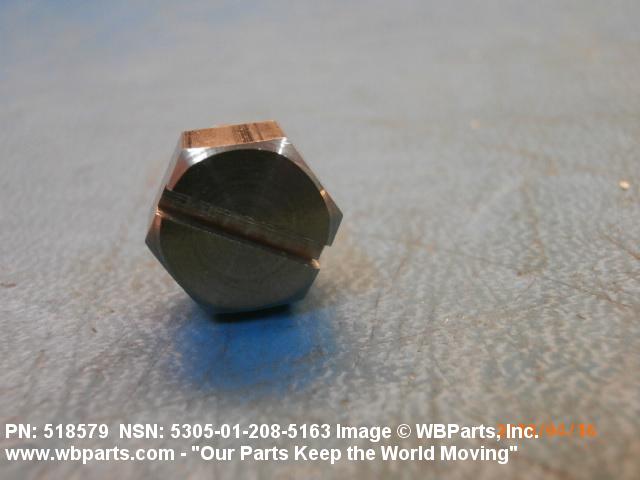

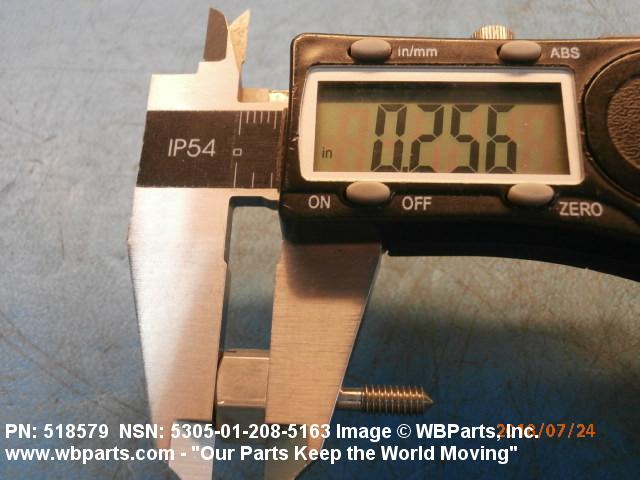

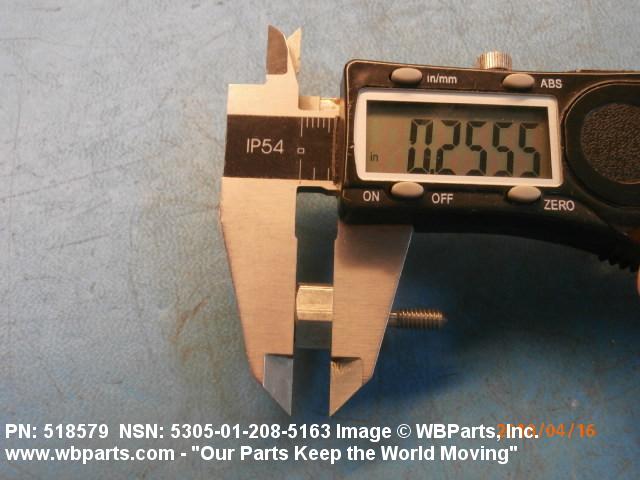

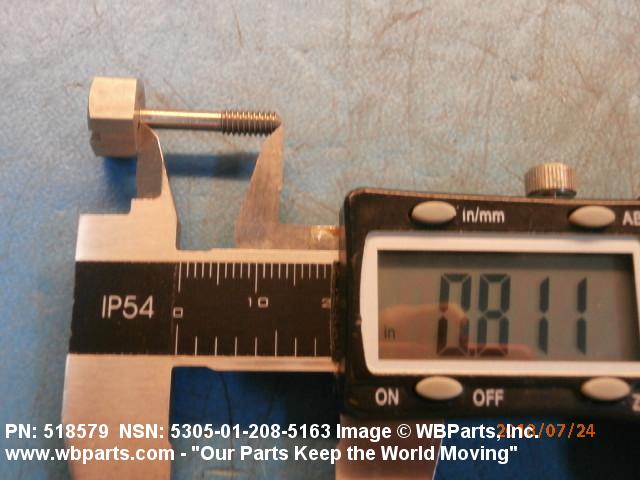

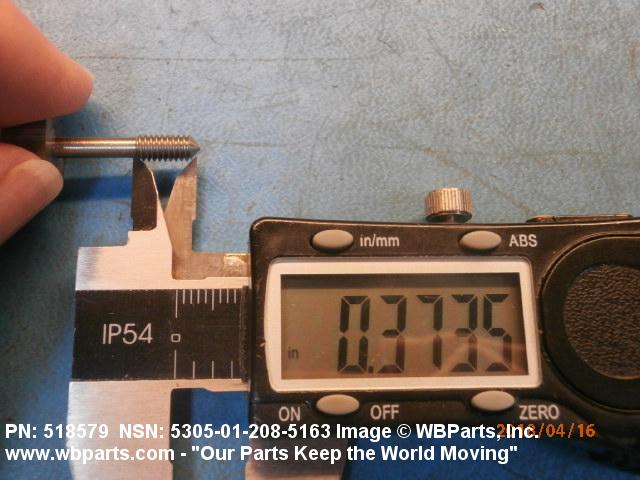

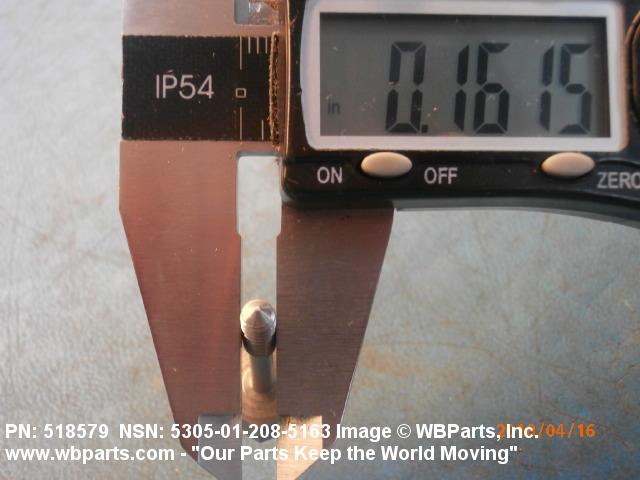

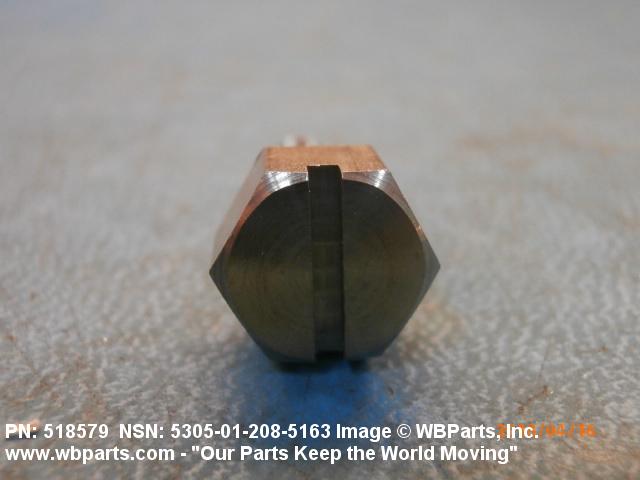

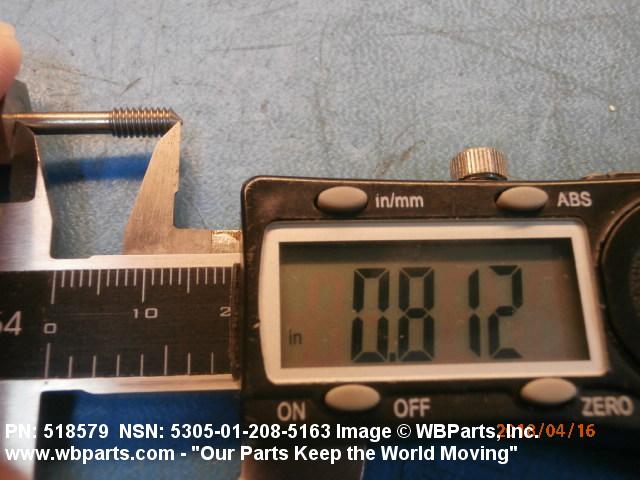

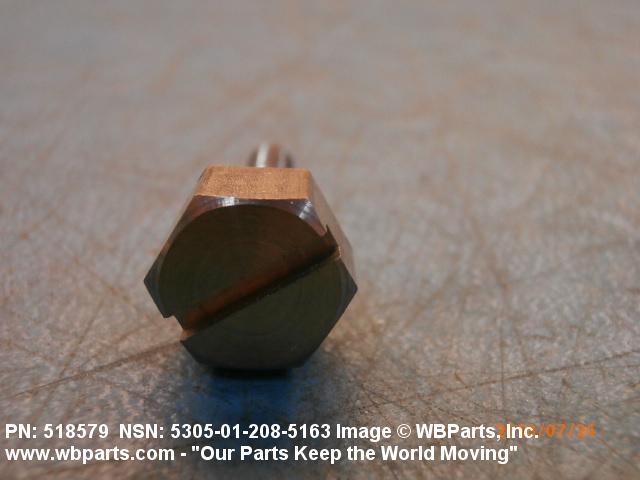

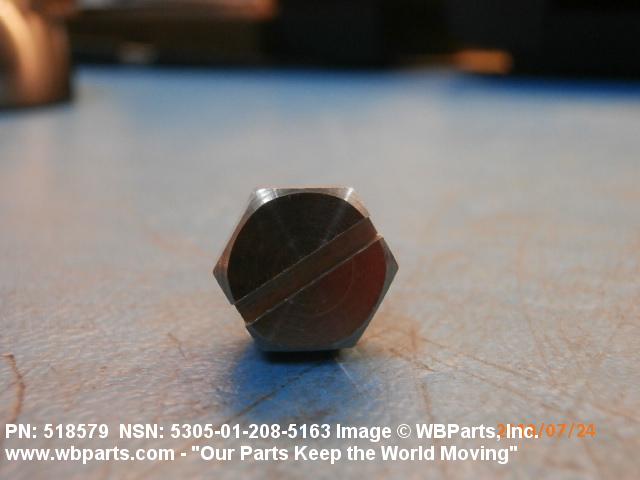

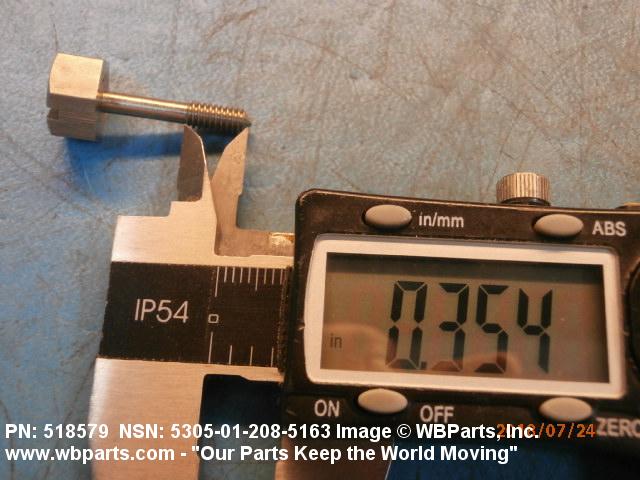

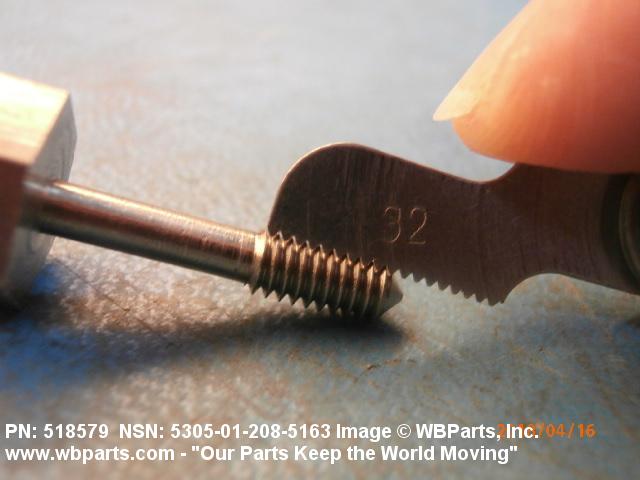

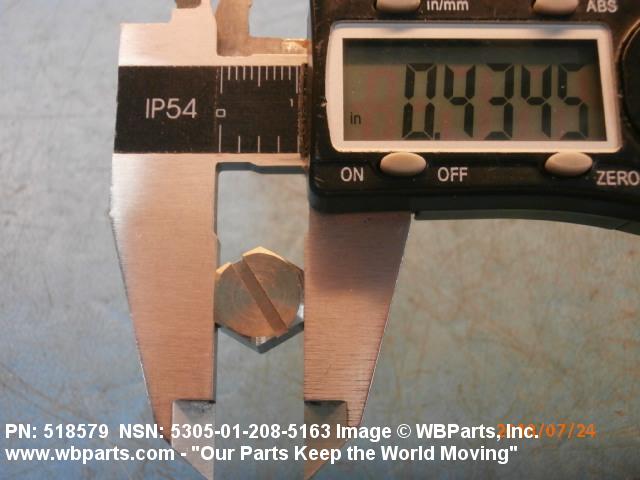

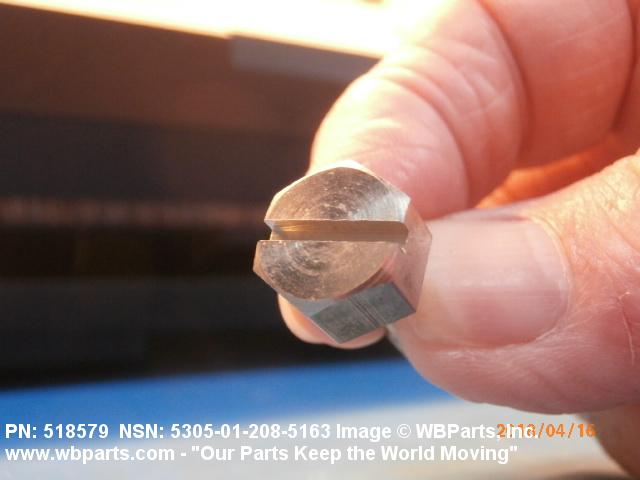

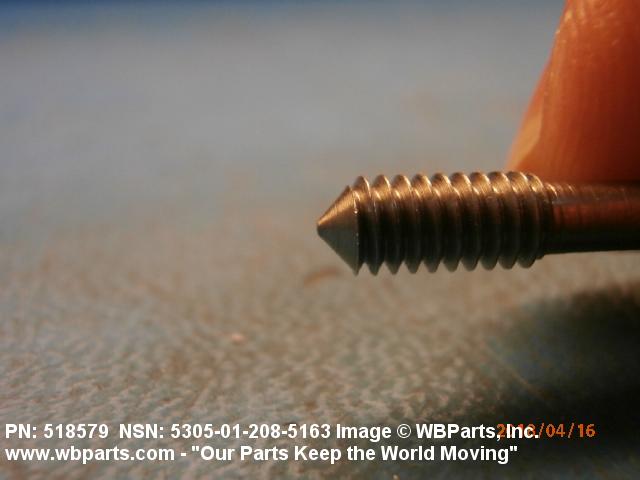

Drawings & Photos | NSN 5305-01-208-5163
Demand History | NSN 5305-01-208-5163
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5189579 | 2020-05-135 | 4 | United Kingdom |
| 5189579 | 2018-07-200 | 1 | United Kingdom |
| 5189579 | 2018-03-80 | 1 | United Kingdom |
| 5189579 | 2014-06-175 | 1 | United Kingdom |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-208-5163
Technical Data | NSN 5305-01-208-5163
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A581 ASSN STD ALL MATERIAL RESPONSES OVERALL |
| HEAD HEIGHT | 0.250 INCHES NOMINAL |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 0.555 INCHES NOMINAL |
| THREAD QUANTITY PER INCH | 32 |
| THREAD SERIES DESIGNATOR | UNC |
| HEAD STYLE | HEXAGON |
| INTERNAL DRIVE STYLE | SLOT |
| THREAD CLASS | 2A |
| WIDTH BETWEEN FLATS | 0.437 INCHES NOMINAL |
| MATERIAL | STEEL COMP 203EZ OVERALL OR STEEL COMP 303 OVERALL OR STEEL COMP 303 PLUS X OVERALL OR STEEL COMP 303MA OVERALL OR STEEL COMP 303SE OVERALL OR STEEL COMP 416 OVERALL OR STEEL COMP 416 PLUS X OVERALL OR STEEL COMP 416SE OVERALL OR STEEL COMP 430F OVERALL OR STEEL COMP 430FSE OVERALL |
| THREAD LENGTH | 0.375 INCHES NOMINAL |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| FASTENER LENGTH | 0.930 INCHES NOMINAL |
| POINT STYLE | CONE |
