NSN 5305-01-204-0971 308334-001, 01-204-0971, 308334001
Product Details | EXTERNALLY RELIEVED BODY SCREW
5305-01-204-0971 An externally threaded fastener whose threaded portion is of one nominal diameter, and whose unthreaded portion has been machined or ground in one or more places or over its entire length to a maximum diameter less than the minimum pitch diameter of the thread (excludes undercut for thread relief). It is No. 0 (0.060 IN.) (1.5 mm) or larger, and is designed to be held or driven with either a wrench or inserted driver (excluding internal socket and multiple spline types) or both in sizes below No. 10 (0.190 IN.) (5 mm) and larger sizes must have a head designed for any type inserted driver (excluding internal socket and multiple spline types) but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. See also BOLT, EXTERNALLY RELIEVED BODY and BOLT, INTERNAL WRENCHING.
Part Alternates: 308334-001, 5305-01-204-0971, 01-204-0971, 5305012040971, 308334001, 012040971
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 MAR 1985 | 01-204-0971 | 01852 ( SCREW, EXTERNALLY RELIEVED BODY ) |

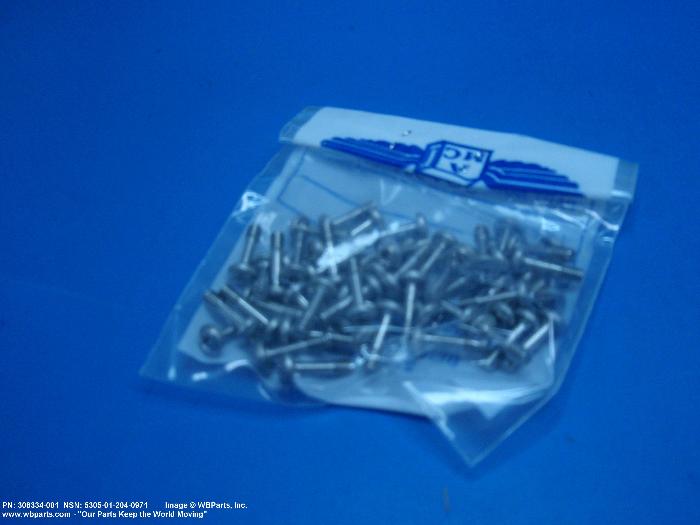

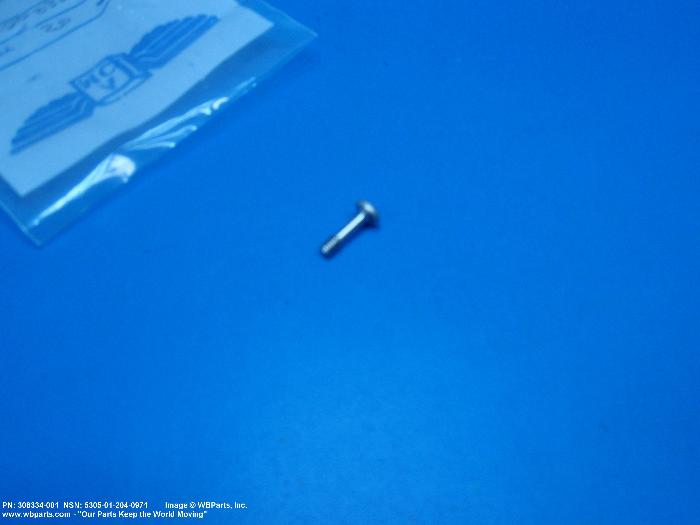

Drawings & Photos | NSN 5305-01-204-0971
Demand History | NSN 5305-01-204-0971
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-204-0971 | 2008-10-281 | 50 | United States |
Cross Reference | NSN 5305-01-204-0971
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 308334-001 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-01-204-0971
Technical Data | NSN 5305-01-204-0971
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.200 INCHES MINIMUM AND 0.215 INCHES MAXIMUM |
| FASTENER LENGTH | 0.593 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 302B OR STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 384 OR STEEL COMP 385 OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C32 PAN |
| HEAD DIAMETER | 0.306 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| HEAD HEIGHT | 0.105 INCHES MINIMUM AND 0.115 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| POINT STYLE | F19 FLAT |
| EXTERNALLY RELIEVED BODY DIAMETER QUANTITY | 1 |
| FIRST DIAMETER FROM HEAD | 0.120 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| DISTANCE FROM LARGEST BEARING SURFACE OF HEAD TO END OF FIRST DIAMETER | 0.378 INCHES MINIMUM AND 0.425 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-204-0971
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-204-0971
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
