NSN 5305-01-204-4190 AES81F375A00WA6A91 , GMC ENGR STD PG C-34.122 , GMCENGRSTDPGC34122
Product Details | SETSCREW
5305-01-204-4190 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.
Part Alternates: AES81F375A00WA6A91 , GMC ENGR STD PG C-34.122 , GMCENGRSTDPGC34122, 12531482 , 1301441010, 13014410-10 , 456720112510 , 5305PL0808796, 5593237, 9428747, 5305-01-204-4190, 01-204-4190, 5305012044190, 012044190
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 MAR 1985 | 01-204-4190 | 06672 ( SETSCREW ) |

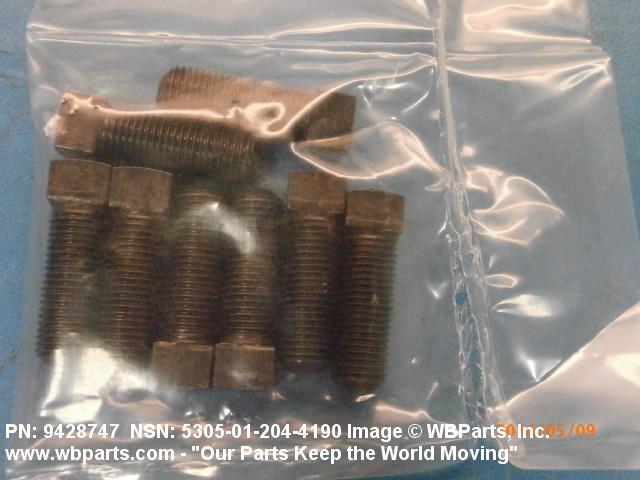

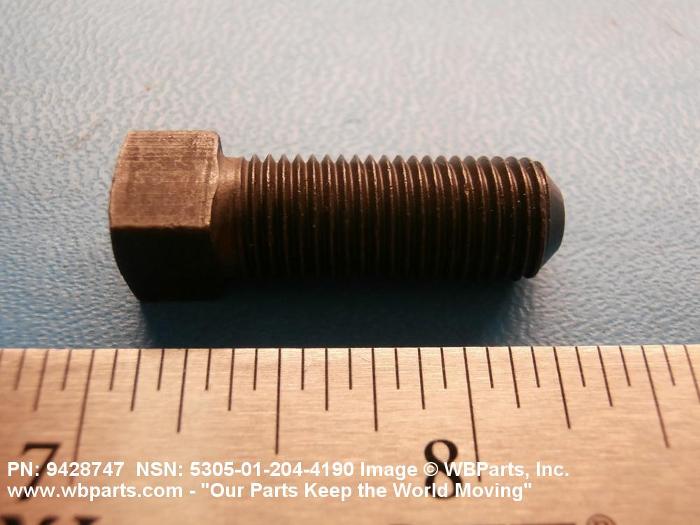

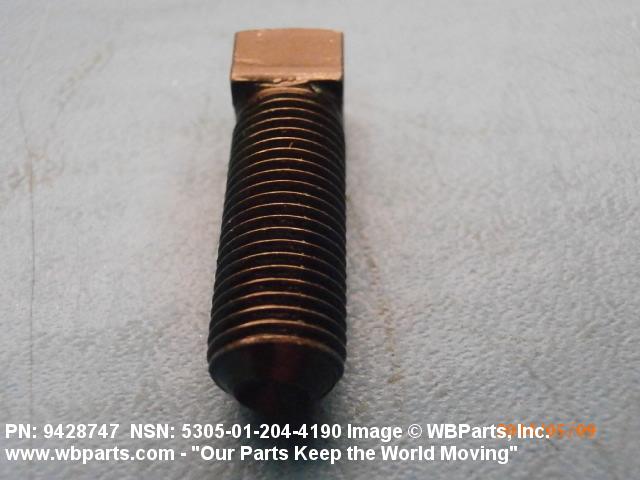

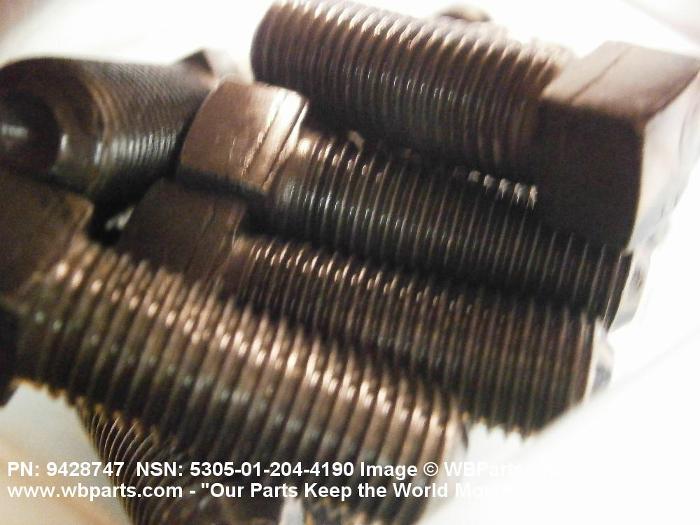

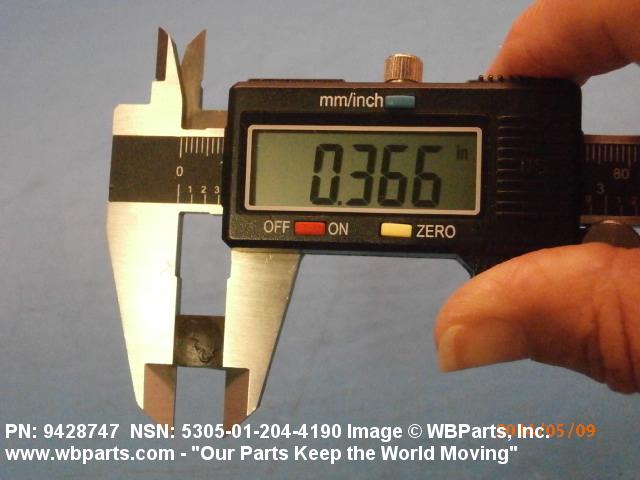

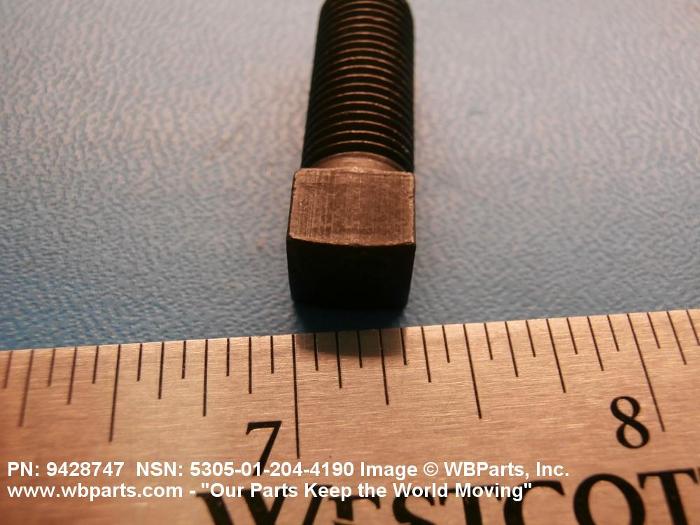

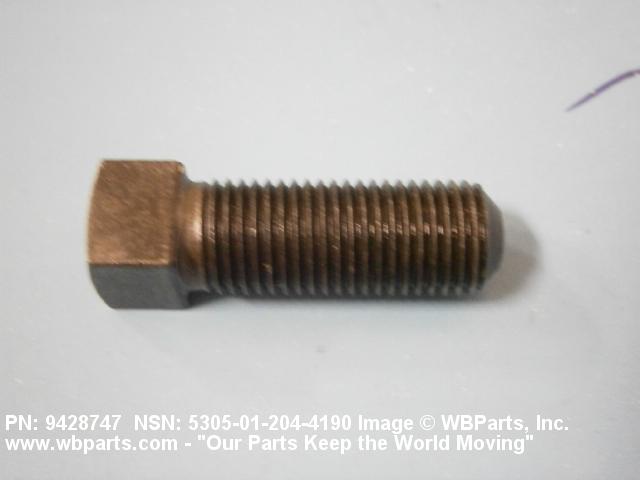

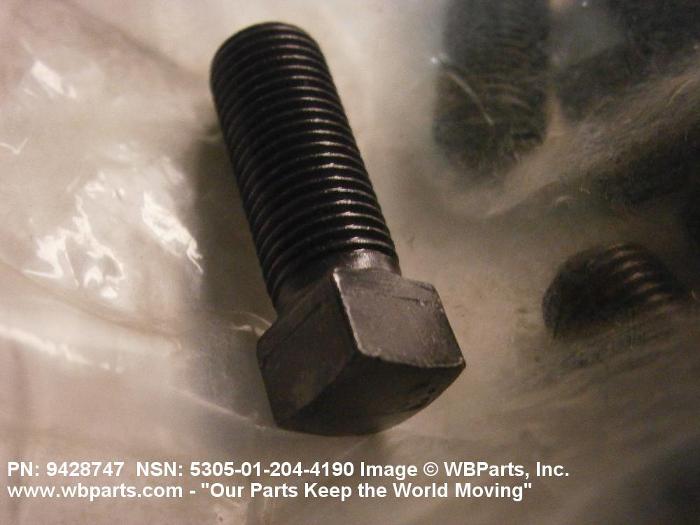

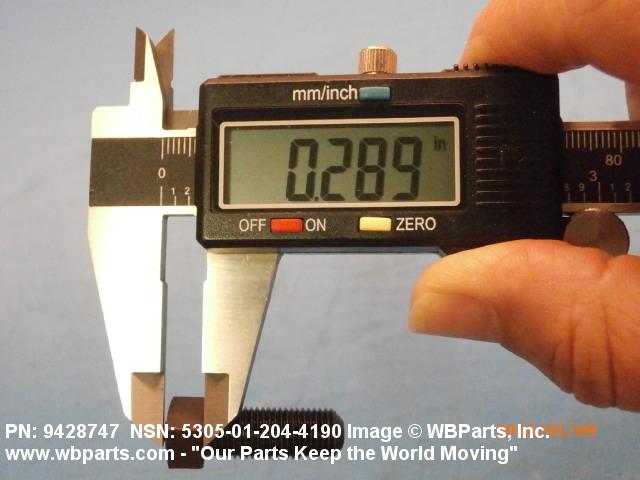

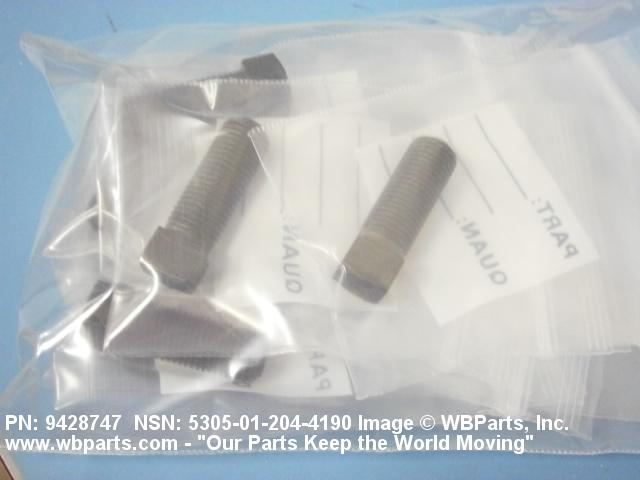

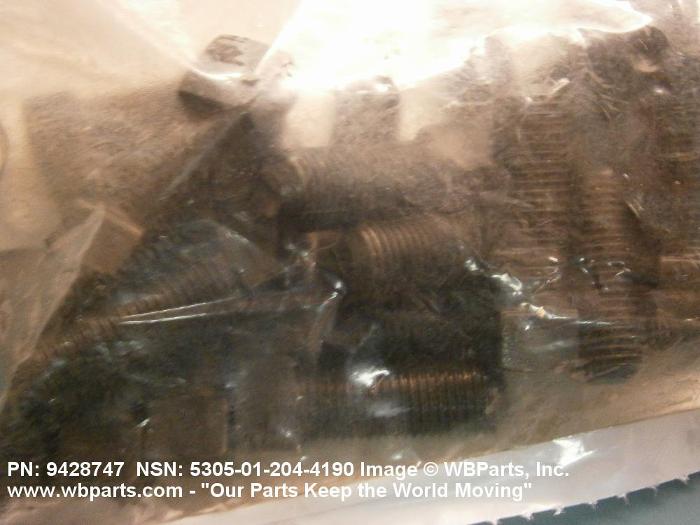

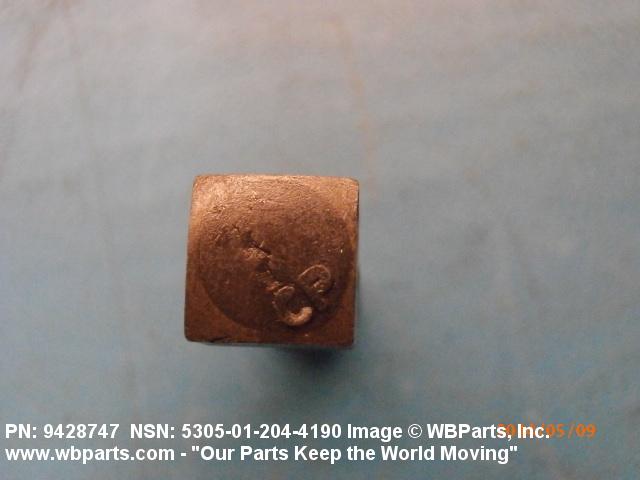

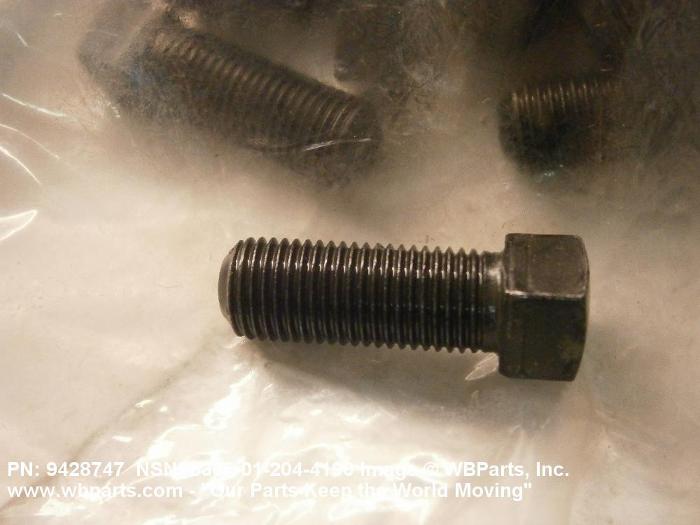

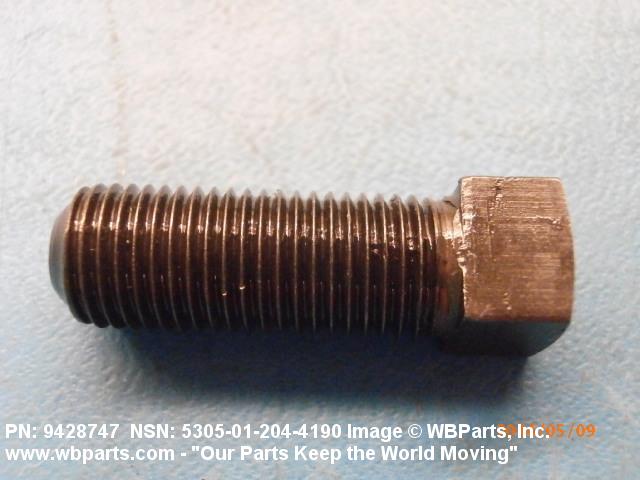

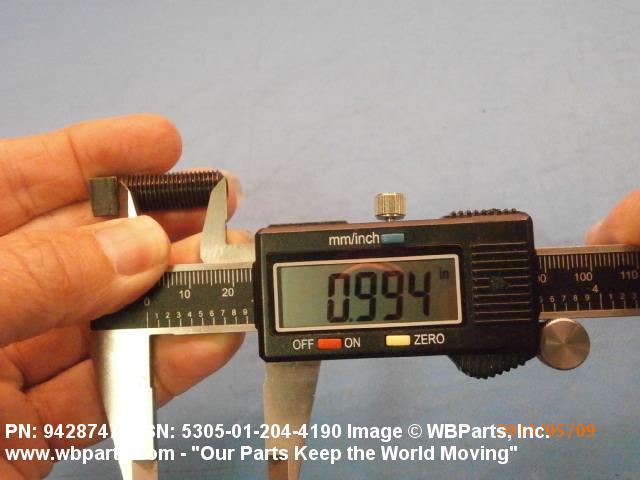

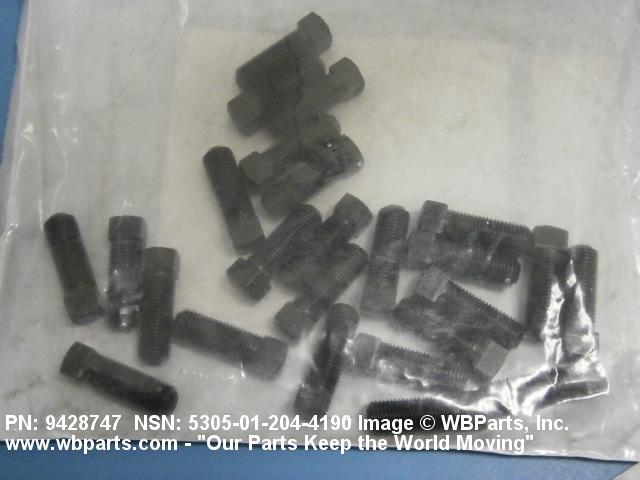

Drawings & Photos | NSN 5305-01-204-4190
Demand History | NSN 5305-01-204-4190
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-204-4190 | 2023-06-20 | 30 | United States |
| AES81F375A00WA6A91 | 2019-01-14 | 8 | US |
| 5305-01-204-4190 | 2018-01-31 | 3549 | DIBBS |
| 5305-01-204-4190 | 2016-11-22 | 1 | DIBBS-RFPs |
| 5305-01-204-4190 | 2014-04-21 | 8 | United States |
| 9428747 | 2013-11-12 | 2032 | United States |
| 5305-01-204-4190 | 2013-11-11 | 1016 | US |
| 5305-01-204-4190 | 2013-02-05 | 24 | United States |
| 5305-01-204-4190 | 2012-11-08 | 24 | United States |
| 5305-01-204-4190 | 2012-09-25 | 6 | United States |
| 5305-01-204-4190 | 2012-02-15 | 12 | United States |
| 5305-01-204-4190 | 2011-11-10 | 12 | United States |
| 5305-01-204-4190 | 2011-11-10 | 25 | United States |
| 5305-01-204-4190 | 2011-04-20 | 400 | VA |
| 012044190 | 2010-09-02 | 55 | US |
| 5305-01-204-4190 | 2009-09-21 | 1476 | DIBBS |
| 5305-01-204-4190 | 2009-09-14 | 351 | DIBBS |
| 5305-01-204-4190 | 2009-08-05 | 1258 | DIBBS |
| 5305-01-204-4190 | 2009-06-15 | 1903 | DIBBS |
| 5305-01-204-4190 | 2009-04-28 | 3363 | US |
| 5305-01-204-4190 | 2009-04-23 | 13480 | US |
| 9428747 | 2009-04-23 | 3370 | US |
| 5305-01-204-4190 | 2009-04-06 | 3375 | US |
| 5305-01-204-4190 | 2009-02-06 | 1200 | US |
Cross Reference | NSN 5305-01-204-4190
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12531482 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 13014410-10 | 19200 | US ARMY ARDEC RDECOM |
| 5305PL0808796 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 5593237 | 34623 | AM GENERAL, LLC |
| 9428747 | 11862 | GENERAL MOTORS CORP CHEVROLET MOTOR DIV |
| 9428747 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| AES81F375A00WA6A91 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| GMC ENGR STD PG C-34.122 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
