NSN 5210-01-562-4179 01162, 01-162, 01-562-4179
Product Details | DIAL INDICATOR
5210-01-562-4179 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Part Alternates: 01162, 01-162, 5210-01-562-4179, 01-562-4179, 5210015624179, 015624179
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 08 APR 2008 | 01-562-4179 | 06275 ( INDICATOR, DIAL ) |
Drawings & Photos | NSN 5210-01-562-4179
Cross Reference | NSN 5210-01-562-4179
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 01-162 | 0T1F7 | ANRITSU COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5210-01-562-4179
Technical Data | NSN 5210-01-562-4179
| Characteristic | Specifications |
|---|---|
| DIAL SETTING TYPE | FIXED |

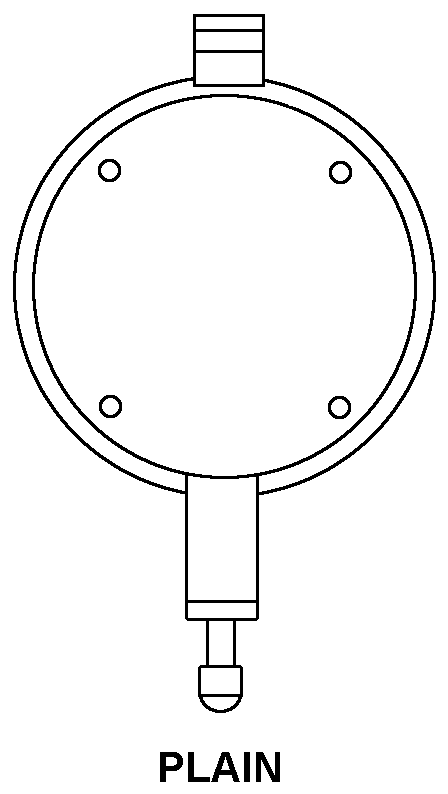

| MOUNTING STYLE | A10 PLAIN |
| III SUPPLEMENTARY FEATURES | CONSIST OF PIN DEPTH GAUGE P/N 01-222; SIDE LOCK KNOB; REFERENCE BLOCK P/N 01-210; GAUGE COUPLING NUT; FEMALEADAPTER |
| III FUNCTIONAL DESCRIPTION | USED TO MEASURE THE PIN DEPTH OF MALE AND FEMALE K, 3.5 MM, AND WSMA CONNECTORS |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GAUGING SET |
Restrictions/Controls & Freight Information | NSN 5210-01-562-4179
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
