5210-00-062-4493 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.

Part Alternates: 108, 81136, 81-136, 5210-00-062-4493, 00-062-4493, 5210000624493, 000624493

Measuring Tools | Measuring Tools, Craftsmen's

Supply Group (FSG) NSN Assign. NIIN
52 01 JAN 1963 00-062-4493

Drawings & Photos | NSN 5210-00-062-4493


Cross Reference | NSN 5210-00-062-4493

Part Number Cage Code Manufacturer
108 03249 B. C. AMES INCORPORATED
81-136 57163 L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5210-00-062-4493

Technical Data | NSN 5210-00-062-4493

Characteristic Specifications
MEASUREMENT CAPACITY 0.075 INCHES
GRADUATION UNIT 0.00050 INCHES
DIAL MARKING 0-15-0
OVERALL DIAMETER 1.688 INCHES NOMINAL
DIAL SETTING TYPE ADJUSTABLE
CONTACT POINT LOCATION RIM

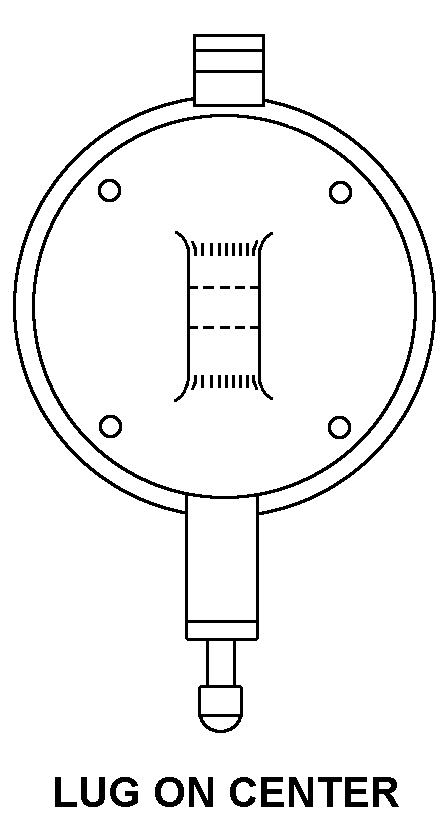

MOUNTING STYLE A2 LUG ON CENTER
CONTACT POINT ACTION TYPE PLUNGER

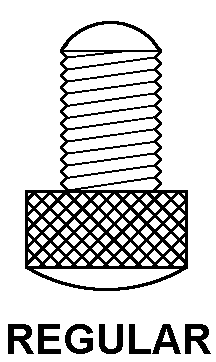

CONTACT POINT STYLE DESIGNATOR 1 REGULAR
CUSHIONED MOVEMENT FEATURE INCLUDED
LIFTING LEVER NOT INCLUDED
TELL-TALE HAND NOT INCLUDED
