Product Details | DIAL INDICATOR
5210-01-089-9081 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Part Alternates: MILI18422, MIL-I-18422, 3213, 5210-01-089-9081, 01-089-9081, 5210010899081, 010899081
Measuring Tools | Measuring Tools, Craftsmen's
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
52 | 09 FEB 1980 | 01-089-9081 | 06275 ( INDICATOR, DIAL ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5210-01-089-9081
Related Products | NSN 5210-01-089-9081
Technical Data | NSN 5210-01-089-9081
Characteristic | Specifications |
---|---|
MEASUREMENT CAPACITY | 3.000 INCHES |
GRADUATION UNIT | 0.00100 INCHES |
DIAL MARKING | 0-100 |
OVERALL DIAMETER | 2.812 INCHES NOMINAL |
DIAL SETTING TYPE | ADJUSTABLE |
CONTACT POINT LOCATION | EXTENSION ARM END EXTENSION |

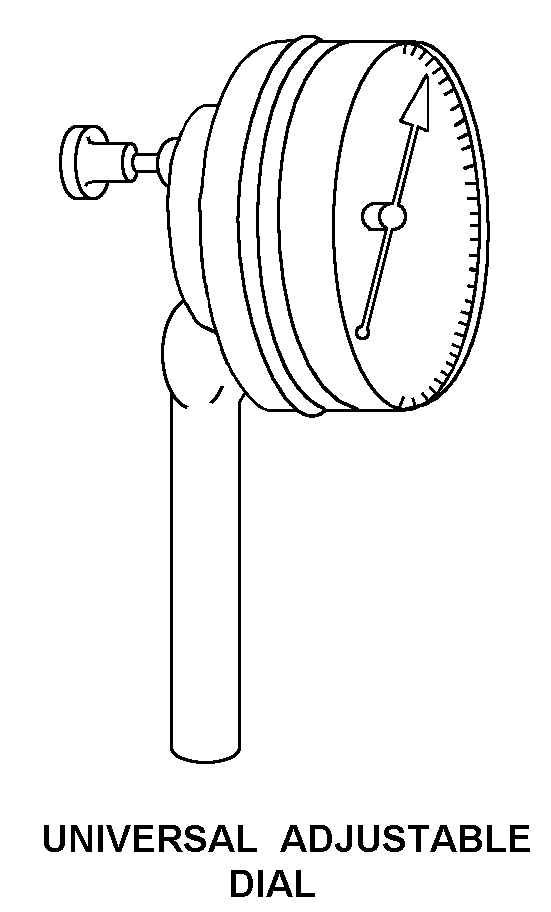

MOUNTING STYLE | A5 UNIVERSAL ADJUSTABLE DIAL |
CONTACT POINT ACTION TYPE | FIXED |

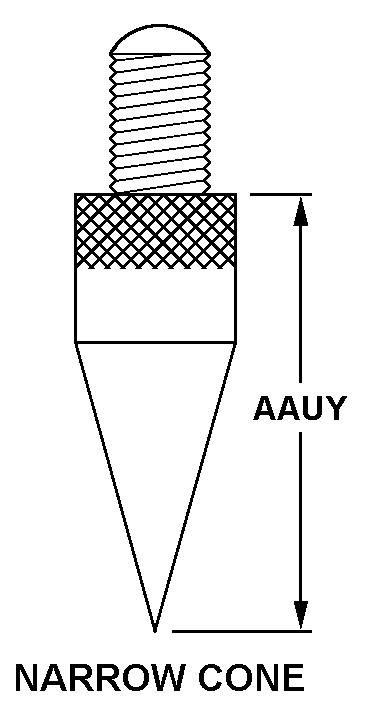

CONTACT POINT STYLE DESIGNATOR | 5 NARROW CONE |
BEARING TYPE | PLAIN |
CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
LIFTING LEVER | NOT INCLUDED |
TELL-TALE HAND | INCLUDED |
