Product Details | DIAL INDICATOR

5210-00-825-5119 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.

Part Alternates: 241610, 2416-10, 25441, 25-441, 38674, 5210-00-825-5119, 00-825-5119, 5210008255119, 008255119

Measuring Tools | Measuring Tools, Craftsmen's

Supply Group (FSG) NSN Assign. NIIN
52 01 JAN 1962 00-825-5119

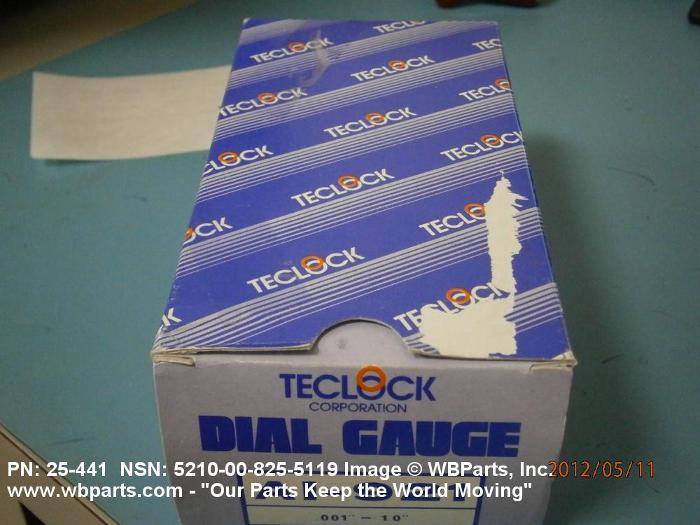

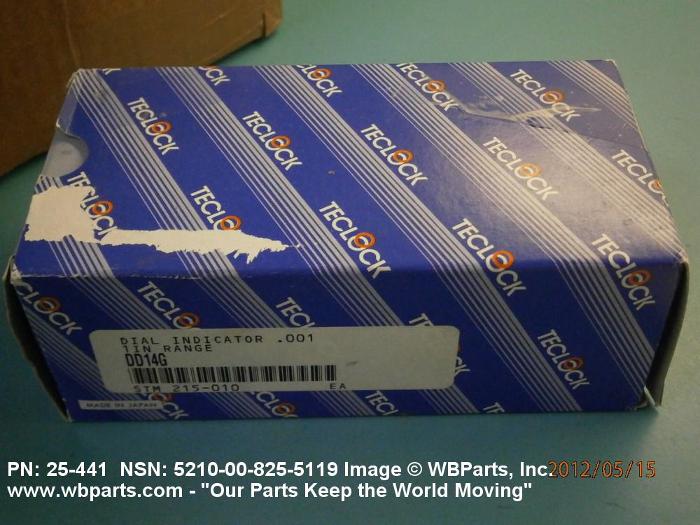

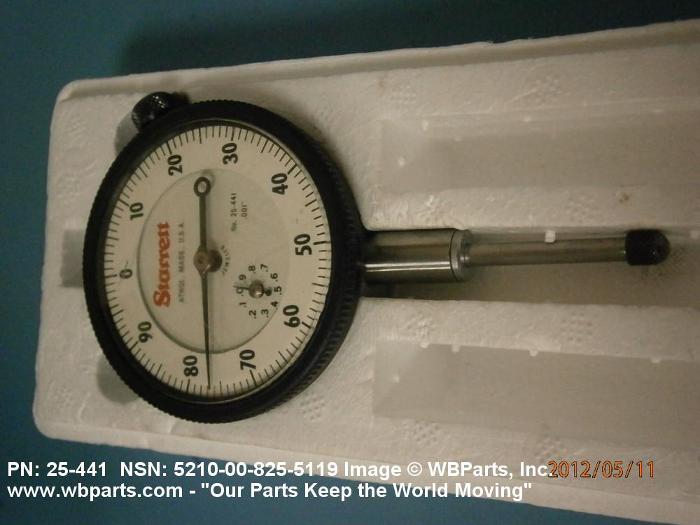

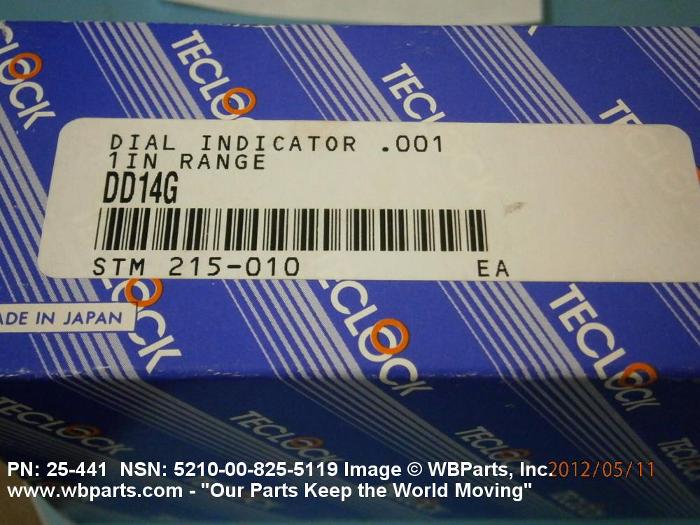

Drawings & Photos | NSN 5210-00-825-5119


Demand History | NSN 5210-00-825-5119

Part Number Request Date QTY Origin
5210-00-825-5119 2012-04-114 1 us
5210-00-825-5119 2012-04-114 1 US

Cross Reference | NSN 5210-00-825-5119

Part Number Cage Code Manufacturer
2416-10 64577 CARSEN W LTD CHARVOZ DIV SUB OF CHARVOZ-CARSEN CORP
25-441 57163 L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE
38674 53800 SEARS, ROEBUCK AND CO. DBA SEARS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5210-00-825-5119

Technical Data | NSN 5210-00-825-5119

Characteristic Specifications
MEASUREMENT CAPACITY 1.000 INCHES
GRADUATION UNIT 0.00100 INCHES
DIAL MARKING 0-100
OVERALL DIAMETER 2.250 INCHES NOMINAL
DIAL SETTING TYPE ADJUSTABLE
CONTACT POINT LOCATION STEM
CONTACT POINT ACTION TYPE PLUNGER
CONTACT POINT STYLE DESIGNATOR 1 REGULAR
BEARING TYPE JEWEL
CUSHIONED MOVEMENT FEATURE NOT INCLUDED
LIFTING LEVER INCLUDED
TELL-TALE HAND INCLUDED
ACCESSORY COMPONENTS AND QUANTITY ANVIL1
UNIT PACKAGE QUANTITY 1
UNIT PACKAGE TYPE BOX
MANUFACTURERS CODE 57163
DESIGN CONTROL REFERENCE 25-441

Restrictions/Controls & Freight Information | NSN 5210-00-825-5119

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 121570 GAGES AIR LIQUID LEVEL PRESSURE
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 72B unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5210-00-825-5119

Category Code Description
Budget Code9 General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price ValidationN The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
  • The price has not been analyzed or reviewed for accuracy.
  • ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund CodeSFStock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDFDepartment of the Air Force
Service OrganizationFU.S. Air Force
ReparabilityNStock Fund (except Munitions)
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Category Code Description
Cognizance Codes9QNavy-owned stocks of items accepted by the General Services Administration for support of Navy requirements
Naval Inventory Control Point, Mechanicsburg
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
