Product Details | DIAL INDICATOR
5210-01-341-6384 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Part Alternates: E15008, 25611J, 25-611J , 25-611J WITH 6608D AND 99356, 25611JWITH6608DAND99356, 5210-01-341-6384, 01-341-6384, 5210013416384, 013416384
Measuring Tools | Measuring Tools, Craftsmen's
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
52 | 05 JUL 1991 | 01-341-6384 | 06275 ( INDICATOR, DIAL ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5210-01-341-6384
Related Products | NSN 5210-01-341-6384
Technical Data | NSN 5210-01-341-6384
Characteristic | Specifications |
---|---|
MEASUREMENT CAPACITY | 0.200 INCHES |
GRADUATION UNIT | 0.00010 INCHES |
DIAL MARKING | 0-10 |
OVERALL DIAMETER | 2.250 INCHES NOMINAL |
DIAL SETTING TYPE | FIXED |
CONTACT POINT LOCATION | STEM |

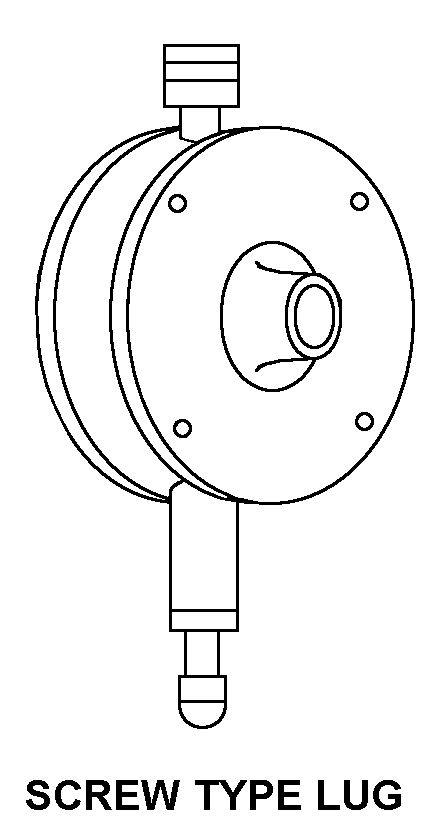

MOUNTING STYLE | A3 SCREW TYPE LUG |
CONTACT POINT ACTION TYPE | PLUNGER |
CONTACT POINT STYLE DESIGNATOR | 1 REGULAR |
BEARING TYPE | JEWEL |
CUSHIONED MOVEMENT FEATURE | INCLUDED |
LIFTING LEVER | INCLUDED |
TELL-TALE HAND | NOT INCLUDED |
