Product Details | DIAL INDICATOR
5210-01-291-0280 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Part Alternates: 711LPSZ, 5210-01-291-0280, 01-291-0280, 5210012910280, 012910280
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 22 DEC 1988 | 01-291-0280 | 06275 ( INDICATOR, DIAL ) |
Drawings & Photos | NSN 5210-01-291-0280
Demand History | NSN 5210-01-291-0280
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5210-01-291-0280 | 2014-10-300 | 3 | United States |
Cross Reference | NSN 5210-01-291-0280
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 711LPSZ | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5210-01-291-0280
Related Products | NSN 5210-01-291-0280
Technical Data | NSN 5210-01-291-0280
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 0.030 INCHES |
| GRADUATION UNIT | 0.00050 INCHES |
| DIAL MARKING | 0-15-0 |
| OVERALL DIAMETER | 0.938 INCHES NOMINAL |
| DIAL SETTING TYPE | ADJUSTABLE |
| CONTACT POINT LOCATION | EXTENSION ARM END |

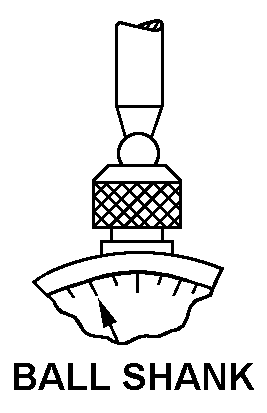

| MOUNTING STYLE | A7 BALL SHANK |
| CONTACT POINT ACTION TYPE | SWIVEL |
| CONTACT POINT STYLE DESIGNATOR | 13 LEVER |
| CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
| LIFTING LEVER | NOT INCLUDED |
| TELL-TALE HAND | NOT INCLUDED |
| ACCESSORY COMPONENTS AND QUANTITY | UNIVERSAL FRICTION HOLDER 1; UNIVERSAL SHANK 1 |
| SPECIAL FEATURES | SHADED DIAL |
