NSN 5210-00-863-2022 KUNXELU12, C81Q, C8IQ
Product Details | DIAL INDICATOR
5210-00-863-2022 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Part Alternates: KUNXELU12, C81Q, C8IQ, 262J, 5210-00-863-2022, 00-863-2022, 5210008632022, 008632022
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1962 | 00-863-2022 | 06275 ( INDICATOR, DIAL ) |

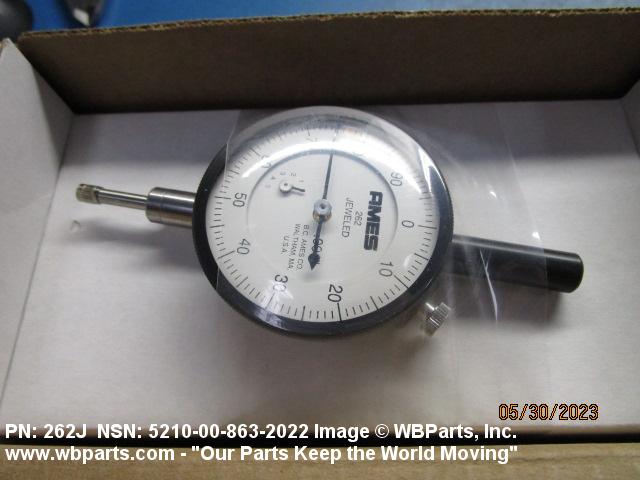

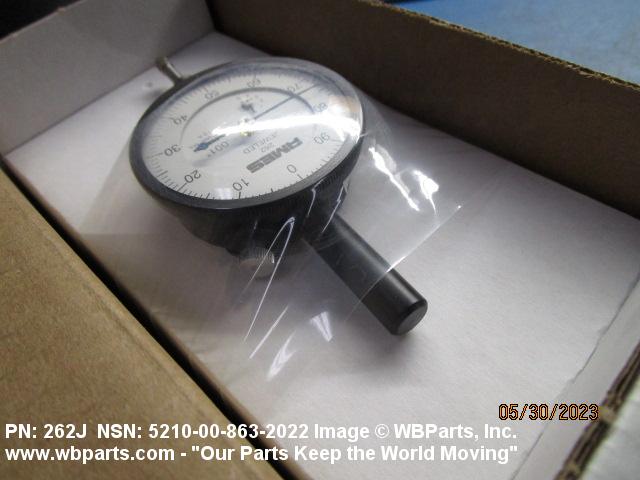

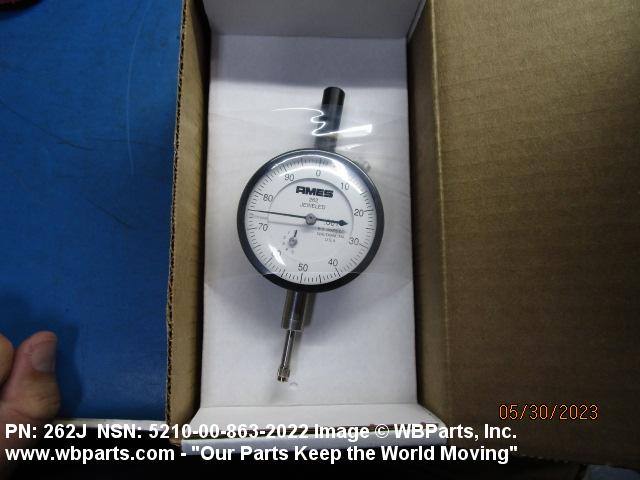

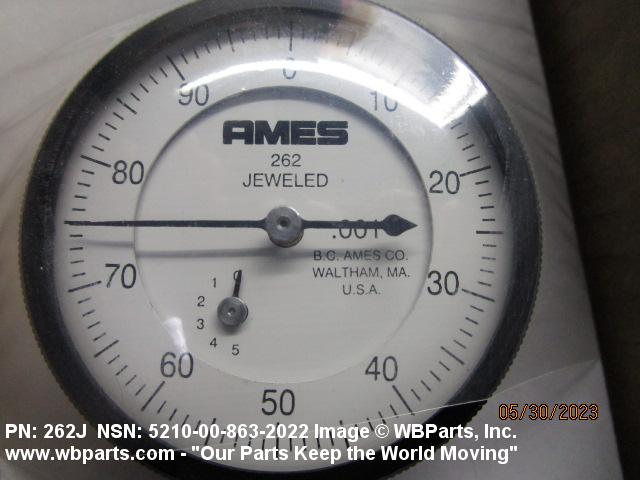

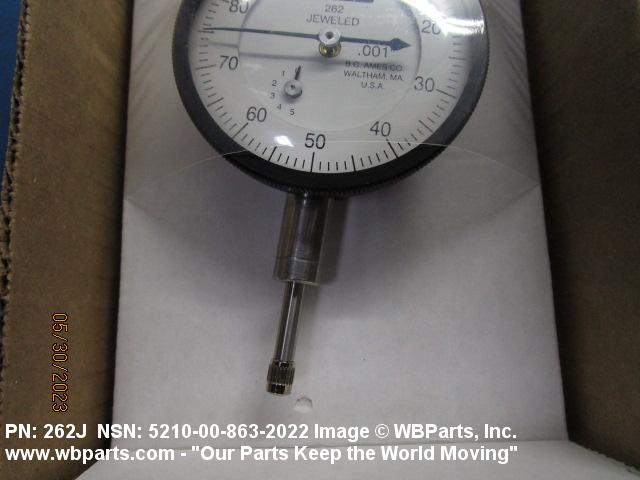

Drawings & Photos | NSN 5210-00-863-2022
Demand History | NSN 5210-00-863-2022
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5210-00-863-2022 | 2024-03-65 | 1 | Brazil |
| C81Q | 2024-02-58 | 1 | Brazil |
| C81Q | 2024-01-22 | 1 | Brazil |
| 5210-00-863-2022 | 2023-05-142 | 1 | us |
| 5210-00-863-2022 | 2023-02-38 | 1 | Greece |
| C81Q | 2021-12-340 | 4 | CA |
| C81Q | 2020-09-260 | 1 | ID |
| C81Q | 2020-05-139 | 1 | CO |
| C81Q | 2019-09-246 | 1 | MY |
| 5210-00-863-2022 | 2019-06-163 | 1 | MA |
| C81Q | 2016-10-294 | 1 | US |
| 5210-00-863-2022 | 2016-05-133 | 1 | US |
| 5210-00-863-2022 | 2016-02-53 | 1 | MX |
| C81Q | 2014-12-359 | 1 | CN |
| C81Q | 2012-08-244 | 13 | US |
| C81Q | 2012-04-98 | 1 | RU |
| C81Q | 2012-04-96 | 1 | RU |
| C81Q | 2012-04-95 | 1 | RU |
| C81Q | 2011-03-81 | 1 | BG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5210-00-863-2022
Related Products | NSN 5210-00-863-2022
Technical Data | NSN 5210-00-863-2022
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 0.500 INCHES |
| GRADUATION UNIT | 0.00100 INCHES |
| DIAL MARKING | 0-100 |
| OVERALL DIAMETER | 2.250 INCHES NOMINAL |
| DIAL SETTING TYPE | FIXED |
| CONTACT POINT LOCATION | STEM |
| MOUNTING STYLE | A2 LUG ON CENTER |
| CONTACT POINT ACTION TYPE | PLUNGER |
| CONTACT POINT STYLE DESIGNATOR | 1 REGULAR |
| BEARING TYPE | JEWEL |
| CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
| LIFTING LEVER | NOT INCLUDED |
| TELL-TALE HAND | INCLUDED |
Restrictions/Controls & Freight Information | NSN 5210-00-863-2022
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5210-00-863-2022
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
