Product Details | DIAL INDICATOR
5210-00-553-1532 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Part Alternates: GG512DF3, 254412, 25-441-2, 25441J663226, 25-441J6632-2-6, 25-441JW/2, 25441JW2, 5210-00-553-1532, 00-553-1532, 5210005531532, 005531532
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 30 OCT 1974 | 00-553-1532 | 06275 ( INDICATOR, DIAL ) |
Drawings & Photos | NSN 5210-00-553-1532
Demand History | NSN 5210-00-553-1532
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 25-441JW/2 | 2022-05-124 | 24 | DIBBS |
| 5210-00-553-1532 | 2013-06-165 | 6 | DIBBS |
| 5210-00-553-1532 | 2012-08-215 | 8 | DIBBS |
| 5210-00-553-1532 | 2012-06-173 | 1 | DIBBS |
| 5210-00-553-1532 | 2012-06-173 | 2 | DIBBS |
| 5210-00-553-1532 | 2012-06-162 | 1 | DIBBS |
| 5210-00-553-1532 | 2012-05-141 | 4 | DIBBS |
| 5210-00-553-1532 | 2012-04-103 | 1 | DIBBS |
| 5210-00-553-1532 | 2012-04-100 | 1 | DIBBS |
| 5210-00-553-1532 | 2011-06-170 | 1 | DIBBS |
| 5210-00-553-1532 | 2011-04-91 | 1 | DIBBS |
| 5210-00-553-1532 | 2010-11-322 | 2 | DIBBS |
Cross Reference | NSN 5210-00-553-1532
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 25-441-2 | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
| 25-441J6632-2-6 | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
| 25-441JW/2 | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
| GG512DF3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5210-00-553-1532
Related Products | NSN 5210-00-553-1532
Technical Data | NSN 5210-00-553-1532
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 1.000 INCHES |
| GRADUATION UNIT | 0.00100 INCHES |
| DIAL MARKING | 0 TO 100 |
| OVERALL DIAMETER | 2.250 INCHES NOMINAL |
| DIAL SETTING TYPE | ADJUSTABLE |
| CONTACT POINT LOCATION | RIM |
| MOUNTING STYLE | A2 LUG ON CENTER |
| CONTACT POINT ACTION TYPE | PLUNGER |

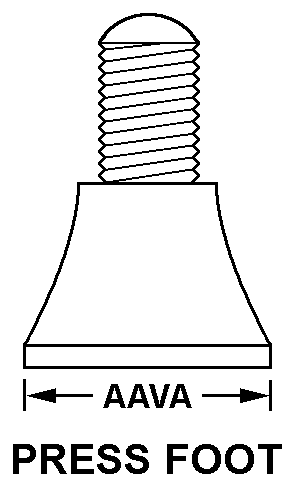

| CONTACT POINT STYLE DESIGNATOR | 3 PRESS FOOT |
| POINT DIAMETER | 0.375 INCHES NOMINAL |
| BEARING TYPE | JEWEL |
| CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
| LIFTING LEVER | NOT INCLUDED |
| TELL-TALE HAND | NOT INCLUDED |
| MANUFACTURERS CODE | 57163 |
| DESIGN CONTROL REFERENCE | 25-441-2 |
Restrictions/Controls & Freight Information | NSN 5210-00-553-1532
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72B | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
