NSN 5133-00-243-9612 MS1544487, MS15444-87, B94.11M

Product Details | TWIST DRILL

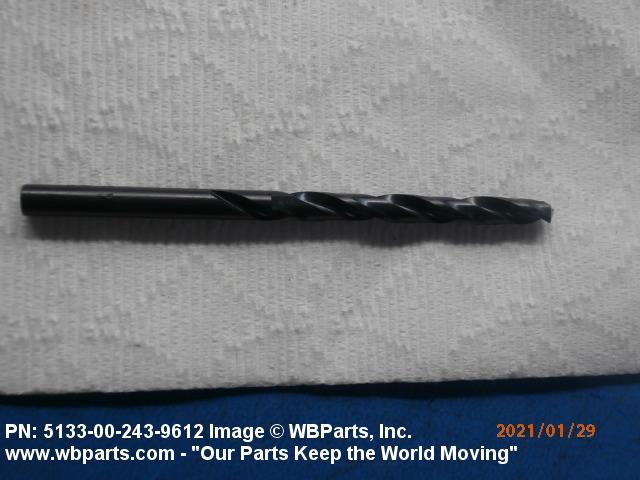

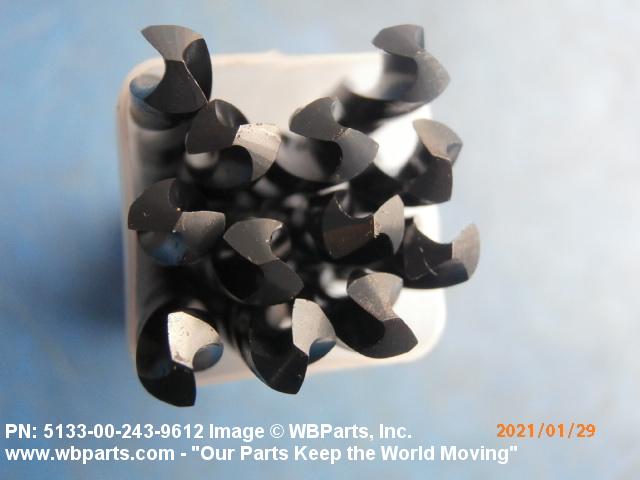

5133-00-243-9612 An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED.

Part Alternates: MS1544487, MS15444-87, B94.11M, B9411M, C01176, DBF13/64B, DBF1364B, GGGD751, GGG-D-751, GGG-D-751 TYBCL1, GGGD751TYBCL1, T-105, R10, T105, 917 13/64, 9171364, 01176, 10013, 11437, 12113, 12313, 1330, 150 13/64, 1501364, 2001 13/64, 20011364, 2011 13/64, 20111364, 206 13/64, 2061364, 236, 24012, 350RT, 350-RT, 405, 40D187814, 40D1878-14, 4110151, 41-10151, 44013, 503-S 13/64, 503S1364, 5133-00-243-9612, 00-243-9612, 5133002439612, 002439612

Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
51	01 JAN 1963	00-243-9612	05237 ( DRILL, TWIST )

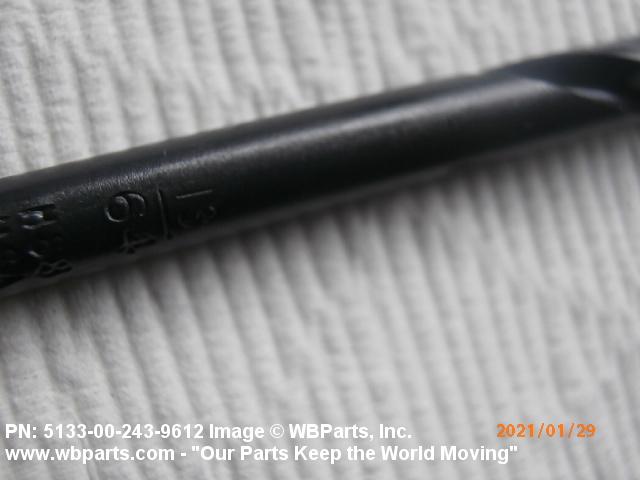

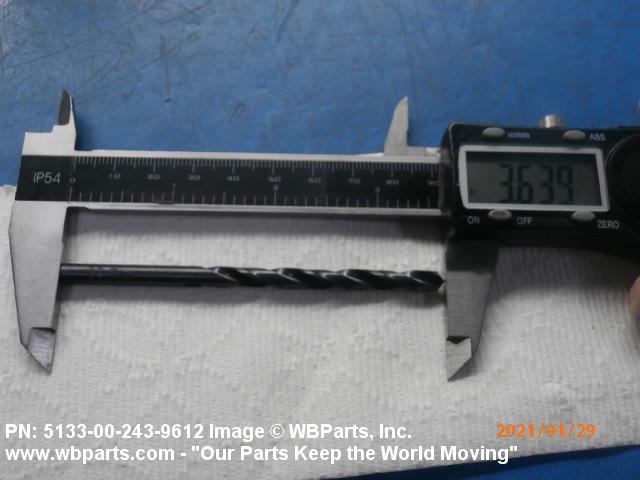

Drawings & Photos | NSN 5133-00-243-9612

Part Number	Request Date	QTY	Origin
T105	2023-02-51	8	United States
10013	2022-04-108	20	United States
5133-00-243-9612	2021-01-06	4	United States
5133-00-243-9612	2020-12-349	5	US
GGGD751	2020-04-104	1	US
10013	2019-10-284	2	Brazil
T105	2017-10-293	4	US
236	2015-03-83	1
10013	2015-03-76	5	TH
236	2015-02-52	9
236	2014-12-352	9
236	2014-11-322	9
236	2014-10-296	9
24012	2012-12-339	3	US

Cross Reference | NSN 5133-00-243-9612

Part Number	Cage Code	Manufacturer
01176	13130	CLEVELAND TWIST DRILL CO DIV OF GREENFIELD INDUSTRIES INC
01176	1NEX4	KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS
10013	16568	PRECISION TWIST DRILL CO
11437	067J8	MORSE CUTTING TOOLS
11437	41672	MORSE CUTTING TOOLS DIV OF MORSE CUTTING TOOL CORP
12113	82333	REPUBLIC DRILL AND TOOL CO DIV OF AEW ELECTRIC INC
12313	42970	LEAR SIEGLER INC NATIONAL TWIST DRILL AND TOOL DIV
1330	067J8	MORSE CUTTING TOOLS
1330	41672	MORSE CUTTING TOOLS DIV OF MORSE CUTTING TOOL CORP
150 13/64	1NEX4	KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS
150 13/64	60NQ9	GREENFIELD INDUSTRIES, INC.
150 13/64	65400	GREENFIELD INDUSTRIES INC
2001 13/64	13130	CLEVELAND TWIST DRILL CO DIV OF GREENFIELD INDUSTRIES INC
2001 13/64	1NEX4	KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS
2011 13/64	03882	NEW YORK TWIST DRILL INC
206 13/64	42970	LEAR SIEGLER INC NATIONAL TWIST DRILL AND TOOL DIV
236	71485	UNION BUTTERFIELD CORP P O BOX 9000 CRYSTAL LAKE IL 60039
24012	92061	BENDIX CORP THE INDUSTRIAL TOOLS DIV SOUTH BELOIT PLANT
350-RT	82333	REPUBLIC DRILL AND TOOL CO DIV OF AEW ELECTRIC INC
405	84600	FREY CO INC THE
40D1878-14	99993	DEPARTMENT OF THE NAVY
41-10151	71485	UNION BUTTERFIELD CORP P O BOX 9000 CRYSTAL LAKE IL 60039
44013	1NEX4	KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS
44013	60NQ9	GREENFIELD INDUSTRIES, INC.
44013	65400	GREENFIELD INDUSTRIES INC
503-S 13/64	65400	GREENFIELD INDUSTRIES INC
917 13/64	13130	CLEVELAND TWIST DRILL CO DIV OF GREENFIELD INDUSTRIES INC
B94.11M	05047	AMERICAN SOCIETY OF MECHANICAL ENGINEERS
C01176	1NEX4	KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS
DBF13/64B	55719	IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL
GGG-D-751	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
GGG-D-751 TYBCL1	80244	GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
MS15444-87	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
R10	16568	PRECISION TWIST DRILL CO
T-105	92061	BENDIX CORP THE INDUSTRIAL TOOLS DIV SOUTH BELOIT PLANT

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5133-00-243-9612

Compare

Related Products | NSN 5133-00-243-9612

5133-00-243-9613, 5133-00-244-0680, 5133-00-244-0681, 5133-00-244-0961, 5133-00-244-4312

Technical Data | NSN 5133-00-243-9612

Characteristic	Specifications
MATERIAL	STEEL, HIGH SPEED OVERALL
HARDNESS RATING	NOT RATED
CUTTING END STYLE	52 GENERAL PURPOSE

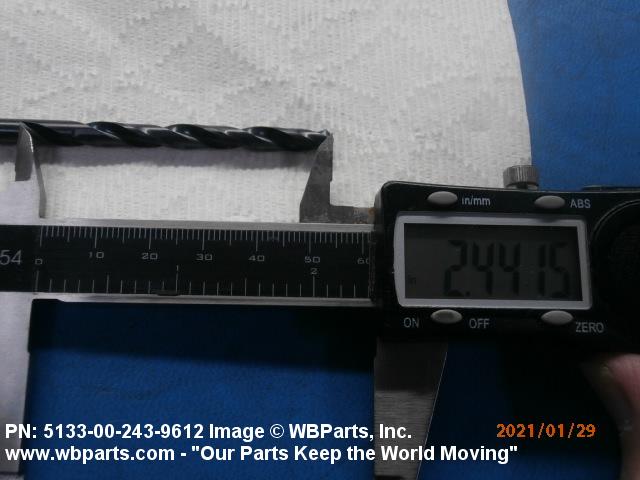

FLUTE LENGTH	2.438 INCHES NOMINAL
SHANK STYLE	76 STRAIGHT ROUND

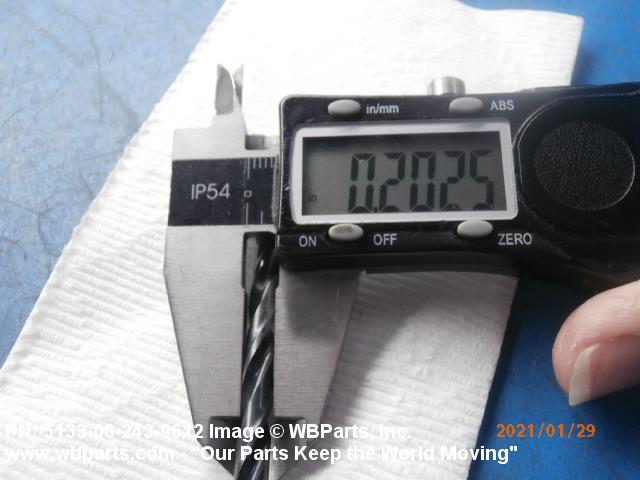

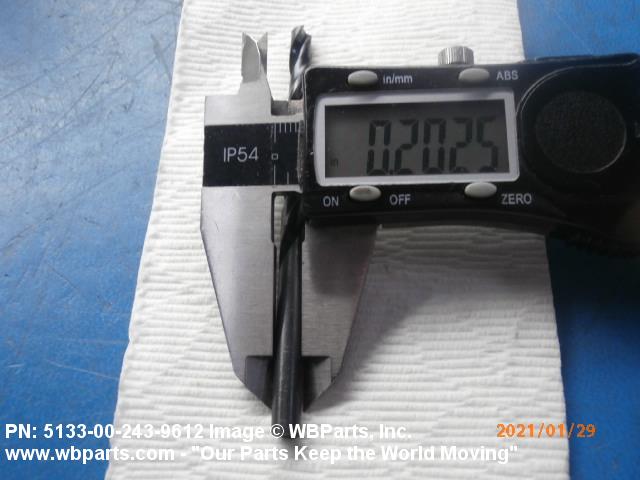

SHANK DIAMETER	0.203 INCHES NOMINAL
