NSN 5133-01-095-6634 NAS907 , NAS907 TYASZ5/64, NAS907TYASZ564
Product Details | TWIST DRILL
5133-01-095-6634 An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED.
Part Alternates: NAS907 , NAS907 TYASZ5/64, NAS907TYASZ564, 10105, 2111 5/64, 2111564, 24105, 5133-01-095-6634, 01-095-6634, 5133010956634, 010956634
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 05 JUN 1980 | 01-095-6634 | 05237 ( DRILL, TWIST ) |
Drawings & Photos | NSN 5133-01-095-6634
Demand History | NSN 5133-01-095-6634
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10105 | 2015-03-90 | 2 | PK |
| 10105 | 2013-04-120 | 1 | United Arab Emirates |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-01-095-6634
Technical Data | NSN 5133-01-095-6634
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, HIGH SPEED OVERALL |
| SURFACE TREATMENT | OXIDE FILM OVERALL |
| HARDNESS RATING | NOT RATED |
| CUTTING END STYLE | 52 GENERAL PURPOSE |
| FLUTE LENGTH | 1.000 INCHES NOMINAL |

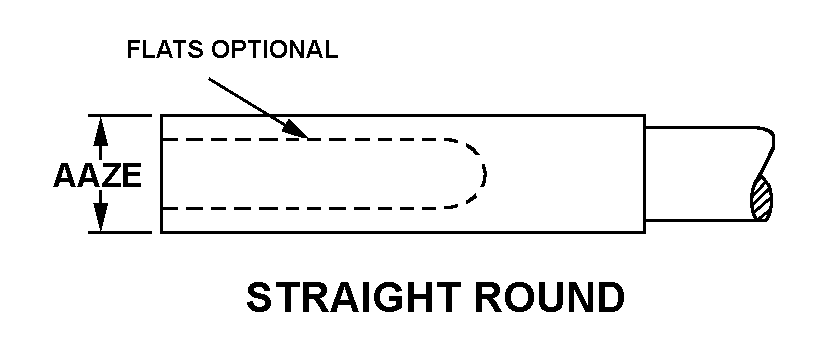

| SHANK STYLE | 76 STRAIGHT ROUND |
| SHANK DIAMETER | 0.078 INCHES NOMINAL |
| OVERALL LENGTH | 2.000 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 0.0781 INCHES |
| CUTTING ROTATION DIRECTION | RIGHT-HAND |
| POINT TYPE | SPLIT |
| POINT ANGLE | 118.0 DEGREES NOMINAL |
| FLUTE QUANTITY | 2 |
| SPECIAL FEATURES | JOBBERS LG; FRACTIONAL SIZE 5/64 |
| SPECIFICATION/STANDARD DATA | 80205-NAS907 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | A TYPE |
Restrictions/Controls & Freight Information | NSN 5133-01-095-6634
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | ZN | Netherlands ZO ZP |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
