Product Details | TWIST DRILL
5133-00-228-1391 An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED.
Part Alternates: B94.11M, B9411M, C12329, GGGD751, GGG-D-751, GGG-D-751 TYE, GGGD751TYE, T-100, T100, 2410134, 2511 1-11/16, 2511 1-3/4 , 53208, 74000, 74108, 940 1-11/16, 94011116, 10102, 10108, 110 1-11/16, 11011116, 12329, 1302, 200 1-11/16, 20011116, 20144, 20148 , 209, 2410 1-11/16, 2410 1-3/4 , 2511134, 25224, 29418, 310RT, 310-RT, 402, 41208, 4210242, 42-10242, 500, 5133-00-228-1391, 00-228-1391, 5133002281391, 241011116, 251111116, 002281391
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-228-1391 | 05237 ( DRILL, TWIST ) |
Drawings & Photos | NSN 5133-00-228-1391
Demand History | NSN 5133-00-228-1391
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10108 | 2023-07-195 | 40 | AU |
| 10108 | 2022-09-263 | 55 | AU |
| 10108 | 2020-05-136 | 40 | Poland |
| GGGD751 | 2020-04-104 | 1 | US |
| 402 | 2016-12-348 | 16 | US |
| 74000 | 2016-05-123 | 4 | United States |
| 209 | 2014-11-314 | 25 | IN |
| 402 | 2010-03-75 | 1 | US |
| 402 | 2010-03-75 | 1 | US |
| 402 | 2010-03-75 | 1 | US |
Cross Reference | NSN 5133-00-228-1391
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10102 | 067J8 | MORSE CUTTING TOOLS |
| 10102 | 41672 | MORSE CUTTING TOOLS DIV OF MORSE CUTTING TOOL CORP |
| 10108 | 42970 | LEAR SIEGLER INC NATIONAL TWIST DRILL AND TOOL DIV |
| 110 1-11/16 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| 110 1-11/16 | 65400 | GREENFIELD INDUSTRIES INC |
| 12329 | 13130 | CLEVELAND TWIST DRILL CO DIV OF GREENFIELD INDUSTRIES INC |
| 1302 | 067J8 | MORSE CUTTING TOOLS |
| 1302 | 41672 | MORSE CUTTING TOOLS DIV OF MORSE CUTTING TOOL CORP |
| 200 1-11/16 | 42970 | LEAR SIEGLER INC NATIONAL TWIST DRILL AND TOOL DIV |
| 20144 | 16568 | PRECISION TWIST DRILL CO |
| 209 | 16568 | PRECISION TWIST DRILL CO |
| 2410 1-11/16 | 13130 | CLEVELAND TWIST DRILL CO DIV OF GREENFIELD INDUSTRIES INC |
| 2410 1-11/16 | 1NEX4 | KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS |
| 2410 1-11/16 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| 2511 1-11/16 | 03882 | NEW YORK TWIST DRILL INC |
| 25224 | 92061 | BENDIX CORP THE INDUSTRIAL TOOLS DIV SOUTH BELOIT PLANT |
| 29418 | 03882 | NEW YORK TWIST DRILL INC |
| 310-RT | 82333 | REPUBLIC DRILL AND TOOL CO DIV OF AEW ELECTRIC INC |
| 402 | 84600 | FREY CO INC THE |
| 41208 | 82333 | REPUBLIC DRILL AND TOOL CO DIV OF AEW ELECTRIC INC |
| 42-10242 | 71485 | UNION BUTTERFIELD CORP P O BOX 9000 CRYSTAL LAKE IL 60039 |
| 500 | 71485 | UNION BUTTERFIELD CORP P O BOX 9000 CRYSTAL LAKE IL 60039 |
| 53208 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| 53208 | 65400 | GREENFIELD INDUSTRIES INC |
| 74000 | 19863 | ILLINOIS TOOL WORKS INC ILLINOIS ECLIPSE-PINE BLUFF DIV |
| 74108 | 19863 | ILLINOIS TOOL WORKS INC ILLINOIS ECLIPSE-PINE BLUFF DIV |
| 940 1-11/16 | 13130 | CLEVELAND TWIST DRILL CO DIV OF GREENFIELD INDUSTRIES INC |
| B94.11M | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| C12329 | 1NEX4 | KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS |
| C12329 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| GGG-D-751 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-D-751 TYE | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| T-100 | 92061 | BENDIX CORP THE INDUSTRIAL TOOLS DIV SOUTH BELOIT PLANT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-228-1391
Technical Data | NSN 5133-00-228-1391
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, HIGH SPEED OVERALL |
| HARDNESS RATING | NOT RATED |

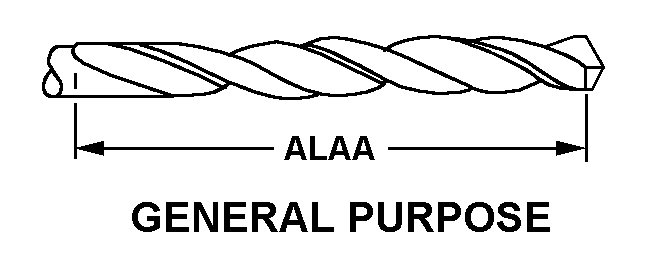

| CUTTING END STYLE | 52 GENERAL PURPOSE |
| FLUTE LENGTH | 10.125 INCHES NOMINAL |

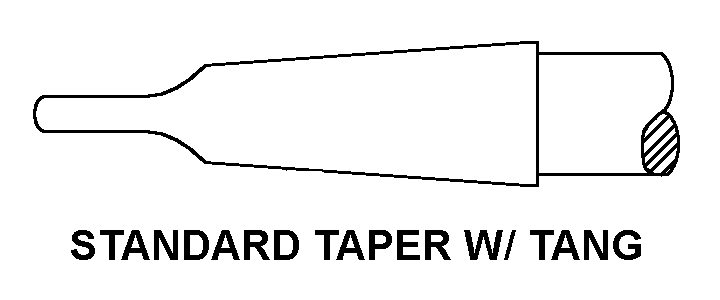

| SHANK STYLE | 79 STANDARD TAPER W/TANG |
| TAPER SHANK SIZE DESIGNATOR | 5 MORSE |
| OVERALL LENGTH | 17.125 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 1.6875 INCHES |
| CUTTING ROTATION DIRECTION | RIGHT-HAND |
| POINT TYPE | CONVENTIONAL |
| POINT ANGLE | 118.0 DEGREES NOMINAL |
| FLUTE QUANTITY | 2 |
| SPECIAL FEATURES | TAPER SHANK LG; FRACTIONAL SIZE 1-11/16 |
| SPECIFICATION/STANDARD DATA | 05047-ASME B94.11M PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
