NSN 5133-00-244-0681 T623030, T62-3030, 00-244-0681
Product Details | COUNTERSINK
5133-00-244-0681 An angular cutting tool, usually made with angular relief, having one or more flutes with specific size angle cutting edges. It is used for chamfering and countersinking holes. The tool may have a straight shank, tapered shank, bit stock shank or special shank requiring a special holder, for holding in a power- or hand-operated machine. It may be designed to be driven or turned by means of a wrench or carpenter's brace. For items requiring a holder but the holder is not included, use CUTTER, COUNTERSINK.20251330060Drill Bits, Counterbores, and Countersinks: Hand and Machine65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: T623030, T62-3030, 5133-00-244-0681, 00-244-0681, 5133002440681, 002440681
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-244-0681 | 05260 ( COUNTERSINK ) |
Drawings & Photos | NSN 5133-00-244-0681
Cross Reference | NSN 5133-00-244-0681
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T62-3030 | 70766 | BELKNAP INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-244-0681
Technical Data | NSN 5133-00-244-0681
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM |

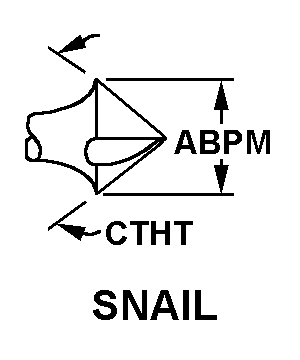

| CUTTING END STYLE | 35 SNAIL |
| BODY DIAMETER | 0.562 INCHES NOMINAL |
| INCLUDED ANGLE | 60.0 DEGREES NOMINAL |
| SHANK STYLE | 75 FLAT ROUND |
| SHANK DIAMETER | 0.281 INCHES NOMINAL |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| CUTTING ROTATION DIRECTION | RIGHT-HAND |
| FLUTE QUANTITY | 2 |
| SPECIAL FEATURES | NOTCHED SHANK FITS NO.2 YANKEE DRIVER |
Restrictions/Controls & Freight Information | NSN 5133-00-244-0681
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
