Product Details | HAND COUNTERBORE

5133-00-243-3606 An end cutting tool for forming a flat bottomed enlargement of the mouth of a previously formed cylindrical hole. It may have an integral or inserted pilot. Designed to be driven or turned by a wrench, carpenter's brace or handle. For power driven items, see COUNTERBORE, MACHINE.

Part Alternates: WA2077, 226121-3-4-6, 5133-00-243-3606, 00-243-3606, 5133002433606, 226121346, 002433606

Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1963 00-243-3606

Drawings & Photos | NSN 5133-00-243-3606


Cross Reference | NSN 5133-00-243-3606

Part Number Cage Code Manufacturer
226121-3-4-6 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT
WA2077 10001 NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5133-00-243-3606

Technical Data | NSN 5133-00-243-3606

Characteristic Specifications
MATERIAL STEEL OVERALL
HARDNESS RATING 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM

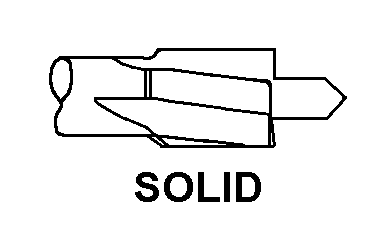

CUTTING END STYLE 21 SOLID
SHANK STYLE 76 STRAIGHT ROUND
SHANK DIAMETER 0.400 INCHES NOMINAL
OVERALL LENGTH 3.563 INCHES NOMINAL
NOMINAL CUTTING DIAMETER 0.4320 INCHES
FEATURES PROVIDED HANDLE AND INTEGRAL PILOT
PILOT HOLE NOMINAL DIAMETER 0.125 INCHES
PILOT DIAMETER 0.184 INCHES MINIMUM AND 0.187 INCHES MAXIMUM
MANUFACTURERS CODE 10001
DESIGN CONTROL REFERENCE 226121-3-4-6

Restrictions/Controls & Freight Information | NSN 5133-00-243-3606

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186620 TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5133-00-243-3606

Category Code Description
Cognizance Codes9QNavy-owned stocks of items accepted by the General Services Administration for support of Navy requirements
Naval Inventory Control Point, Mechanicsburg
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
