NSN 5133-00-243-8764 GGGB383, GGG-B-383, GGG-B-383 TY1CLL
Product Details | PLUG BIT
5133-00-243-8764 A boring tool with a double twist body which may be either of one nominal diameter, or may be back-tapered from the cutting edges. When of one nominal diameter, it may have either a plain cylindrical pilot or a truncated screw point. When back-tapered, it may have a common screw point, a truncated screw point, or a plain cylindrical pilot. Excludes COUNTERBORE (as modified); and COUNTERSINK. See also BIT, AUGER.
Part Alternates: GGGB383, GGG-B-383, GGG-B-383 TY1CLL, GGGB383TY1CLL, 5133-00-243-8764, 00-243-8764, 5133002438764, 002438764
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-243-8764 | 15830 ( BIT, PLUG ) |
Drawings & Photos | NSN 5133-00-243-8764
Demand History | NSN 5133-00-243-8764
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GGGB383 | 2024-02-46 | 1 | United States |
| GGG-B-383 | 2019-09-248 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-243-8764
Technical Data | NSN 5133-00-243-8764
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

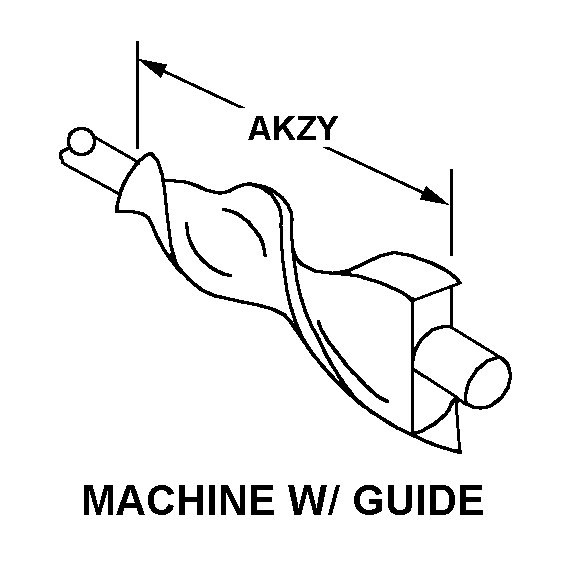

| CUTTING END STYLE | 10 MACHINE W/GUIDE |
| TWIST LENGTH | 2.000 INCHES NOMINAL |
| SHANK STYLE | 75 FLAT ROUND |
| SHANK DIAMETER | 0.438 INCHES NOMINAL |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 1.2500 INCHES |
| NONDEFINITIVE SPEC/STD DATA | I TYPE AND L CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-B-383 |
Restrictions/Controls & Freight Information | NSN 5133-00-243-8764
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5133-00-243-8764
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
