Product Details | EXPANSIVE BIT

5133-00-243-6912 A manual or power driven boring tool with removable cutter(s) which is adjustable for boring holes within a size range indicated on a visible scale.

Part Alternates: GGGB383, GGG-B-383, 46221, 5133-00-243-6912, 00-243-6912, 5133002436912, 002436912

Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1963 00-243-6912

Drawings & Photos | NSN 5133-00-243-6912


Demand History | NSN 5133-00-243-6912

Part Number Request Date QTY Origin
GGGB383 2024-02-46 1 United States
GGG-B-383 2019-09-248 2 US

Cross Reference | NSN 5133-00-243-6912

Part Number Cage Code Manufacturer
46221 1JU00 IRWIN INDUSTRIAL TOOL COMPANY
46221 5M2Q1 IRWIN INDUSTRIAL TOOL COMPANY DBA IRWIN CONSTRUCTION ACCESSORIES
GGG-B-383 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5133-00-243-6912

Technical Data | NSN 5133-00-243-6912

Characteristic Specifications
MATERIAL STEEL OVERALL
HARDNESS RATING NOT RATED

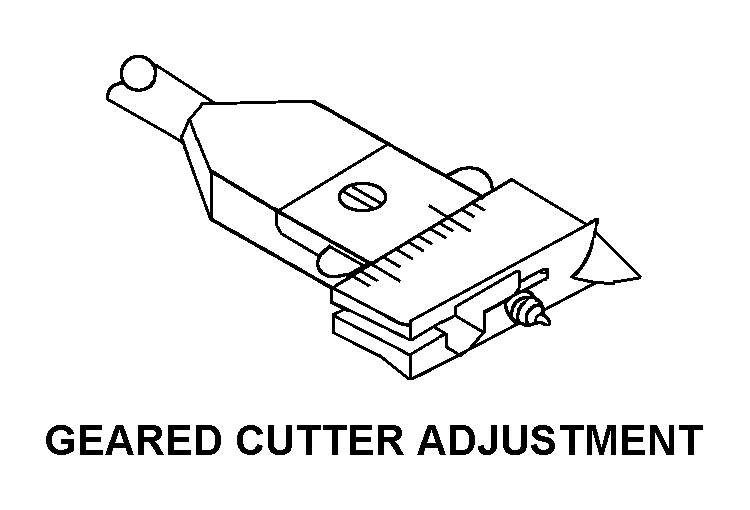

CUTTING END STYLE 16 GEARED CUTTER ADJUSTMENT
SHANK STYLE 81 TAPER-SQUARE
SHANK LARGE END SQUARE WIDTH 0.375 INCHES NOMINAL
SHANK SMALL END SQUARE WIDTH 0.219 INCHES NOMINAL
OVERALL LENGTH 7.500 INCHES MINIMUM AND 9.000 INCHES MAXIMUM
CUTTING DIAMETER RANGE 0.6250 TO 1.7500 INCHES

Restrictions/Controls & Freight Information | NSN 5133-00-243-6912

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:MHANDTOOLS AND SHOP EQUIPMENT
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 183840 TOOLS:BITS AUGER/DRILL QUARRY/WELL
Less than car load rating
Less than truck load rating P 77.5
Water commodity Code 732 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5133-00-243-6912

Category Code Description
Materiel Category and Inventory ManagerE General Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeMHANDTOOLS AND SHOP EQUIPMENT
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
Category Code Description
Cognizance Codes9QNavy-owned stocks of items accepted by the General Services Administration for support of Navy requirements
Naval Inventory Control Point, Mechanicsburg
Source of SupplyGSAGeneral Services Administration
Washington, D.C. 20406
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
