NSN 4730-01-647-3363 AN9244, AN924-4 , 01-647-3363
Product Details | TUBE FITTING LOCKNUT
4730-01-647-3363 An item with internal machine threads designed to fit the external machine threads of a tube fitting. It has flat faces, one of which has a counterbored recess to accommodate packing, packing or sealing ring(s), gasket(s), and the like. The item, when installed, provides a method of locking and sealing the connection. See also LOCKNUT, PIPE; NUT (1), TUBE COUPLING and NUT (1), PLAIN, HEXAGON.
Part Alternates: AN9244, AN924-4 , 4730-01-647-3363, 01-647-3363, 4730016473363, 016473363
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 2015230 | 01-647-3363 | 17645 ( LOCKNUT, TUBE FITTING ) |

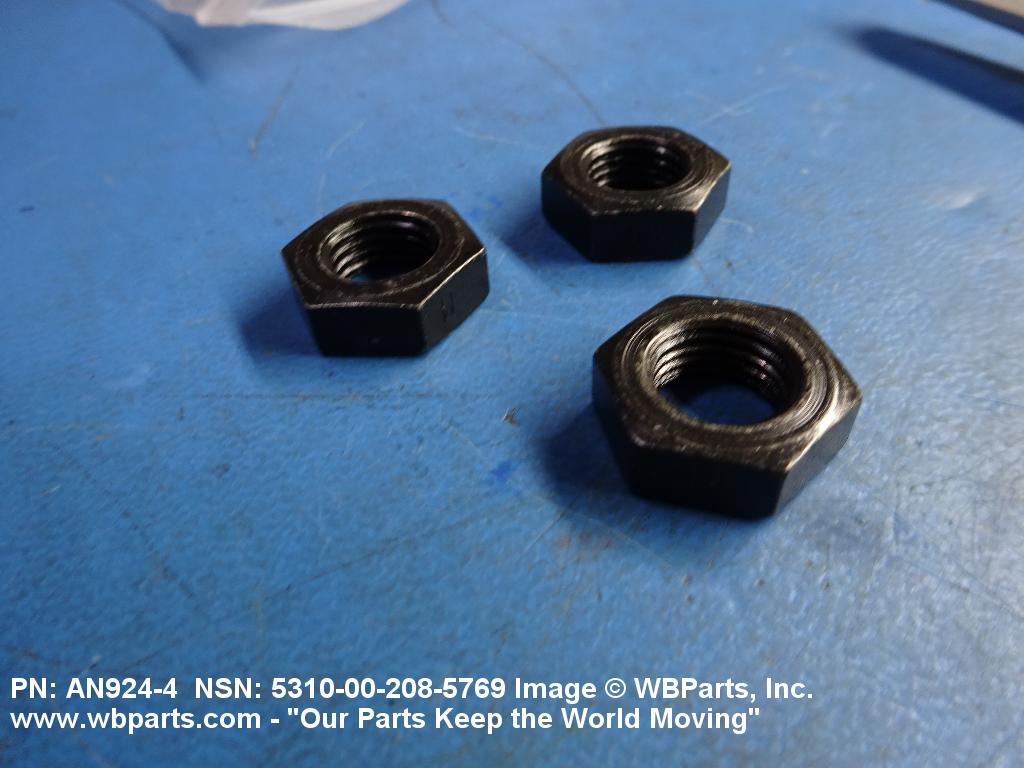

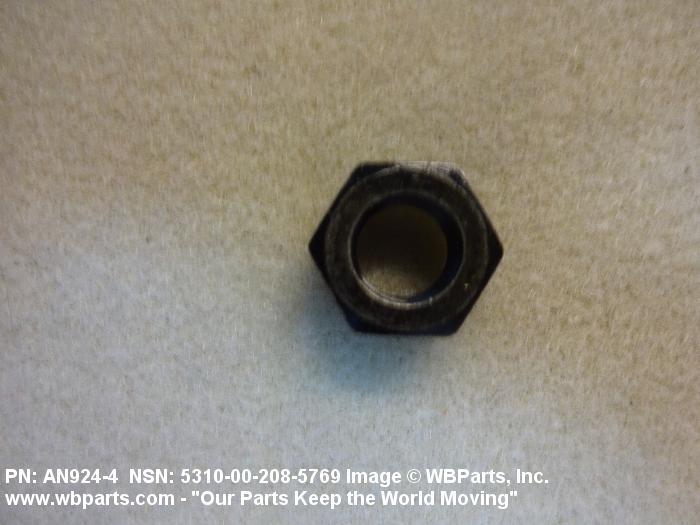

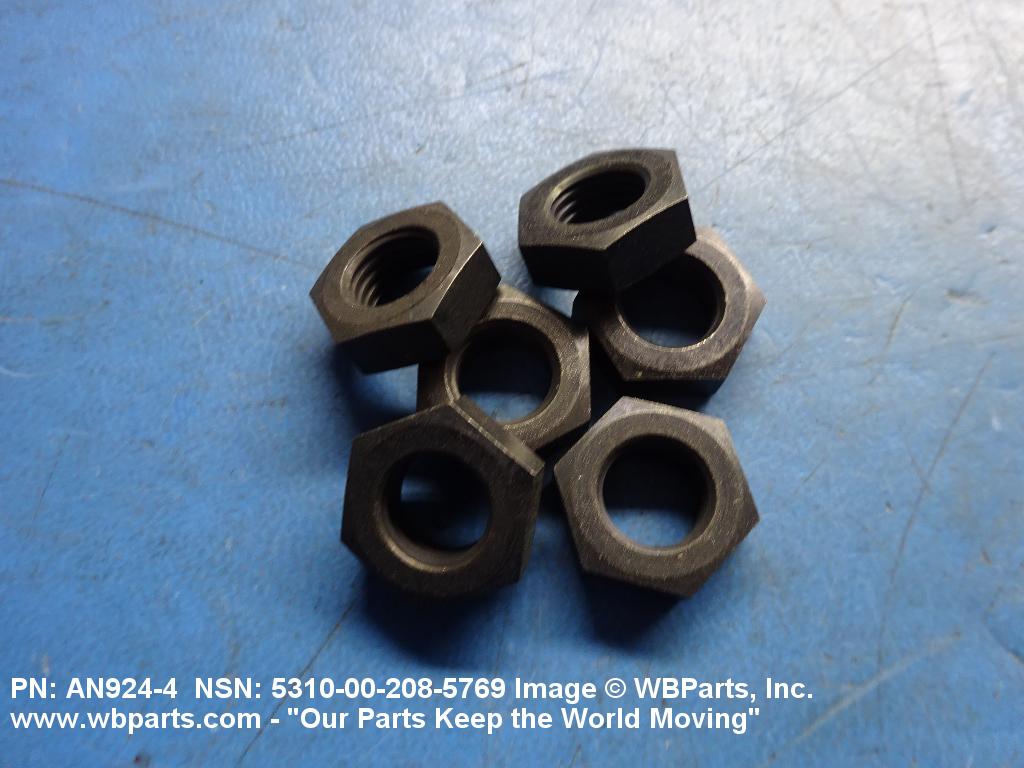

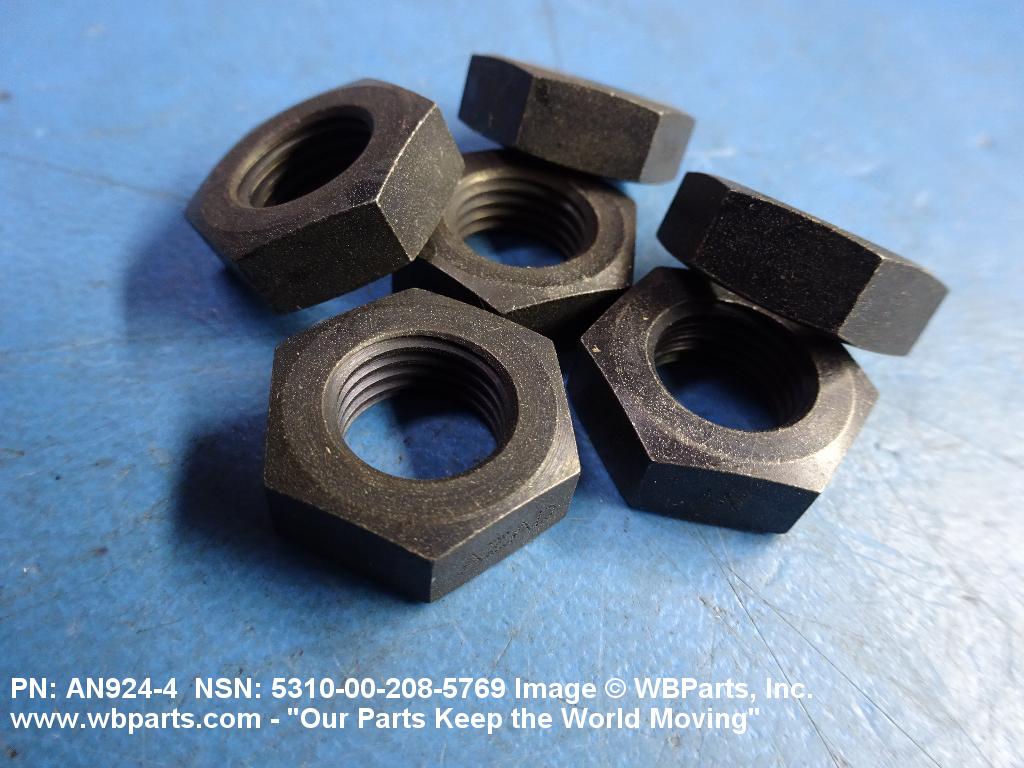

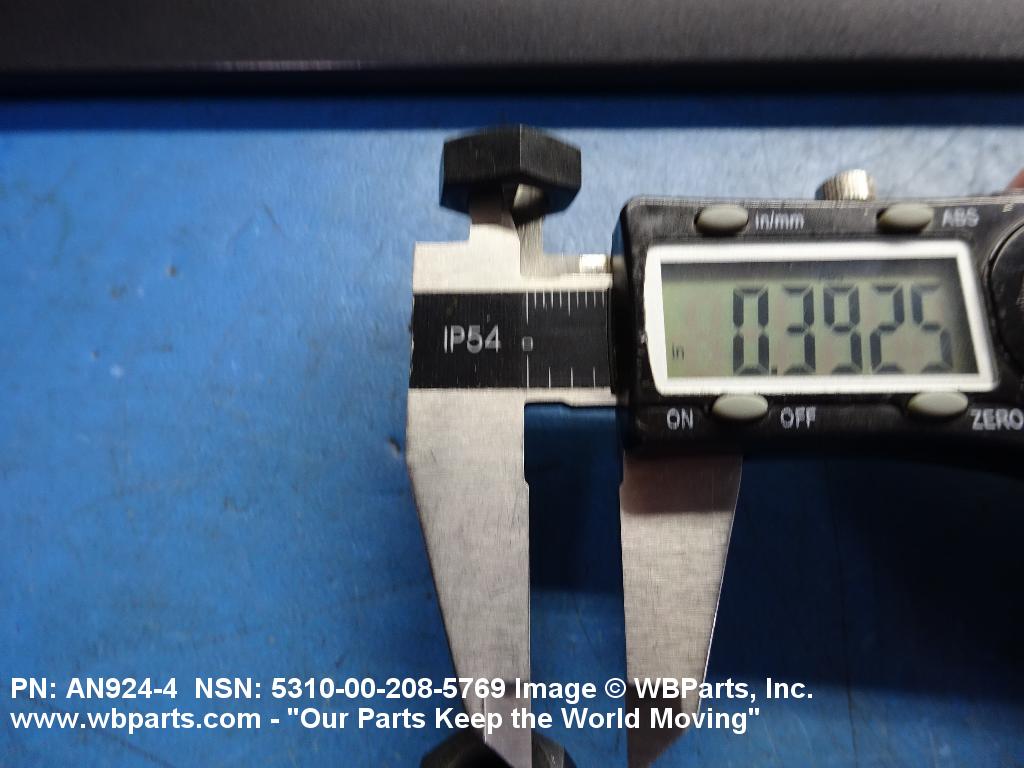

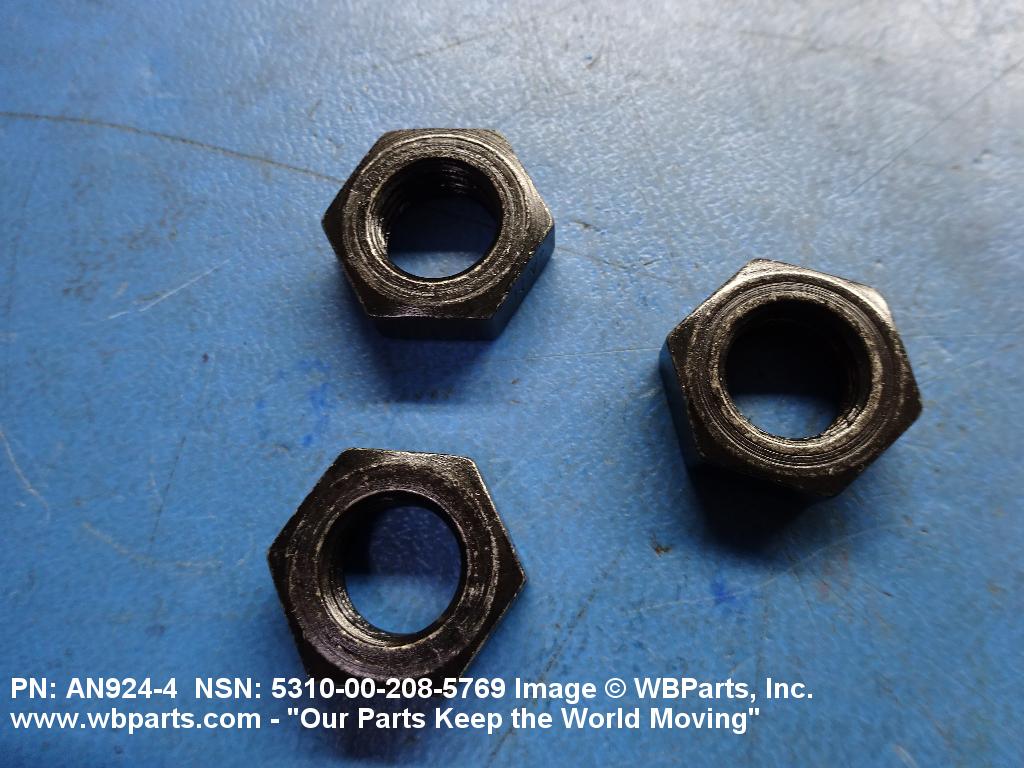

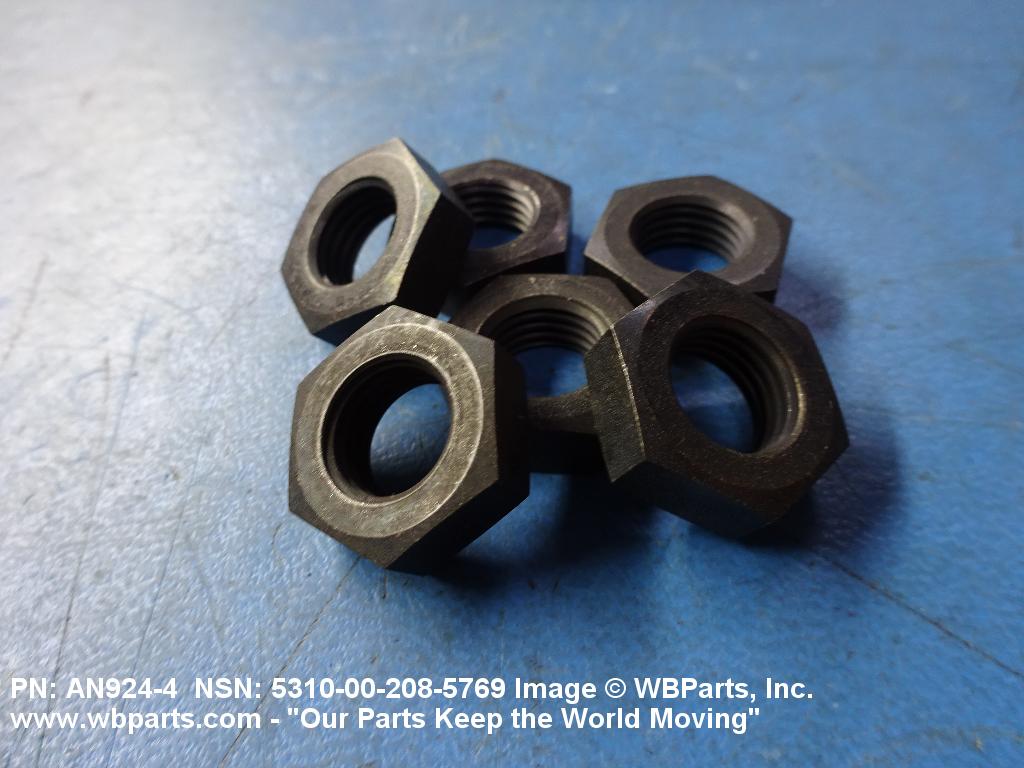

Drawings & Photos | NSN 4730-01-647-3363
Demand History | NSN 4730-01-647-3363
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN9244 | 2022-07-186 | 100 | United States |
| 4730-01-647-3363 | 2017-08-222 | 2 | DIBBS |
| AN9244 | 2012-01-18 | 50 | Italy |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-647-3363
Technical Data | NSN 4730-01-647-3363

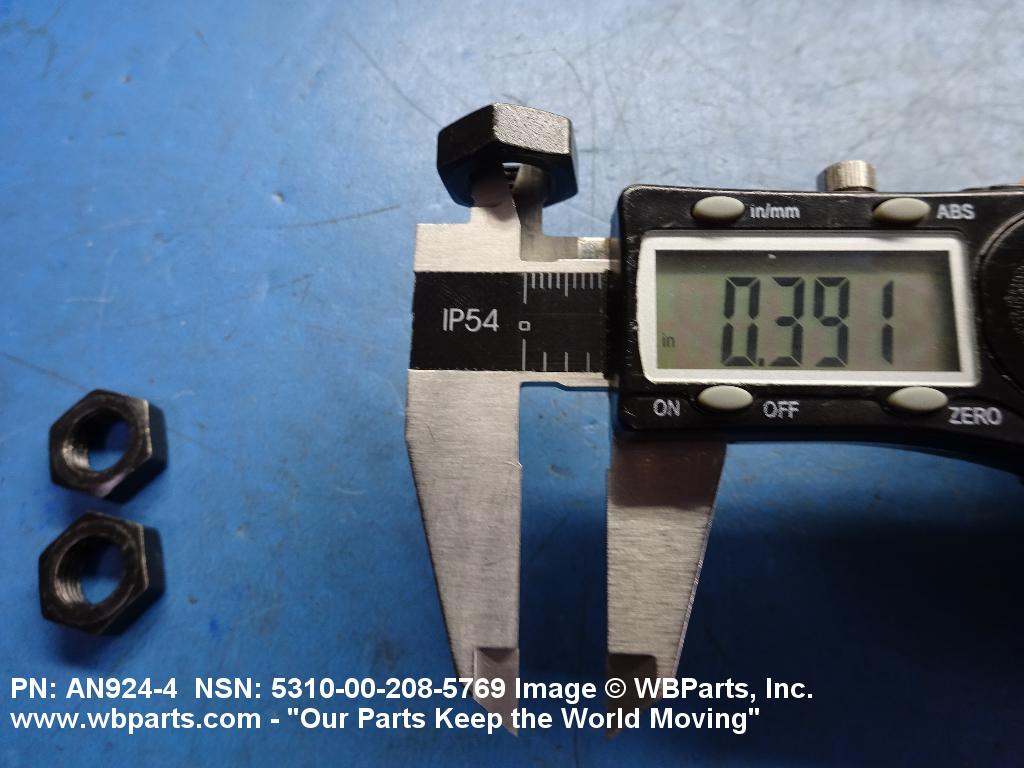

| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.4375 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | ALUMINUM ALLOY 7075 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE-AS4841 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| NUT STYLE | TUBE FITTING LOCKNUT |

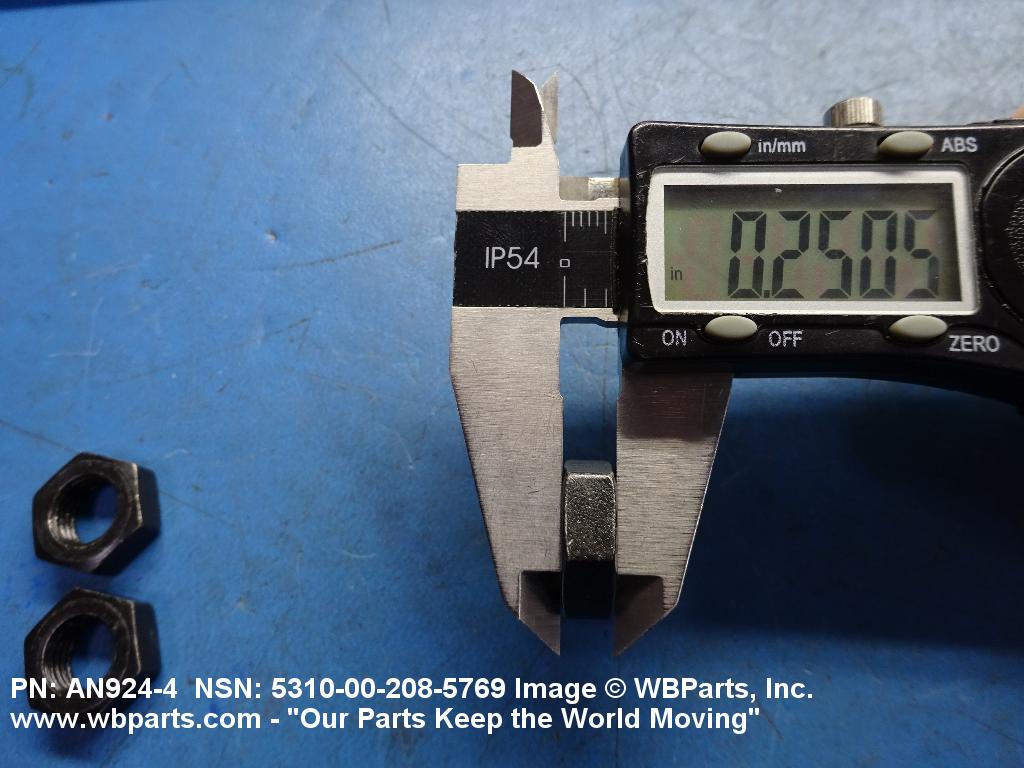

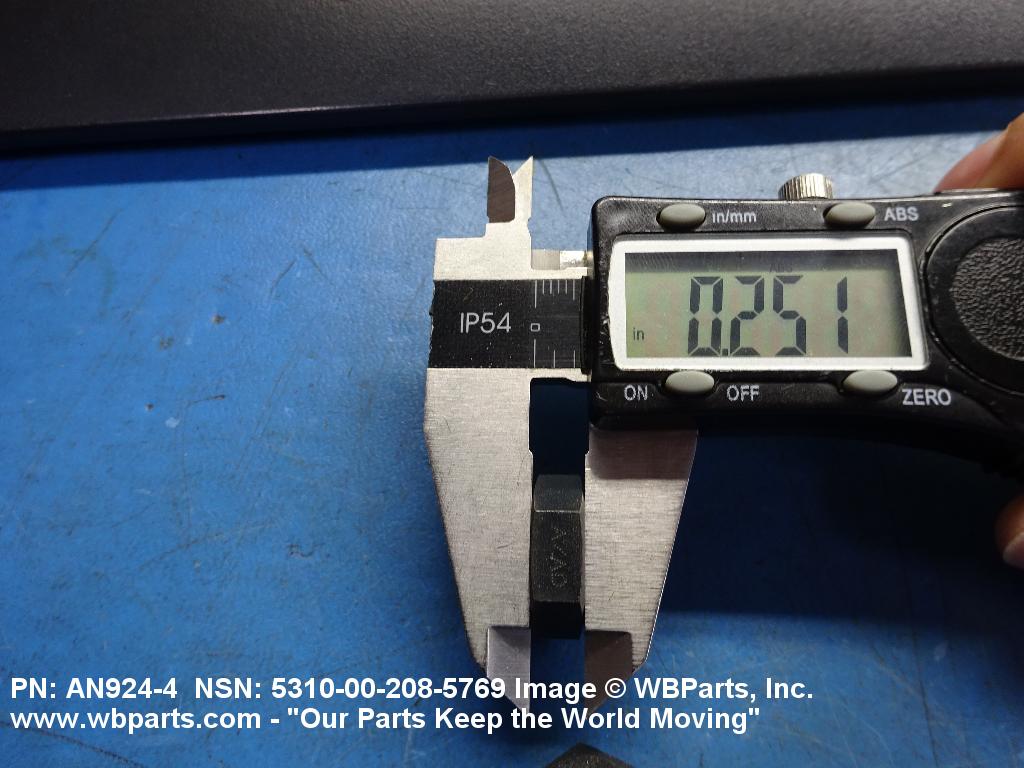

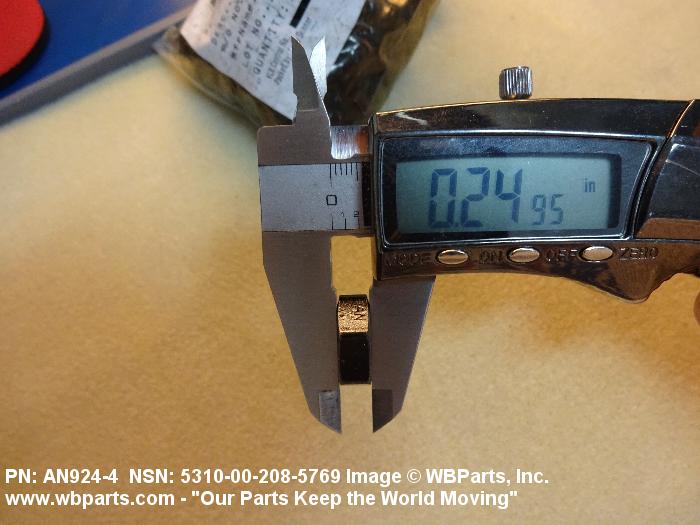

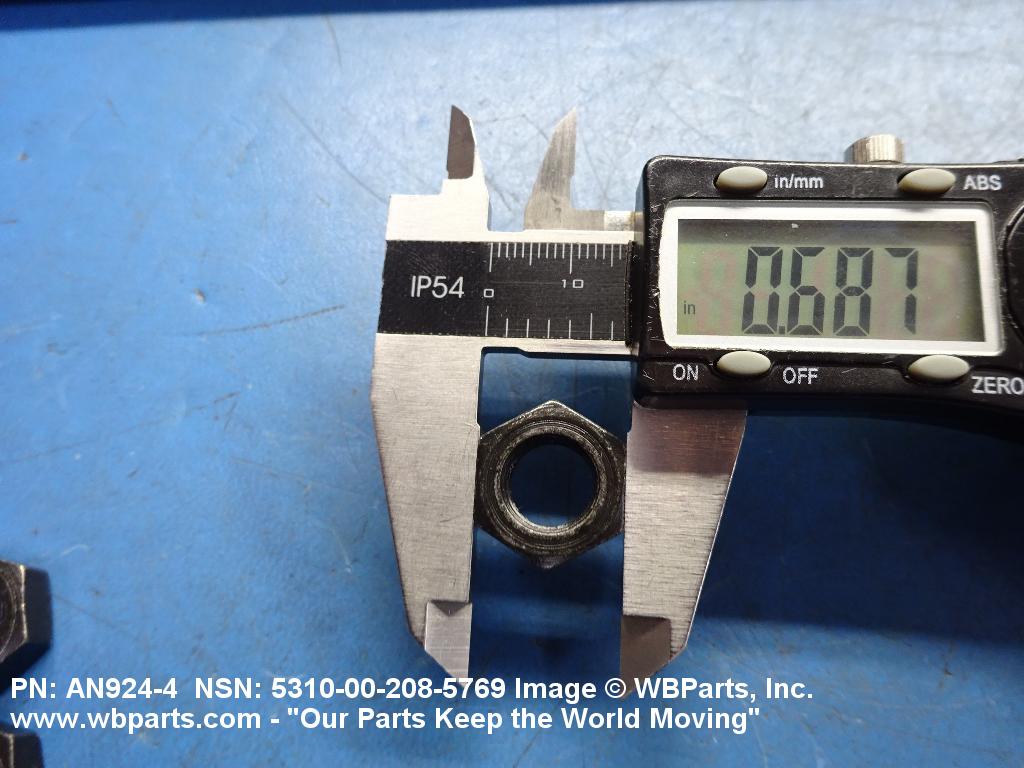

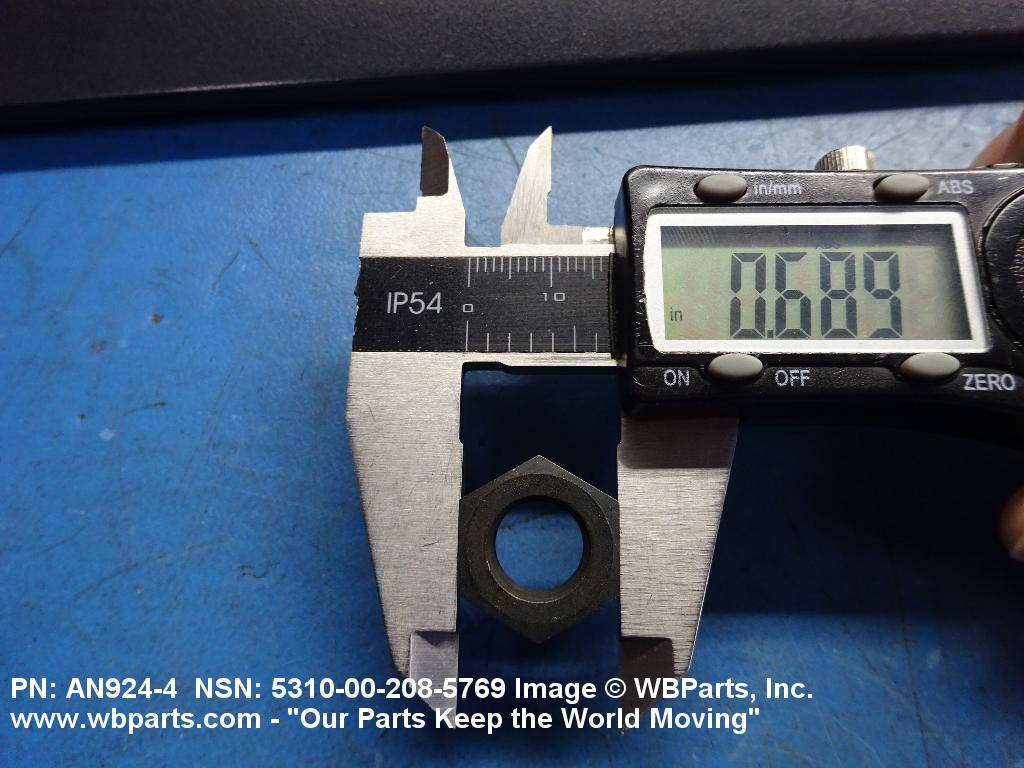

| NUT HEIGHT | 0.250 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.688 INCHES NOMINAL |

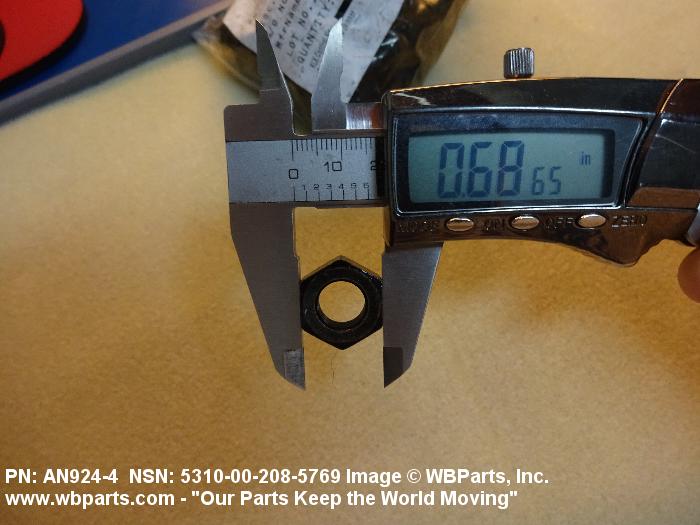

| PACKING RECESS DIAMETER | 0.625 INCHES NOMINAL |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | NUT,TUBE,BULKHEAD AND UNIVERSAL FITTING |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN924-4 |
