Product Details | TUBE FITTING LOCKNUT

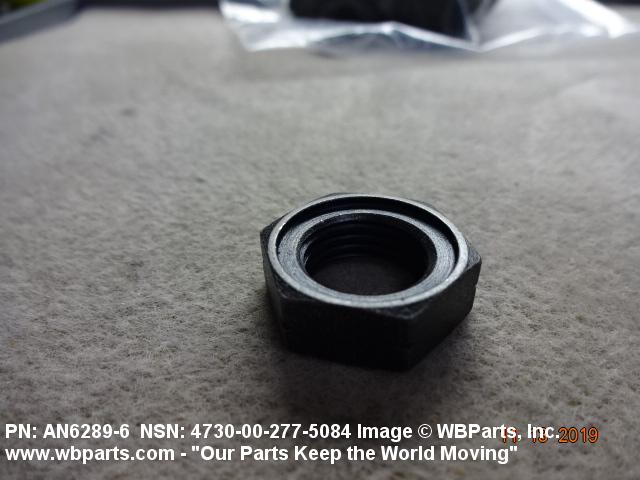

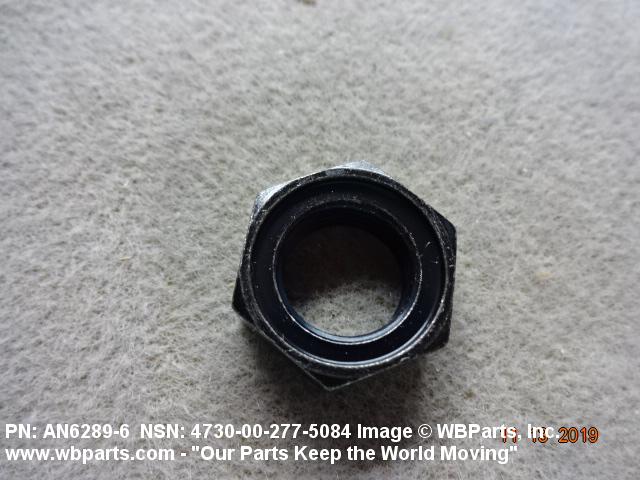

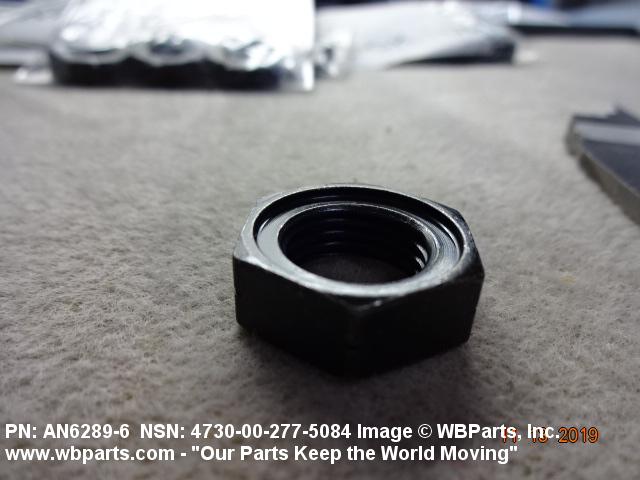

4730-00-277-5084 An item with internal machine threads designed to fit the external machine threads of a tube fitting. It has flat faces, one of which has a counterbored recess to accommodate packing, packing or sealing ring(s), gasket(s), and the like. The item, when installed, provides a method of locking and sealing the connection. See also LOCKNUT, PIPE; NUT (1), TUBE COUPLING and NUT (1), PLAIN, HEXAGON.

Part Alternates: AN62896, AN6289-6, AN6289D5 , AS4841, AS5179 , AS517906, AS5179-06, AS5179D05 , 120541, 4730PL0816802 , 7401148, 752 525 , 752525, 7649351, 8161708, 4730-00-277-5084, 00-277-5084, 4730002775084, 002775084

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 01 JAN 1961 00-277-5084

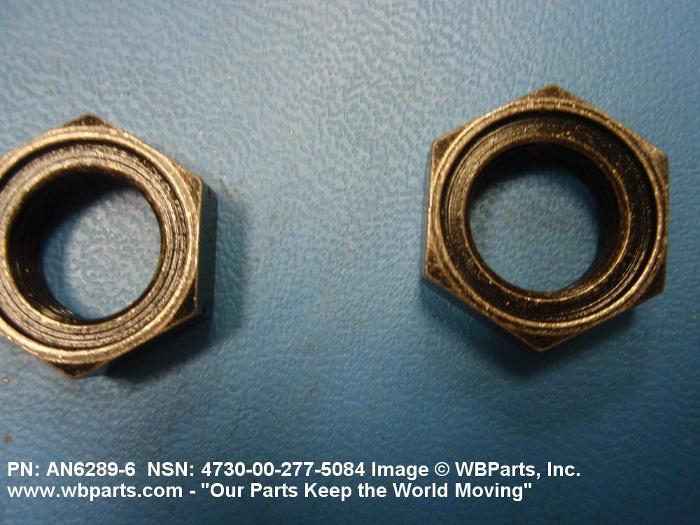

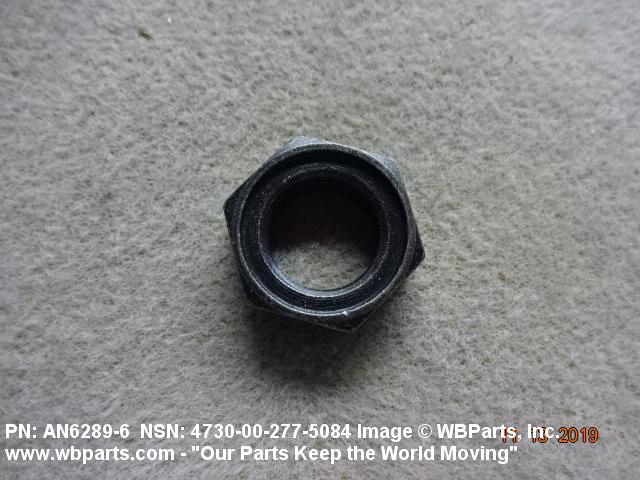

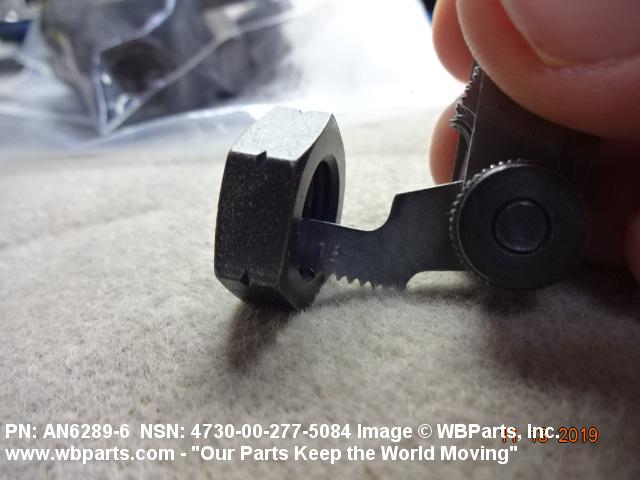

Drawings & Photos | NSN 4730-00-277-5084


Demand History | NSN 4730-00-277-5084

Part Number Request Date QTY Origin
4730-00-277-5084 2024-04-116 1493 DIBBS
AS517906 2023-11-333 1 ES
4730-00-277-5084 2023-10-296 326 DIBBS
4730-00-277-5084 2023-10-285 326 DIBBS
4730-00-277-5084 2023-08-240 1230 DIBBS
4730-00-277-5084 2023-07-200 221 DIBBS
4730-00-277-5084 2023-07-192 859 DIBBS
4730-00-277-5084 2023-07-184 1058 DIBBS
4730-00-277-5084 2023-06-172 1058 DIBBS
4730-00-277-5084 2023-02-58 985 DIBBS
4730-00-277-5084 2023-02-47 985 DIBBS
4730-00-277-5084 2023-02-36 931 DIBBS
4730-00-277-5084 2022-12-346 708 DIBBS
4730-00-277-5084 2022-11-334 708 DIBBS
4730-00-277-5084 2022-09-248 864 DIBBS
4730-00-277-5084 2022-08-223 434 DIBBS
4730-00-277-5084 2022-06-178 39 DIBBS
4730-00-277-5084 2022-06-167 39 DIBBS
4730-00-277-5084 2022-05-132 186 DIBBS
4730-00-277-5084 2022-03-79 244 DIBBS
4730-00-277-5084 2022-01-11 1935 DIBBS
4730-00-277-5084 2021-12-361 1935 DIBBS
4730-00-277-5084 2021-05-150 8 MY
4730-00-277-5084 2021-05-145 8 Malaysia
4730-00-277-5084 2021-01-07 284 DIBBS
4730-00-277-5084 2020-12-351 1326 DIBBS
4730-00-277-5084 2020-11-335 259 DIBBS
4730-00-277-5084 2020-11-322 259 DIBBS
AN6289D5 2020-10-288 50 KE
4730-00-277-5084 2020-10-288 320 DIBBS
AN6289D5 2020-10-287 50 KE
AN62896 2019-10-303 50 United States
4730-00-277-5084 2018-01-08 5408 DIBBS
4730-00-277-5084 2017-12-362 5408 DIBBS
4730-00-277-5084 2017-10-303 2 United States
4730-00-277-5084 2017-05-124 2412 DIBBS
4730-00-277-5084 2017-03-89 1202 DIBBS
AN62896 2016-04-92 100 Indonesia
AN62896 2015-11-315 1 Indonesia
AN6289-6 2015-07-201 50
AN6289-6 2012-11-310 50
AN6289-6 2012-04-115 10 IN
4730-00-277-5084 2011-06-167 200 United States
4730-00-277-5084 2011-06-157 310 DIBBS
4730-00-277-5084 2011-05-151 200 United States
AS4841 2011-03-69 8
4730-00-277-5084 2010-10-298 70 PK
AS5179D05 2010-06-162 30 Italy
4730-00-277-5084 2009-04-106 1908 DIBBS
4730-00-277-5084 2009-01-29 1483 DIBBS
4730-00-277-5084 2009-01-07 1231 DIBBS
4730-00-277-5084 2008-06-175 1 us

Cross Reference | NSN 4730-00-277-5084

Part Number Cage Code Manufacturer
120541 62983 EATON AEROSPACE LLC
4730002775084 SCY13 E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
4730PL0816802 9009H INSPEKTORAT WSPARCIA SIL ZBROJNYCH
7401148 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
7649351 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
8161708 18876 U S ARMY AVIATION AND MISSILE COMMAND
AN6289-6 14397 FABER ENTERPRISES, INC.
AN6289-6 22995 CROWN FITTING CO INC
AN6289-6 62983 EATON AEROSPACE LLC
AN6289-6 88044 AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN6289-6 F0210 AIRBUS HELICOPTERS (ETS DEMARIGNANE)
AS4841 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5179 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC
AS5179-06 81343 SOCIETY OF AUTOMOTIVE ENGINEERS INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-277-5084

Technical Data | NSN 4730-00-277-5084

Characteristic Specifications
THREAD SERIES UNF
NOMINAL THREAD SIZE 0.562 INCHES
THREAD QUANTITY PER INCH 18
THREAD CLASS 3B
THREAD DIRECTION RIGHT-HAND
MATERIAL STEEL COMP 1141 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION 11-S-637,COMP 1141 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT CADMIUM OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
NUT STYLE A391 TUBE FITTING LOCKNUT

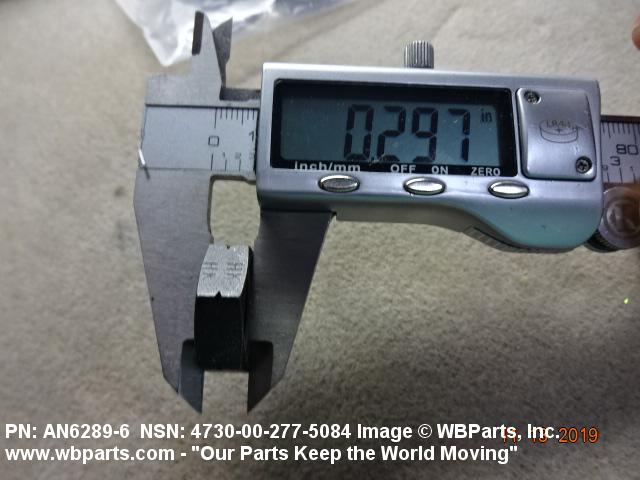

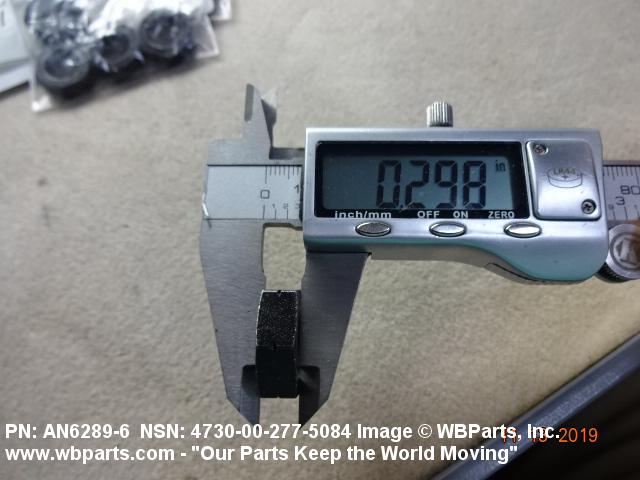

NUT HEIGHT 0.297 INCHES NOMINAL

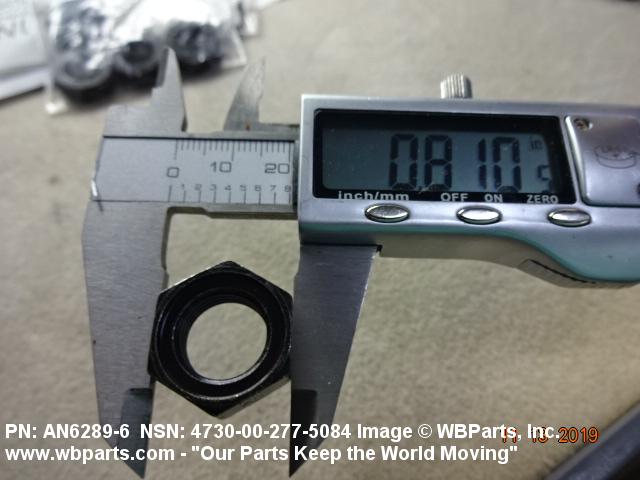

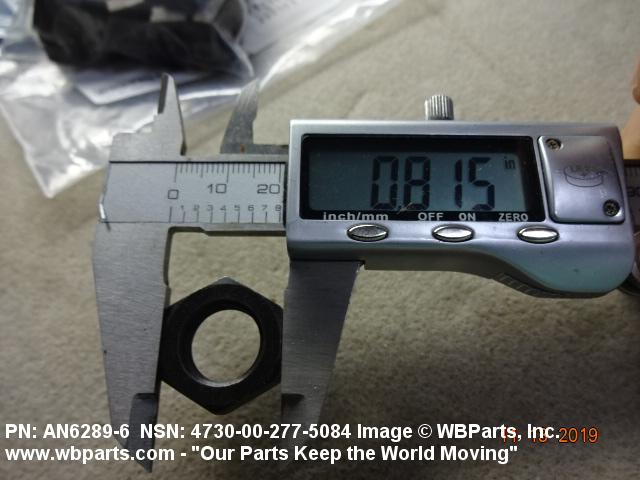

WIDTH ACROSS FLATS 0.812 INCHES NOMINAL

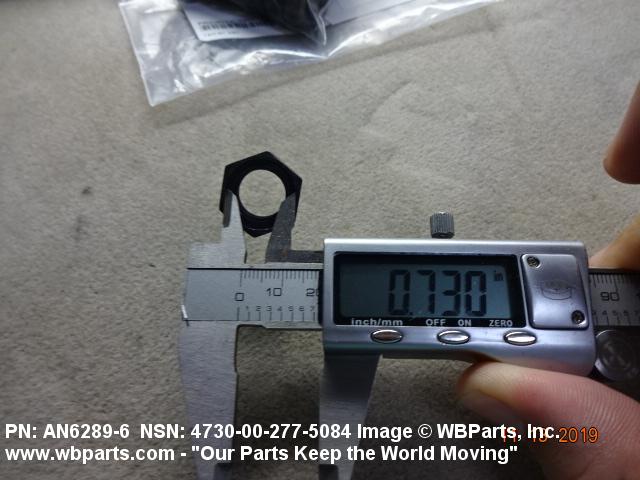

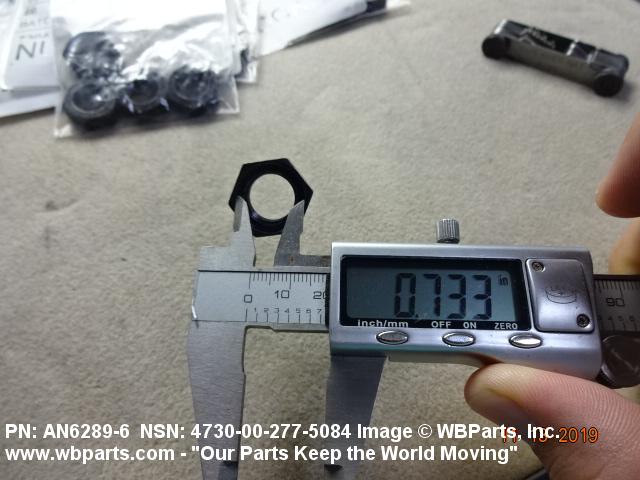

PACKING RECESS DIAMETER 0.733 INCHES NOMINAL
PACKING RECESS DEPTH 0.042 INCHES NOMINAL
NOMINAL TUBE OUTSIDE DIAMETER 0.375 INCHES
SPECIAL FEATURES USED ON GRUMMAN A10 AIRCRAFT
SPECIFICATION/STANDARD DATA 88044-AN6289 GOVERNMENT STANDARD
III END ITEM IDENTIFICATION 2350-01-031-8851
