NSN 4730-00-258-0489 AN6289K10, AS4841 , AS5179
Product Details | TUBE FITTING LOCKNUT
4730-00-258-0489 An item with internal machine threads designed to fit the external machine threads of a tube fitting. It has flat faces, one of which has a counterbored recess to accommodate packing, packing or sealing ring(s), gasket(s), and the like. The item, when installed, provides a method of locking and sealing the connection. See also LOCKNUT, PIPE; NUT (1), TUBE COUPLING and NUT (1), PLAIN, HEXAGON.
Part Alternates: AN6289K10, AS4841 , AS5179, AS5179K10 , 4730-00-258-0489, 00-258-0489, 4730002580489, 002580489, 157618194
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 29 JUN 1973 | 00-258-0489 | 17645 ( LOCKNUT, TUBE FITTING ) |

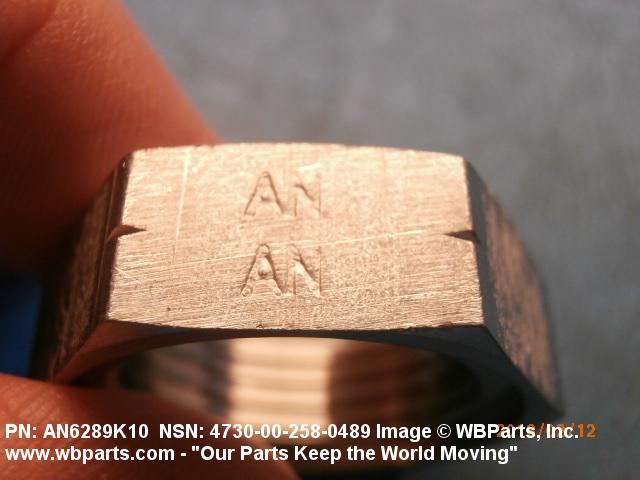

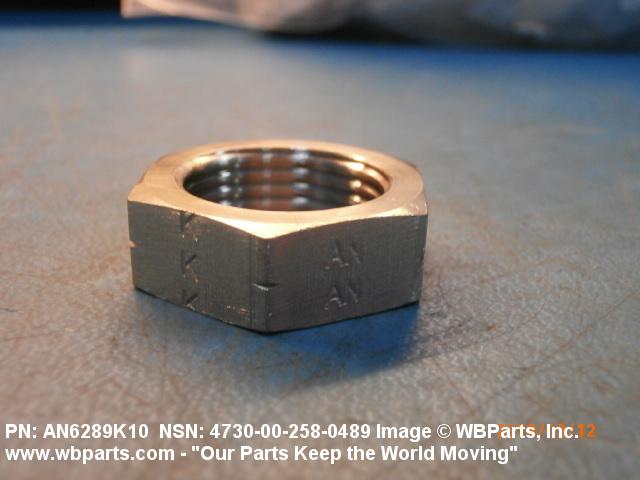

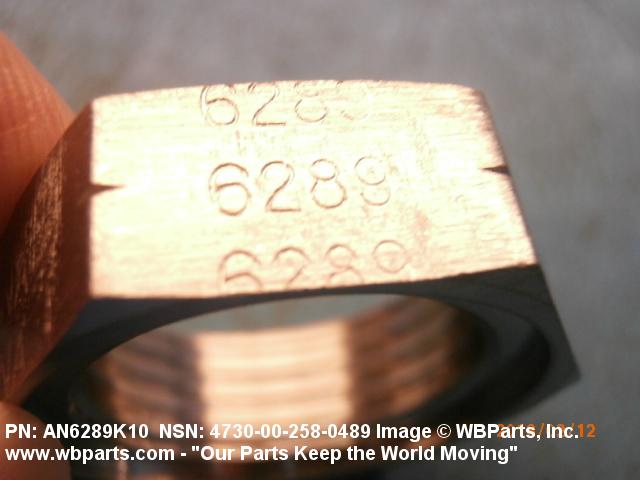

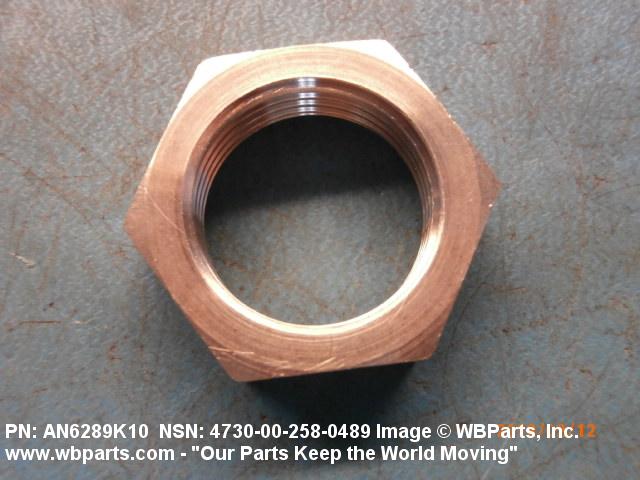

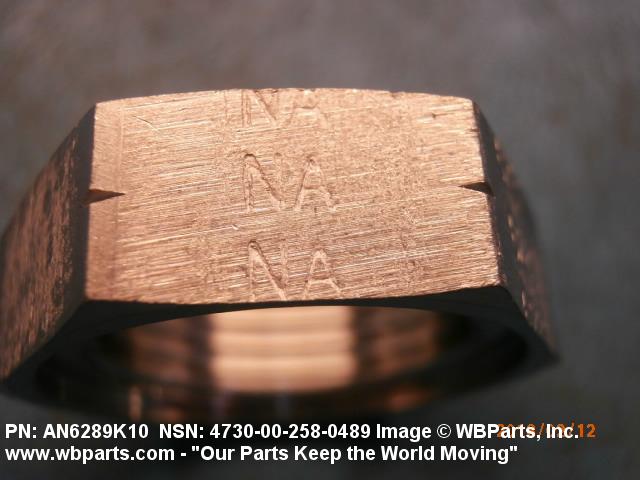

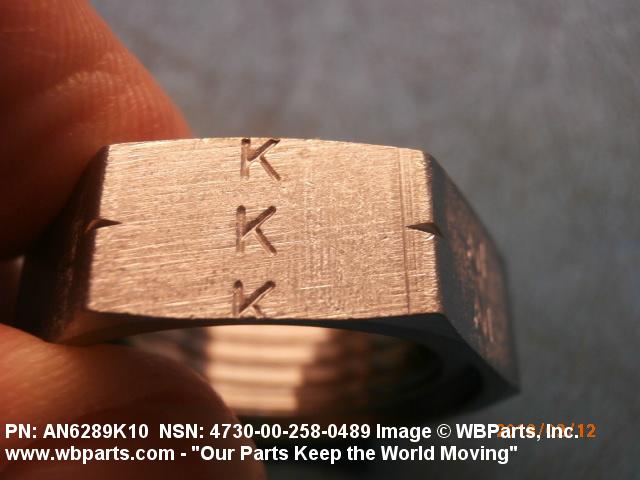

Drawings & Photos | NSN 4730-00-258-0489
Demand History | NSN 4730-00-258-0489
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN6289K10 | 2023-10-277 | 4 | US |
| AN6289K10 | 2018-12-341 | 60 | United States |
| AS5179K10 | 2018-12-341 | 120 | United States |
| 4730-00-258-0489 | 2018-02-32 | 75 | United States |
| 4730-00-258-0489 | 2018-01-24 | 75 | United States |
| 4730-00-258-0489 | 2017-07-183 | 774 | DIBBS |
| 4730-00-258-0489 | 2016-09-259 | 810 | DIBBS |
| 4730-00-258-0489 | 2015-06-159 | 99 | DIBBS |
| 4730-00-258-0489 | 2014-02-49 | 11 | DIBBS |
| AS4841 | 2011-03-69 | 8 |
Cross Reference | NSN 4730-00-258-0489
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-258-0489
Related Products | NSN 4730-00-258-0489
Technical Data | NSN 4730-00-258-0489

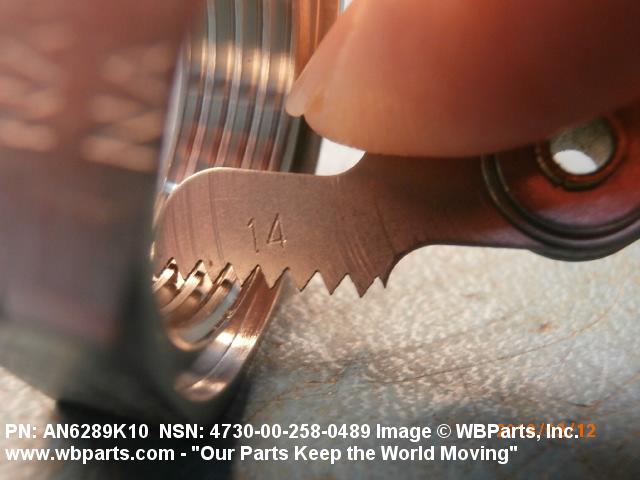

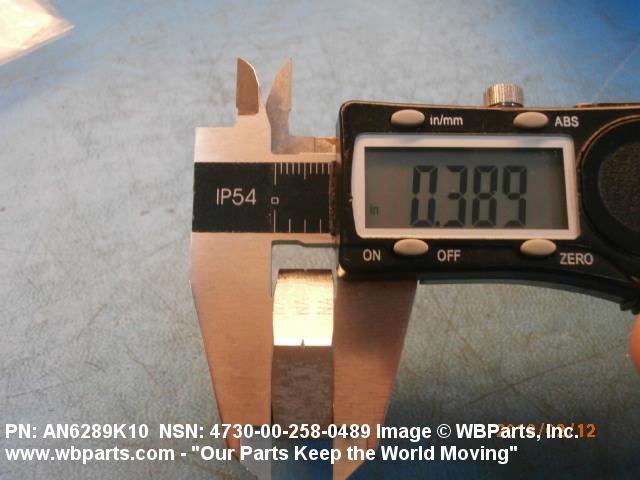

| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-763 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-S-5002 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| NUT STYLE | A391 TUBE FITTING LOCKNUT |
| NUT HEIGHT | 0.391 INCHES NOMINAL |

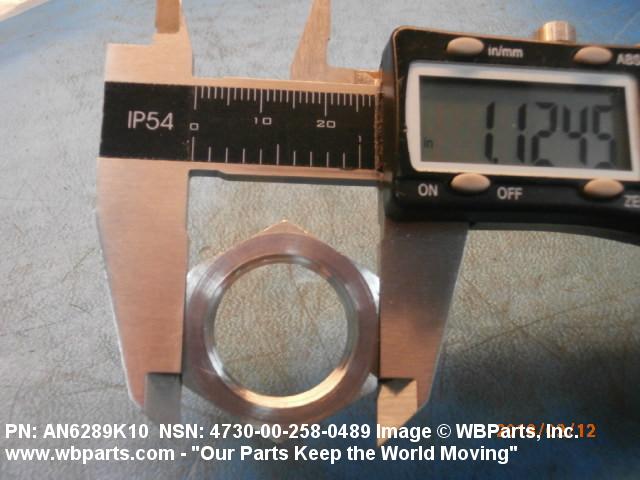

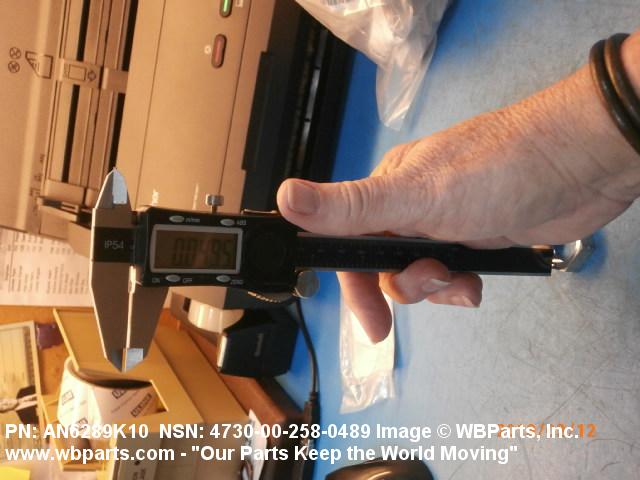

| WIDTH ACROSS FLATS | 1.121 INCHES MINIMUM AND 1.128 INCHES MAXIMUM |

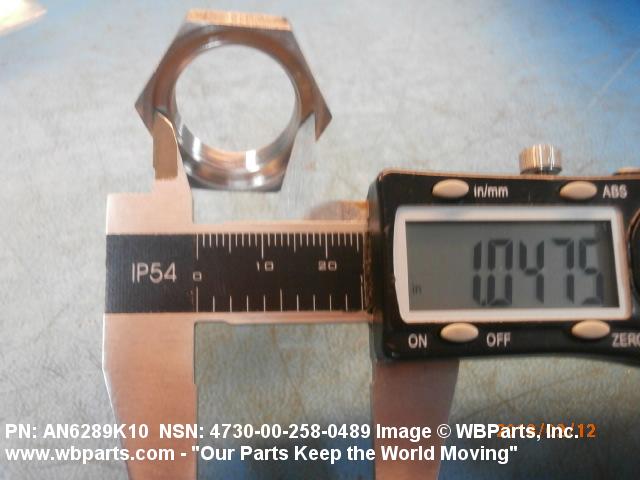

| PACKING RECESS DIAMETER | 1.040 INCHES MINIMUM AND 1.050 INCHES MAXIMUM |
| PACKING RECESS DEPTH | 0.049 INCHES MINIMUM AND 0.059 INCHES MAXIMUM |
| NOMINAL TUBE OUTSIDE DIAMETER | 0.625 INCHES |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN6289K10 |
