NSN 4730-00-277-6371 AN62894D, AN6289-4D, AN6289D4

Product Details | TUBE FITTING LOCKNUT

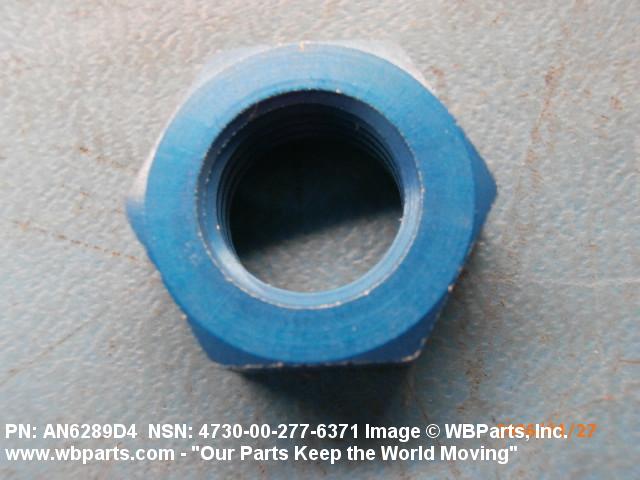

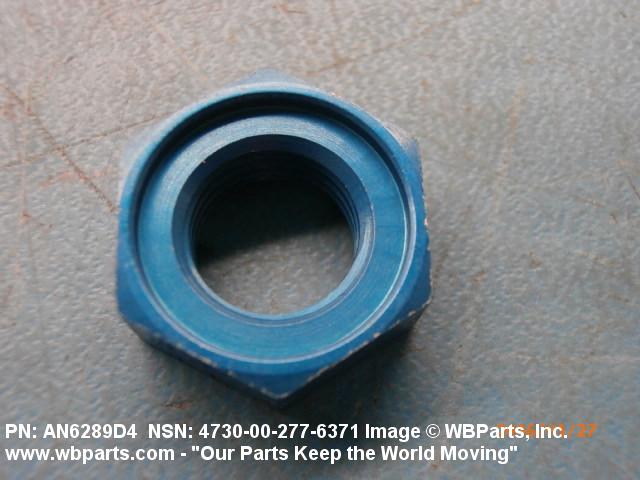

4730-00-277-6371 An item with internal machine threads designed to fit the external machine threads of a tube fitting. It has flat faces, one of which has a counterbored recess to accommodate packing, packing or sealing ring(s), gasket(s), and the like. The item, when installed, provides a method of locking and sealing the connection. See also LOCKNUT, PIPE; NUT (1), TUBE COUPLING and NUT (1), PLAIN, HEXAGON.

Part Alternates: AN62894D, AN6289-4D, AN6289D4, AS5179D04, MILF5509, MIL-F-5509, Q37-4, Q374, 477 676, 477676, 58570403, 5857-0403, 752 522, 752522, 9058570403, 905857-0403, 4730-00-277-6371, 00-277-6371, 4730002776371, 002776371

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
47	01 JAN 1961	00-277-6371	17645 ( LOCKNUT, TUBE FITTING )

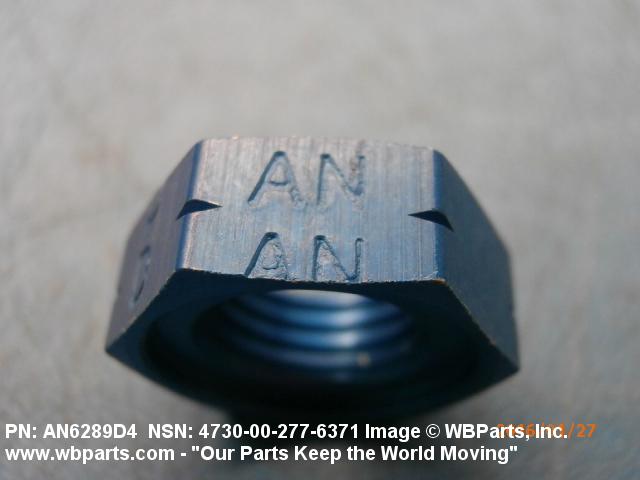

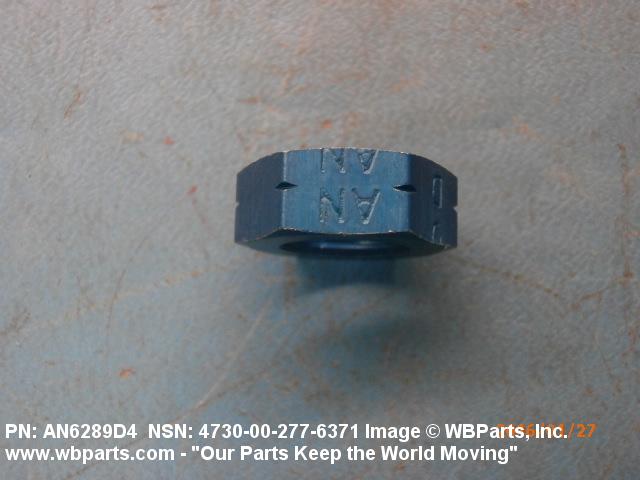

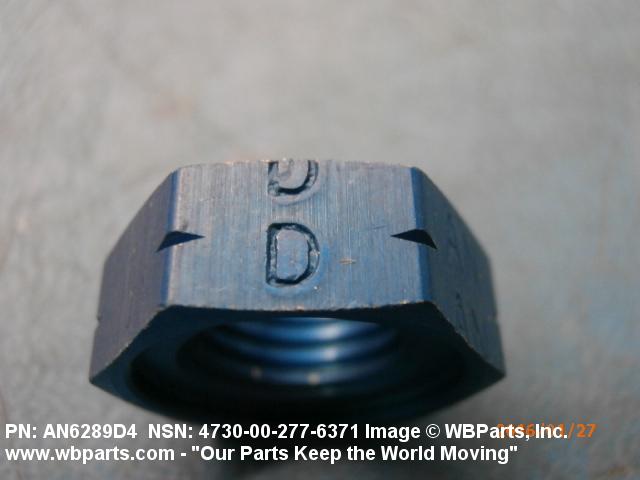

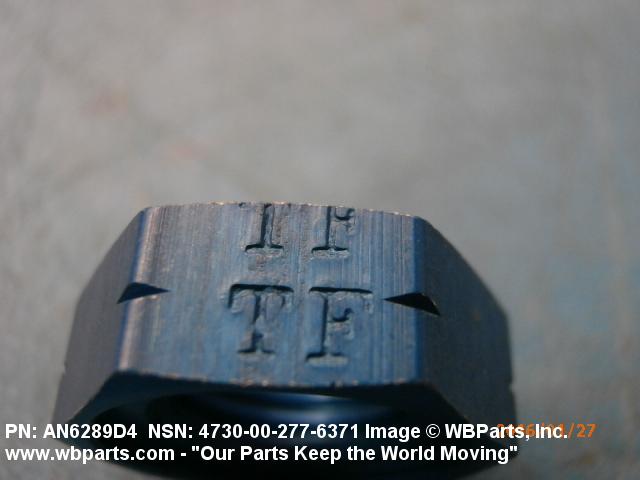

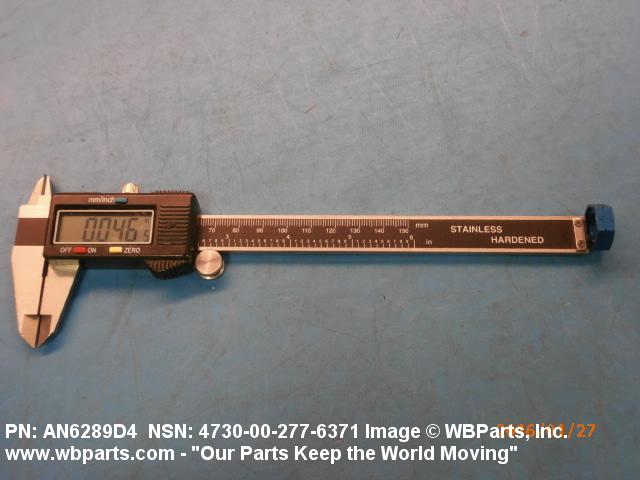

Drawings & Photos | NSN 4730-00-277-6371

Part Number	Request Date	QTY	Origin
4730-00-277-6371	2024-09-273	3065	DIBBS
4730-00-277-6371	2024-01-11	1142	DIBBS
4730-00-277-6371	2023-01-22	1310	DIBBS
4730-00-277-6371	2021-08-221	5	MY
AN62894D	2021-07-190	50	Hong Kong
4730-00-277-6371	2018-11-309	2591	DIBBS
MILF5509	2018-07-201	6	United States
AN6289D4	2016-11-309	4	US
AN6289D4	2015-10-296	100	United States
AS5179D04	2015-02-55	100	France
AN6289D4	2015-01-29	9	United States
AN6289D4	2015-01-29	9	United States
AN6289D4	2012-11-310	182
4730-00-277-6371	2011-10-278	2889	DIBBS
AS5179D04	2011-07-186	33	Italy
MILF5509	2009-10-301	1	PK
4730-00-277-6371	2009-05-148	10	United States
AN62894D	2009-04-120	200	Italy
AN62894D	2009-04-93	50	Italy
MILF5509	2009-02-55	100	US
4730-00-277-6371	2008-12-354	1979	DIBBS

Cross Reference | NSN 4730-00-277-6371

Part Number	Cage Code	Manufacturer
477 676	77294	PIPER AIRCRAFT INC.
5857-0403	0KDP7	KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
752 522	77294	PIPER AIRCRAFT INC.
905857-0403	0KDP7	KIDDE-FENWAL INC DBA CHEMTRON KIDDE FIRE SYSTEMS
AN6289-4D	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN6289-4D	K2861	BAE SYSTEMS OPERATIONS LTD
AN6289D4	00624	EATON CORPORATION DBA AEROSPACE DIV
AN6289D4	06581	ALLAN AIRCRAFT SUPPLY CO, LLC
AN6289D4	14397	FABER ENTERPRISES, INC.
AN6289D4	14597	LITTON SYSTEMS INC SUB OF LITTON INDUSTRIES INC
AN6289D4	14798	DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE
AN6289D4	22995	CROWN FITTING CO INC
AN6289D4	71563	COLLINS ENGINEERING CORP
AN6289D4	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN6289D4	R1120	SATAIR A/S
AS5179D04	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
MIL-F-5509	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
Q37-4	14170	HUGHES MISSILE SYSTEMS CO SAN DIEGO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-277-6371

Compare

Related Products | NSN 4730-00-277-6371

4730-00-277-6372, 4730-00-277-6373, 4730-00-277-6374, 4730-00-277-6375, 4730-00-277-6376

Technical Data | NSN 4730-00-277-6371

Characteristic	Specifications
THREAD SERIES	UNF
NOMINAL THREAD SIZE	0.438 INCHES
THREAD QUANTITY PER INCH	20
THREAD CLASS	3B
THREAD DIRECTION	RIGHT-HAND
MATERIAL	ALUMINUM ALLOY 2014 OVERALL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-225/4,ALLOY 2014,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
SURFACE TREATMENT	ANODIZE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625,TYPE 2,CLASS 2 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL
NUT STYLE	A391 TUBE FITTING LOCKNUT

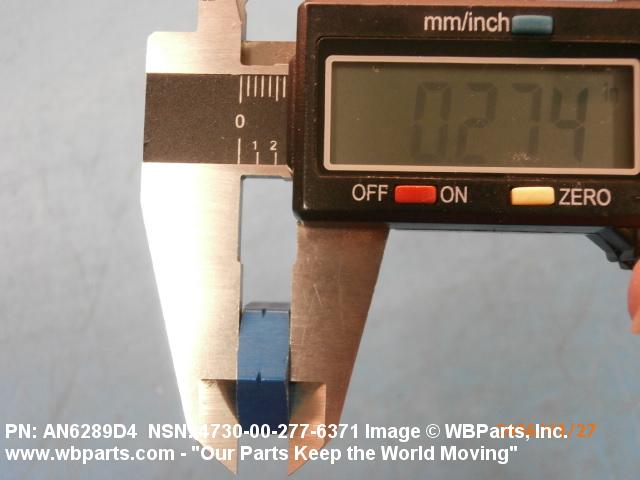

NUT HEIGHT	0.281 INCHES NOMINAL

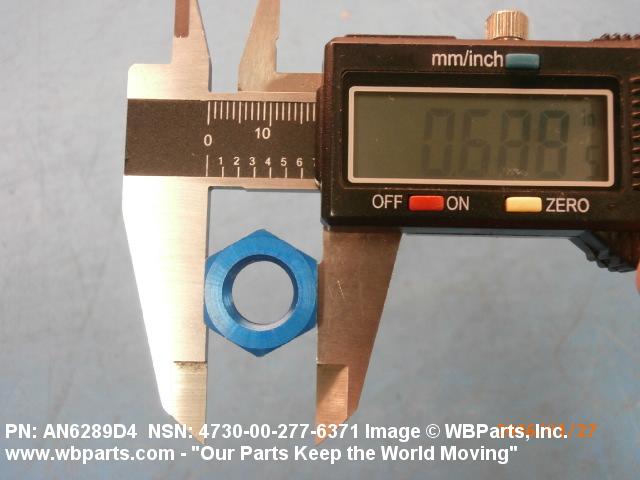

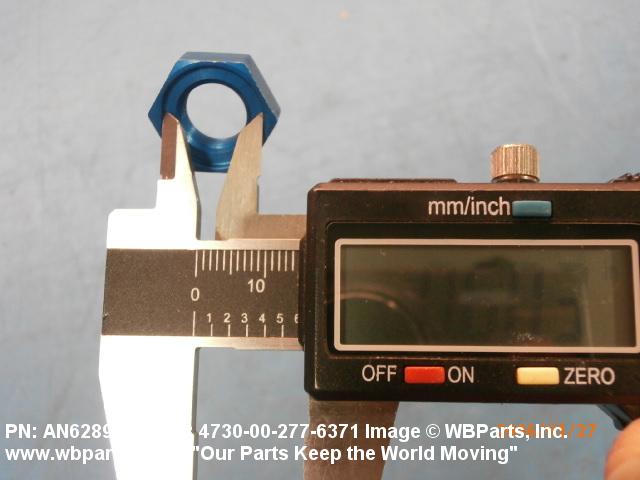

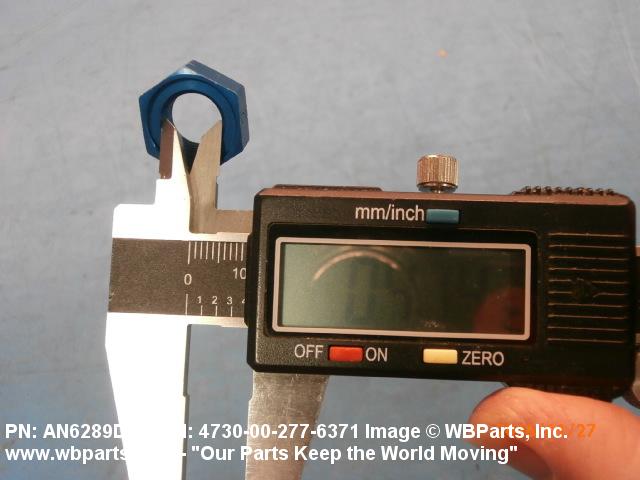

WIDTH ACROSS FLATS	0.688 INCHES NOMINAL
