NSN 4730-01-535-1776 T1500452, T15004-52, T1500452A
Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-535-1776 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: T1500452, T15004-52, T1500452A, T15004-52A, 5PTV5514R04F, 5PTV5514-R04F, 4730-01-535-1776, 01-535-1776, 4730015351776, 015351776
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 NOV 2005 | 01-535-1776 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-535-1776
Cross Reference | NSN 4730-01-535-1776
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-535-1776
Technical Data | NSN 4730-01-535-1776
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM AND STEEL CORROSION RESISTING AND ALUMINUM BODY |

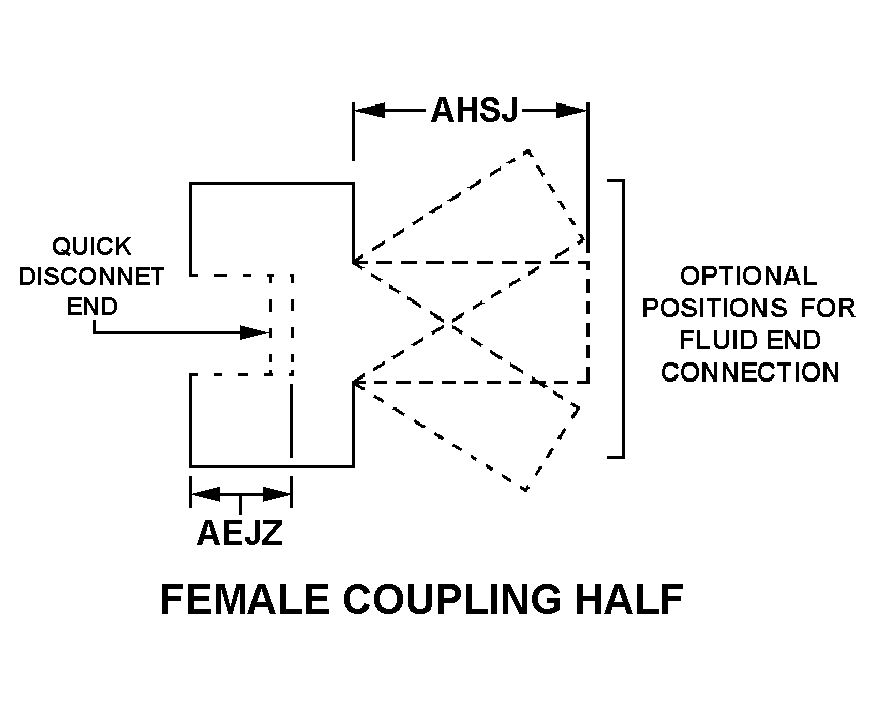

| STYLE DESIGNATOR | A2A FEMALE COUPLING HALF |
| DEPTH | 1.230 INCHES NOMINAL |
| LEG LENGTH | 2.283 INCHES NOMINAL |
| OVERALL LENGTH | 2.283 INCHES NOMINAL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION |

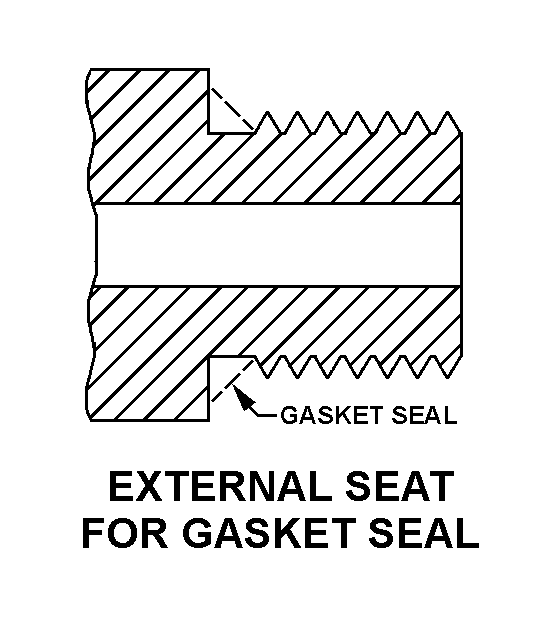

| CONNECTION STYLE | D7 EXTERNAL SEAT FOR GASKET SEAL FIRST FLUID END CONNECTION |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES FIRST FLUID END CONNECTION |
| THREAD SERIES DESIGNATOR | UNF FIRST FLUID END CONNECTION |
| NOMINAL THREAD SIZE | 0.437 INCHES FIRST FLUID END CONNECTION |
| THREAD QUANTITY PER INCH | 20 FIRST FLUID END CONNECTION |
| THREAD CLASS | 3B FIRST FLUID END CONNECTION |
| END ITEM IDENTIFICATION | F/A-22 RAPTOR |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | COUPLING |
