NSN 4730-01-535-1782 AFP1321T0835, AFP1321T08-35, AP420T0835
Product Details | TUBE COUPLING
4730-01-535-1782 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: AFP1321T0835, AFP1321T08-35, AP420T0835, AP420T08-35, R44276T0835, R44276T-08-35, 5PTV54020835, 5PTV5402-08-35, 4730-01-535-1782, 01-535-1782, 4730015351782, 015351782
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 17 NOV 2005 | 01-535-1782 | 06078 ( COUPLING, TUBE ) |
Drawings & Photos | NSN 4730-01-535-1782
Cross Reference | NSN 4730-01-535-1782
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5PTV5402-08-35 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| AFP1321T08-35 | 30974 | AEROFIT, LLC |
| AP420T08-35 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| R44276T-08-35 | 50599 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCT DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4730-01-535-1782
Technical Data | NSN 4730-01-535-1782
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R54520 OVERALL |

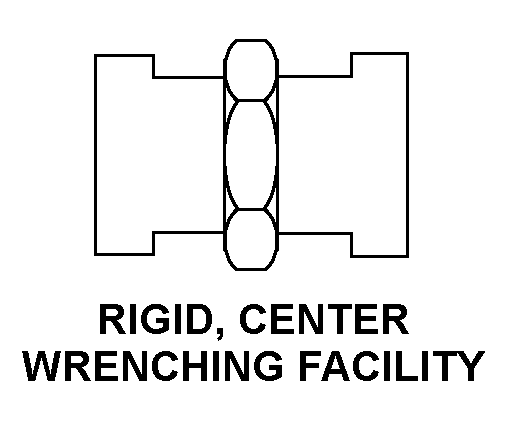

| STYLE DESIGNATOR | A27 RIGID, CENTER WRENCHING FACILITY |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END BUTT WELD TUBE 2ND END |
| SEAT ANGLE | 12.0 DEGREES 1ST END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNJ 1ST END |
| NOMINAL THREAD SIZE | 1.125 INCHES 1ST END |
| THREAD QUANTITY PER INCH | 16 1ST END |
| THREAD CLASS | 3A 1ST END |
| TUBING WALL NOMINAL THICKNESS FOR WHICH DESIGNED | 0.035 INCHES 2ND END |
| NOMINAL OVERALL LENGTH | 1.074 INCHES |
| SPECIAL FEATURES | CENTER SECTIONS |
| III END ITEM IDENTIFICATION | F/A-22 RAPTOR |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | UNION, TUBE |
Restrictions/Controls & Freight Information | NSN 4730-01-535-1782
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-535-1782
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | FR | TL:F-22 AIRCRAFT |
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F01 | Lockheed Martin Aeronautical Systems Marietta, GA 30063-0659 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
