Product Details | QUICK DISCONNECT COUPLING HALF

4730-00-540-4029 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Part Alternates: 1041J12A, 4730-00-540-4029, 00-540-4029, 4730005404029, 005404029

Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings

Supply Group (FSG) NSN Assign. NIIN
47 01 JAN 1963 00-540-4029

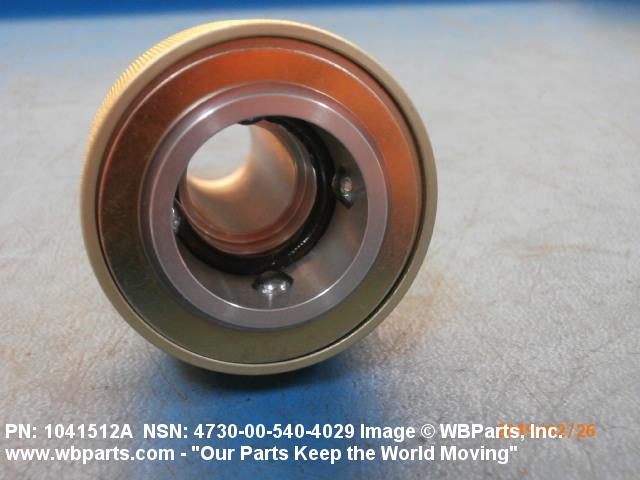

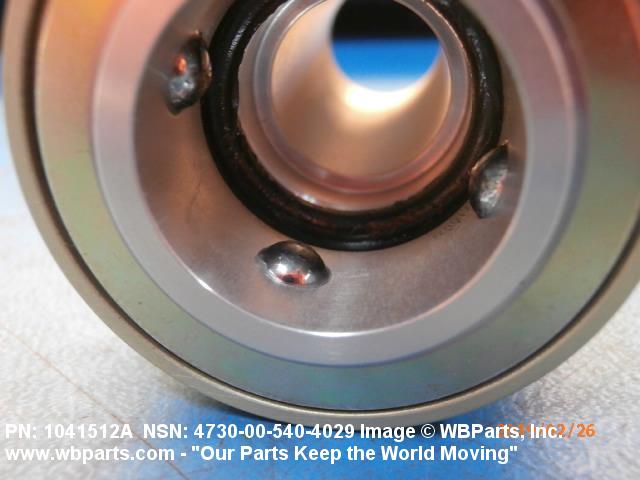

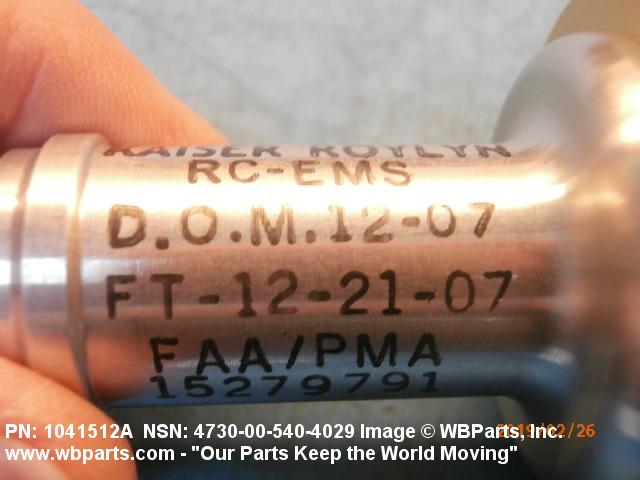

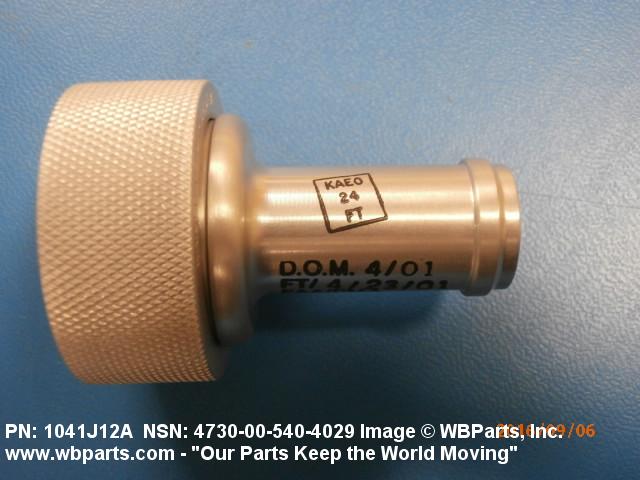

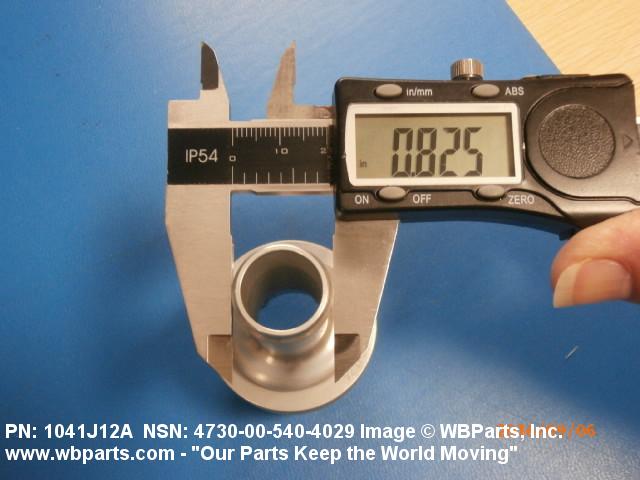

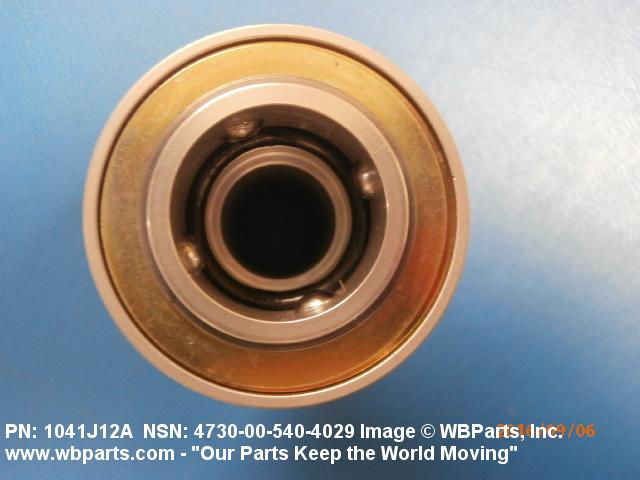

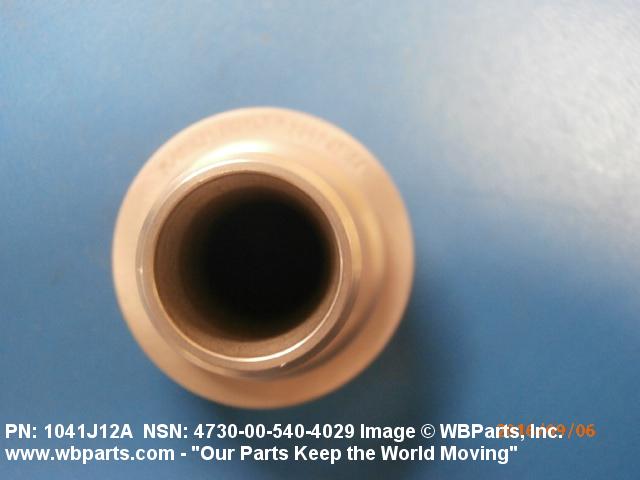

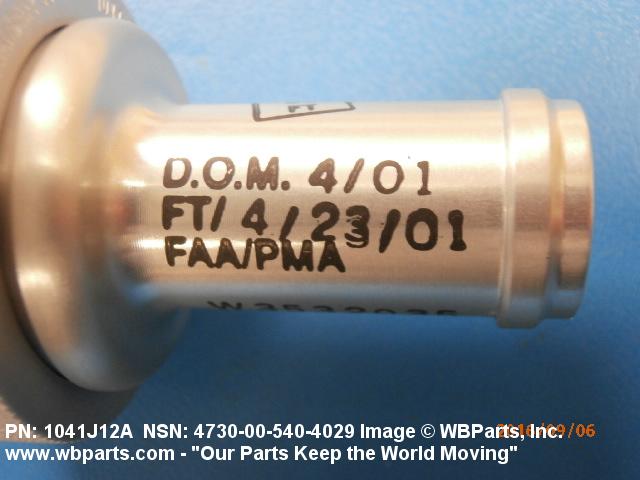

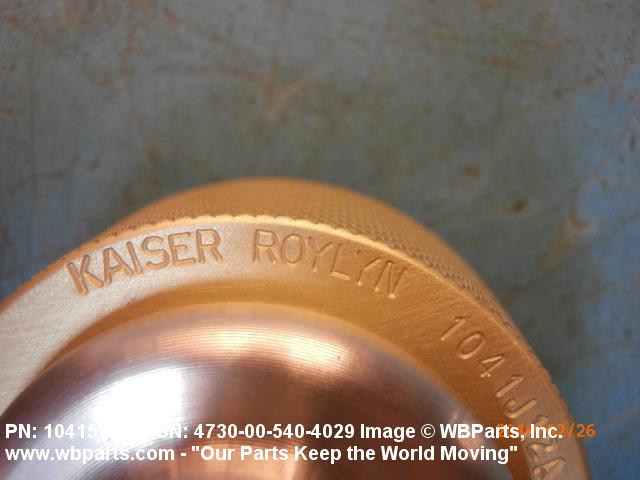

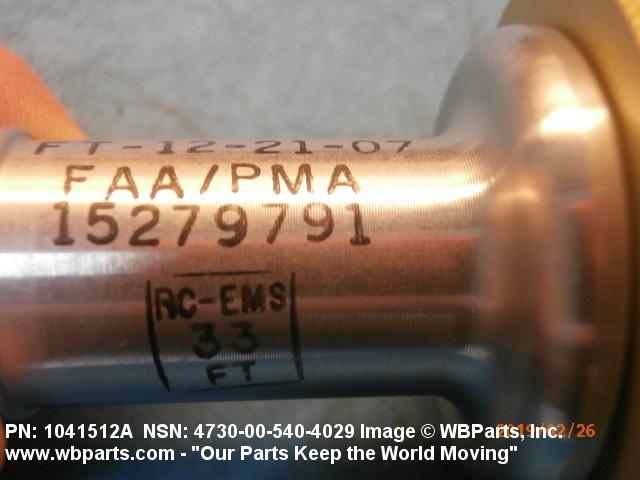

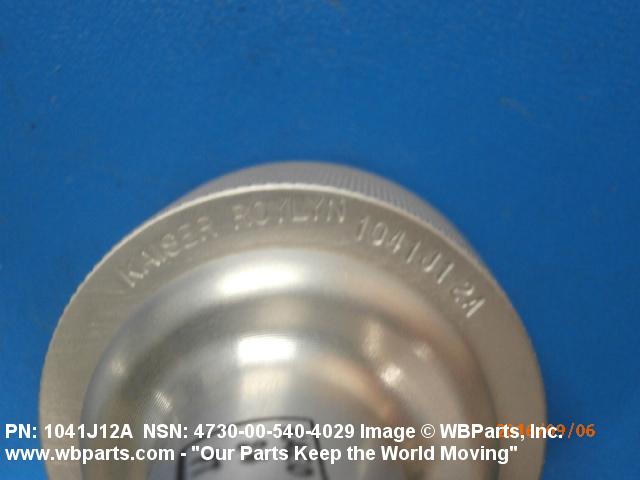

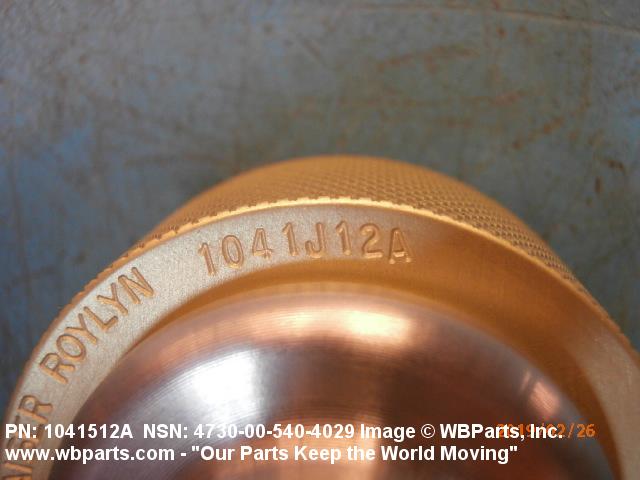

Drawings & Photos | NSN 4730-00-540-4029


Demand History | NSN 4730-00-540-4029

Part Number Request Date QTY Origin
4730-00-540-4029 2024-12-337 2 KR
4730-00-540-4029 2024-12-337 2 KR
1041J12A 2024-08-226 1 DIBBS
1041J12A 2024-07-211 1 DIBBS
1041J12A 2024-05-123 2 United States
4730-00-540-4029 2024-02-40 3 United States
4730-00-540-4029 2023-12-335 5 US
1041J12A 2023-09-257 1 DIBBS
1041J12A 2023-07-212 4 DIBBS
1041J12A 2022-11-311 1 DIBBS
1041J12A 2022-10-299 1 DIBBS
4730-00-540-4029 2022-10-278 6 FR
4730-00-540-4029 2021-04-111 2 US
4730-00-540-4029 2021-03-60 2 United States
4730-00-540-4029 2020-11-325 5 DE
4730-00-540-4029 2019-12-346 3 FX
1041J12A 2019-05-133 2 United States
4730-00-540-4029 2018-11-319 2 United States
4730-00-540-4029 2018-05-144 4 AU
4730-00-540-4029 2018-03-64 1 United States
1041J12A 2018-01-23 1 United States
1041J12A 2017-12-339 1 United States
1041J12A 2017-11-307 2 United States
1041J12A 2017-07-206 1 United States
1041J12A 2017-04-109 2 United States
1041J12A 2017-04-107 3 United States
1041J12A 2016-09-270 1 United States
1041J12A 2016-09-245 1 United States
4730-00-540-4029 2015-05-146 17 DIBBS
4730-00-540-4029 2015-05-134 17 DIBBS
1041J12A 2015-02-55 12 United States
4730-00-540-4029 2014-07-212 5 DIBBS
4730-00-540-4029 2014-06-170 1 DIBBS
4730-00-540-4029 2014-06-166 4 DIBBS
4730-00-540-4029 2014-04-112 1 DIBBS
4730-00-540-4029 2012-03-75 6 DIBBS
4730-00-540-4029 2012-02-46 1 DIBBS
4730-00-540-4029 2010-07-204 8 DIBBS
4730-00-540-4029 2009-01-02 6 DIBBS

Cross Reference | NSN 4730-00-540-4029

Part Number Cage Code Manufacturer
1041J12A 86831 ROCKWELL COLLINS ELECTROMECHANICAL SYSTEMS, INC

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 4730-00-540-4029

Technical Data | NSN 4730-00-540-4029

Characteristic Specifications
MATERIAL ALUMINUM ALLOY BODY
SURFACE TREATMENT ANODIZE BODY
STYLE DESIGNATOR A1 MALE COUPLING HALF

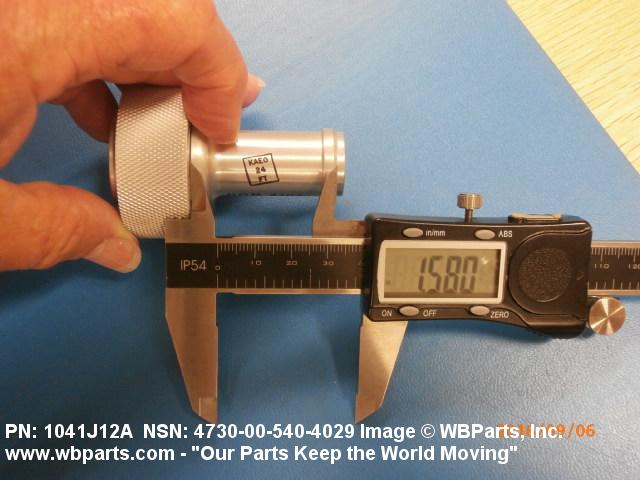

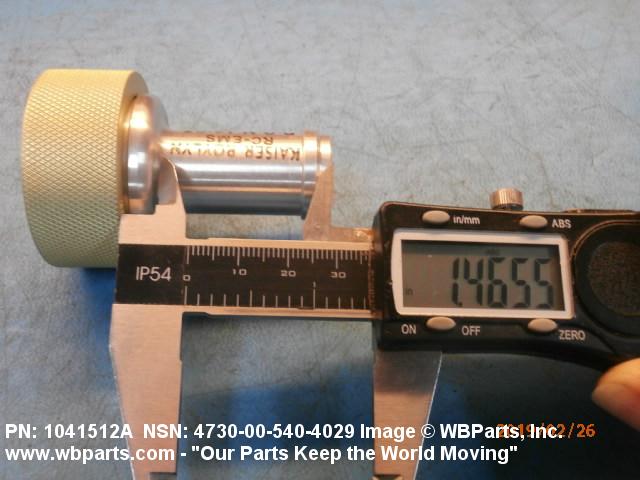

LEG LENGTH 1.500 INCHES NOMINAL

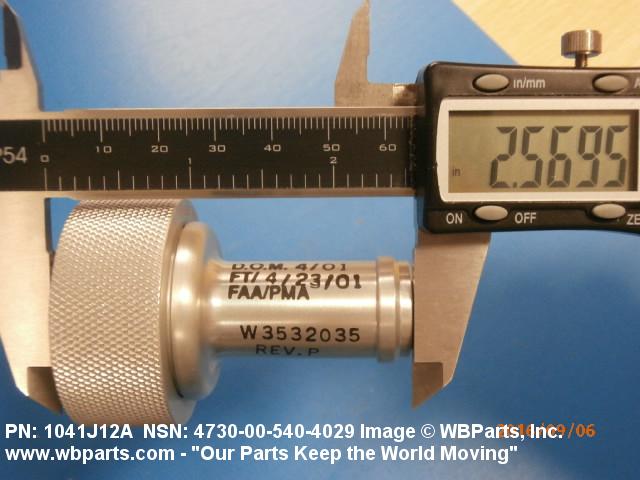

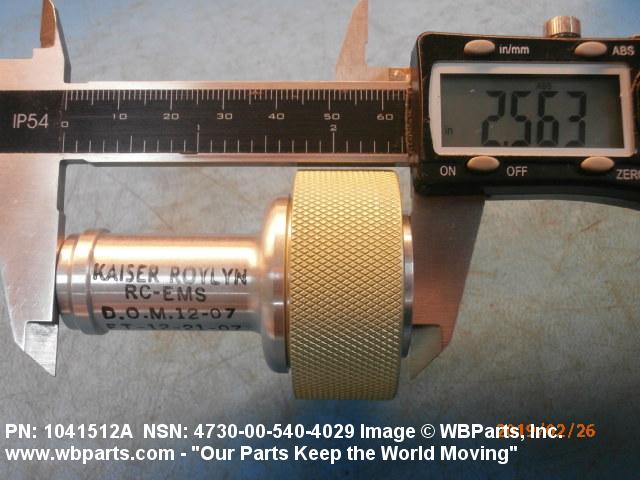

OVERALL LENGTH 2.560 INCHES NOMINAL
CONNECTION TYPE UNTHREADED EXTERNAL HOSE FIRST FLUID END CONNECTION INTERNAL QUICK DISCONNECT ALL ENDS
CONNECTION STYLE E1 BEADED ALL ENDS
QUICK DISCONNECT METHOD TWIST-LOCK ALL ENDS

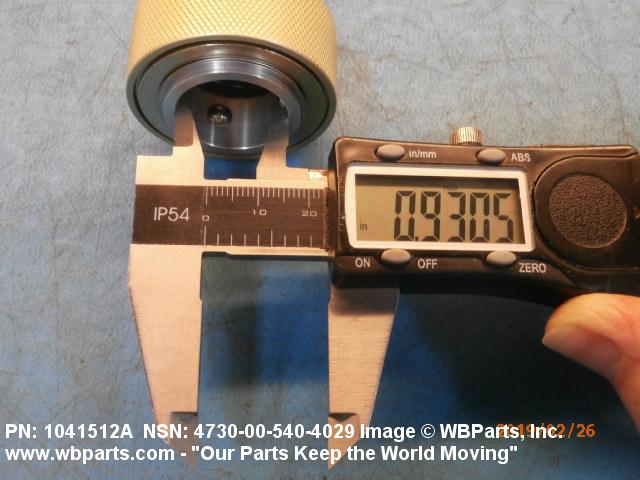

QUICK DISCONNECT NOMINAL SIZE 0.938 INCHES ALL ENDS
NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED 0.750 INCHES ALL ENDS
MATING END IDENTIFICATION ROYLYN INC NIPPLE,PART NO.1032-12
FEATURES PROVIDED SAFETY LOCKING FEATURE
END ITEM IDENTIFICATION 19F AIRCRAFT, EAGLE F-15
(NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED 2900.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE
