NSN 4730-00-540-4142 27105P, 29899D, 369989R1
Product Details | TUBE COUPLING INVERTED NUT
4730-00-540-4142 An externally threaded fastening device which has an internal or external seat, designed to mate with the seat of an internally threaded tube fitting for the purpose of securing the tube to the fitting to form a leakproof connection.
Part Alternates: 27105P, 29899D, 369989R1, 61HD16, 61HD-16 , 81LB16, 81-LB-16, 4730-00-540-4142, 00-540-4142, 4730005404142, 005404142
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-540-4142 | 03857 ( INVERTED NUT, TUBE COUPLING ) |
Drawings & Photos | NSN 4730-00-540-4142
Cross Reference | NSN 4730-00-540-4142
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27105P | 13174 | PARKER HANNIFIN CORP HOSE PRODUCTS DIV |
| 27105P | 30327 | IMPERIAL |
| 29899D | 00447 | WABCO CONSTRUCTION AND MINING EQUIPMENT GROUP INDIANAPOLIS PLANT |
| 29899D | 29510 | KOMATSU AMERICAN INTL CO |
| 29899D | 31007 | NAVISTAR INTL CORP |
| 29899D | 92679 | NAVISTAR INTL CORP MELROSE PARK ENGINE PLANT LOCATION |
| 369989R1 | 31007 | NAVISTAR INTL CORP |
| 61HD-16 | 93061 | PARKER-HANNIFIN, CORPORATION DBA BRASS PRODUCTS DIV |
| 81-LB-16 | 13174 | PARKER HANNIFIN CORP HOSE PRODUCTS DIV |
| 81-LB-16 | 30327 | IMPERIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4730-00-540-4142
Related Products | NSN 4730-00-540-4142
Technical Data | NSN 4730-00-540-4142
| Characteristic | Specifications |
|---|---|
| MATERIAL | BRASS, SAE 72 OR BRASS, SAE 88 |
| STRENGTH RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| MATERIAL HARDNESS RATING | NOT RATED |
| FABRICATION METHOD | BAR STOCK, MACHINED |

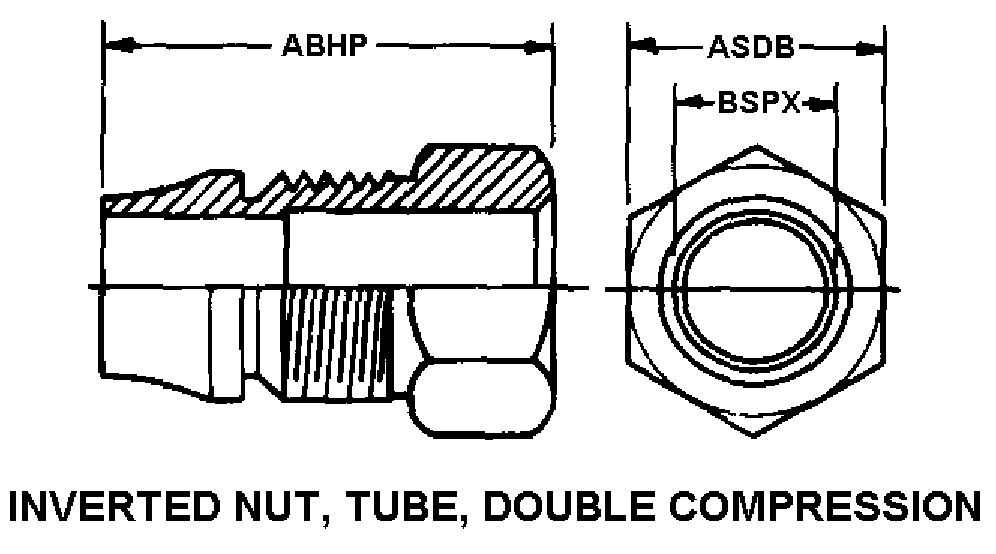

| STYLE DESIGNATOR | A15 INVERTED NUT, TUBE, DOUBLE COMPRESSION |
